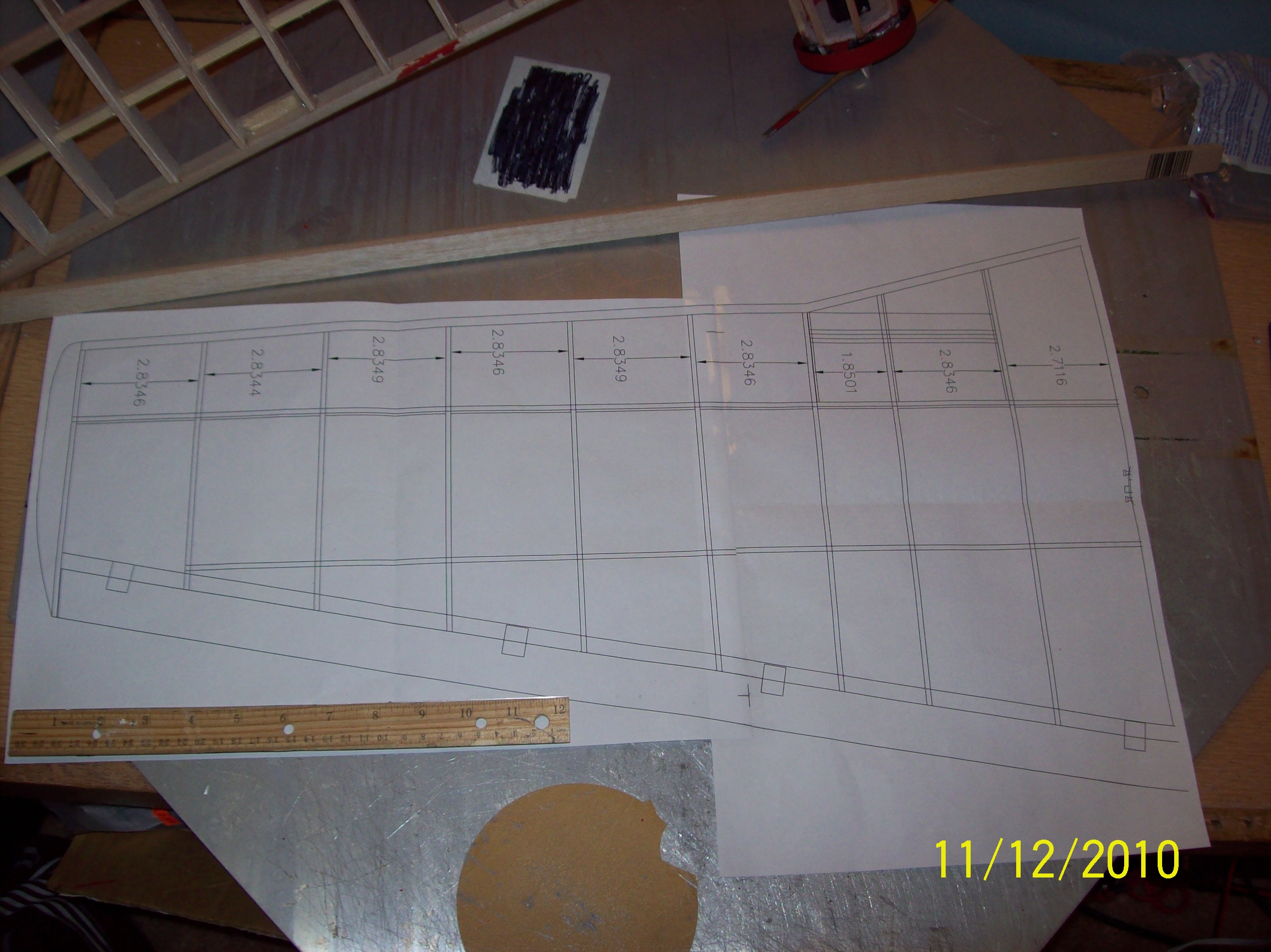

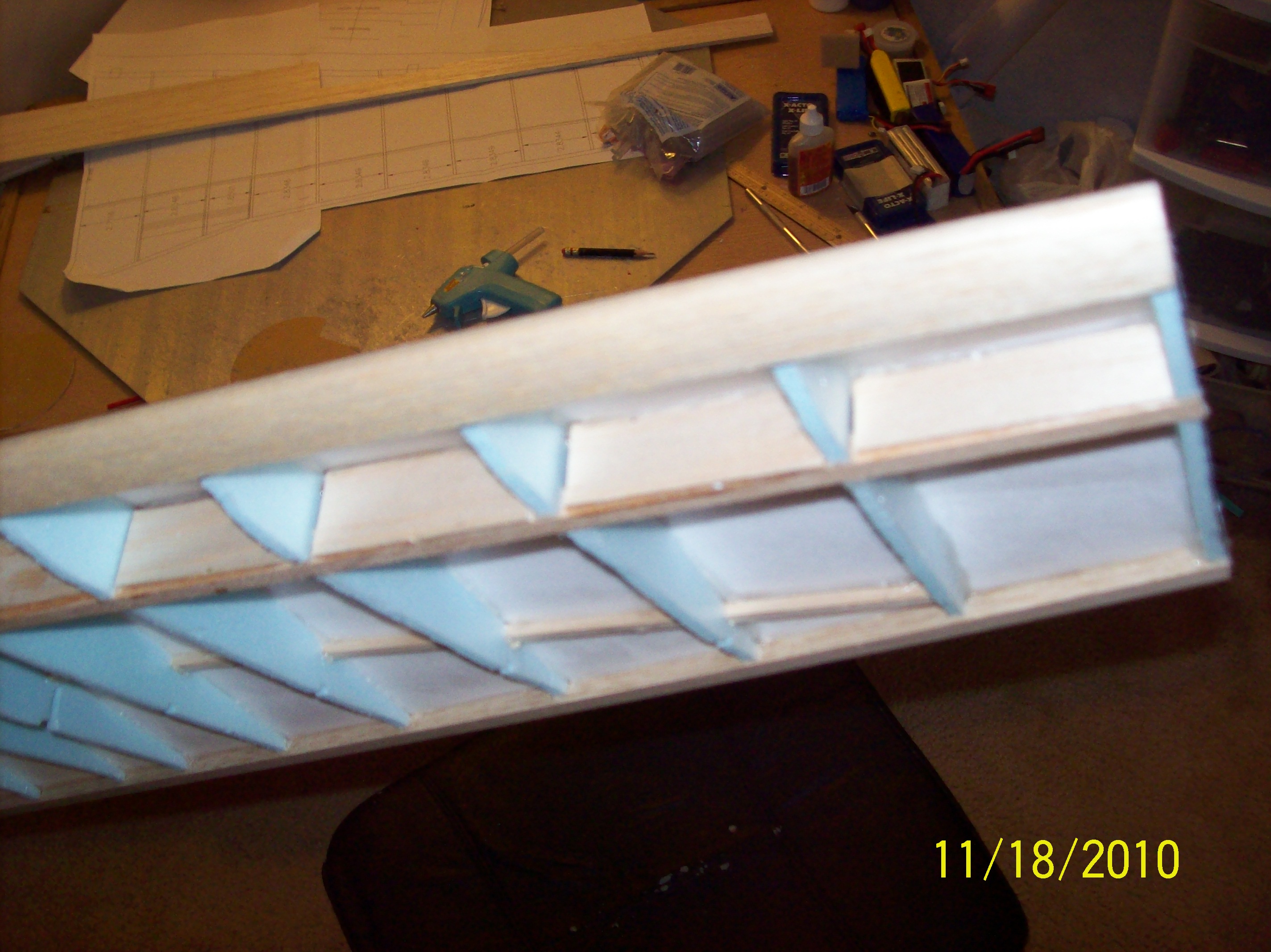

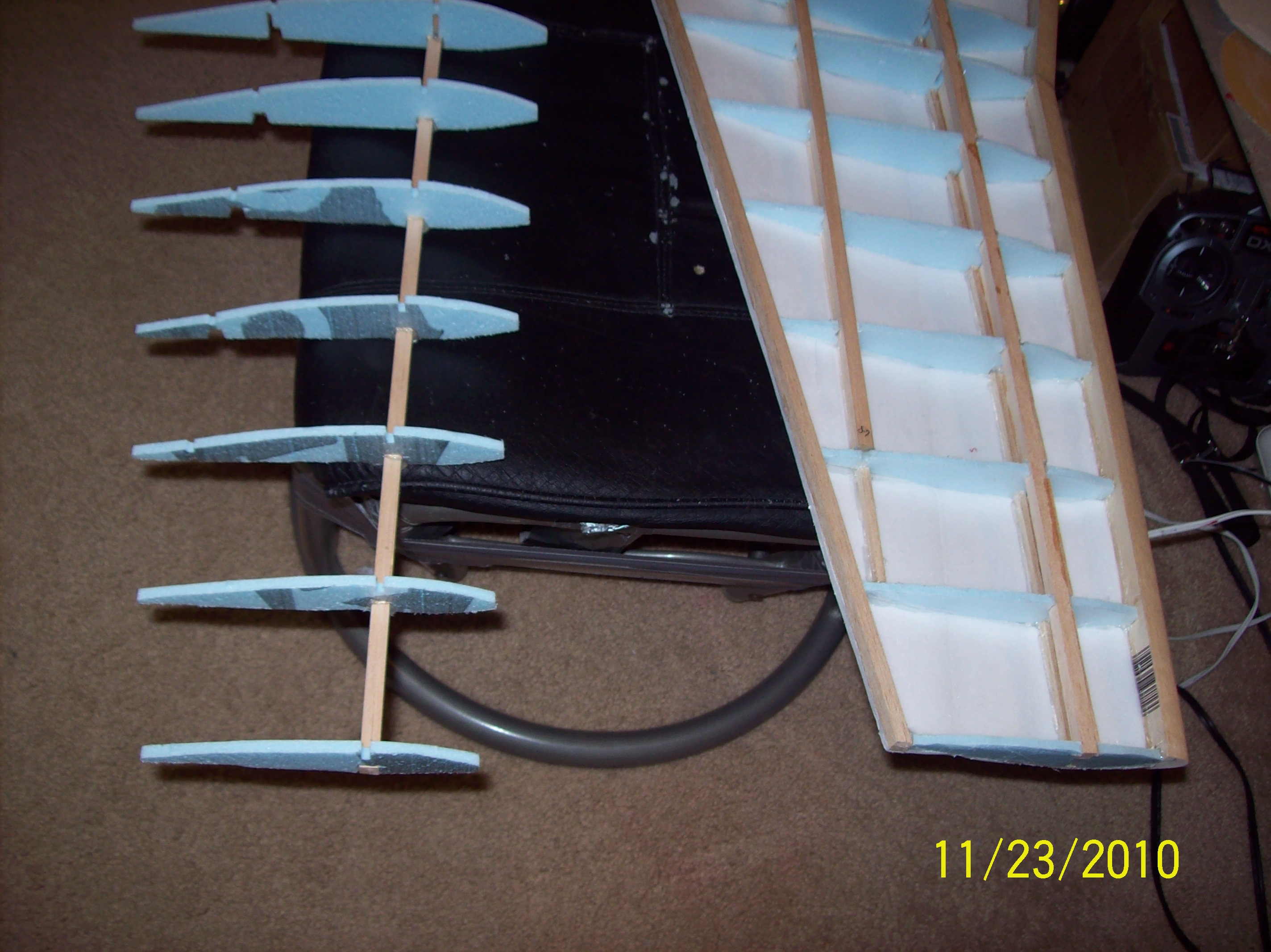

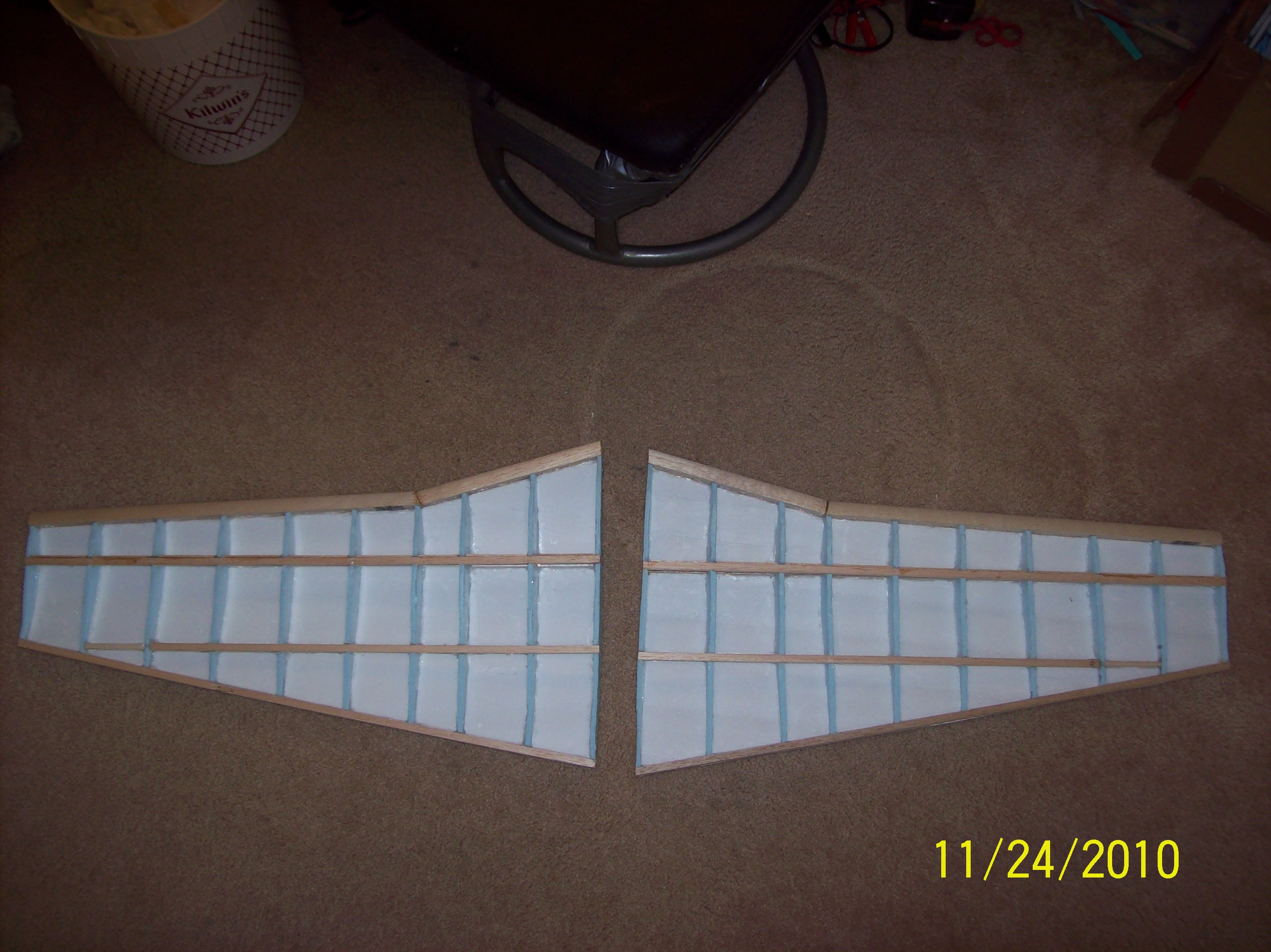

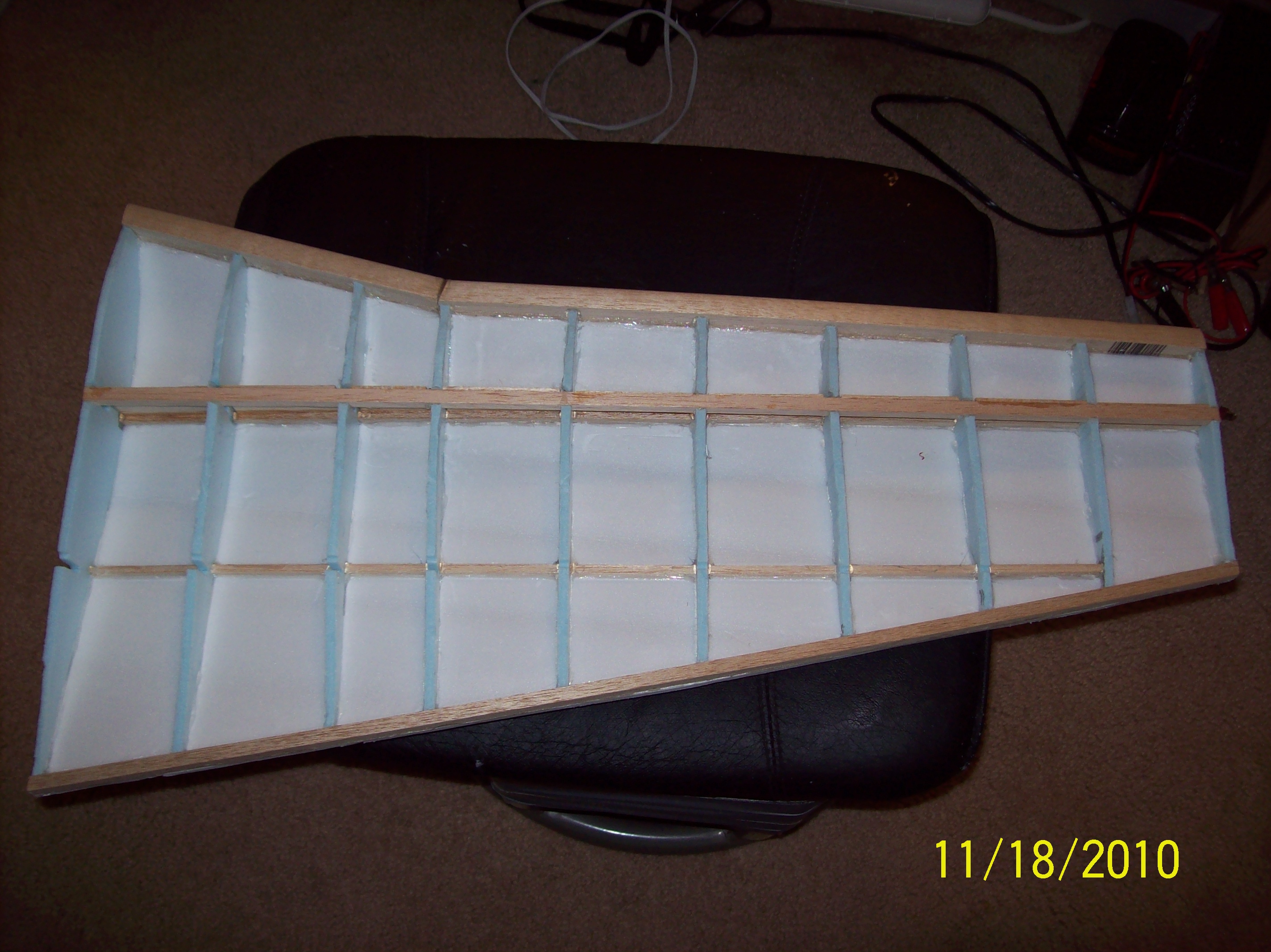

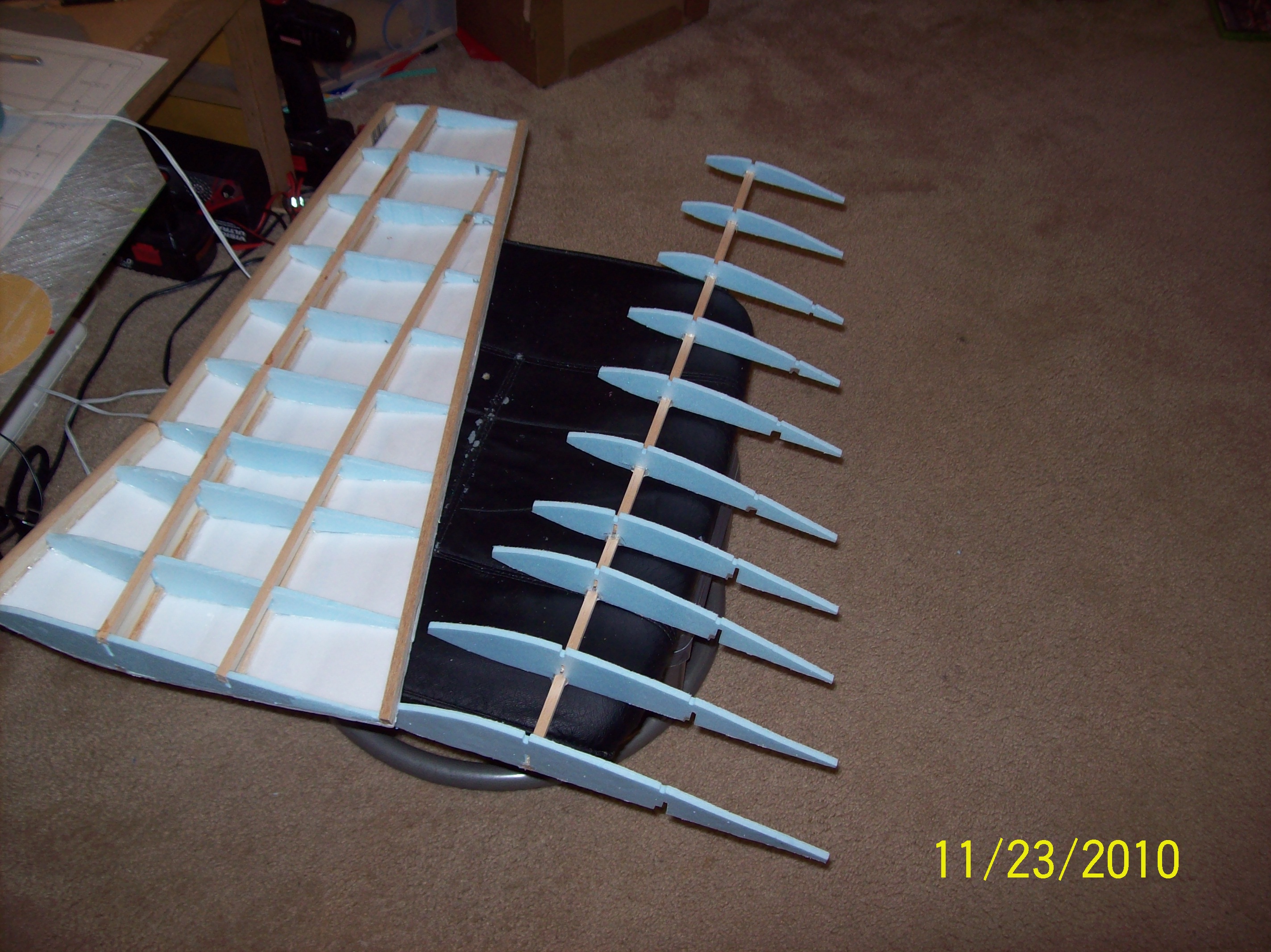

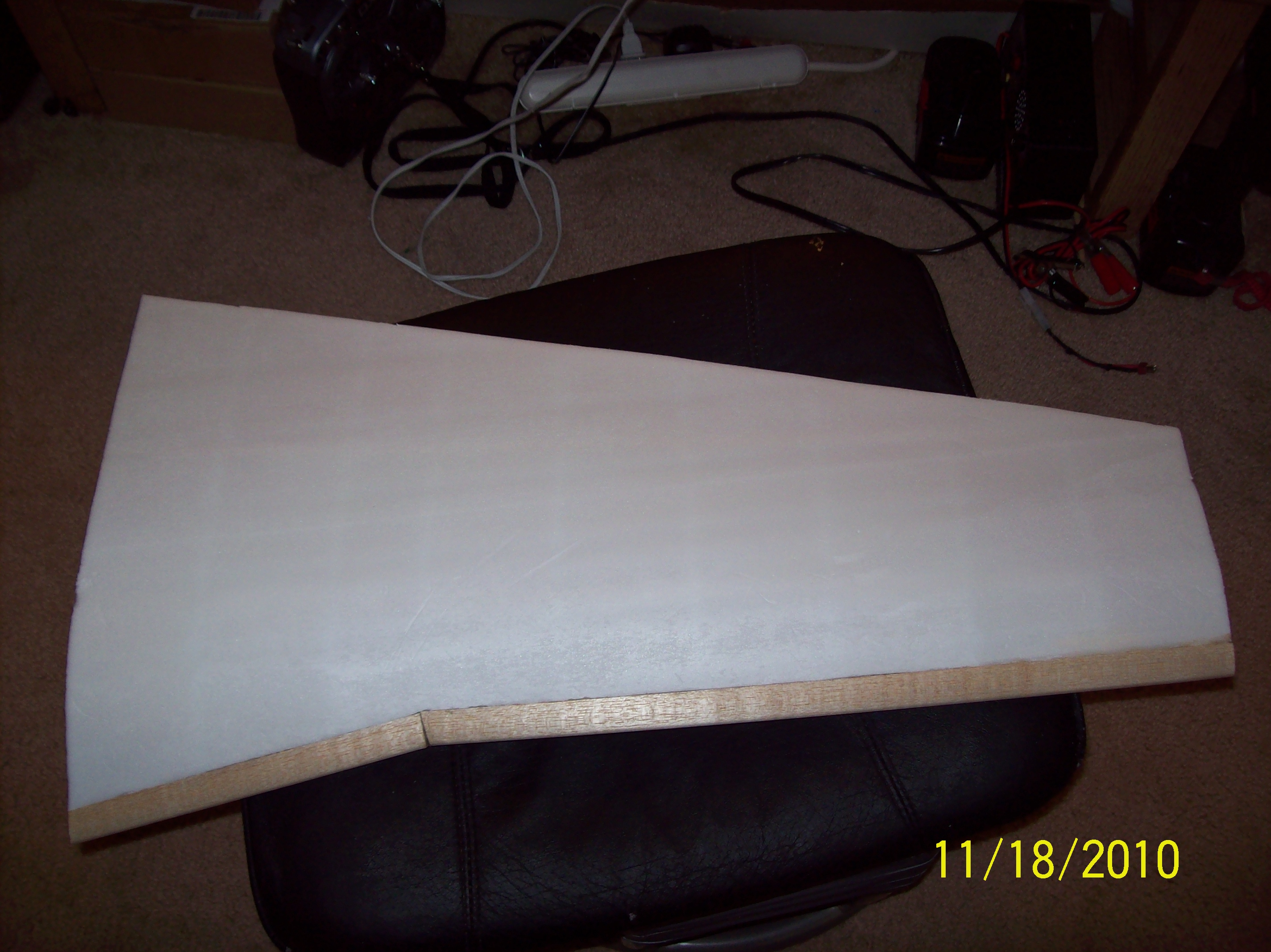

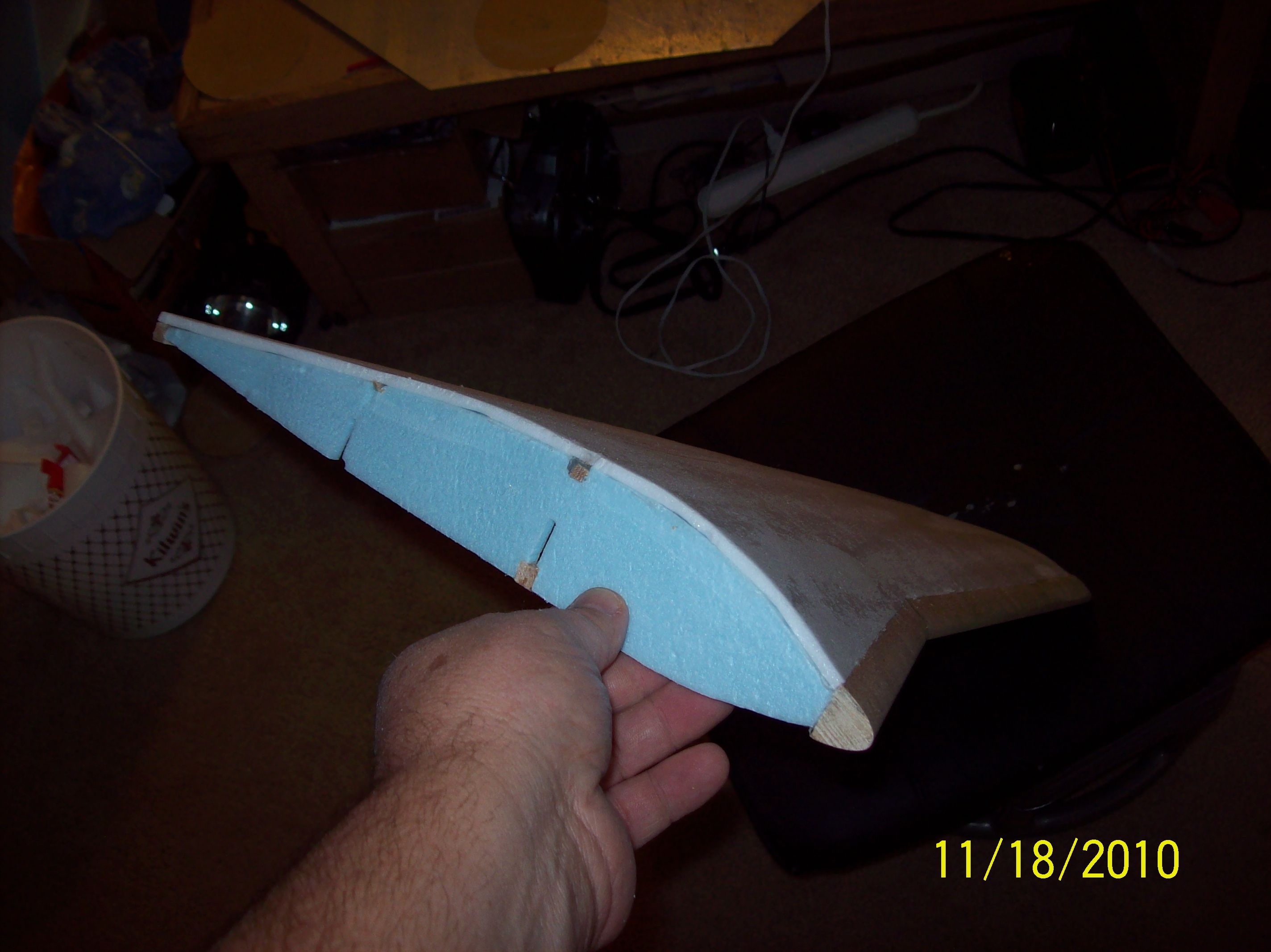

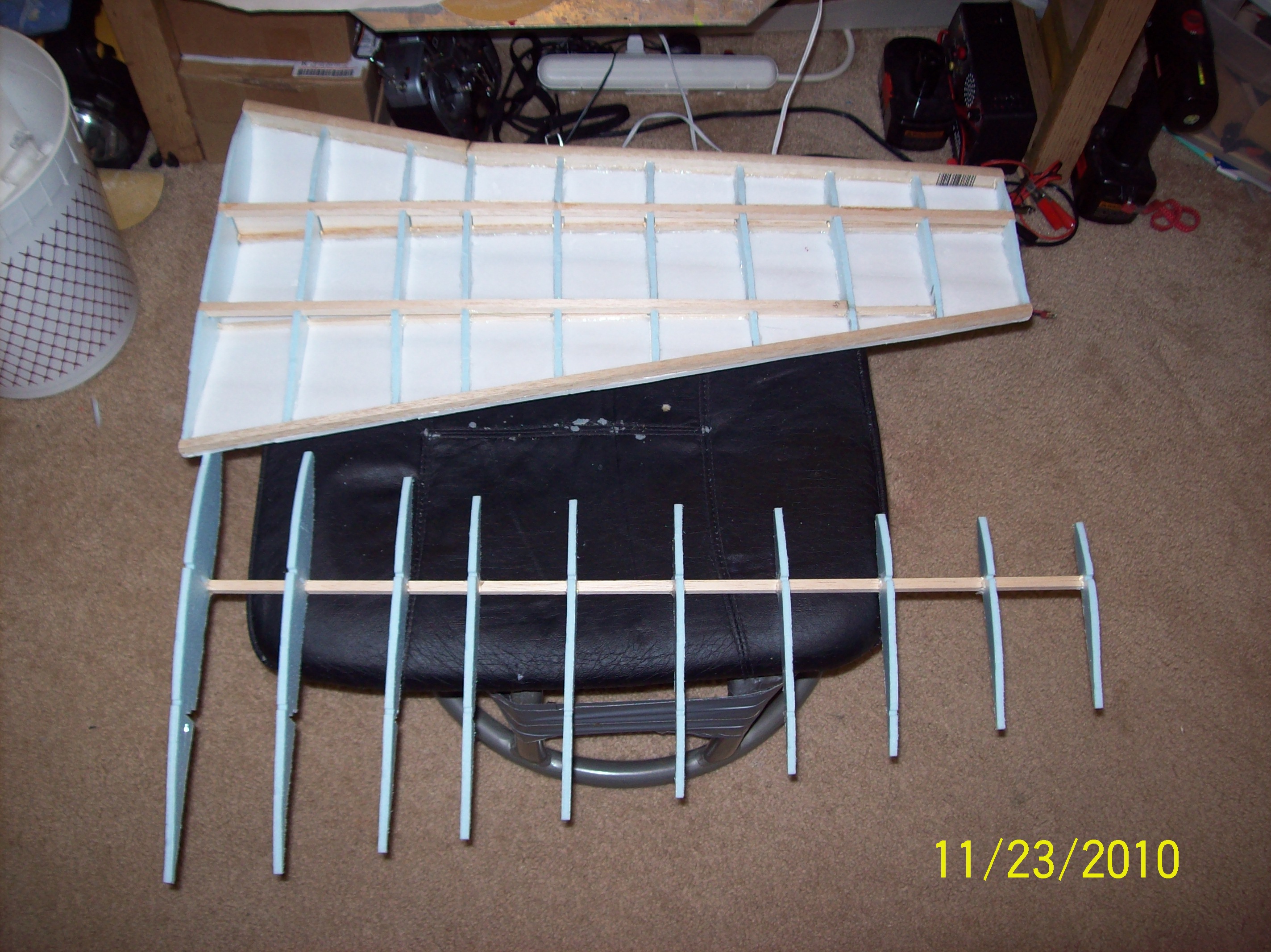

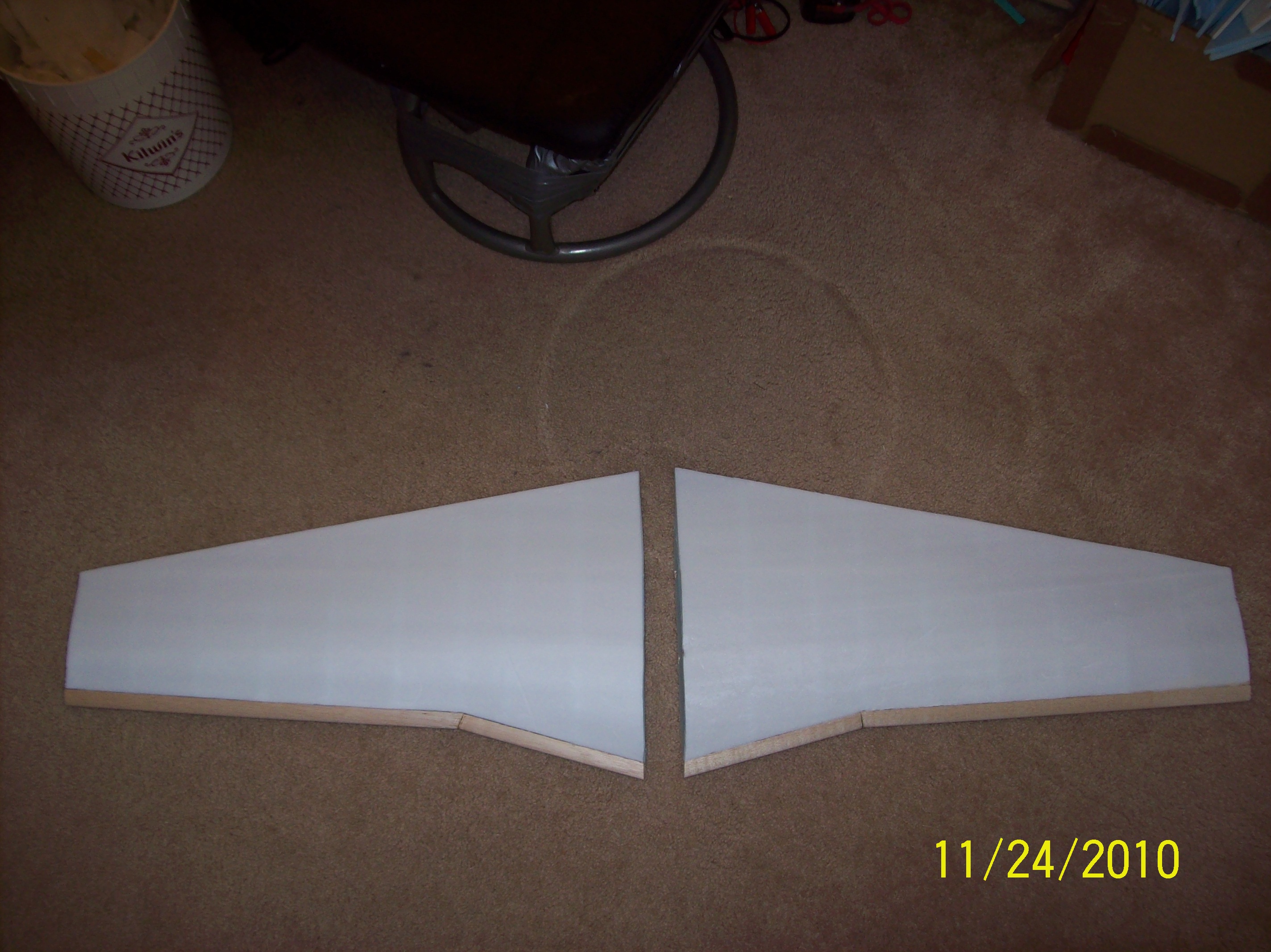

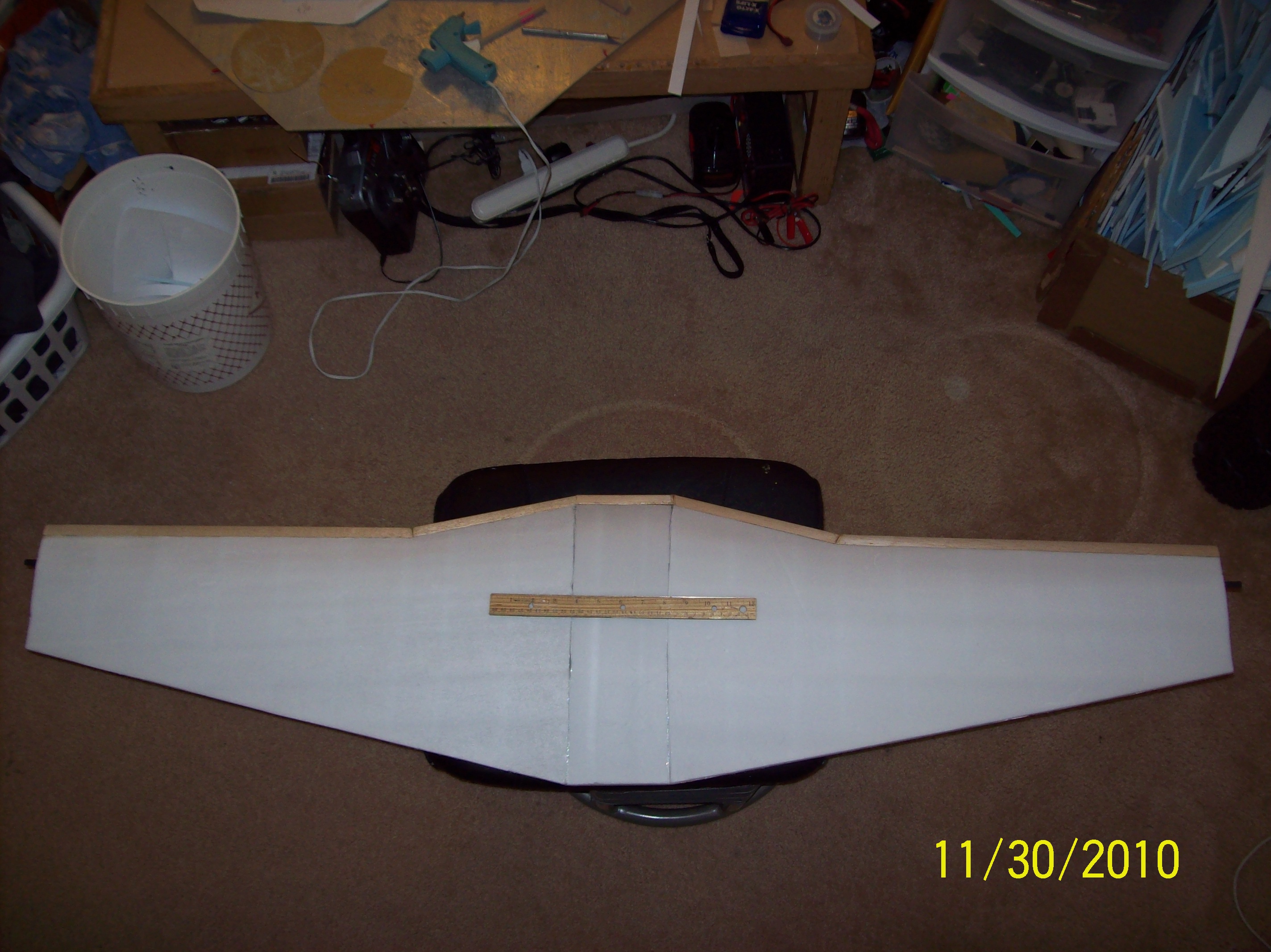

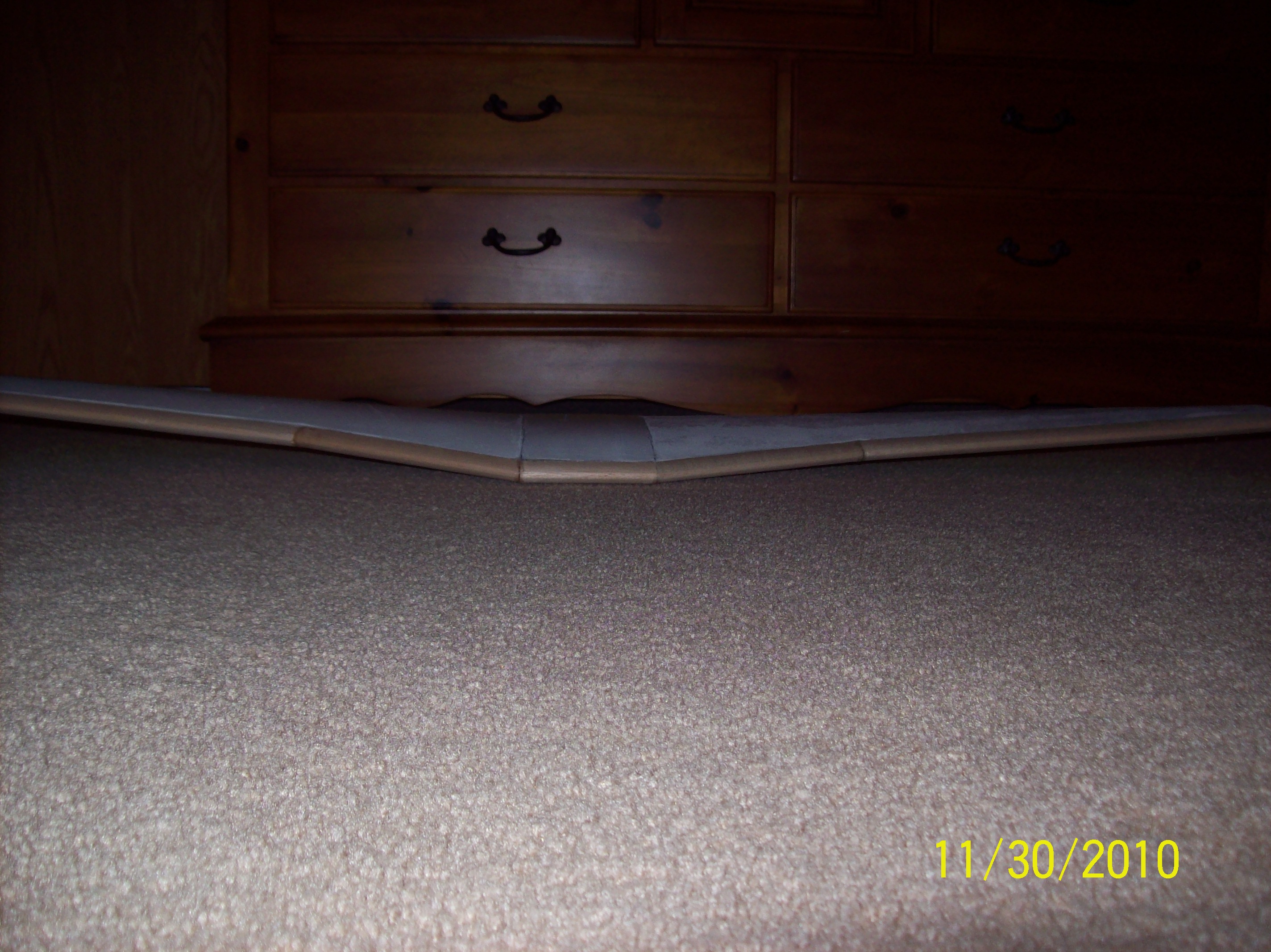

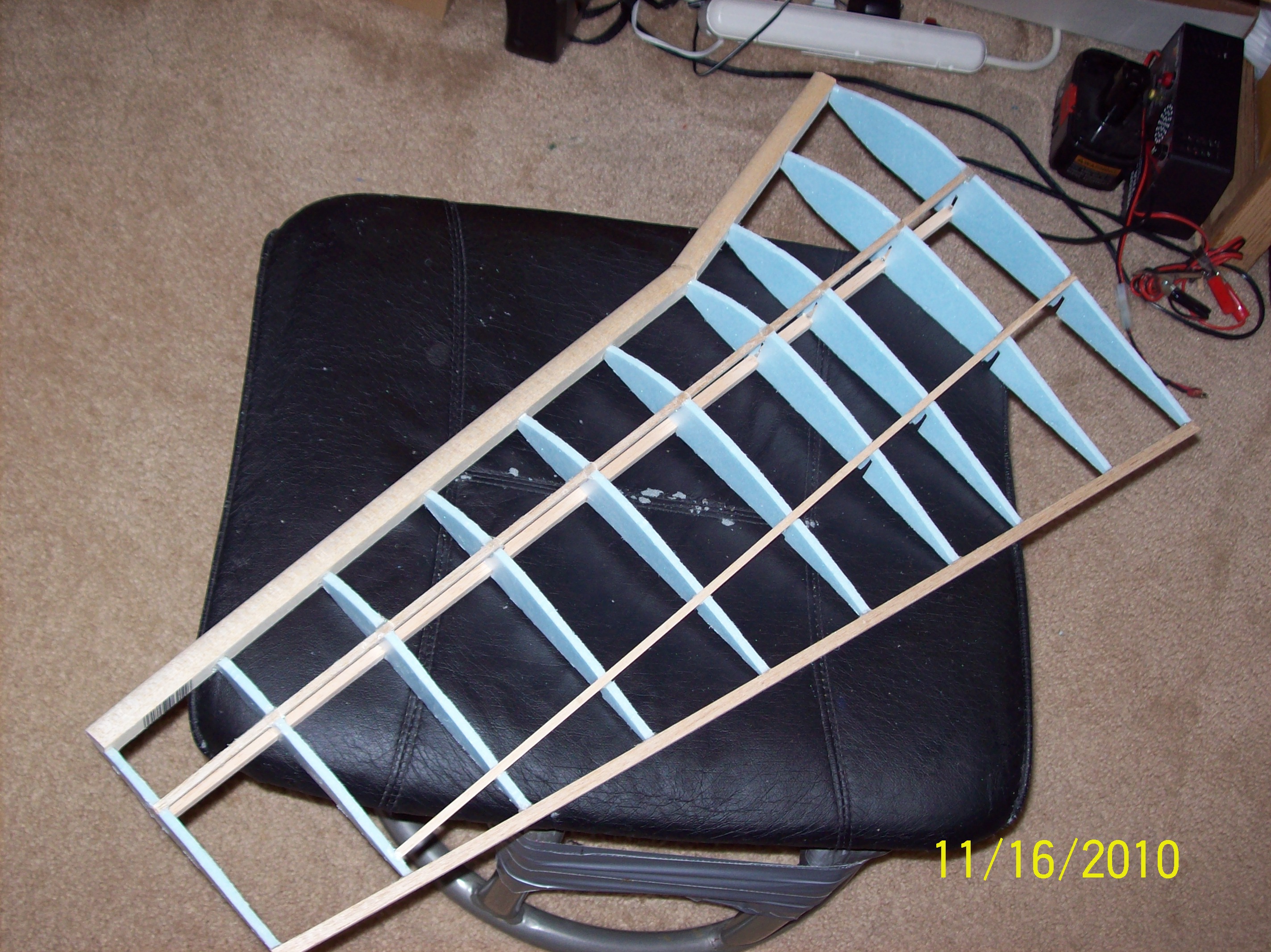

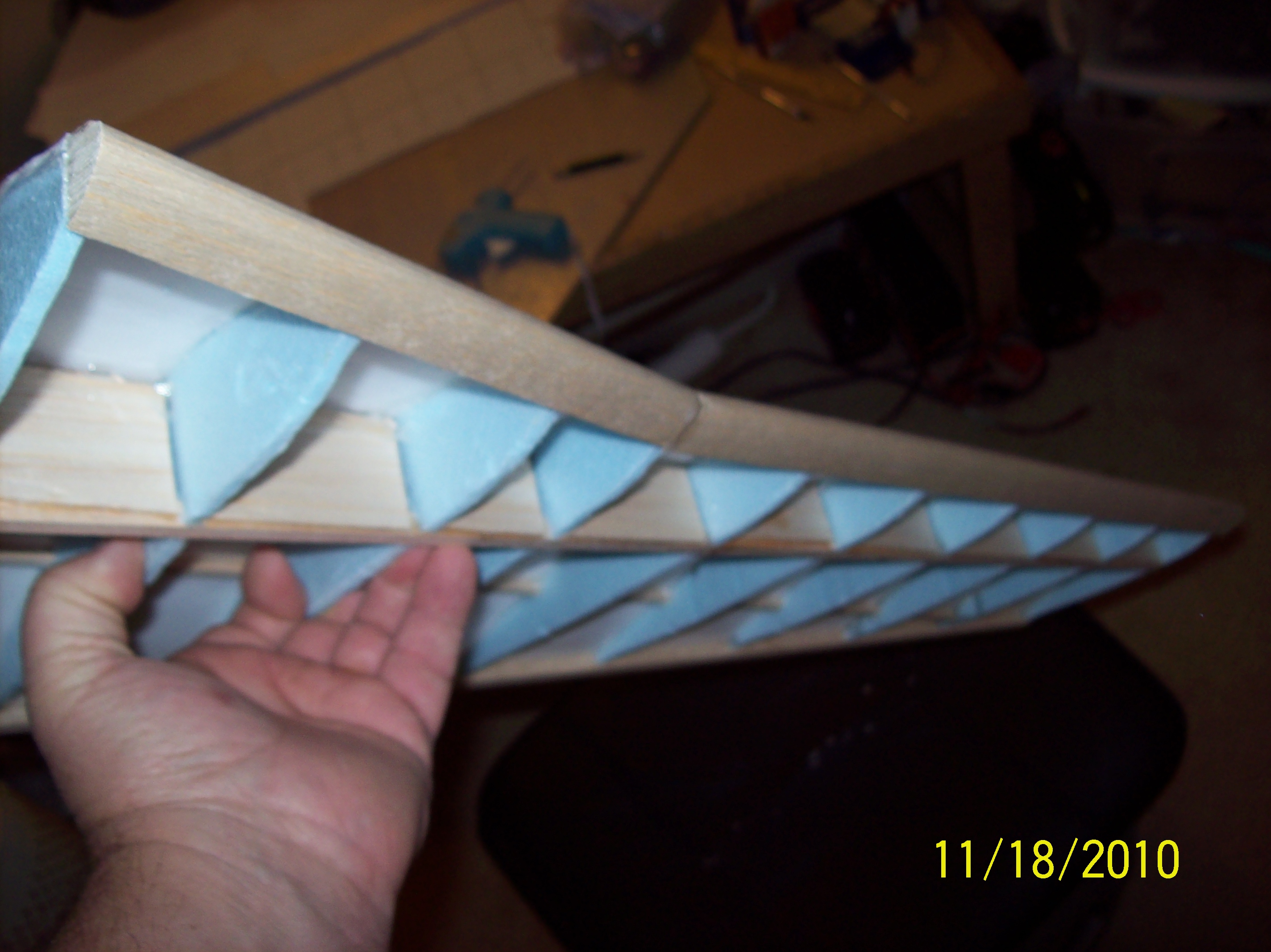

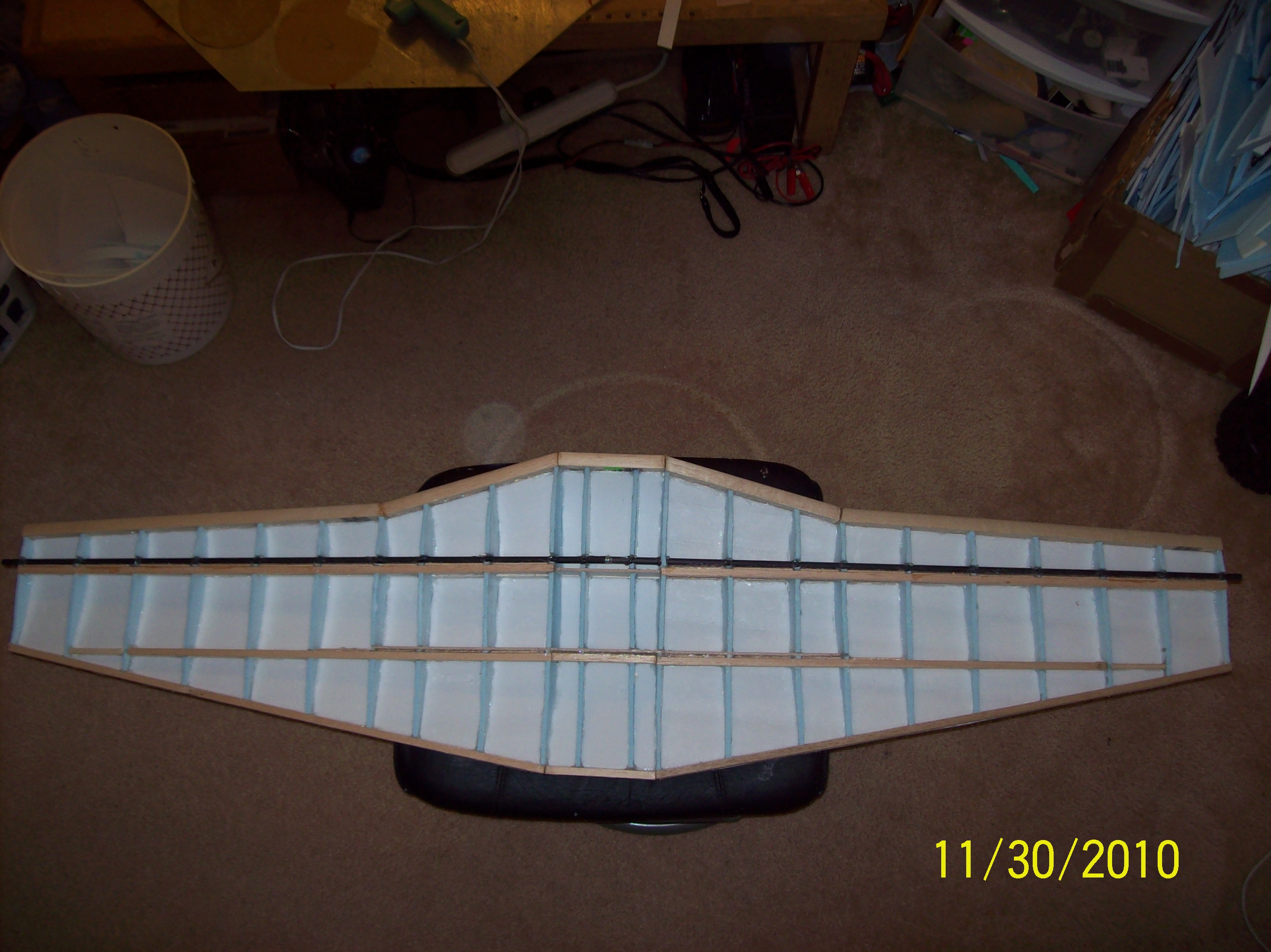

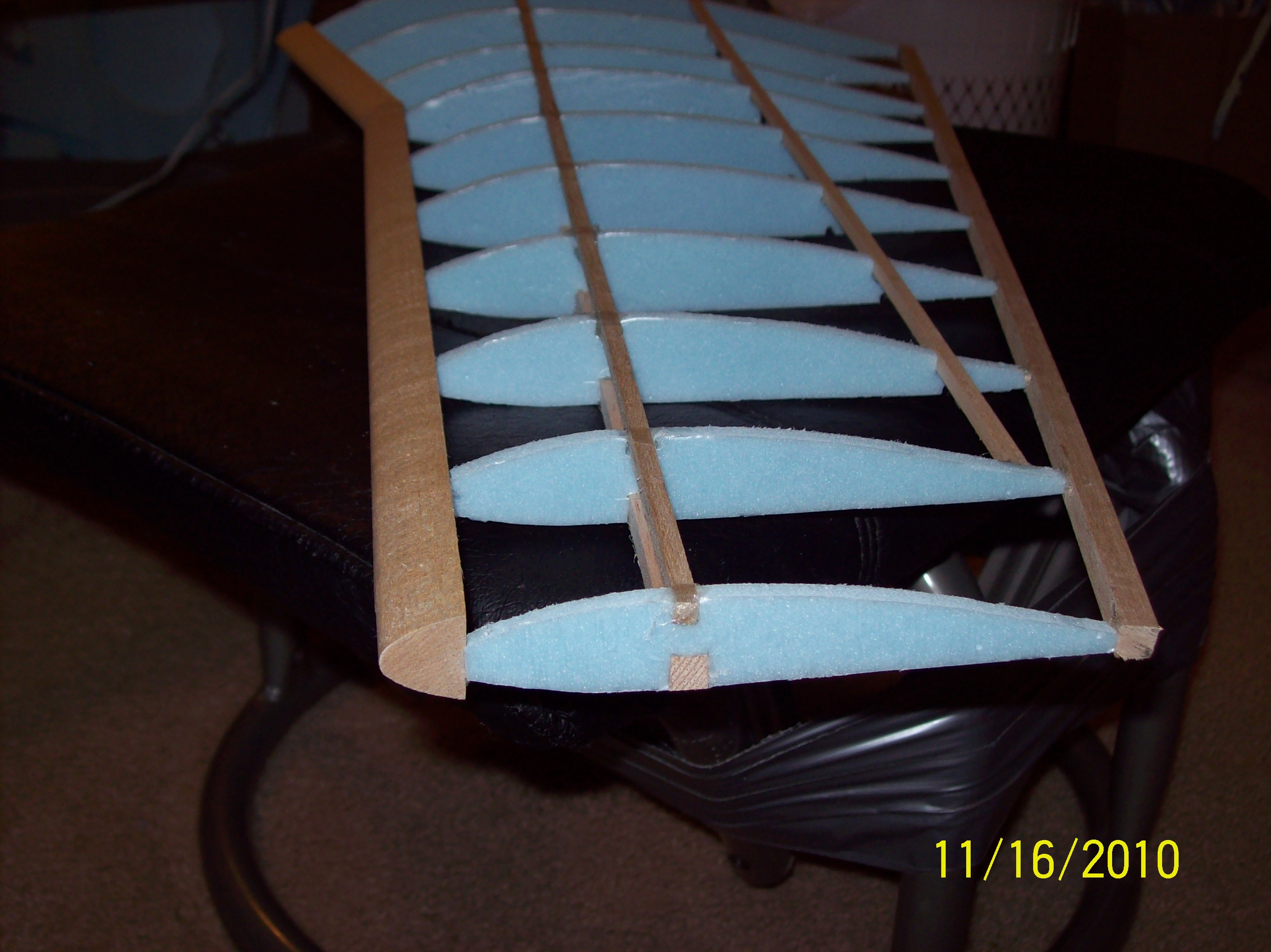

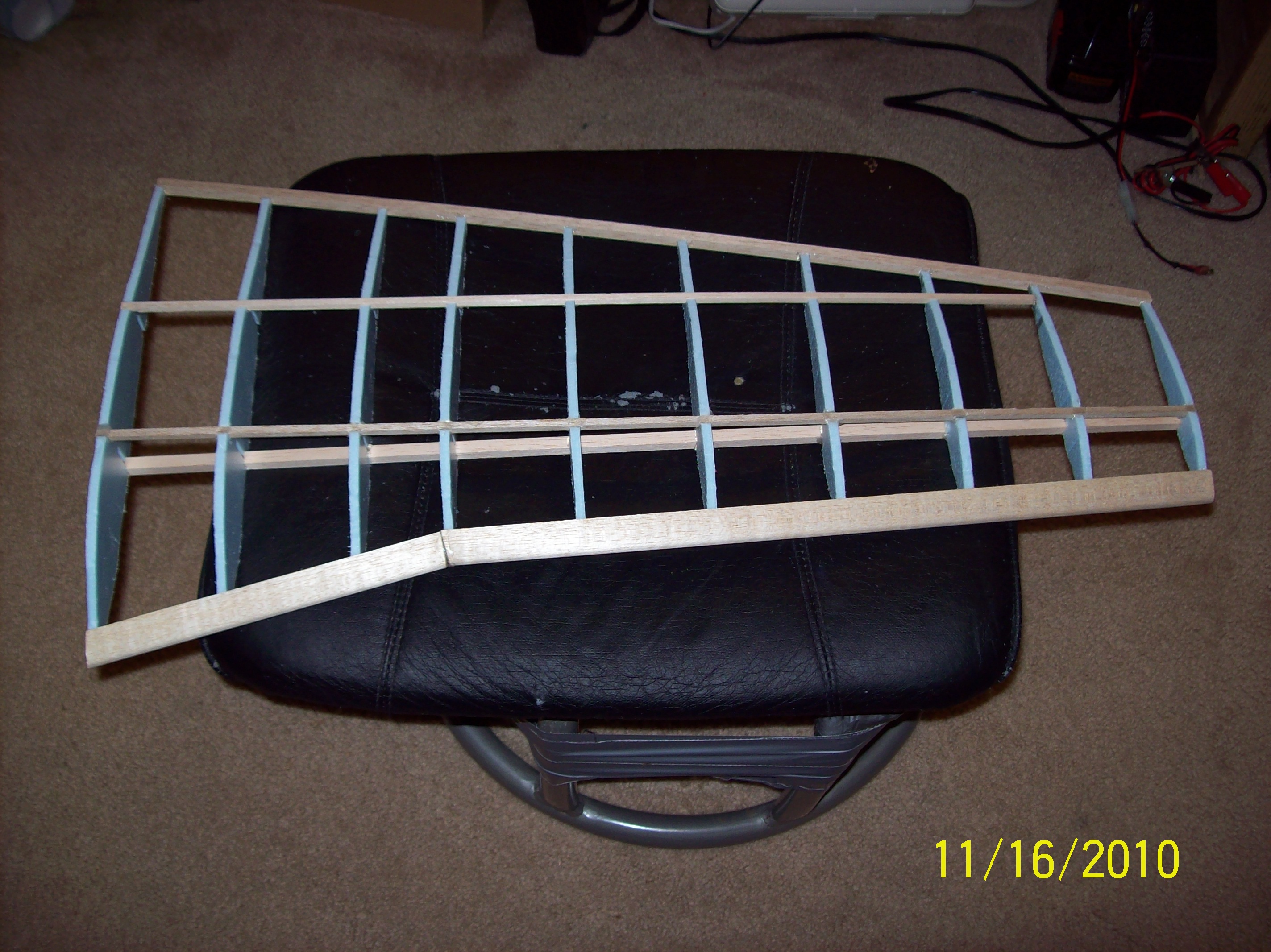

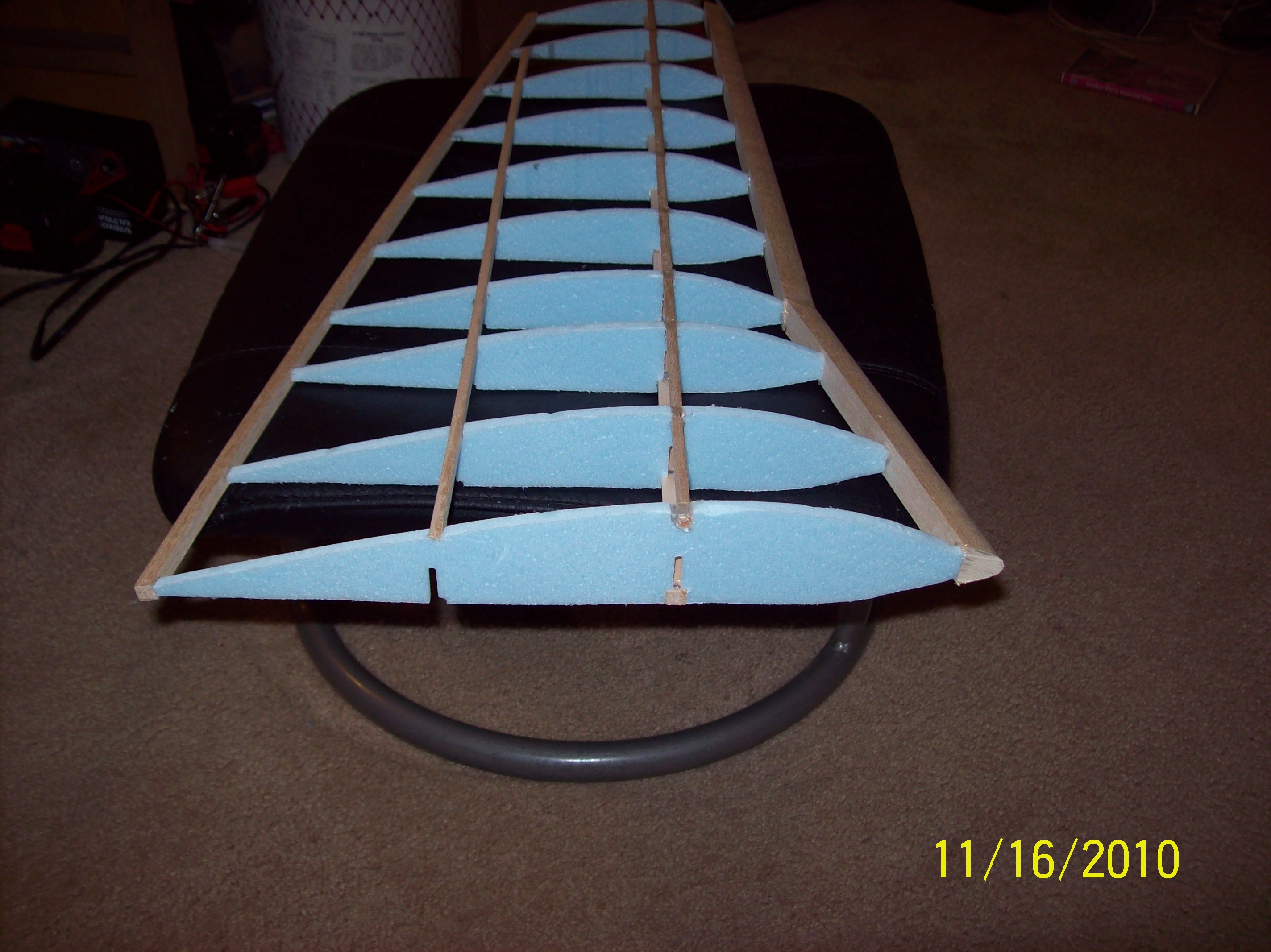

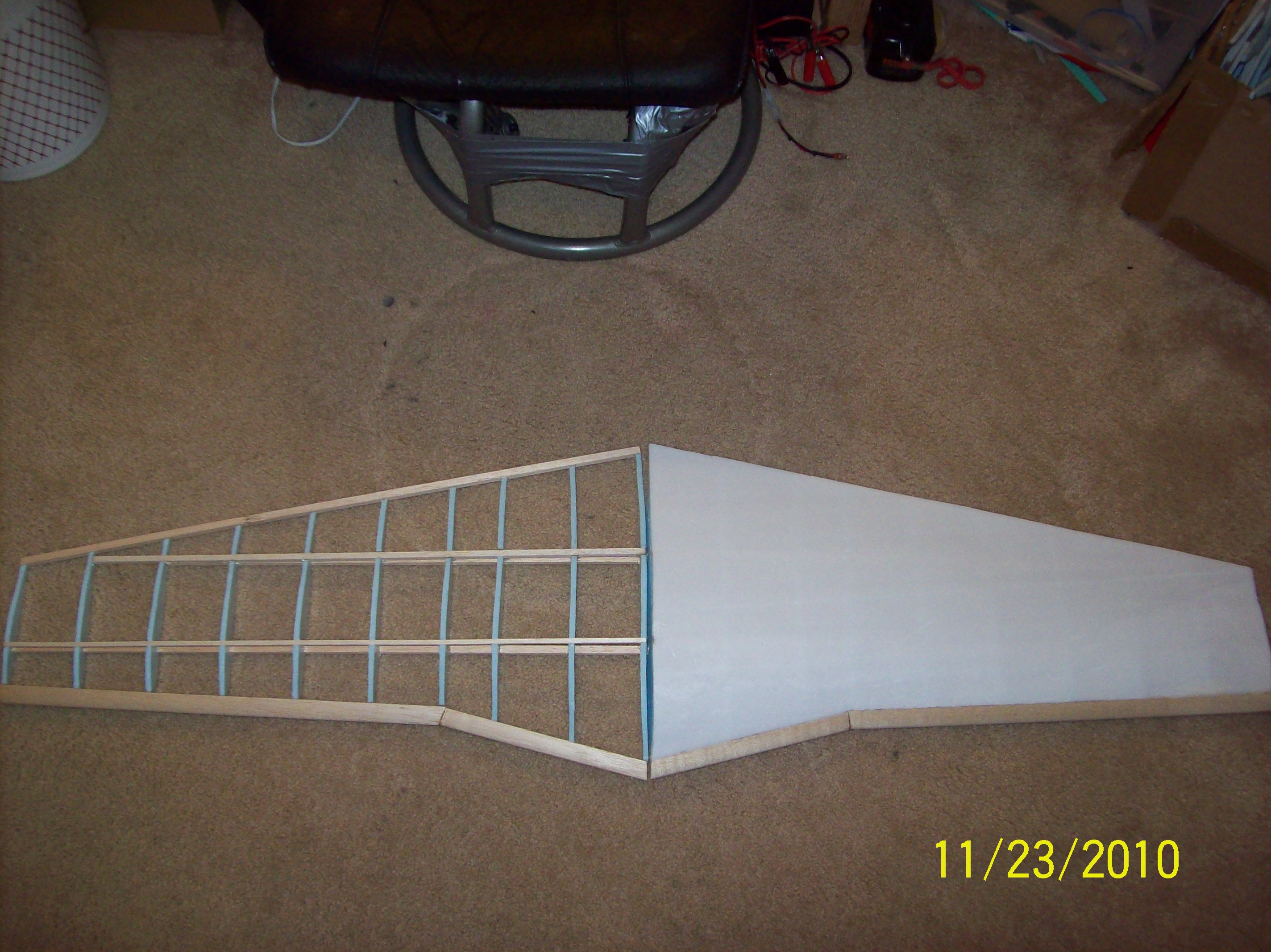

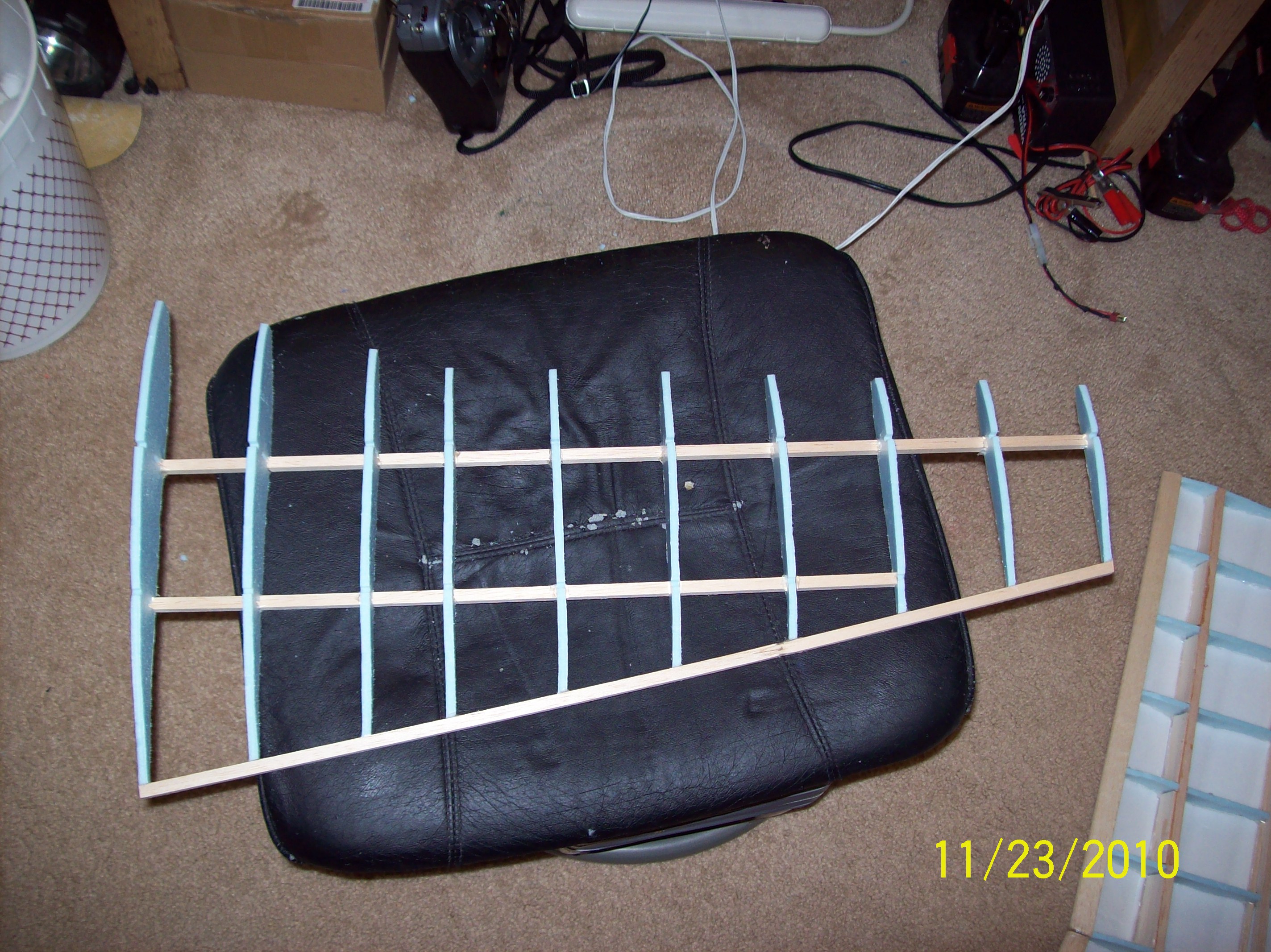

    Started working on a New project... It's a 60" wingspan P51D, once again it will be a hybrid using both foam and balsa. Navionflyer has been very helpful with this one, he is still working on getting the fuselage right for the Phlatprinter. The wing is coming along good, working on getting the Retracts mounted now and soon the Ailerons and Flaps. I will post more as the build progresses... Mudman1959

    Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] ://www.phlatforum.com/PhlatforumVB/converted_files/24611=9199-103_2531.JPG">[​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    mudman1959, Dec 15, 2010
    #1
  2. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Nice work!
    I like the hybrid technique.

    3DMON, Dec 15, 2010
    #2
  3. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    That is so sweet. I'll have to steal the idea!

    TigerPilot, Dec 15, 2010
    #3
  4. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    WOW! Looks great! :cool:

    Anonymous, Dec 15, 2010
    #4
  5. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    Looks great. I plan on doing a P39 in this size range basically the same way. What are you sheeting it with? I was just gonna use blue FFF

    rcav8r, Dec 15, 2010
    #5
  6. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    mudman1959, very nice looking "I beam" construction. keep up the good work. randy.

    rjarois, Dec 15, 2010
    #6
  7. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Great work guys! I really like they way this one is turning out. Looks like it will be very light and very strong as well. Nice job so far
    Do you plan on sharing the plans for this?
    Thanks
    Mark and Trish

    kram242, Dec 15, 2010
    #7
  8. navionflyer

    navionflyer New Member

    Offline
    Messages:
    220
    Trophy Points:
    0
    Location:
    Richland, MI

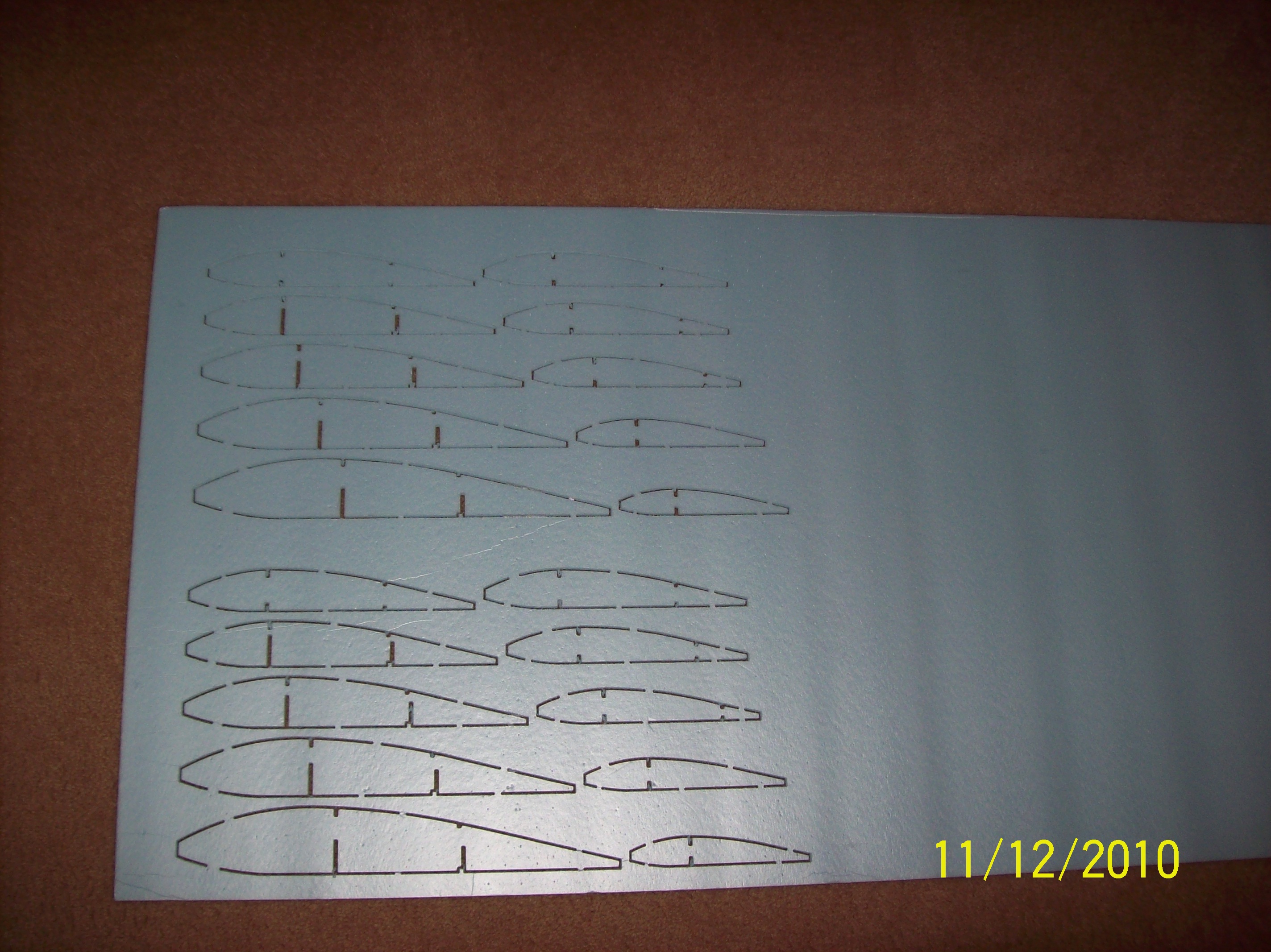

    I can post the wing ribs right now if you would like. They don't line up perfectly though so they will require a little massaging. The notches for the spar line up well, but the trailing edges are off a little. I took them right from the original design. It appears that the original designer never built one from his plans. Mudman did a little trimming to make them fit. Also, the leading edge balsa was bigger than anticipated so he trimmed off a little there too.

    Sheeting is Dollar Tree foam board. It is 4mm thick and goes around corners a little better than blu-cor. It's really flat too.

    The design is a hybrid of two P-51s that Mudman found on the web. One is a balsa build and the other is a foam. The wing was taken from the balsa plane and I'm still working on the fuselage design. The foam design he found is a little off from scale for the fuselage. I am making it a little more scale looking. Also, scaling it up to the 58" wing.

    Tim

    navionflyer, Dec 15, 2010
    #8
  9. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Lookin' good guys!

    7up, Dec 15, 2010
    #9
  10. mudman1959

    mudman1959 Member

    Offline
    Messages:
    94
    Trophy Points:
    8
    A labor of Love... I Love to build and Navion.... Well he Loves something... :D Anyways it is coming along good, working on getting the retracts installed then next the flaps and ailerons... Mudman1959

    mudman1959, Dec 15, 2010
    #10
  11. navionflyer

    navionflyer New Member

    Offline
    Messages:
    220
    Trophy Points:
    0
    Location:
    Richland, MI
    Hey, it's for a good cause. Mudman's son just came back from Afghanistan. He requested this a few months ago and Mudman and I got talking about it. SO here we are. I appreciate his son's willingness to serve. It's the least I can do. I just hope Mudman doesn't crash it on the maiden flight. ;)

    Tim

    navionflyer, Dec 15, 2010
    #11
  12. mudman1959

    mudman1959 Member

    Offline
    Messages:
    94
    Trophy Points:
    8
    Ha... Ha.... You Funny? :D

    mudman1959, Dec 16, 2010
    #12
  13. mudman1959

    mudman1959 Member

    Offline
    Messages:
    94
    Trophy Points:
    8
    Update 12/15/10

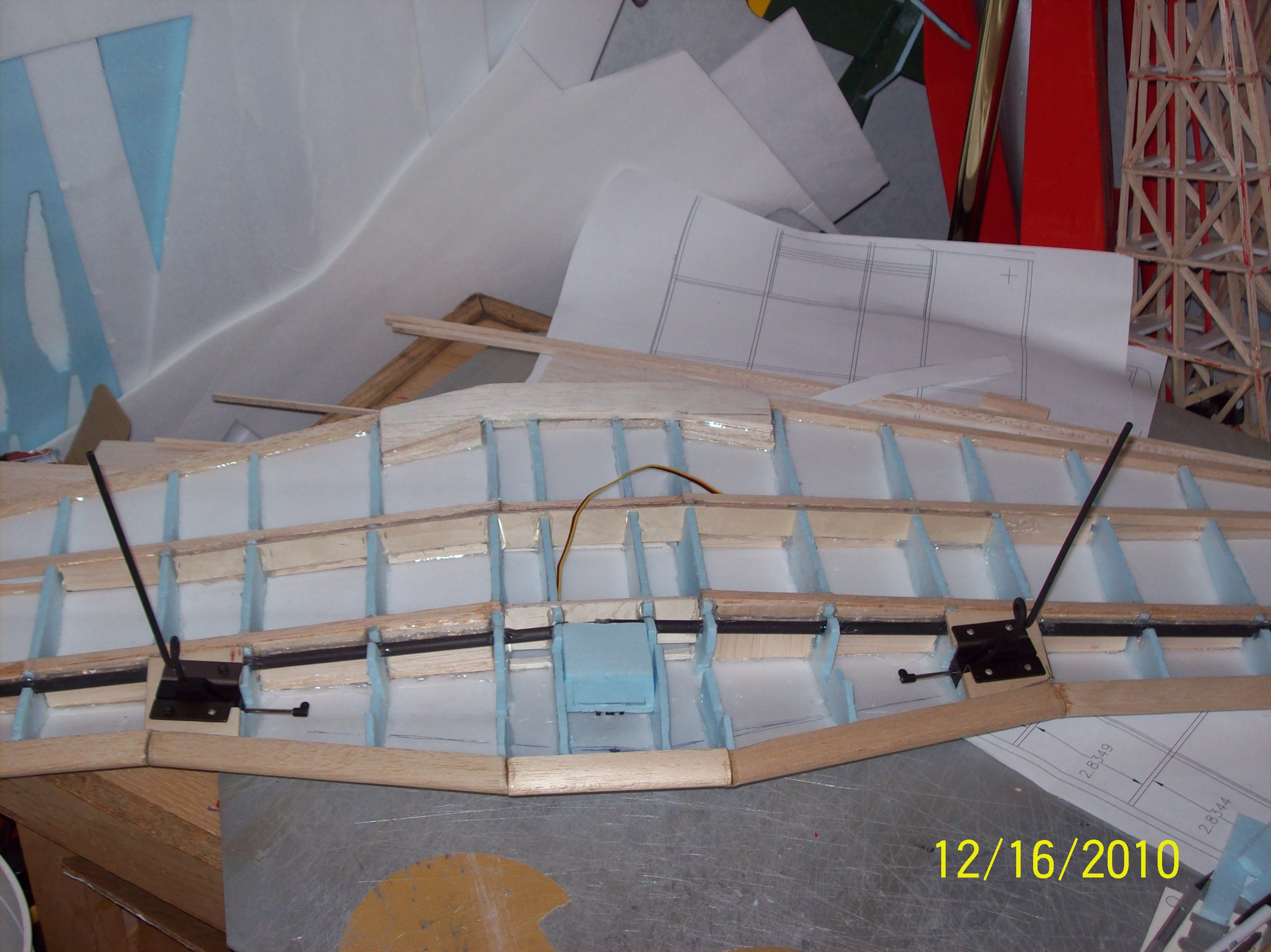

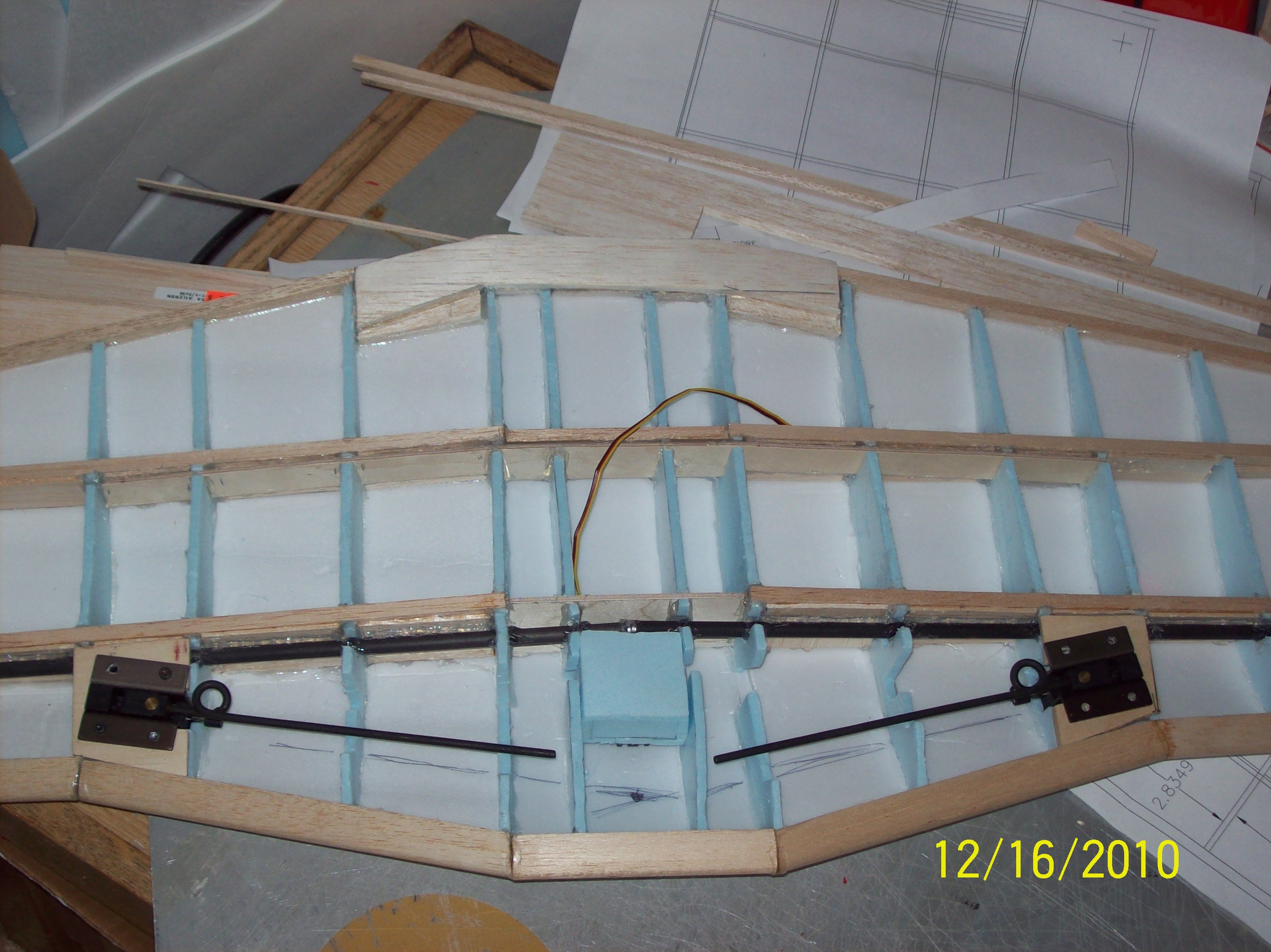

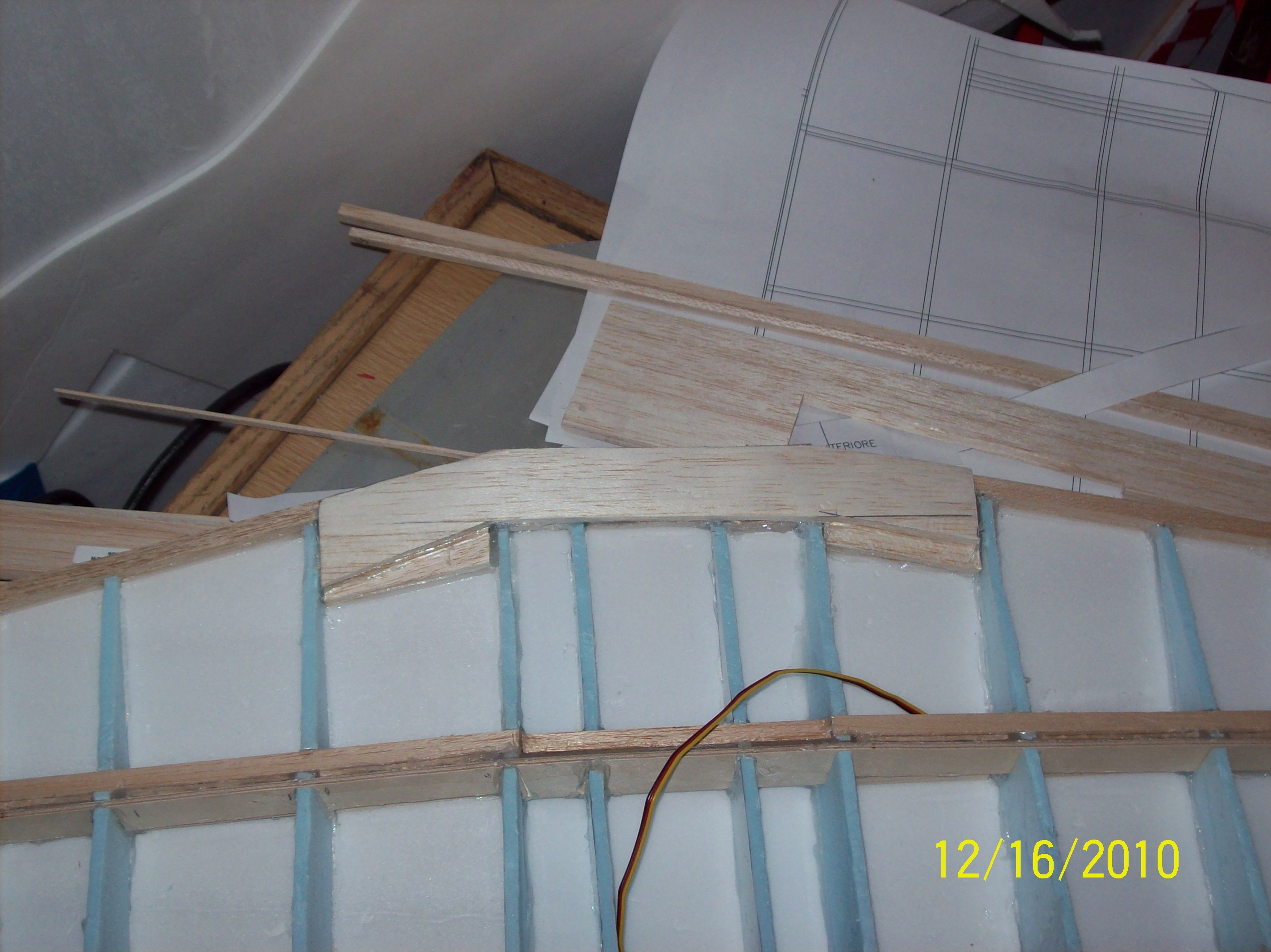

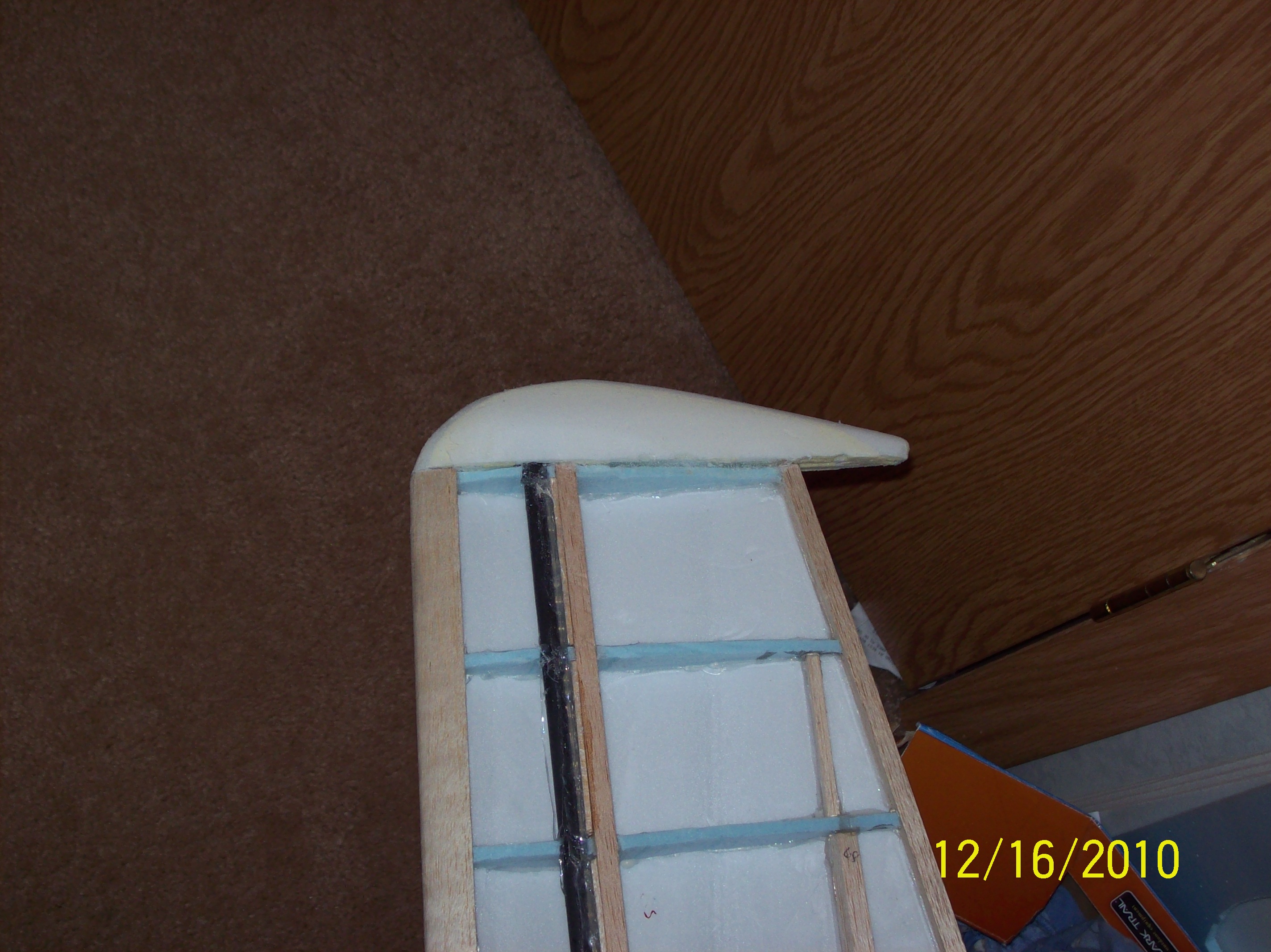

    Quick Update... The wingtips are on and the aft wing support is in, working on the retracts right now... Trying to make the mounting area for them a bit stronger... Mudman1959 Attached files [​IMG] [​IMG] [​IMG] [​IMG]

    mudman1959, Dec 16, 2010
    #13
  14. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    For my design of the P39 ( at least in my head right now as I have yet to commit it to SU) I was going to face the ribs that support the retracts with ply, going back at least past the spar, and form a box around the retract mounts. That's a heck of a lever action for the foam to support.

    Also I can't tell from the Pic, but is the main dihedral brace tied into the spar? Looks like it may be forming a shear web, but then again it doesn't. The rear dihedral brace looks like it isn't tied into the spars (blue foam viable between brace and spars). I would make sure they are tied in somehow.

    rcav8r, Dec 16, 2010
    #14
  15. mudman1959

    mudman1959 Member

    Offline
    Messages:
    94
    Trophy Points:
    8
    Update 12/16/10

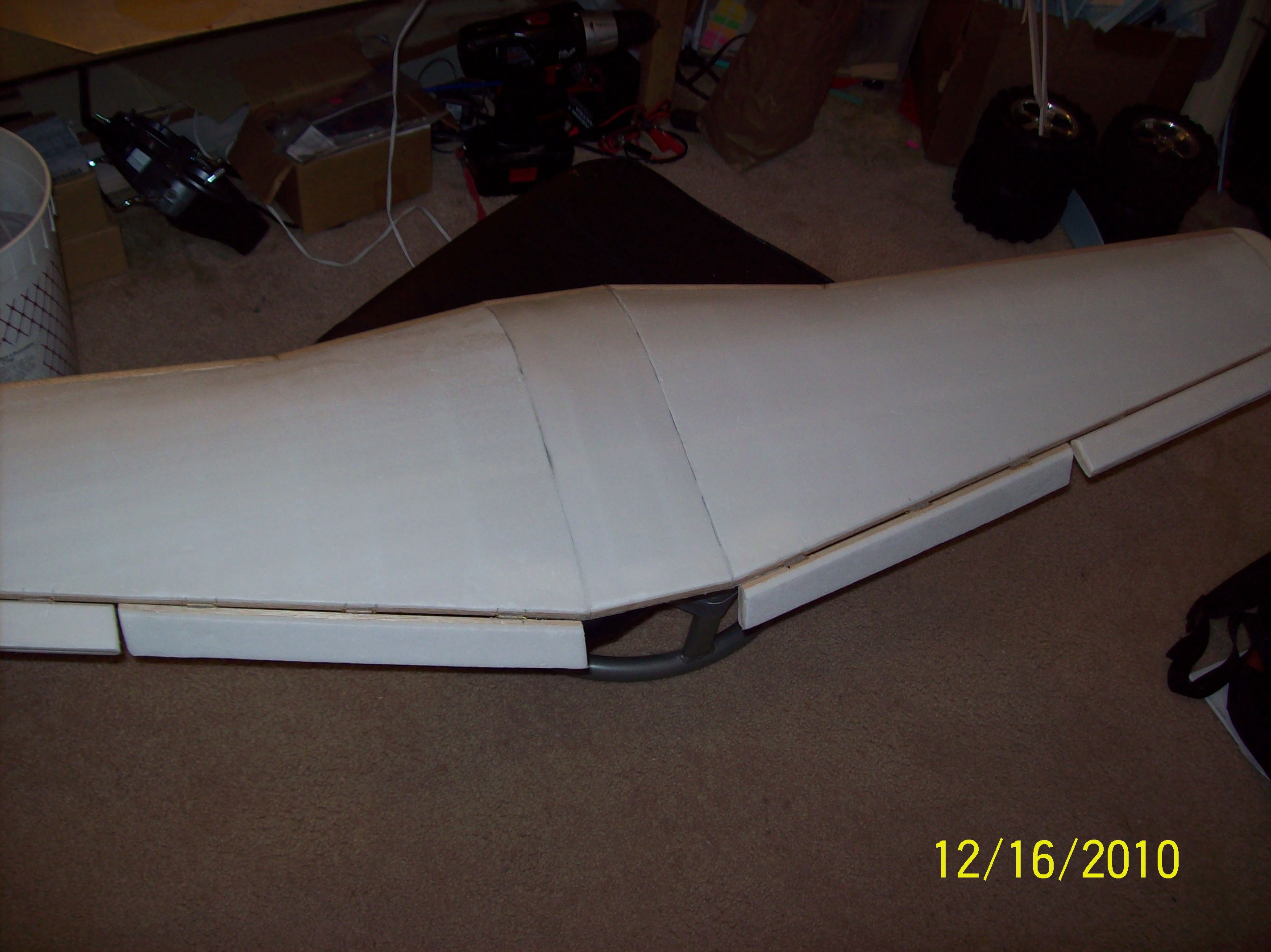

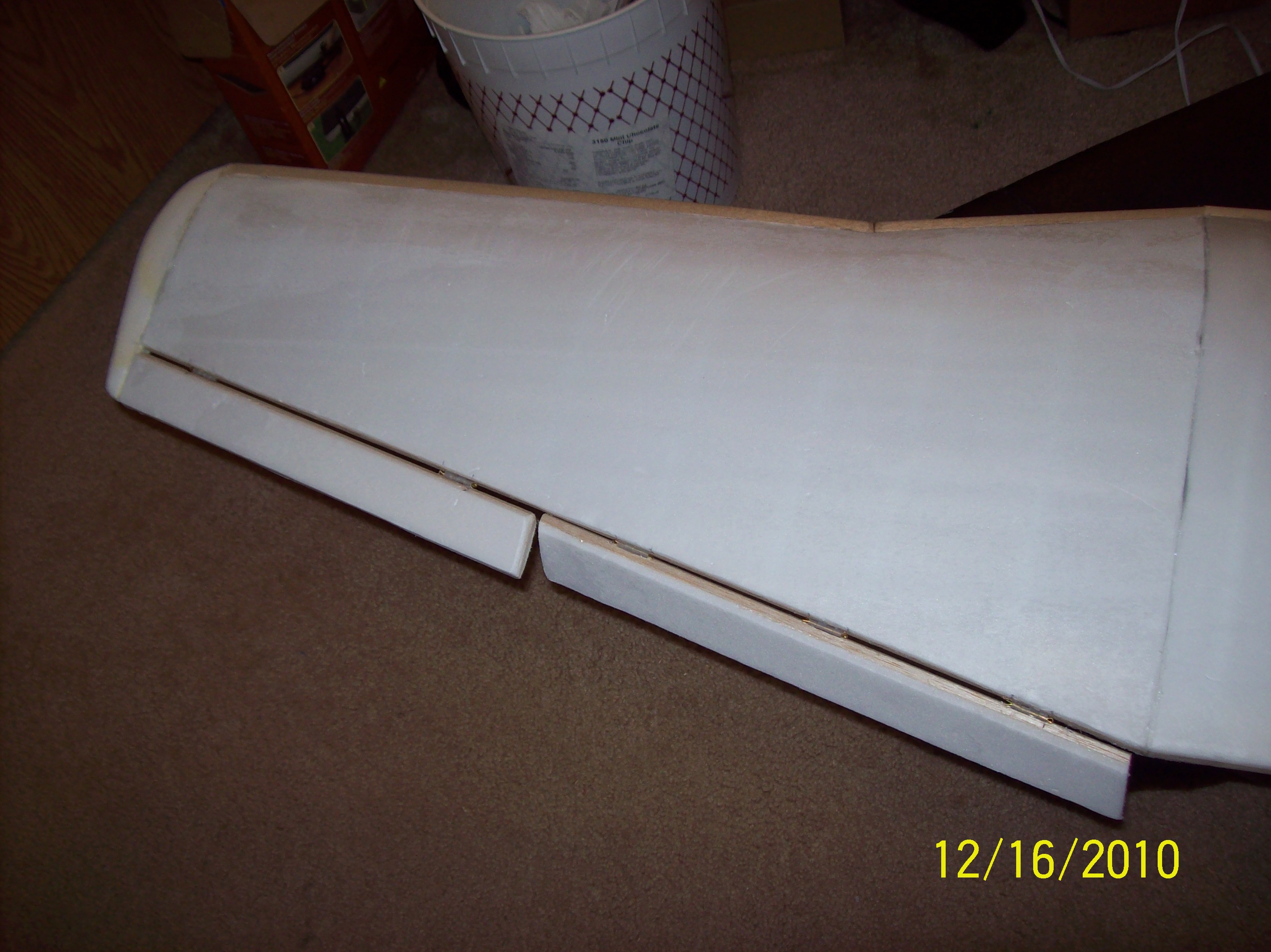

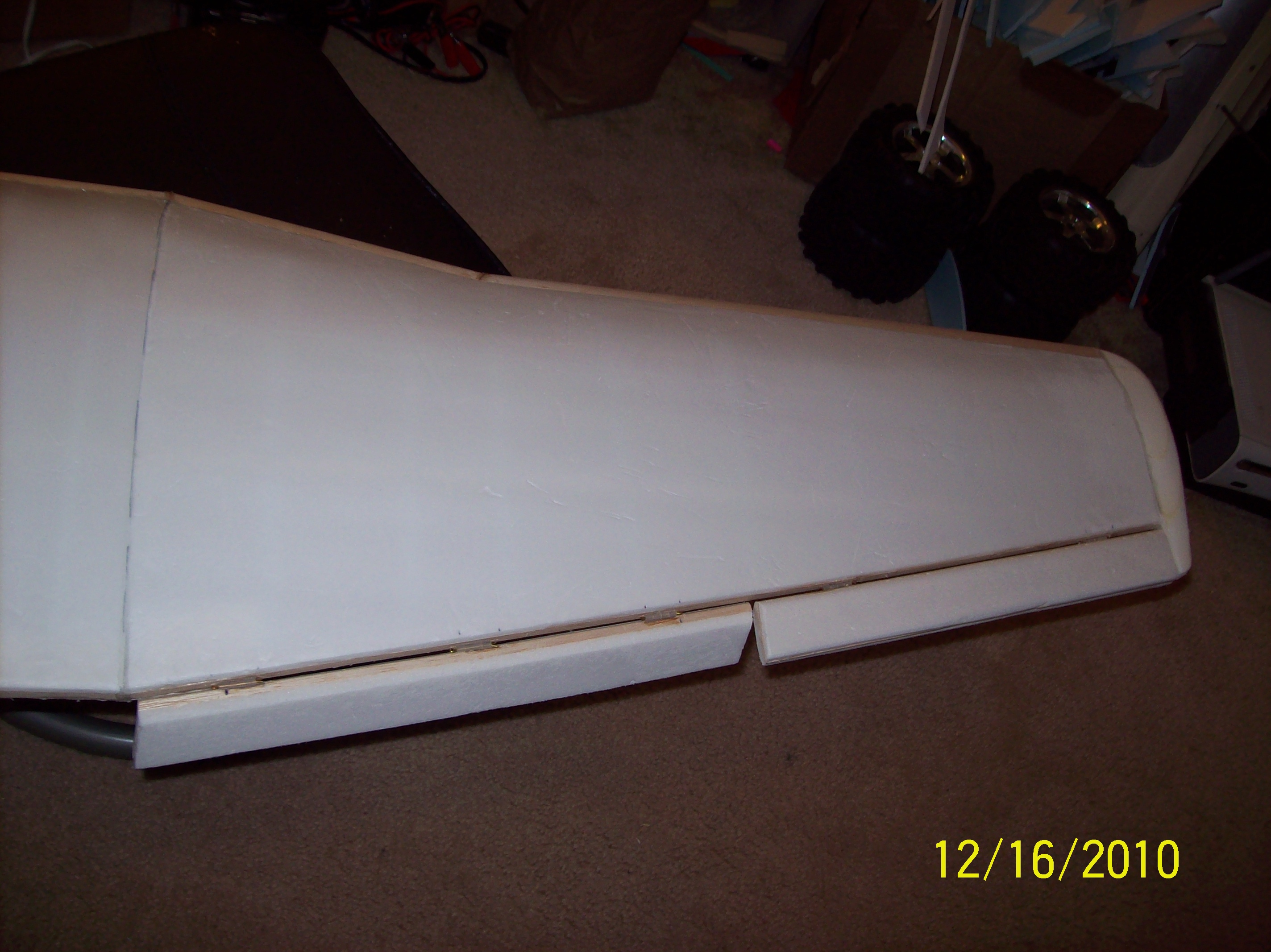

    Got a little more done today on the wing, Flaps and Ailerons are on and I added some additional supports for the Retracts... Mudman1959 Attached files [​IMG] [​IMG] [​IMG] [​IMG]

    mudman1959, Dec 16, 2010
    #15
  16. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Wow, looks great! :cool:

    Anonymous, Dec 16, 2010
    #16
  17. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    That's awesome and the wing looks great too! :lol: JK
    Nice job MM that wing is HUGE! the build for it looks fantastic too. I love these large models they really come out nice.
    Keep up the good work and thanks for the props :D
    Mark and Trish

    kram242, Dec 18, 2010
    #17
  18. mudman1959

    mudman1959 Member

    Offline
    Messages:
    94
    Trophy Points:
    8
    Update 12/23/10

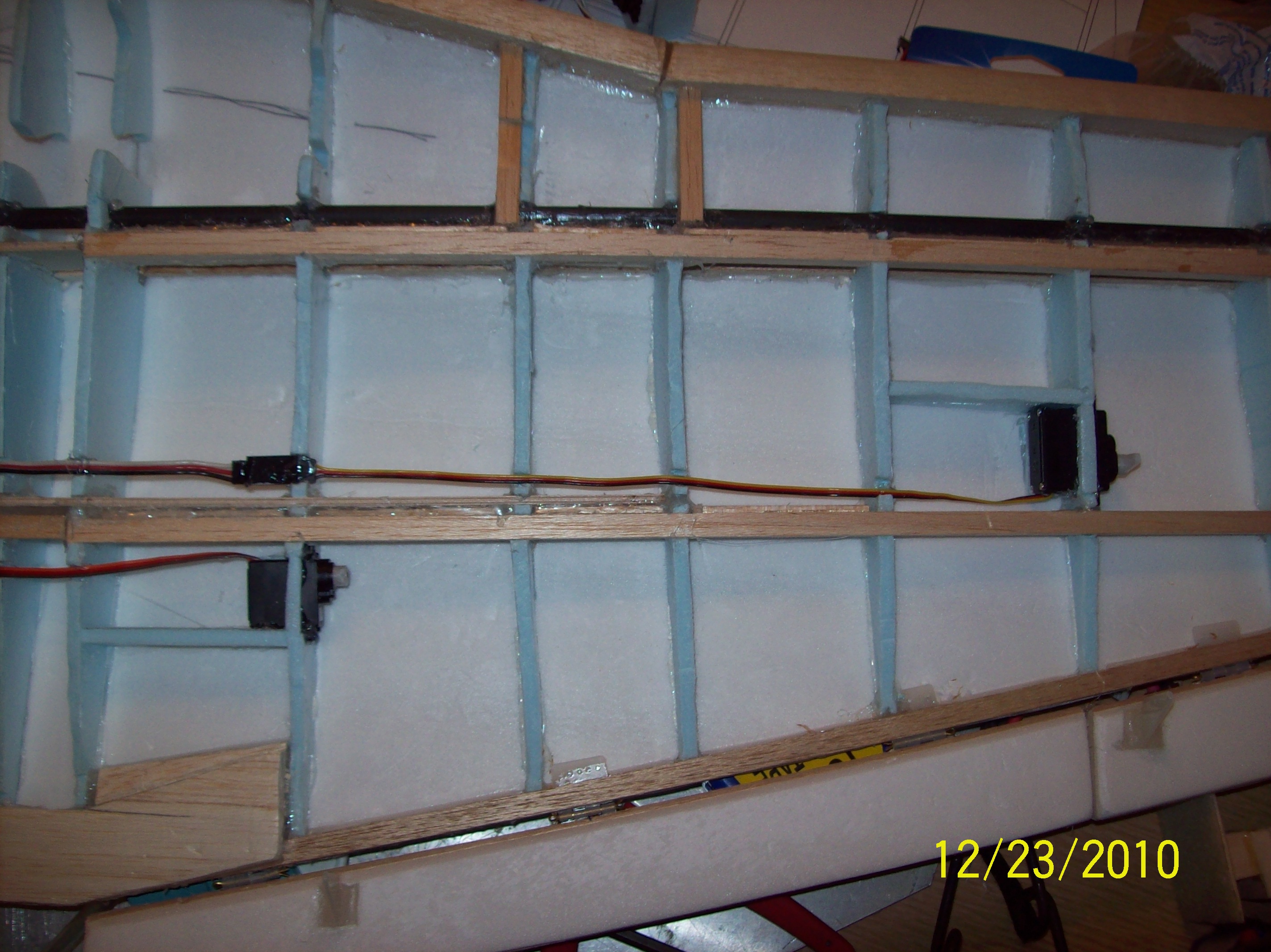

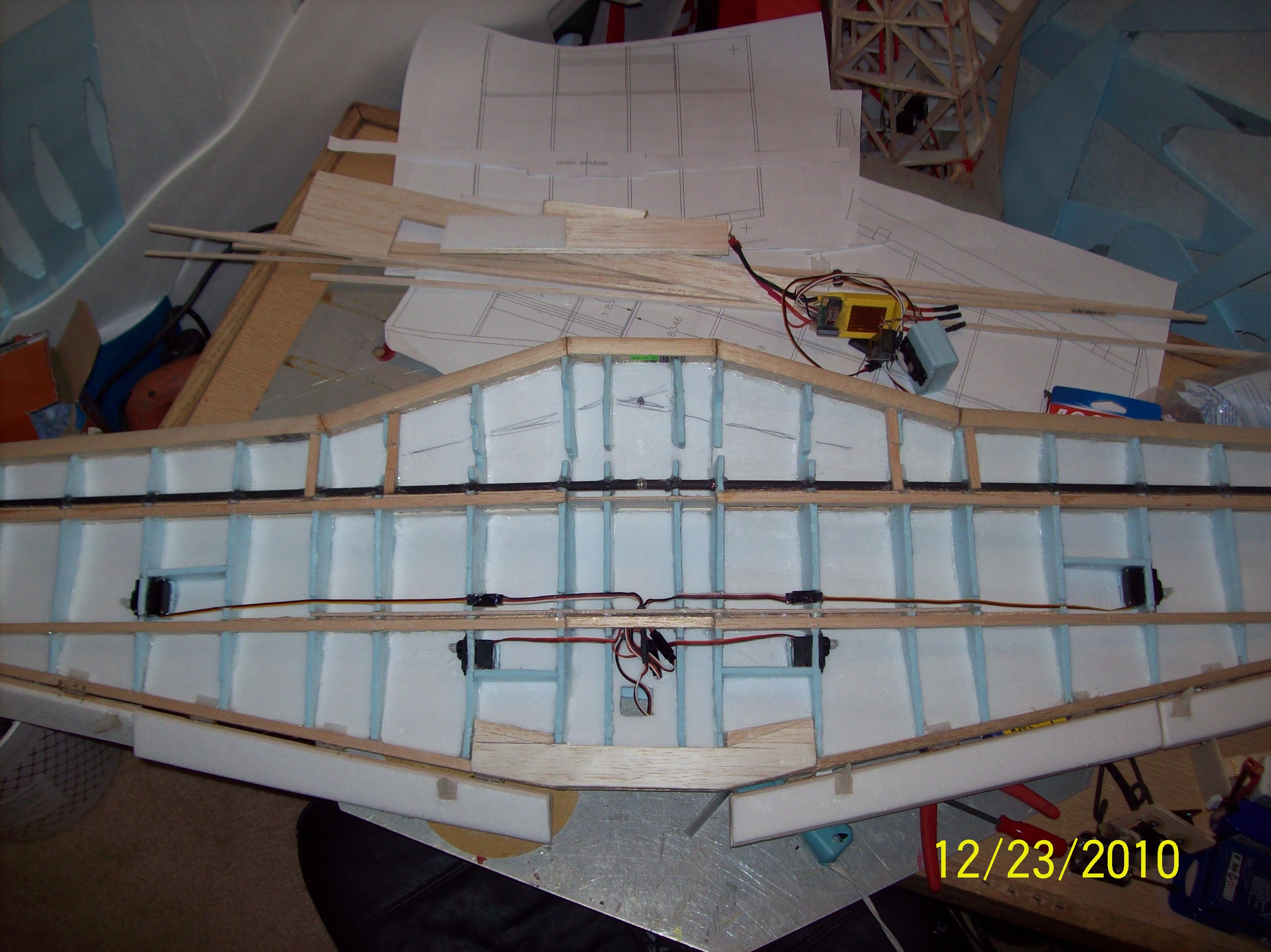

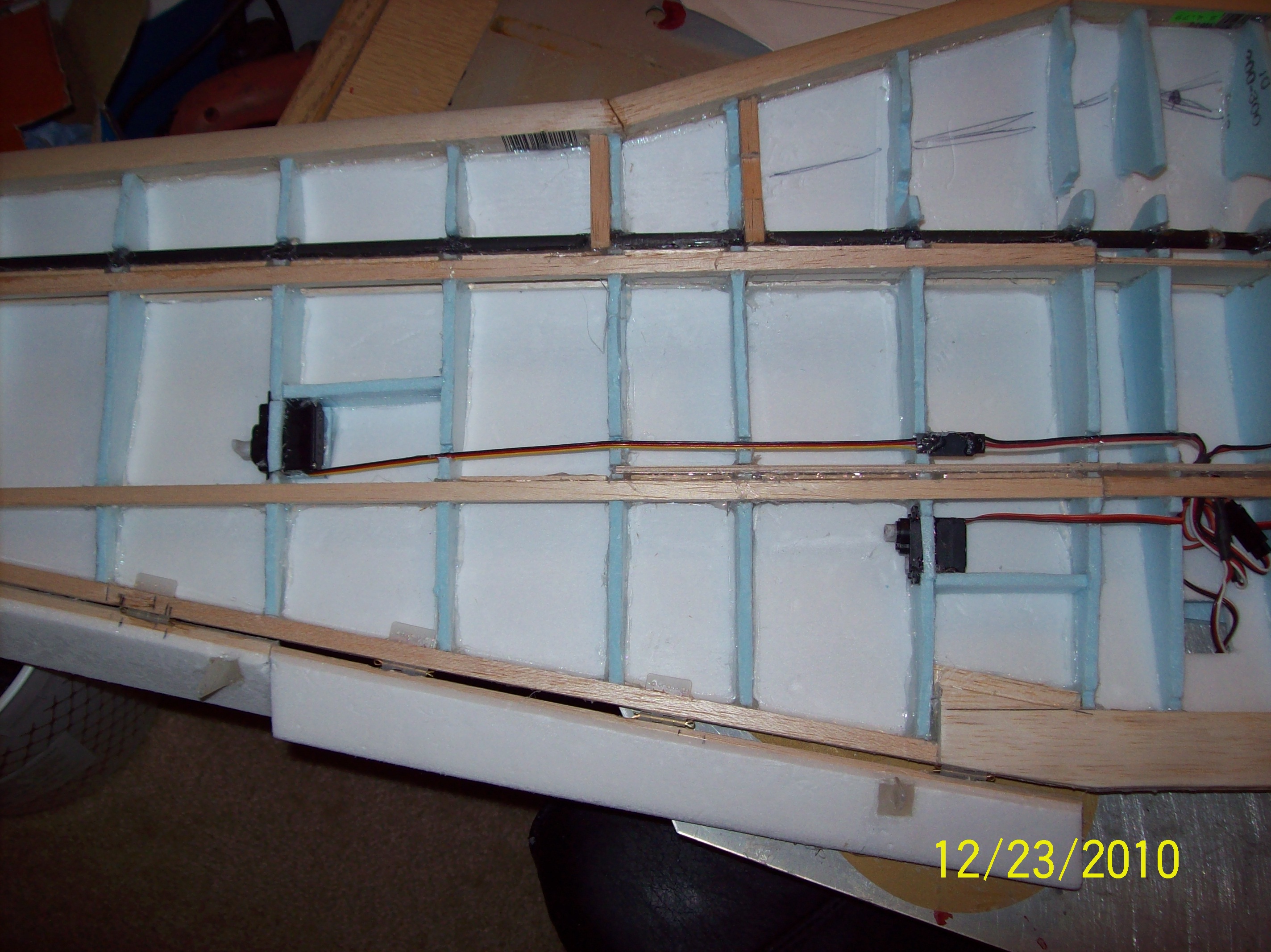

    I finally got a little spare time to install the Aileron and Flap servos. I need to get to the local hobby store and pick up a few spare odds and ends so that I can get them connected to the control surfaces. More to come... Mudman1959 Attached files [​IMG] [​IMG] [​IMG]
