Bat wing 37

Discussion in 'Strange Aircraft' started by frankrcfc, Aug 29, 2009.

  1. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi

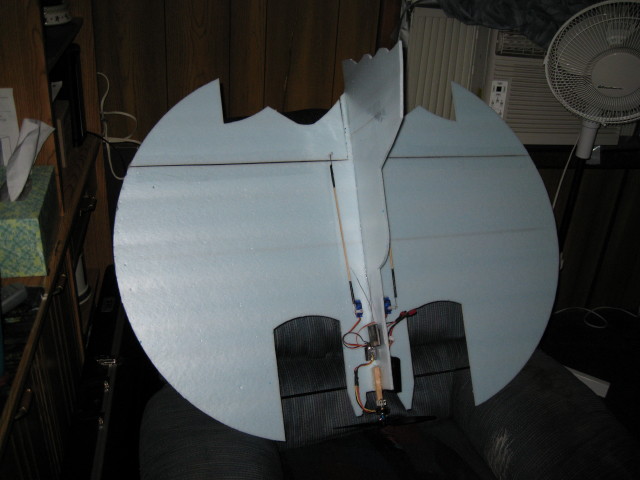

    Ok here is the skp, 2 cnc and dxf files for the Bat wing. Easy to build. I use a blue wonder 1200 kv and 10 esc with an 8x4.3 hd prop. I use a 3s 1000 lipo right in the very front. No real trim needed if controls are trimmed level.


    Attached files Bat Wing 37.zip (133.9 KB)Â [​IMG]

  2. xtremeRCpilot

    xtremeRCpilot Member

    Offline
    Messages:
    736
    Trophy Points:
    16
    Location:
    Cleveland, Ohio
    Looks great Frank, thanks for the file, I look forward to building one :D

    John

  3. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Thanks Frank, I'll have one.

  4. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    I flew the heck out of it today even after I hit those power lines next door :shock:

  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Good deal!! Thank You Frank
    Mark

  6. Chuck

    Chuck New Member

    Offline
    Messages:
    260
    Trophy Points:
    0
    Neat! Where is CG and what is span? Think I will make one of these. Is the motor you used really big enough or would you recommend going bigger? Thanks for the design.

    Chuck
    ...somewhere in Indiana...

  7. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    Hey Chuck. Thanks for trying out the batwing. I use a blue wonder with an 8x4.3 slow prop. Depending on lipo size I would start about 9" back from the nose. ;)
