Welcome to The Phlatforum PhlatPrinter III

Charger Station

Discussion in 'Functional Aircraft Accessories' started by AnyAirRc, Feb 26, 2009.

  1. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0

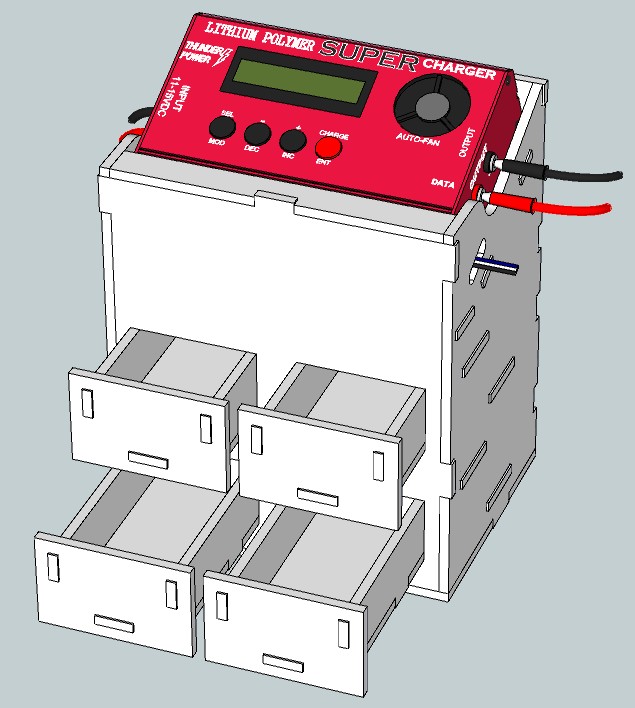

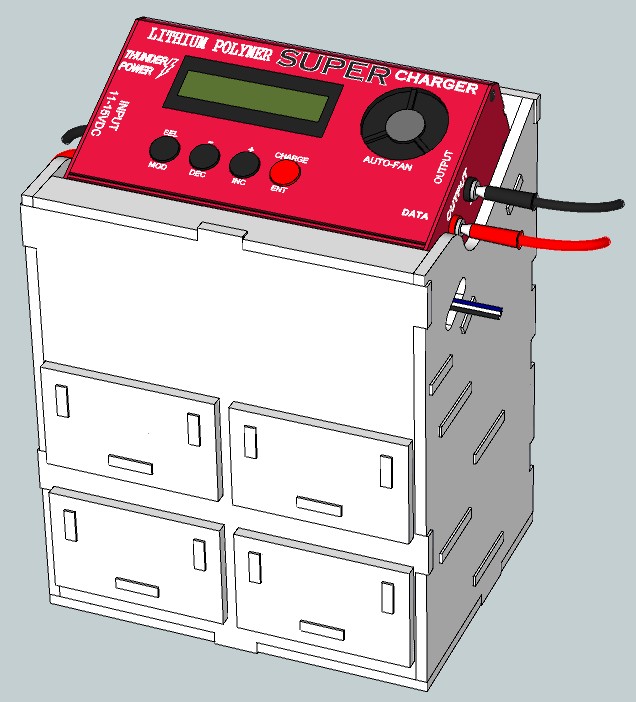

    Hey guys I have been working on this today and thought I would show pics of the 3D model and see what every one thought about it.

    Attached files [​IMG] [​IMG] chargestation.zip (7.5 KB)Â

    AnyAirRc, Feb 26, 2009
    #1
  2. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0

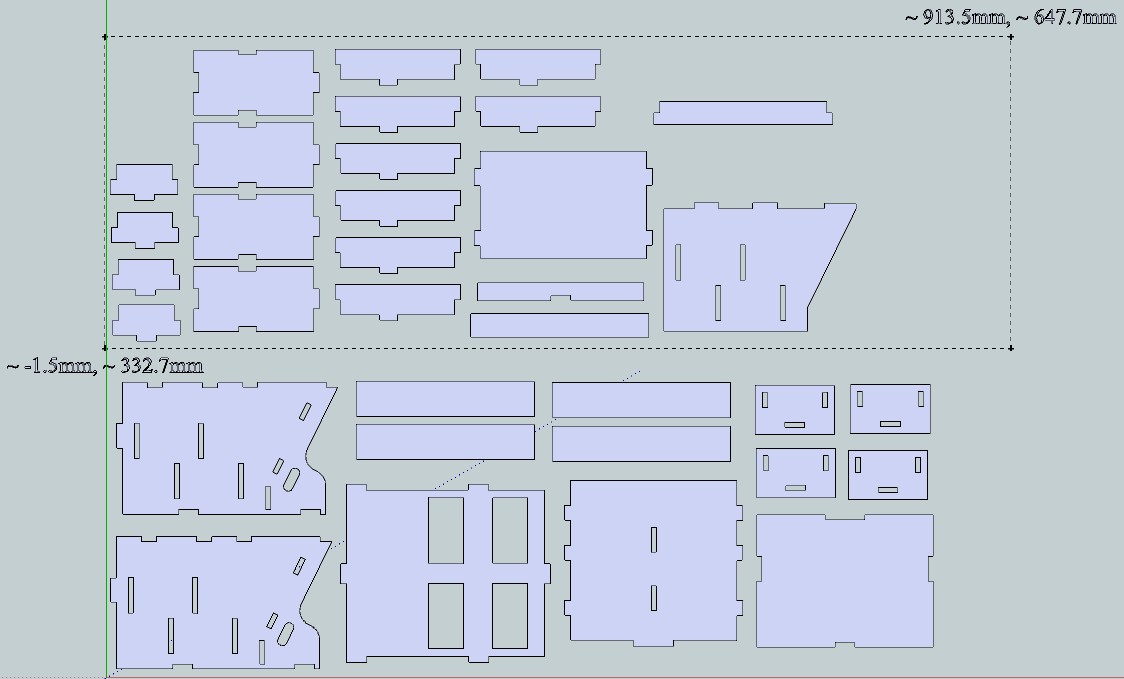

    Here is the parts layout

    Attached files [​IMG]

    AnyAirRc, Feb 26, 2009
    #2
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

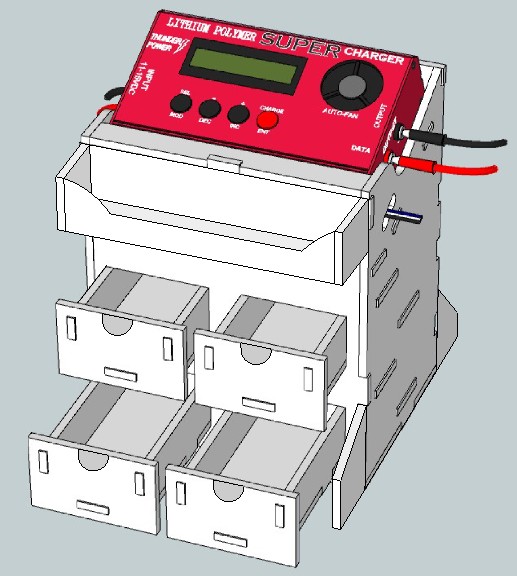

    Hey Jason. It looks really cool. As I was looking at it, I came up with some ideas that might help. Please don't take offense. I saw the design and I can't help myself, I like to design :D I took your picture and brought it into Sketchup and drew on top of it to show you some thoughts I had. I hope you don't mind.

    First, thing I think would be cool is a battery tray added to the front above the drawers so you can just lay your battery in there and charge it. Another idea I have that might help you is to put winglets on the front and back to give the whole stand a wider stance to keep it from moving around. When you are charging the batteries, you will be plugging and unplugging them and pushing the buttons on the charger to get to the menus which I think could make it top heavy and make it wobble.

    The last thing is some type of a way to open the drawers easier. Maybe finger tabs or holes or U shapes like I show here.

    These are just ideas. I hope you can utilize them and maybe expand on them. It's coming along really nice. Can't wait to download it for my own triton charger.

    Attached files [​IMG]

    kram242, Feb 26, 2009
    #3
  4. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Great job man!
    I agree w/ Mark if you add those additions on, it would be better. I like the design though.

    3DMON, Feb 26, 2009
    #4
  5. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0
    Very cool mark. That is why I posted. When you work on something for a long time you get kinda numb and can't think anymore. It took me a good 4 hours just to make the true to scale 1010C charger (I used calipers on everything lol). I am going to add the changes you suggested!

    AnyAirRc, Feb 26, 2009
    #5
  6. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    AnyAirRc

    Nice job,

    How about a handle on top too for takeing to the field.


    I need to make one for my PolyCharge4.


    Cheers
    E-T

    Evil-Tunes, Feb 26, 2009
    #6
  7. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0
    I don't think a foam handle could stand up to the weight.

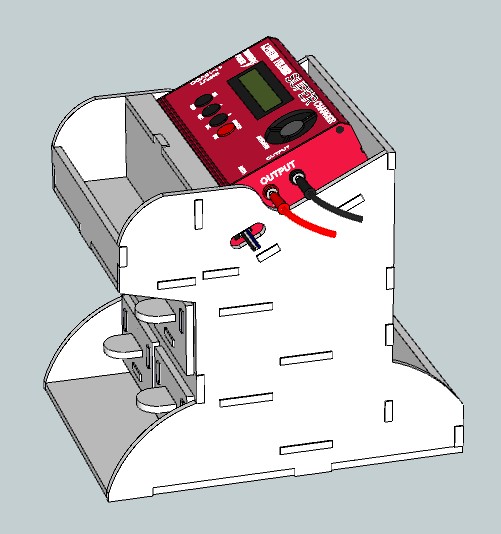

    Here it is with all the mods so far Attached files [​IMG]

    AnyAirRc, Feb 26, 2009
    #7
  8. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Looks pretty nice to me - maybe I'll steal your design and modify it to fit my two Triton chargers. :idea:

    Anonymous, Feb 26, 2009
    #8
  9. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Now were talking! That looks sharp and I love the extra pocket in the back now smart.
    and the pull handles are a great idea now that the top shelf overhangs, nice.
    Great job!
    Looking forward to the the finished design.
    Thanks
    Mark

    kram242, Feb 26, 2009
    #9
  10. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Much better AnyAir.

    3DMON, Feb 26, 2009
    #10
  11. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0
    I am building the prototype right now, man what a puzzle! My wife thinks I am crazy lol.

    AnyAirRc, Feb 27, 2009
    #11
  12. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0

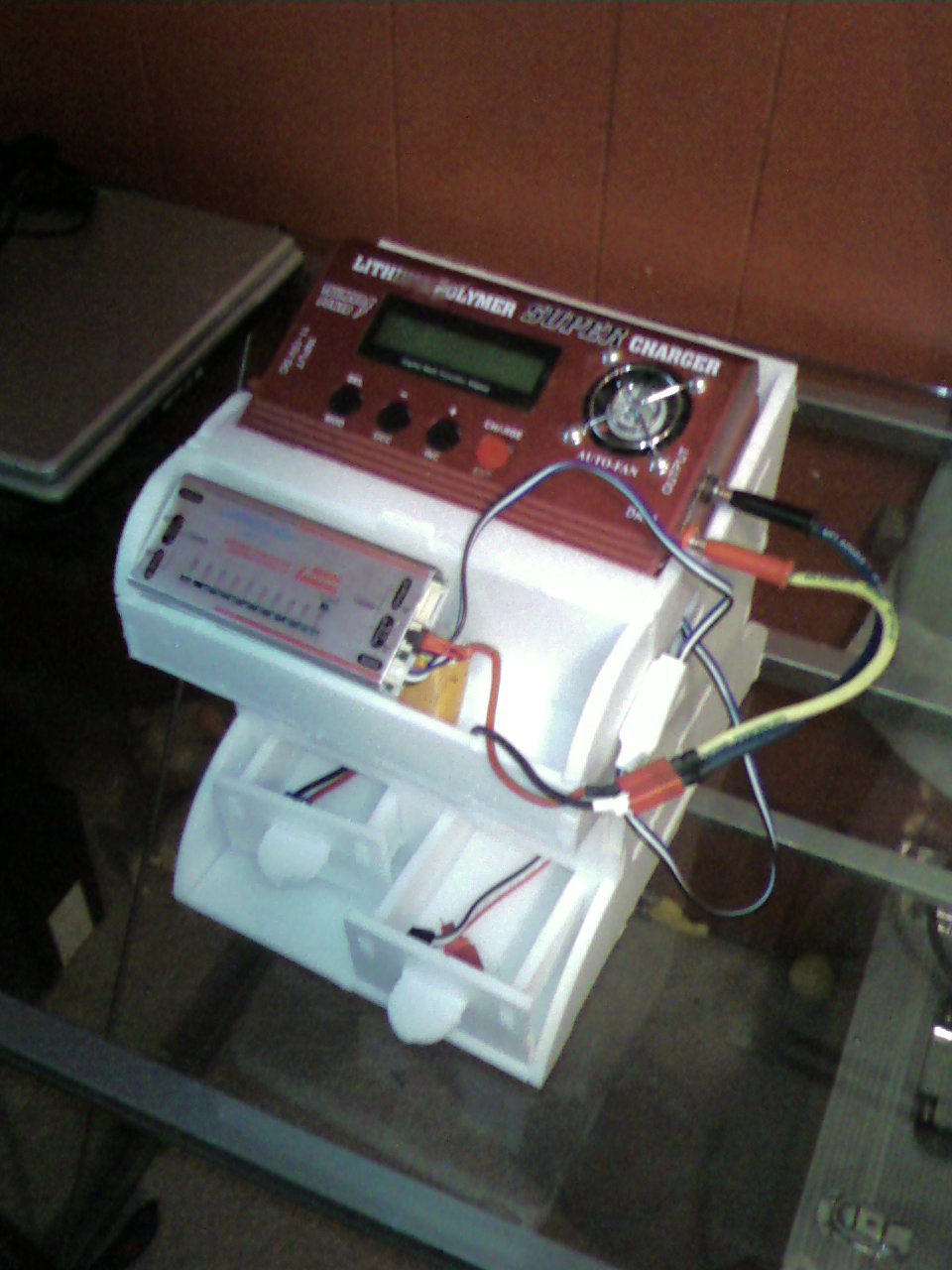

    oK it is way late but I just got done burning my self with the hot glue gun and finishing up the charging station. I glued mine a tiny bit askew but it still sit firmly in place. I have the two bottom drawers open so you can see my goodies <--- opps did I just type that lol. Well in the morn I'll upload the SU file and the .cncs , got to sleep my son will wake up in 6 hours and he just turned two so he is a handful!

    Attached files [​IMG]

    AnyAirRc, Feb 27, 2009
    #12
  13. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    AnyAirRc,
    That looks great man!
    well done, it turned out perfect. Was the fit of your charger? did all the dimensions work out for you like you were after? It looks like its a perfect fit!
    Love it - Gotta have it!
    Thanks for making this
    Mark

    kram242, Feb 27, 2009
    #13
  14. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0

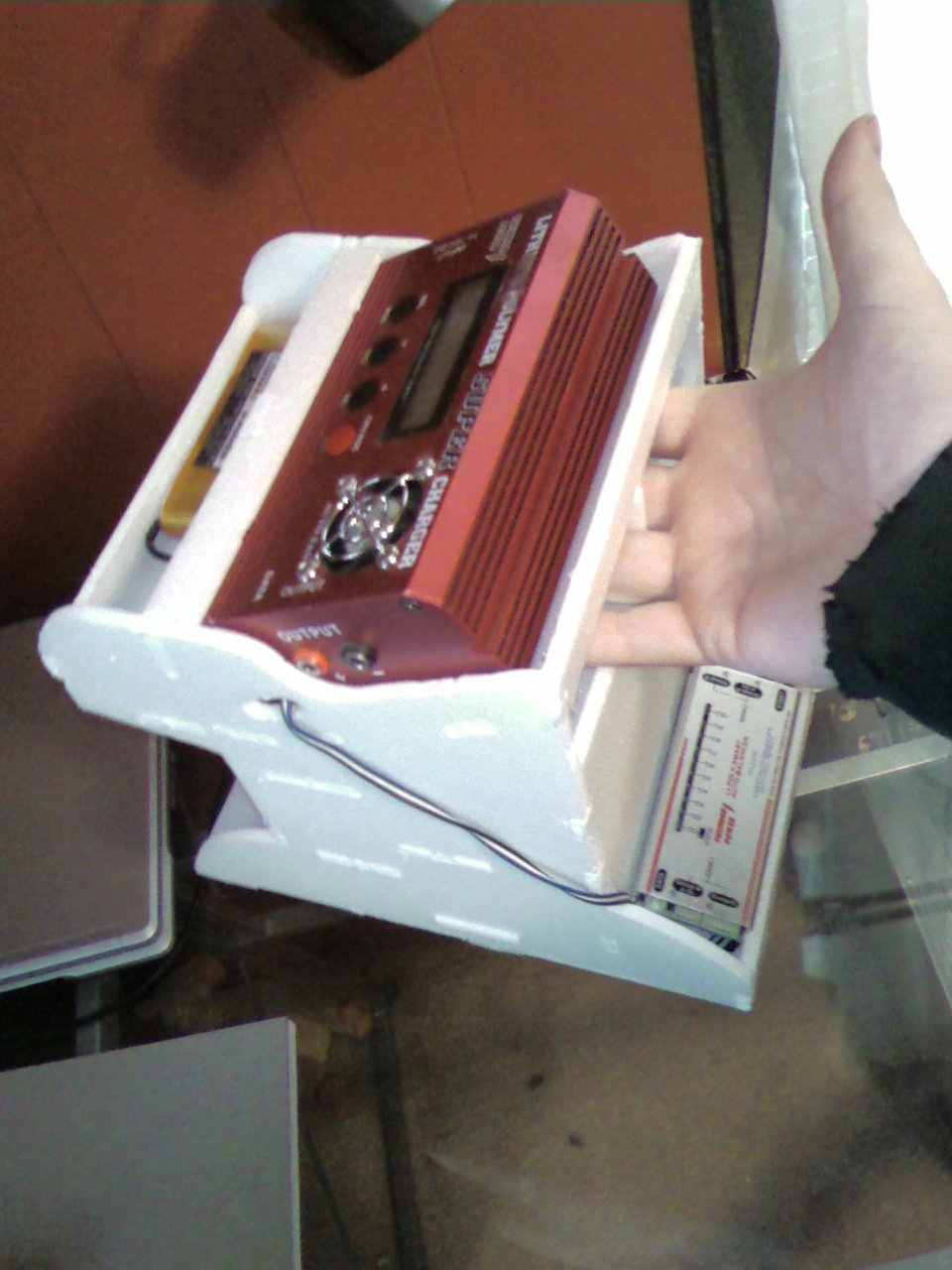

    Evil-Tunes: I left a an opening in the back and it is very easy to carry like the photo below. The size of the charger area is 50mm h x 168.1mm w x 130mm d it fits the 1010C charger perfectly! There is plenty of room for the Triton charger or almost any other similar charger. The .cncs are set up for 6mm foam and the stock bit. I use full depth taps now that I had a few sheets of Depron scrap at $4 a sheet! The SU ver 7 is in the warehouse for those who mod at http://sketchup.google.com/3dwarehouse/details?mid=c1dd6e319abb46d2221b53ac0f95149c!

    It is setup to fit two sheets of Depron just barely so make sure your bit doesn't run off the foam before cutting!

    Hope you enjoy! Attached files [​IMG] chargestation.zip (7.5 KB)Â

    AnyAirRc, Feb 27, 2009
    #14
  15. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    AnyAirRc,
    Thanks I love it.


    E-T

    Evil-Tunes, Feb 27, 2009
    #15
  16. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Nice work AnyAirRc thanks for posting this
    Man you are quick! :)
    I know that feeling all to well ;)
    Mark
    p.s. I also put the file to download at the top so people can grab it there too.
    Thanks again

    kram242, Feb 27, 2009
    #16
  17. Flashsolutions

    Flashsolutions Active Member

    Offline
    Messages:
    1,123
    Trophy Points:
    38
    Location:
    Leesburg, Florida
    Very cool! It's just amazing to see all of the different things popping out of these PhlatPrinters :D

    Flashsolutions, Feb 27, 2009
    #17
  18. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    AnyAirRc
    This is really cool.. Thanks have to make one!!

    blindflight, Mar 7, 2009
