CW 230 and CW 8060 micro stepping motor drivers mislabel.

Discussion in 'BOARDS - Control (Stepper Motor Driver)' started by thunder hawk, Mar 27, 2013.

  1. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    Some of the CW 230 and CW 8060 micro stepping motor drivers coming from china have
    mislabeled CP and CW pin outs printed on top. CW+ and CW- should be CP+ and CP-.

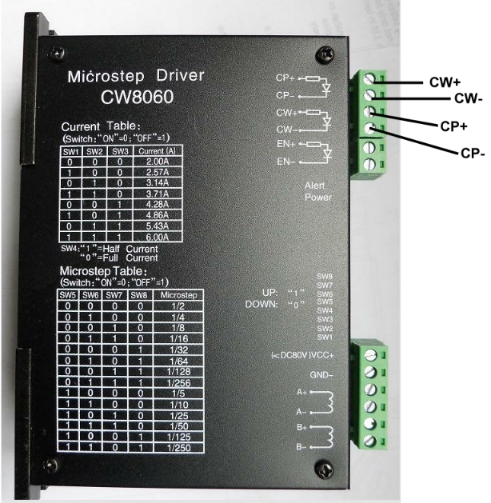

    If you are wiring up these stepper drivers to a USB-CNC controller, and your motors will
    not work, swap the CP & CW wires. See picture below.


    It took me two days of trying all kinds of things to get the motors to step.
    I could not get my stepper drivers to work at all :banghead: until I put the USB-CNC
    board on my scope :twitch: . After I got through making sure the USB-CNC board was
    OK, and it was OK. I decided to try swapping the CP and CW wires to see what would happen.
    I plugged in the the CNC board and pressed the jog keys and it worked. :banger:

    I hope this will help anyone who may have had this problem.

    Cheers.
