Edge lit clock for my Father-inlaw.

Discussion in 'Projects on your Phlatprinter 3' started by thunder hawk, Jul 14, 2011.

  1. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    My Father-in-law's birthday was coming up, and I wanted to give him a special gift.

    Back last December Dorsal posted what I thought was a great idea for a gift.
    It was an edge lit clock by Peter Pasuello. View topic here.

    I watched the YouTube video that was posted by Peter Pasuello.
    Using the knowledge I aquired watching the video I came up with this design for my
    Father-in-law's birthday gift.

    This is the base that holds the flexible LED strip lights.

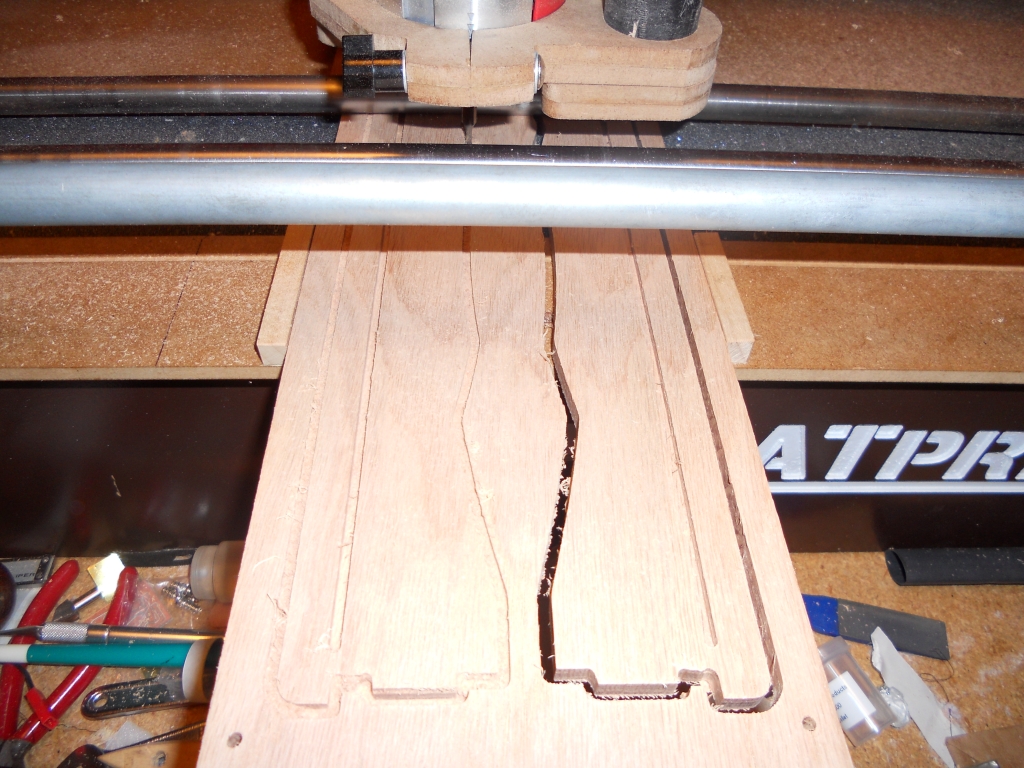

    All the parts for the base are cut from 1/4" Oak with a 1/8" single flute carbide router bit.
    It was cut at 20" per minute @ 4 passes.

    I used 1/4" square hardwood rails on both sides of the guide rollers to guide the Oak
    through the pp. I've found that even though the router can cut very efficiently, the
    Oak will slip on the rollers if you go much faster than 20ipm.


    I use Rhino 3D to design everything I do as an engineer, or just for fun.
    I used the RhinoCAM plugin to generate the G-Code.
    I've been using Rhino for 15+ years. before that, I used Auto-CAD, and hated it.
    Chain.zip

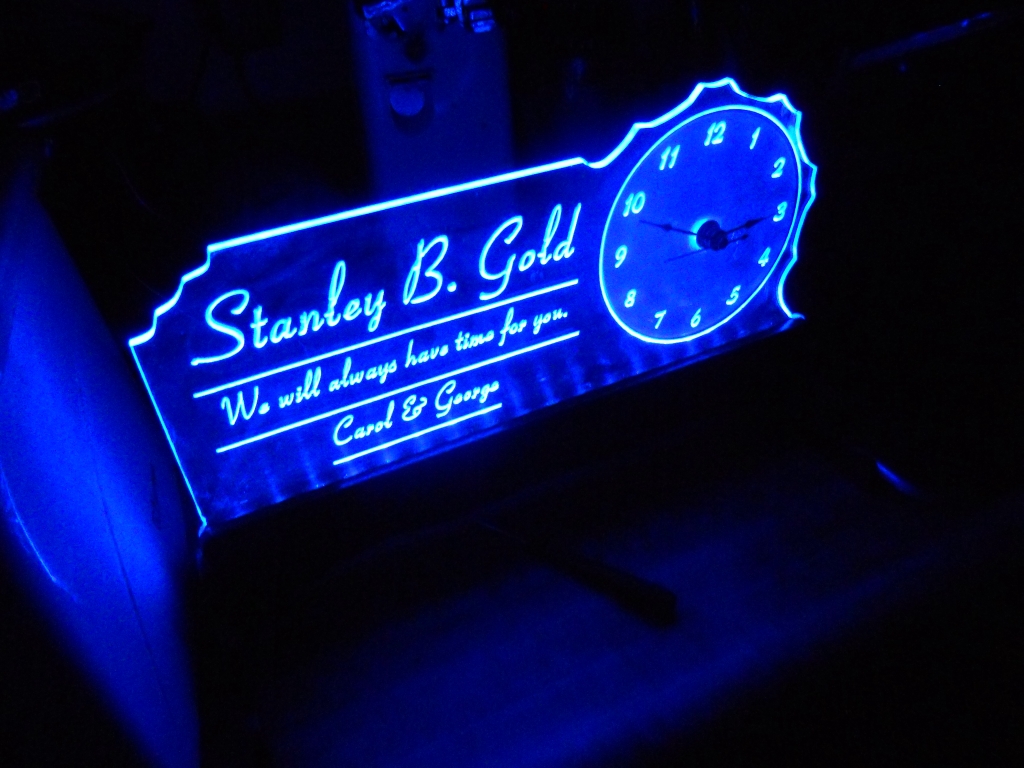

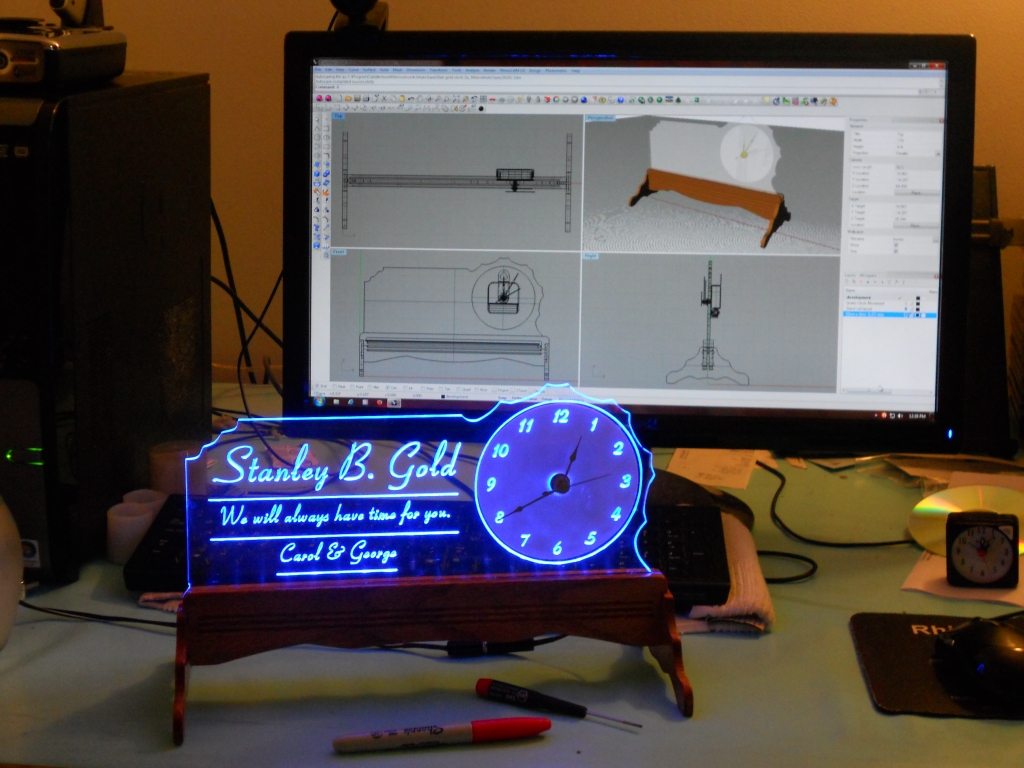

    This is a picture of the clock at full brightness in a dark room.
    The LED's are dimmable. At it's dimmest the light is barely visible.
    At full brightness, it's possible to dimly light a small room.

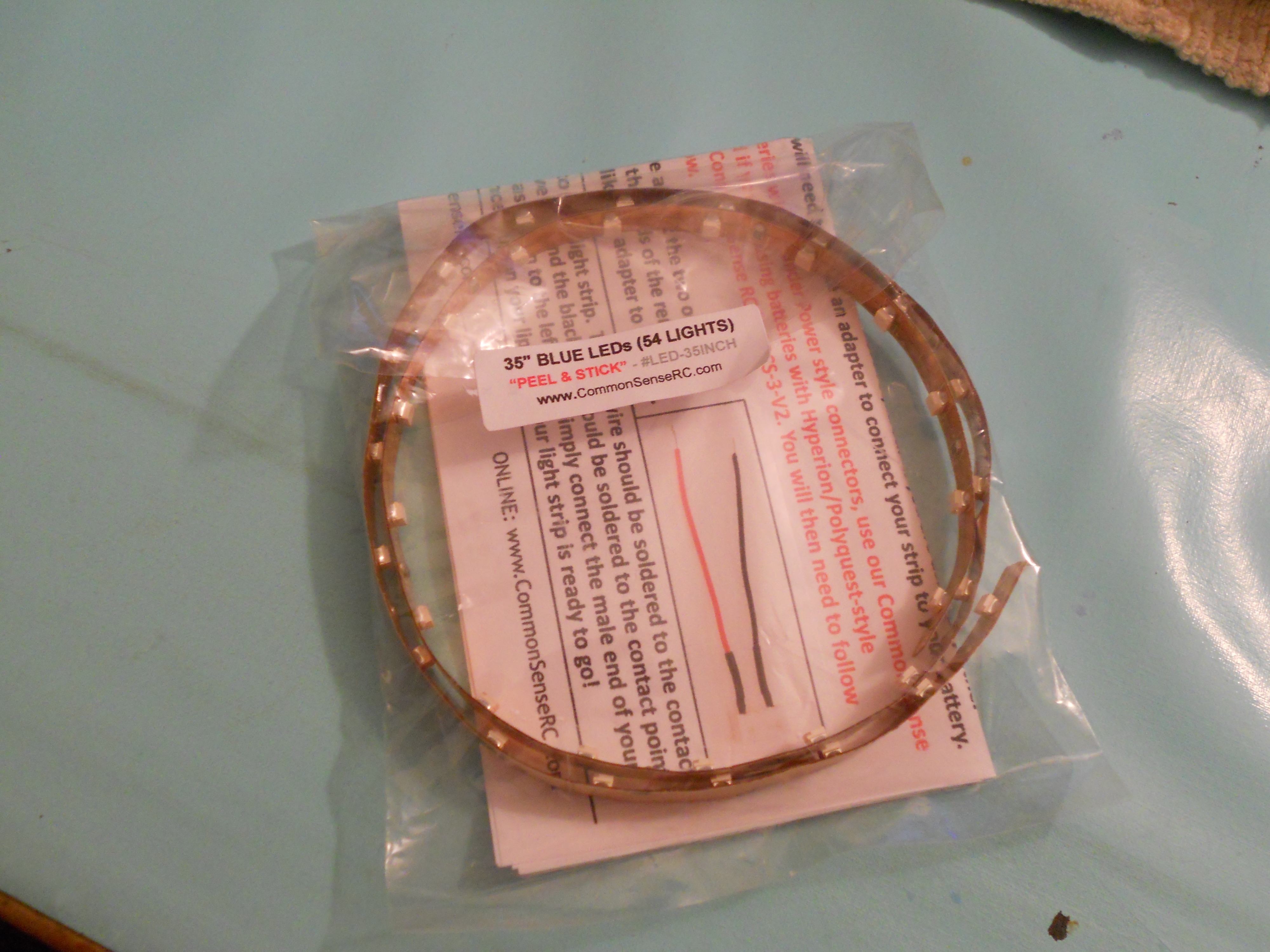

    These are the flexible LED's I used.
    I bought them at Common Sense RC .

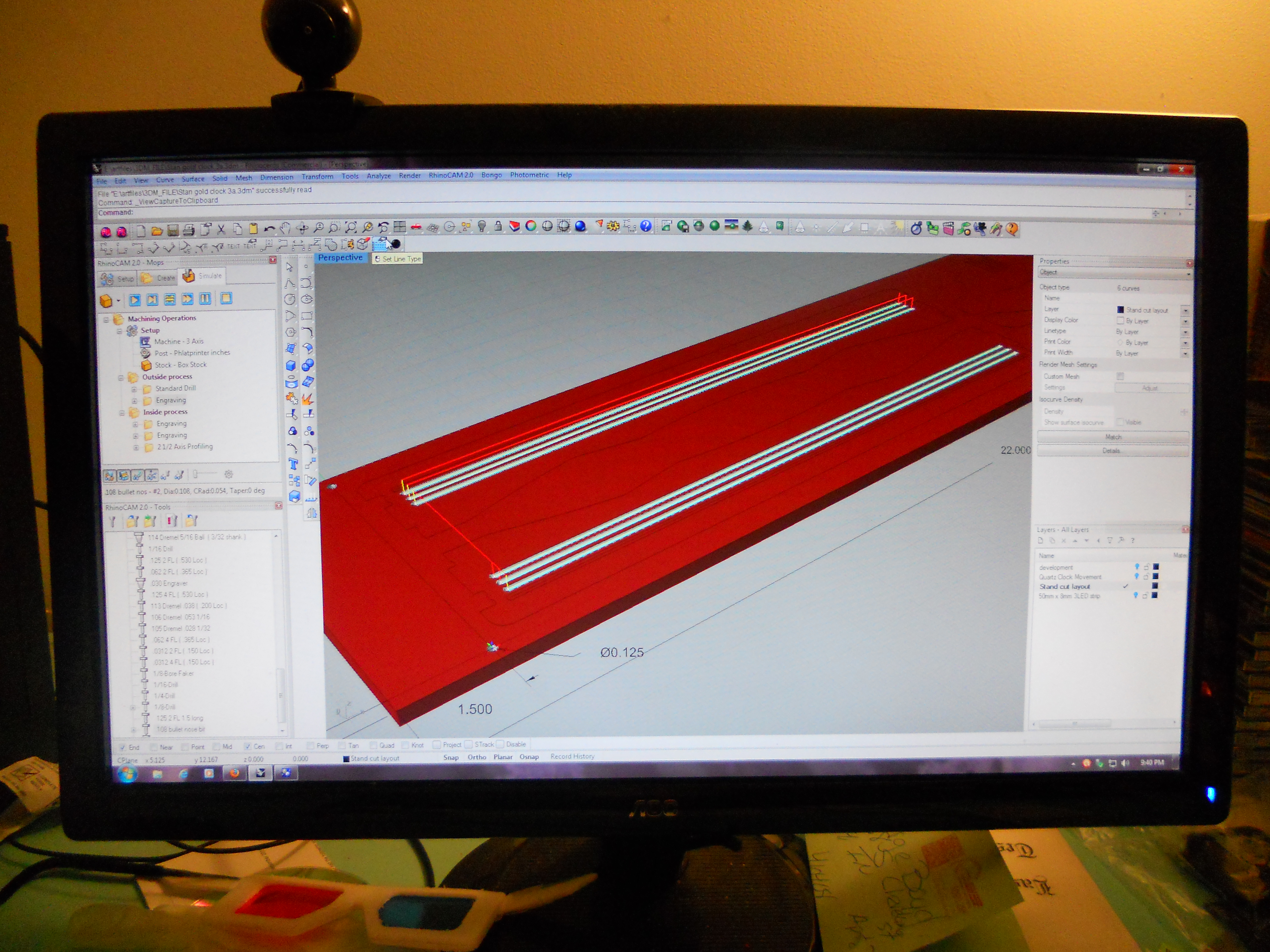

    This is the RhinoCAM simulation screen.
    If you click on the screen you can examine my layout.



    OUTSIDE MACHINING OPERATION.

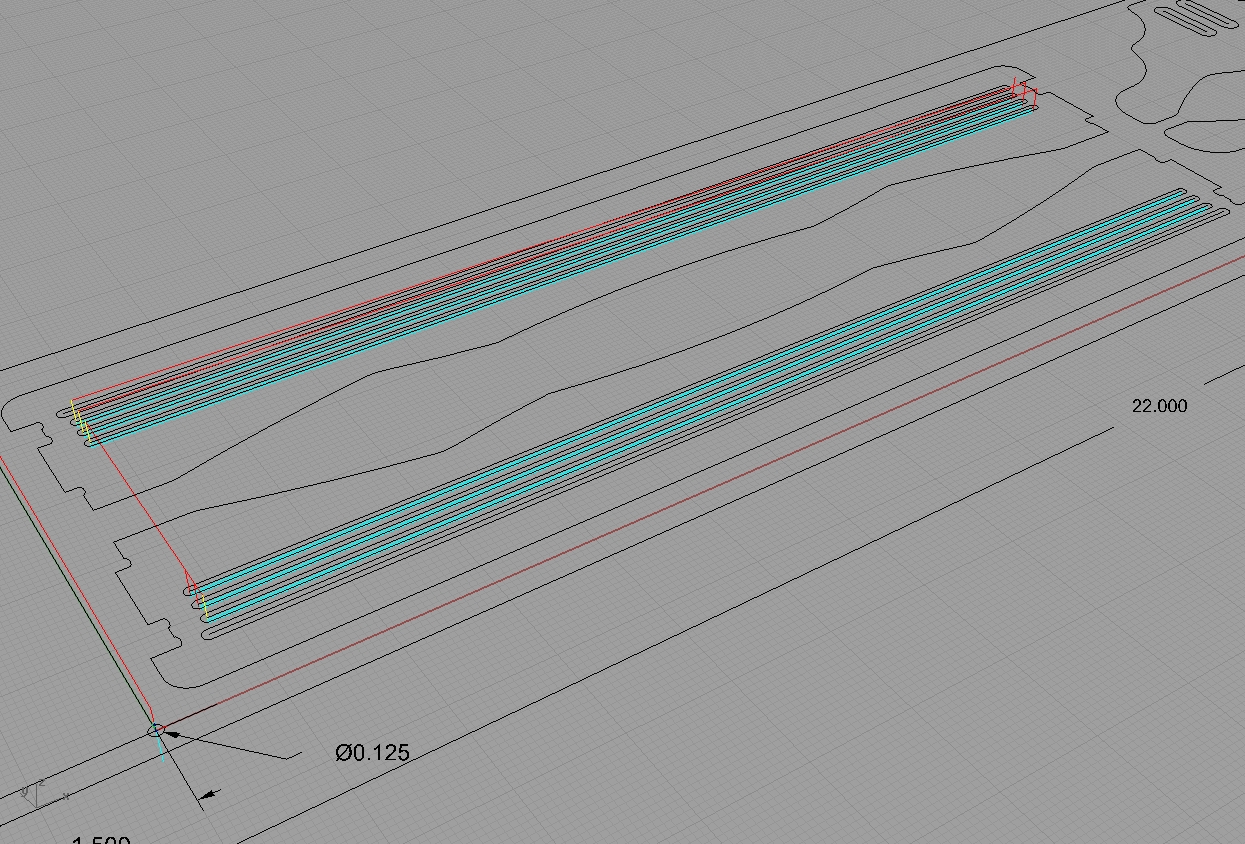

    This shows the engraving operation on the outside of the the stand.
    I used a 1/8" bullet nosed router for the veining on the outside


    Note the two 1/8" drill holes. They represent the X0 ,Y0, Z0 for each side of the wood.
    The stand is layed out in symmetry so that the stock can be removed from the pp then
    flipped over and the router bit centered and zeroed for the machining of the inside of the stand.



    INSIDE MACHINING OPERATION.

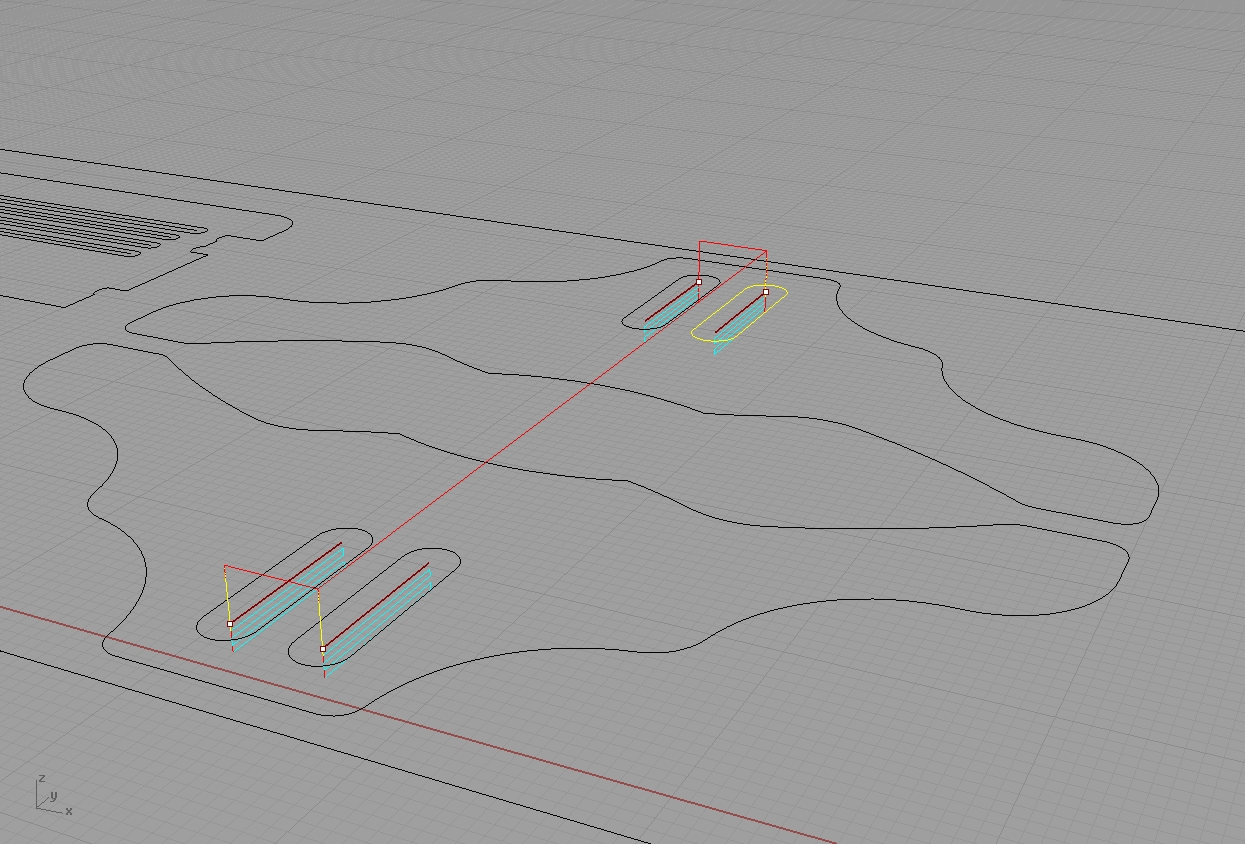

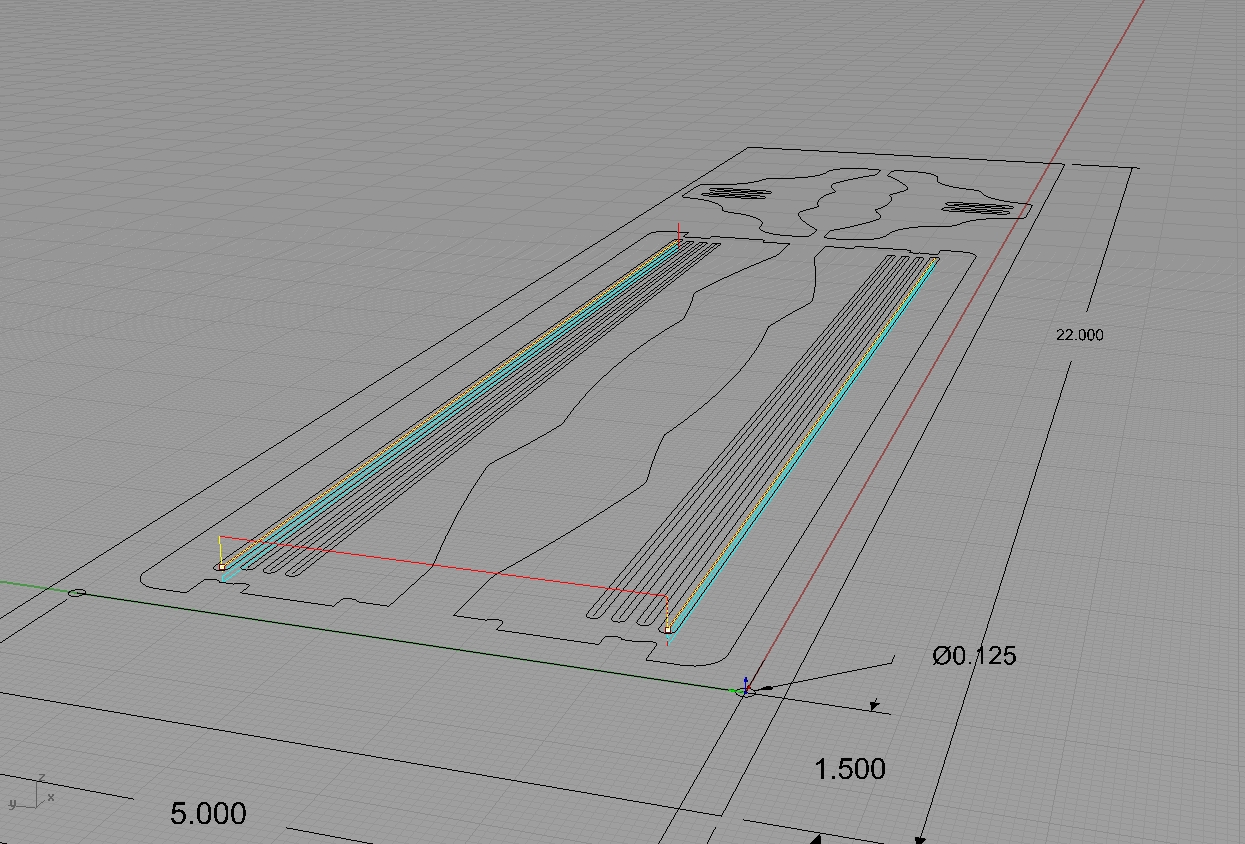

    This shows the slotting operation on the end pieces (legs).
    the 4 slots are cut with a 1/4" slotting router bit.
    The stand is put together with tongue & groove glue construction.

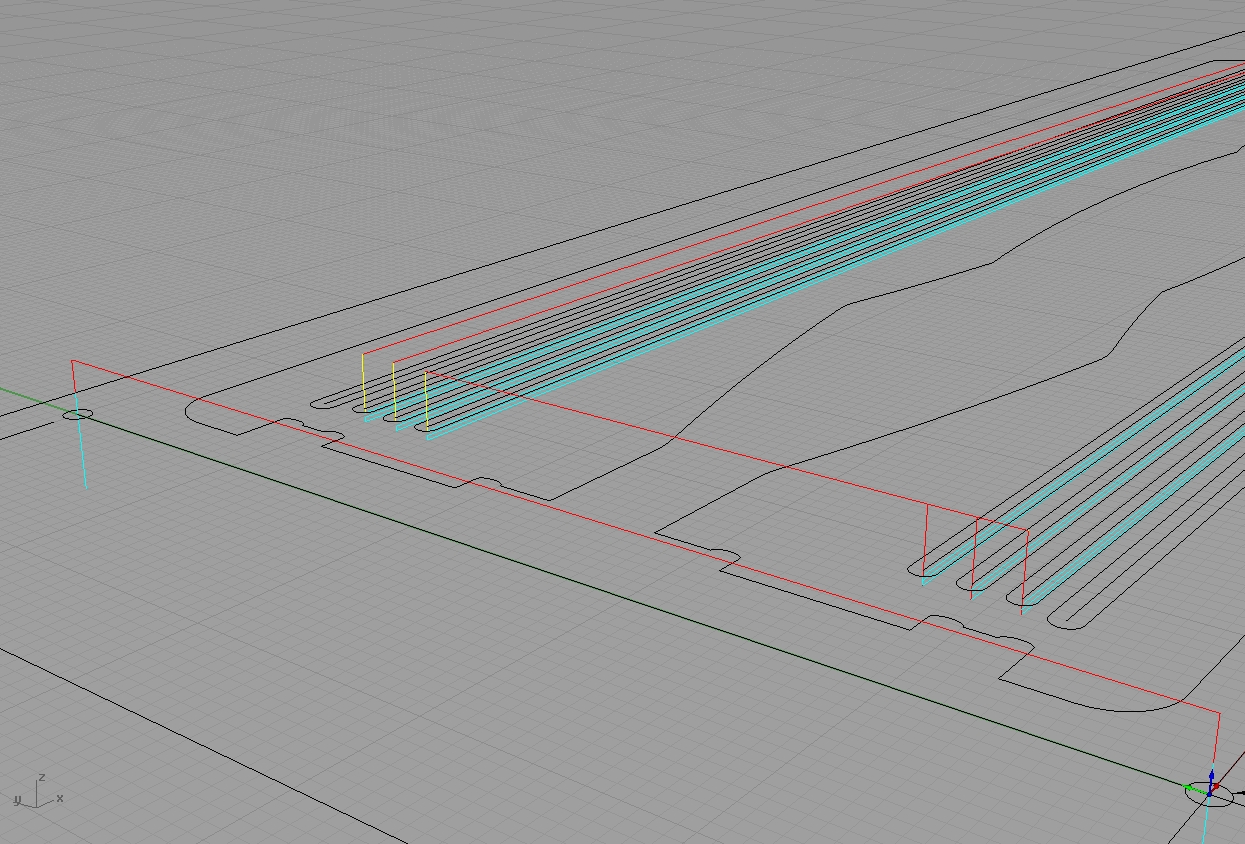

    This shows the slotting operation that holds the wooden strip that the flexible LED lights
    are glued to. The 2 slots are cut with a 1/8" slotting router bit.

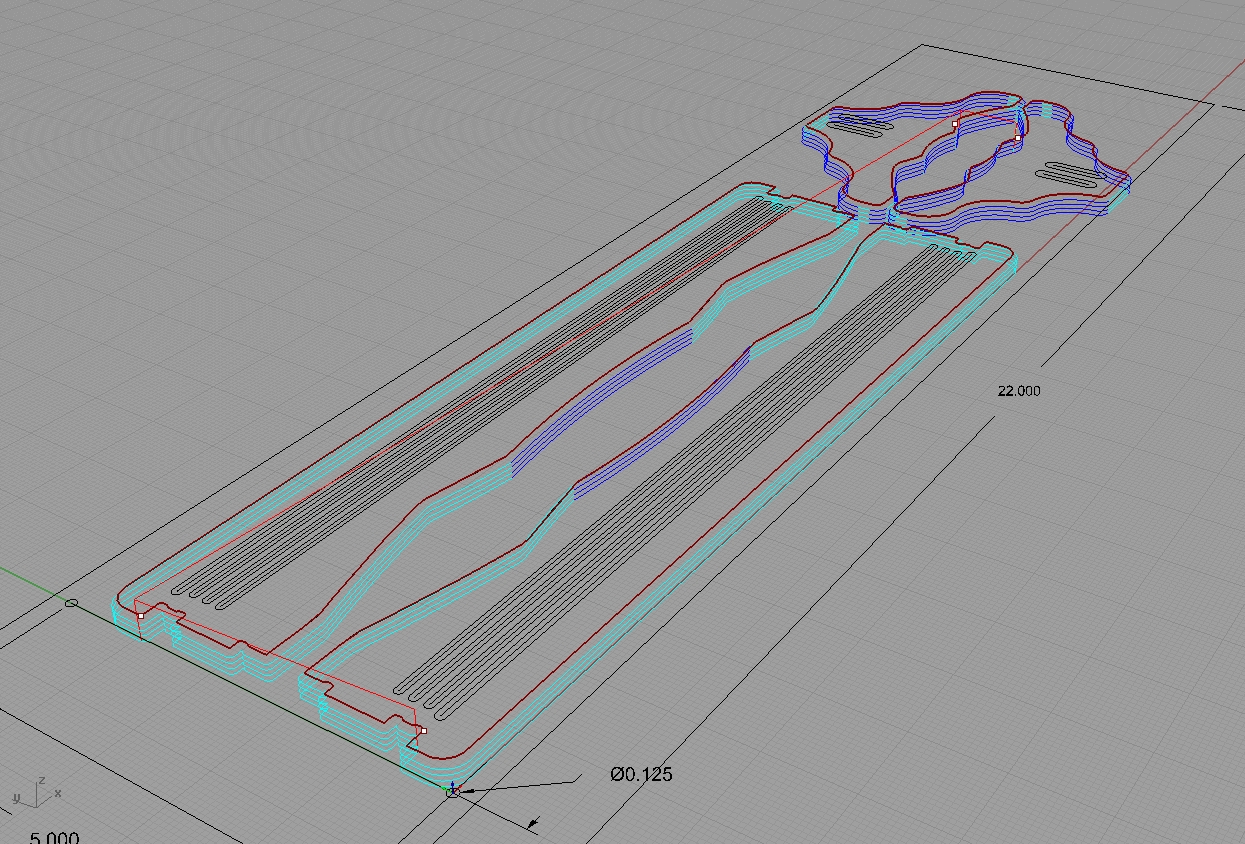

    This is the operation that cuts the finished parts out of the Oak.
    the 4 stand parts are cut out with a 1/8" router bit.

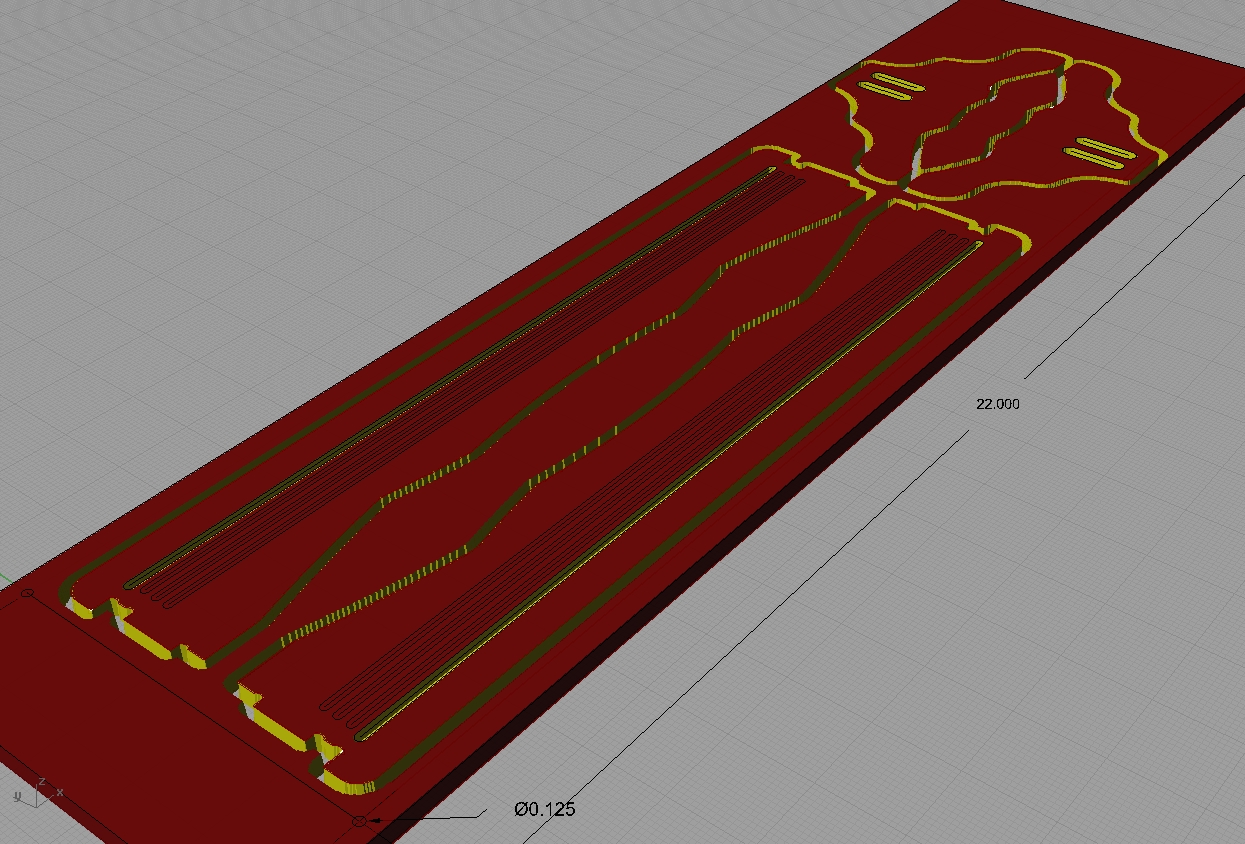

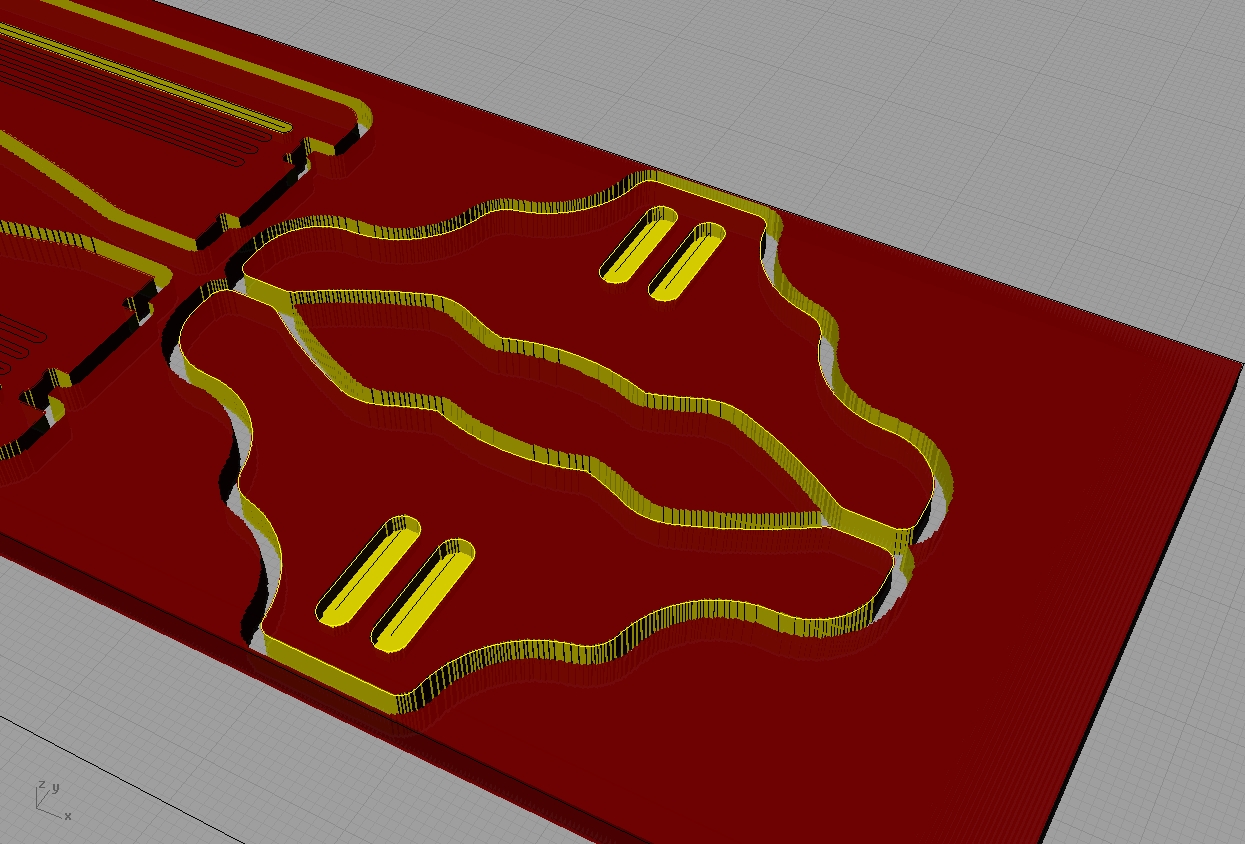

    These are machine simulations I ran to make sure that there were no problems with
    the machining process before generating the G-Code files.



    Although not shown in the machining process views, The 3/16" Plexiglass was engraved and
    cut on the pp as well. I had to use a backer of 1mm depron and guide rails to get it right.
    The Plexiglass was cut at 30ipm. I used a set of 45 degree carbide insert cutters to work the Plexiglass.

    The Oak stand was stained with MINWAX Golden Oak 210B to slightly darken the wood and bring out the grain of the Oak. The stand was finished with 2 coats of satin clear lacquer.

    The whole project took about 4 hours to cut out, assemble, and finish.
    It was not an easy project to do on the pp, but I learned a lot of good
    things about CNC along the way. :ugeek:

    Enjoy, and keep on PhlatPrinting.
