This is a simple build that will have you on your way to flying pusher style aircraft.
Would look great painted up too.









Edit:

Evil-Tunes Style




Evil-Tunes Style wide slot Can fit 9"+prop for lower KV motors F-22 is wider by 2"

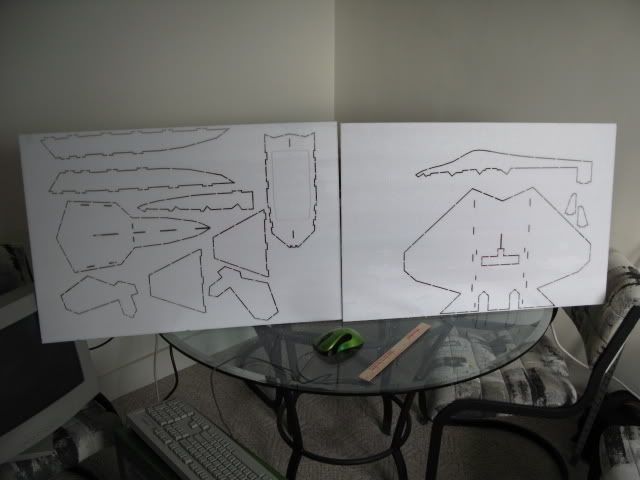

If you would like a Cut file please Pm Evil-Tunes w/bit diameter and Style Attached files F-22 Evil style 1 tailerons and rudders 1-8.cnc (13.5 KB)Â F-22 Evil style 2 tailerons and rudders 1-8 .cnc (11.4 KB)Â F-22 wide slot 1 tailerons no rudder.cnc (12.5 KB)Â F-22 wide slot 2 tailerons no rudder .cnc (12.6 KB)Â F-22.skp (442.6 KB)Â f-22 EVIL style.skp (356.5 KB)Â f-22 EVIL wide slot.skp (349.3 KB)Â f-22-Sheet1.cnc (10.5 KB)Â f-22-Sheet2.cnc (12.1 KB)Â



mark, started to cut this one....coming out great, scaled down to a 21in. wing span. im using the foam board fom i got at the dollar store....the printer runs so smooth....i cant believe it. cutting it out at 30ipm feed on low speed. the ball end is the way to go mark. i had the guy from work mod some tile tools you use, with a ball end they work great!! the plunges are awesome. i will bring ya some when i come to the show. peace, randy.



hello fellas, i wanted to post this here, in case anyone else wants to scale down this model. i am building a 21in. wing span version. i decited on a little screamer park jet motor. and a 6x4 apc speed prop. you will need a shoe horn to install a 6in. dia prop. alot of frame modding including relocation of the vertical fins. its like cramming a V-8 big block in a VW. i think it will be worth it, as of now with airframe minus speedy, servos, elevators, rx, as pictured its 3.7oz. i think it will be a lil rocket. but you really gotta cram the motor in ther. randy.

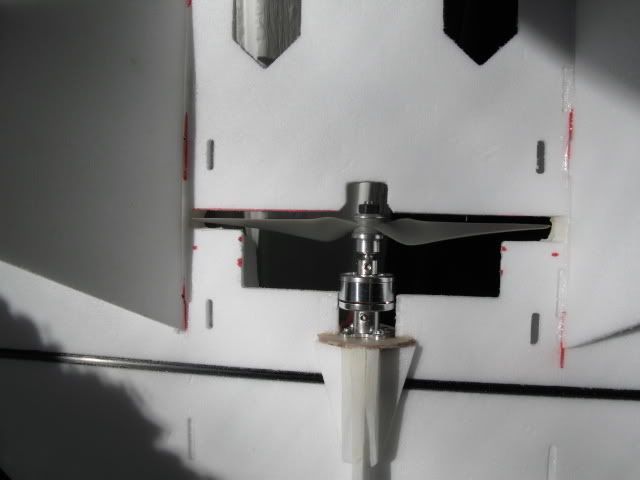

bottom, had to hack the fuse sides, i will have to reinforce....

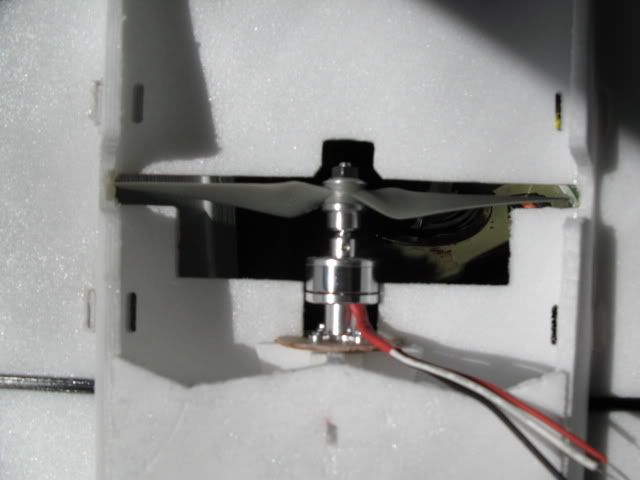

top, i had to relocate the vertical stabs, as to not hack them. have to fill original holes..

as of now its 3.7oz.



Looking Sweet! Randy! Nice one, can't wait to see some video
Mark



thanks mark....i am really starting to very much dislike the phlatprinter...its running so smooth and accruate, it seems as if i never left work!!, lols. randy.



:mrgreen:
Randy, I don't think I would ever leave your work place if I had access to the machines you have there!
Glad to heard you are running smooth!
Mark



Has anyone built and tested this plane yet? Looking for a CG placement WE have a few flghts in but man is it a hand full. Going to try again today with CG at the main wing tip. Will try to get some Video



Cheers
E-T



I'd test with the CG about 1'' in front of the spar. JMHO
BTW those Little Screamers are my favorite for the size. At least it looks like a LS motor.



Ok ended up putting the CG 5 1/2 inches in front of spar. I got some good footage of the flight. I posted the short version first and will post the long verision If possable. The Long version shows how the front got smashed. Oh boy don't want to say to much and spoil it I did not get a chance to fly it. Hopefully Tomarrow . Peltzer71 liked how it flew but said it needs some more speed. Only a 1500 kv motor. We are going to try a 7X6 prop instead of the 7x4.5

Short Version

Long Version

BTW The other plane in the video was a F4U Corsair ARF from Art-tech I think


Cheers
E-T



This plane flys much better with linked Tailerons, IMO




Cheers
E-T



Yes it does! Thanks for letting me fly this bad boy Glen that was a blast!
Mark



Added new SU file to first post Evil-Style

Cheers
E-T



Cool deal Glen looks like you have it figured out, thanks for posting this and thank you so much for your help today on the Phlatboyz Shop. We were so worn down it was a breath of fresh air to have you show up and help!
Mark



This plane is flying great but, It is missing one thing... ..Cant do Flat Spins.. .now updated with Rudders. Lets Rock and Roll :mrgreen:




Cheers

E-T



Cool mod Glen.
If you don't get the results your hoping for you may want to make those rudders a lot bigger.



Thanks 3DMON

I did have a go at it today but way to windy and a crappy Battery it was the only one left I did get some good slip action from the rudders I was having a hard time keeping her level with the wind off the trees. It was popping up and down to much. Will try again this weekend.


Cheers E-T Attached files



Glen great post!! Thank you for the edit.
Glad you had the chance to try it out yesterday. I have to get out there and film for you!
I am looking forward to this larger slot version mainly because all the motors I have are lower kv. Have you flown this one before? Or know someone who has?
Mark



Sounds like you need to get some more motors then Attached files



One guy in Our club has the wide slot at 20oz. It flys fine. It's on the heavy side to say the least. He wants to use Aluminium all the time. He owns a body shop and We keep telling him Aluminium is only lighter than steel. We have another in the club with a 1200 kv and his flew fine at 16oz just not very fast.


Cheers
E-T



I have a little screamer but I am not sure of the kv, I meant to show you Glen when you stopped by the other day.
Mark

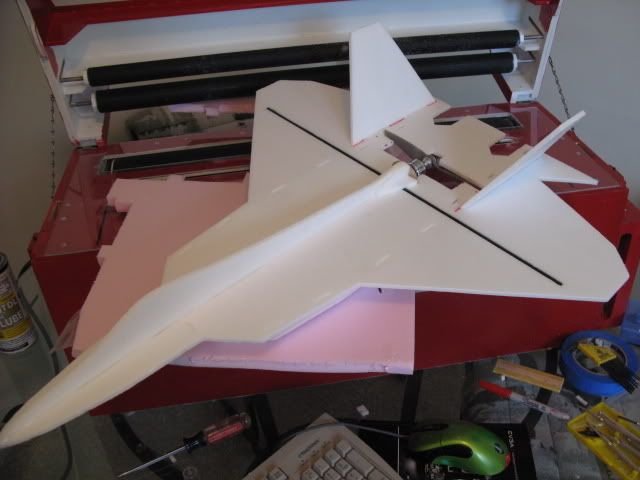

yep yep that is what you have to do. You can sand a / into it so it fits better. Or just glue it together as is "thats what I did" Here is a pic from the Front and Back




Cheers
E-T Attached files
