full fuse christine eagle

Discussion in 'Double Wing Aircraft Plans' started by popedan41, May 23, 2011.

  1. popedan41

    popedan41 Member

    Offline
    Messages:
    39
    Trophy Points:
    8
    Location:
    panama city fl

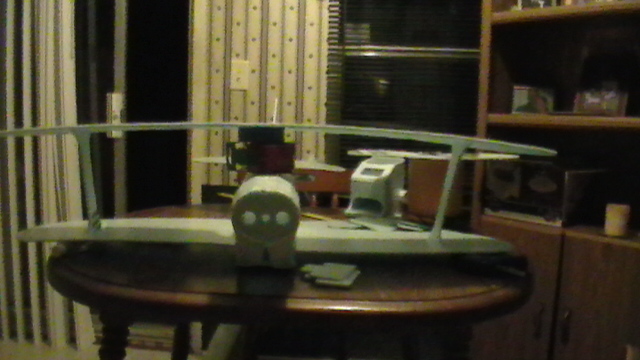

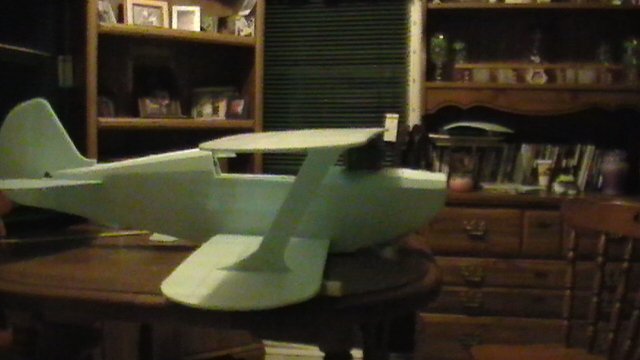

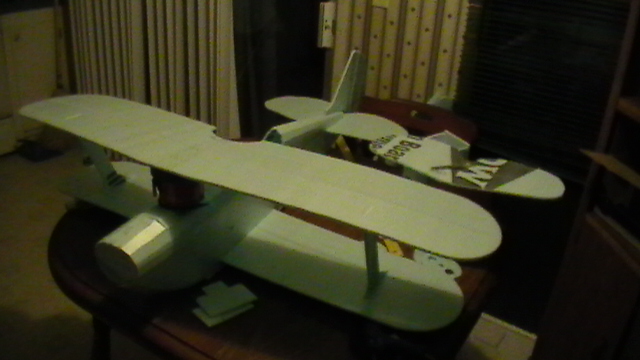

    found a nice dxf file .been working it up and skp.still have a way to go on it.but here is some pic off what i got done. this is a test cut fore know more too come later as soon as i get it perfect. :D

    Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  2. navionflyer

    navionflyer New Member

    Offline
    Messages:
    220
    Trophy Points:
    0
    Location:
    Richland, MI
    Looks great! :doubleup: The Christen Eagle is one of my favorite airplanes. I hope it flies as good as it looks.

    Tim

  3. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    It's looking great, I hope you plan on sharing... :dance3:

  4. Norlas

    Norlas New Member

    Offline
    Messages:
    20
    Trophy Points:
    1
    Location:
    Colorado
    Very nice job so far. Looks real nice.

    HAVE FUN AND FLY HARD
    RON

  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Sweet! :doubleup:
    Mark and Trish

  6. jovian

    jovian Member

    Offline
    Messages:
    208
    Trophy Points:
    16
    Awesome how did manage to keep the fuse from twisting

  7. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    Congratulations, :good:
    What is the WS?

  8. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    Good Job. :cool: :cool: :cool:

    Can't wait to see the pictures of it flying. :doubleup:

    Cheers.
    George :D

  9. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Nice job! :doubleup:
    Looking forward to your flight results. It looks like it should do well.

  10. PAULE

    PAULE Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    FL
    HELLO :fugly: -I WOULD LIKE TO KNOW HOW YOU MADE A FULL-FUSELAGE ON YOUR CHRISTEN
    THAT IS WHAT I AM TRY - ING TO DO WITH A P-38 :fugly: AND A -A-10 :flying:
    :twitch: HOPE YOU CAN HELP
    NICE JOB :good:

  11. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Paule you have to make it in 3D first and then use the unfold tool to make it flat.(make sure you turn on show hidden objects in the View menu so you can see where the fold lines will be)
    viewtopic.php?f=94&t=1483&p=14479#p14428
    You can use tools like curviloft can be a big help in designing the fuse fram work. Remember you only need to do half a part in most case and then copy/flip and stick the two half's together
    viewtopic.php?f=103&t=2105&start=0
    Hope this helps
    Mark and Trish
