Welcome to The Phlatforum PhlatPrinter III

Giant Phlatboyz sign

Discussion in 'Projects on your Phlatprinter 3' started by kram242, Jan 8, 2011.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Hey guyz,

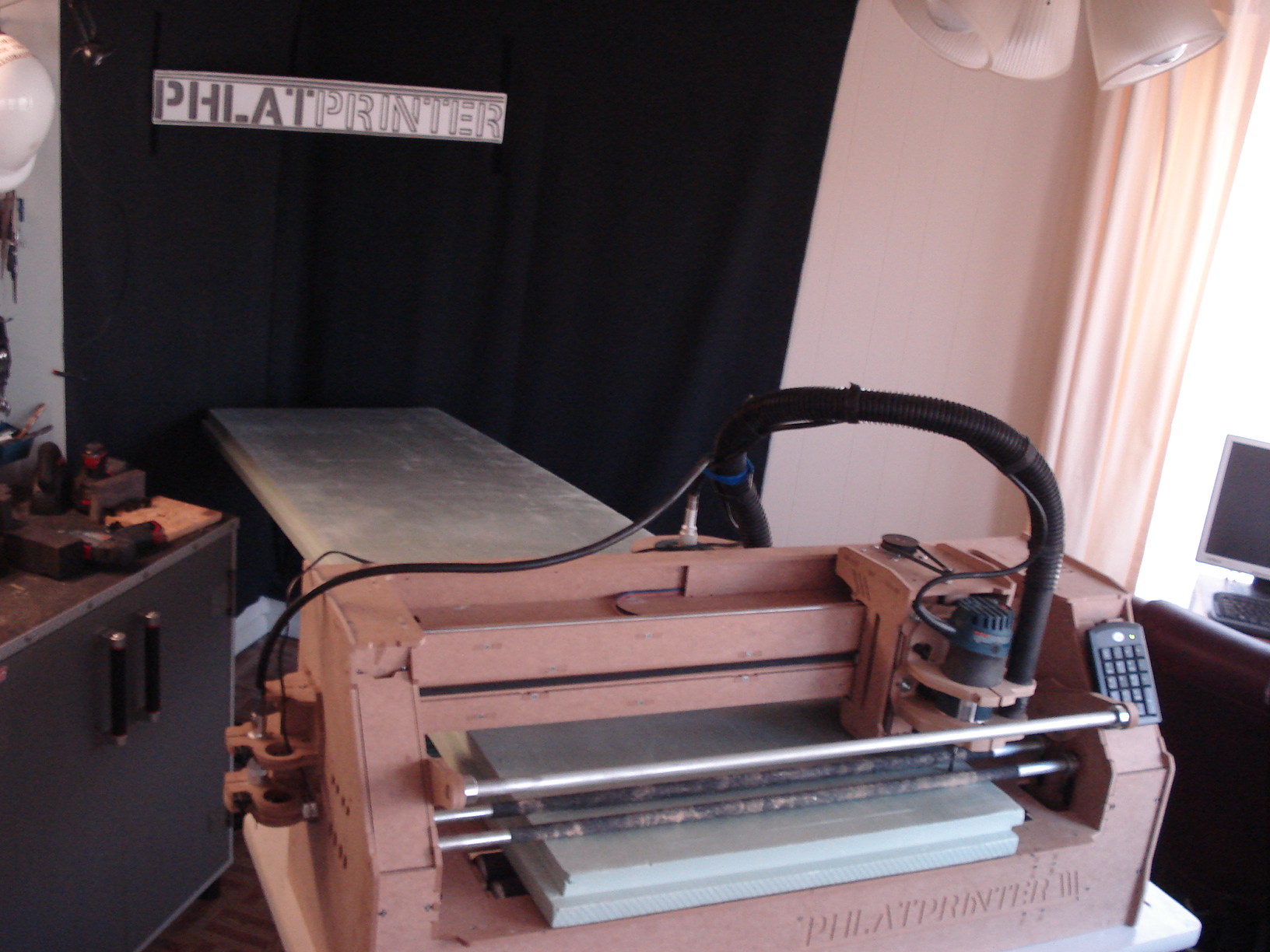

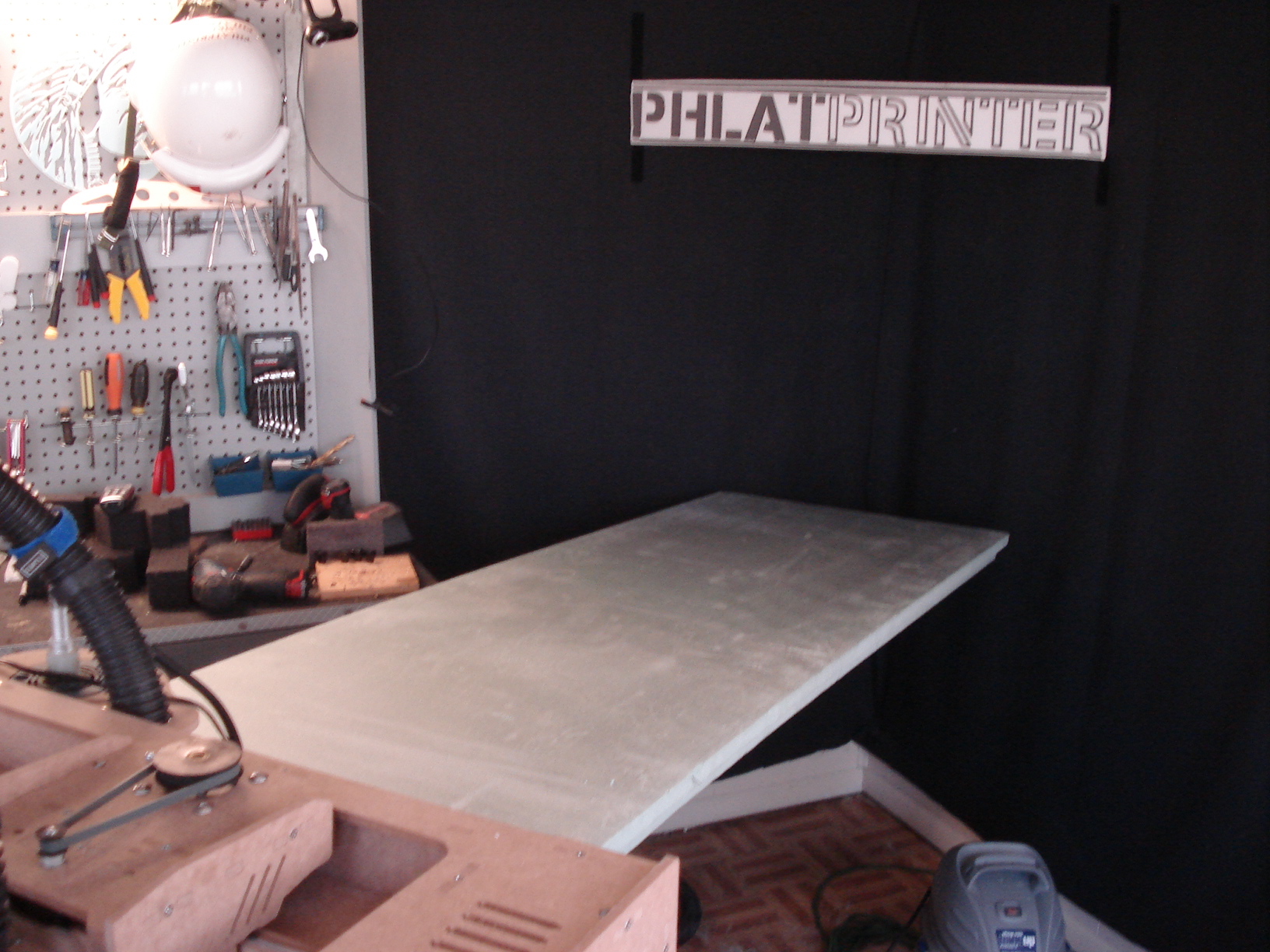

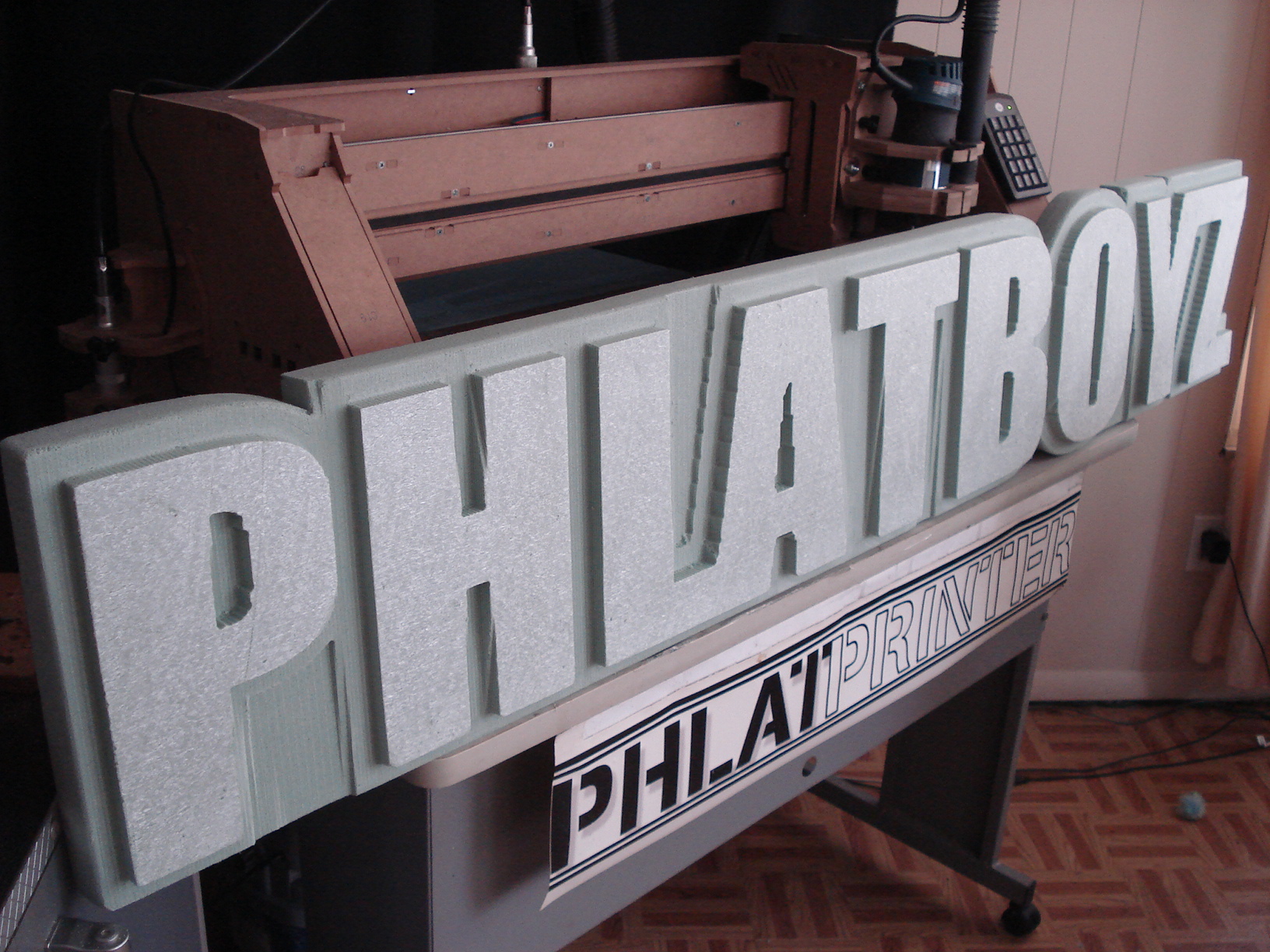

    I took that 2" 2x8 sheet of foam and carved a large sign out of it using the pony router and with a 1/4" bur bit. I used a 50% step over not the greatest resolution but we did this to get it done quick. I cut at 200 ipm! I made a mistake with the coding and set it to go to deep so the first attempt push all the way to the bars, I redid the code and it did much better the second time.
    Although the Phlat3D code had a few strange angle cuts we have to say we are really happy with the outcome :D This was a fun project to try and we plan on doing many more as we improve our skillz.
    Here's a video and some pics to check out.
    I am thinking white background with blue letters :D
    :D Thank you guys for the giftcards you can see we are having fun with them! :D
    Attached files [​IMG] [​IMG] [​IMG] [​IMG]

    kram242, Jan 8, 2011
    #1
  2. xtremeRCpilot

    xtremeRCpilot Member

    Offline
    Messages:
    736
    Trophy Points:
    16
    Location:
    Cleveland, Ohio
    Looks Great Mark !! I need to learn how to generate these 3D objects!! Thanks for sharing!! :D

    John

    xtremeRCpilot, Jan 8, 2011
    #2
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thanks John :) All I did was extrude some text using the Push pull tool. It was really easy, I wanted to make something crazy looking but I didn't have that much time to work with it. I love the sign though its going to be cool painted! :cool:

    kram242, Jan 8, 2011
    #3
  4. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    :shock: :shock: AWESOME SIGN. :shock: :shock:

    That will be good to take to trade shows.

    Great work Mark :cool:

    Cheers.
    GHB

    thunder hawk, Jan 8, 2011
    #4
  5. xtremeRCpilot

    xtremeRCpilot Member

    Offline
    Messages:
    736
    Trophy Points:
    16
    Location:
    Cleveland, Ohio
    Thanks for the tip Mark!! I need to play with this more, I have just been having to much fun with my Profile planes!! :p
    Keep the pics coming!!
    John

    xtremeRCpilot, Jan 8, 2011
    #5
  6. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    I was wondering what you were planing to do with the huge piece of foam...

    Cool stuff!

    3DMON, Jan 8, 2011
    #6
  7. navionflyer

    navionflyer New Member

    Offline
    Messages:
    220
    Trophy Points:
    0
    Location:
    Richland, MI
    Mark,

    I was just thinking that Styrospray http://www.industrialpolymers.com/product-list/styrospray-product-list/styrospray/ would work great for that especially if you are planning on taking it to trade shows.

    Tim

    small quantity:
    http://www.wowplanes.com/product_info.php?cPath=46&products_id=130

    navionflyer, Jan 8, 2011
    #7
  8. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :D I tell you I'm having a blast trying stuff like this :D

    Tim, Your right about that styrospray it would be perfect for this. I have some too! :D I am going to do that before I paint. I think it will really give it that professional look :)
    Mark and Trish

    kram242, Jan 8, 2011
    #8
  9. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas
    Mark,

    That is AMAZING, what is really amazing is that the PhlatPrinter was able to move that big piece of foam accuratley. This is just another example of why the Phlatprinter is THE best machine on the market for foaam cutting.

    crash5050, Jan 8, 2011
    #9
  10. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Wow! That thing looks great.

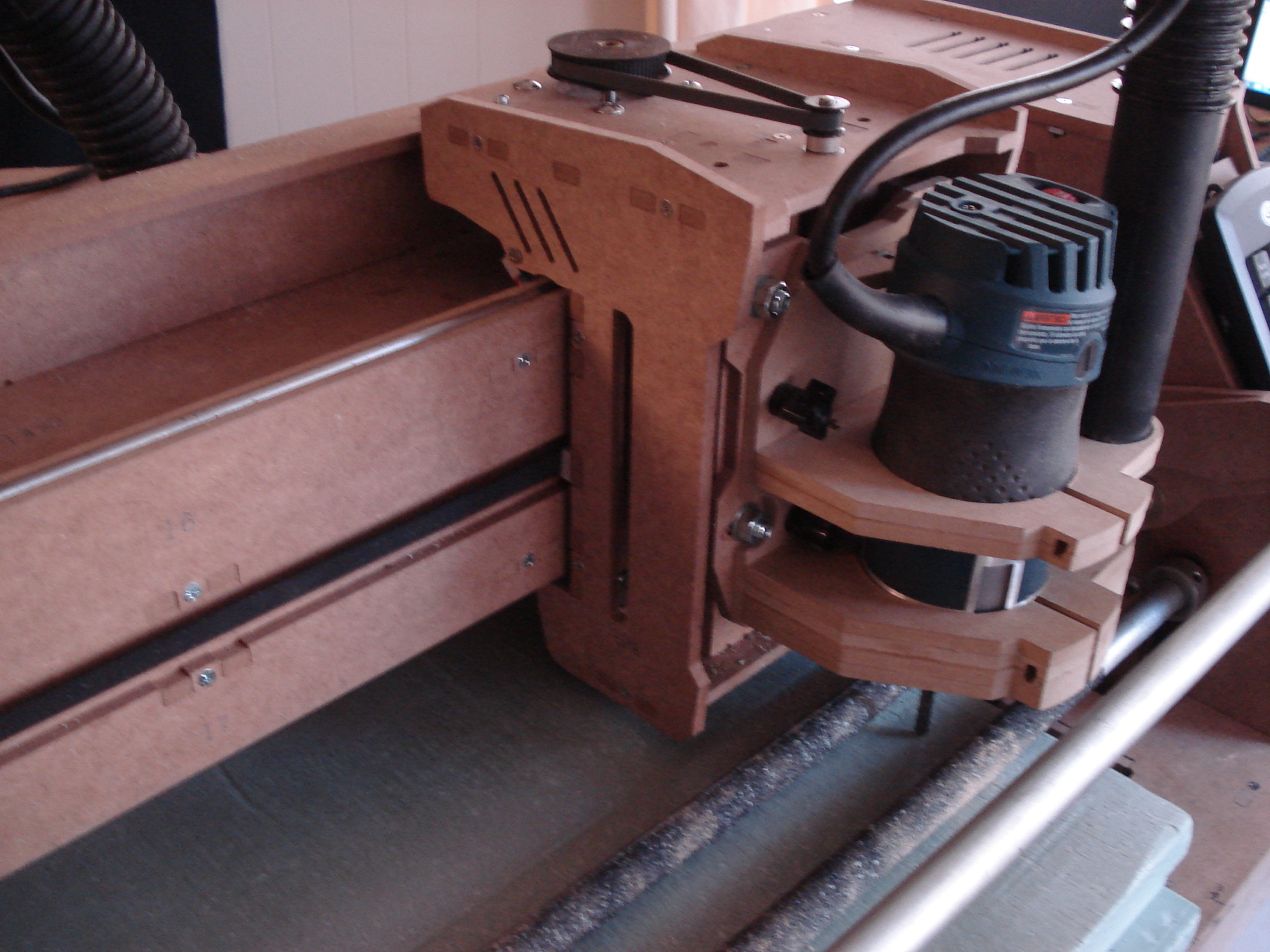

    Any trouble with the router attachment holding the weight of the router? How long did that take?

    7up, Jan 9, 2011
    #10
  11. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Surprisingly, not at all Buk and we were cutting at 200 ipm, it took about 1 hour and 10 min. This is the great thing about using these bigger bits it allows for bigger projects and larger step overs.
    Fun! :D
    Mark and Trish

    kram242, Jan 10, 2011
    #11
