Hexacopter Scratchbuilt using PP3

Discussion in 'Projects on your Phlatprinter 3' started by gben, Aug 24, 2012.

  1. gben

    gben Member

    Offline
    Messages:
    57
    Trophy Points:
    6
    Location:
    Southern California

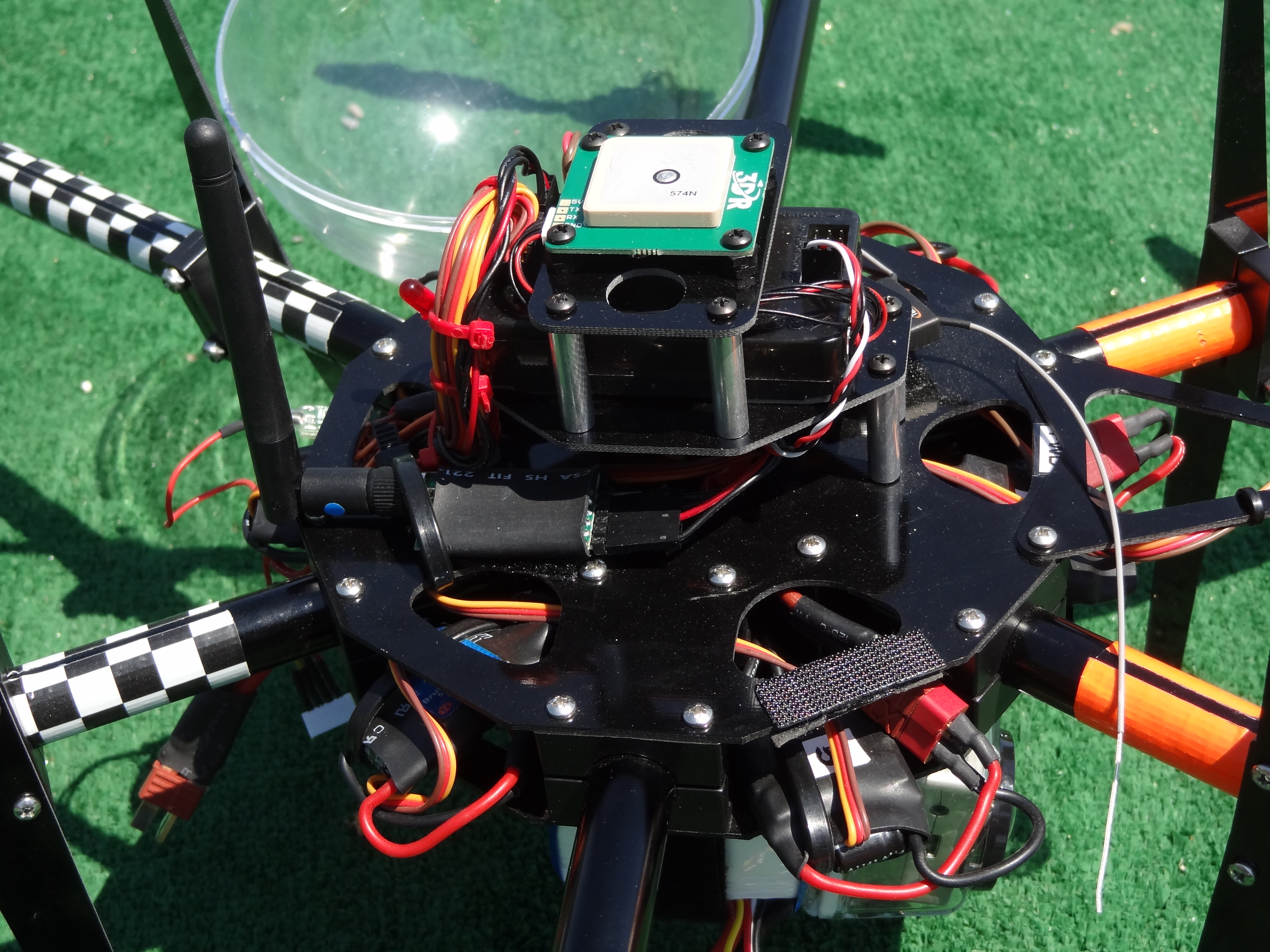

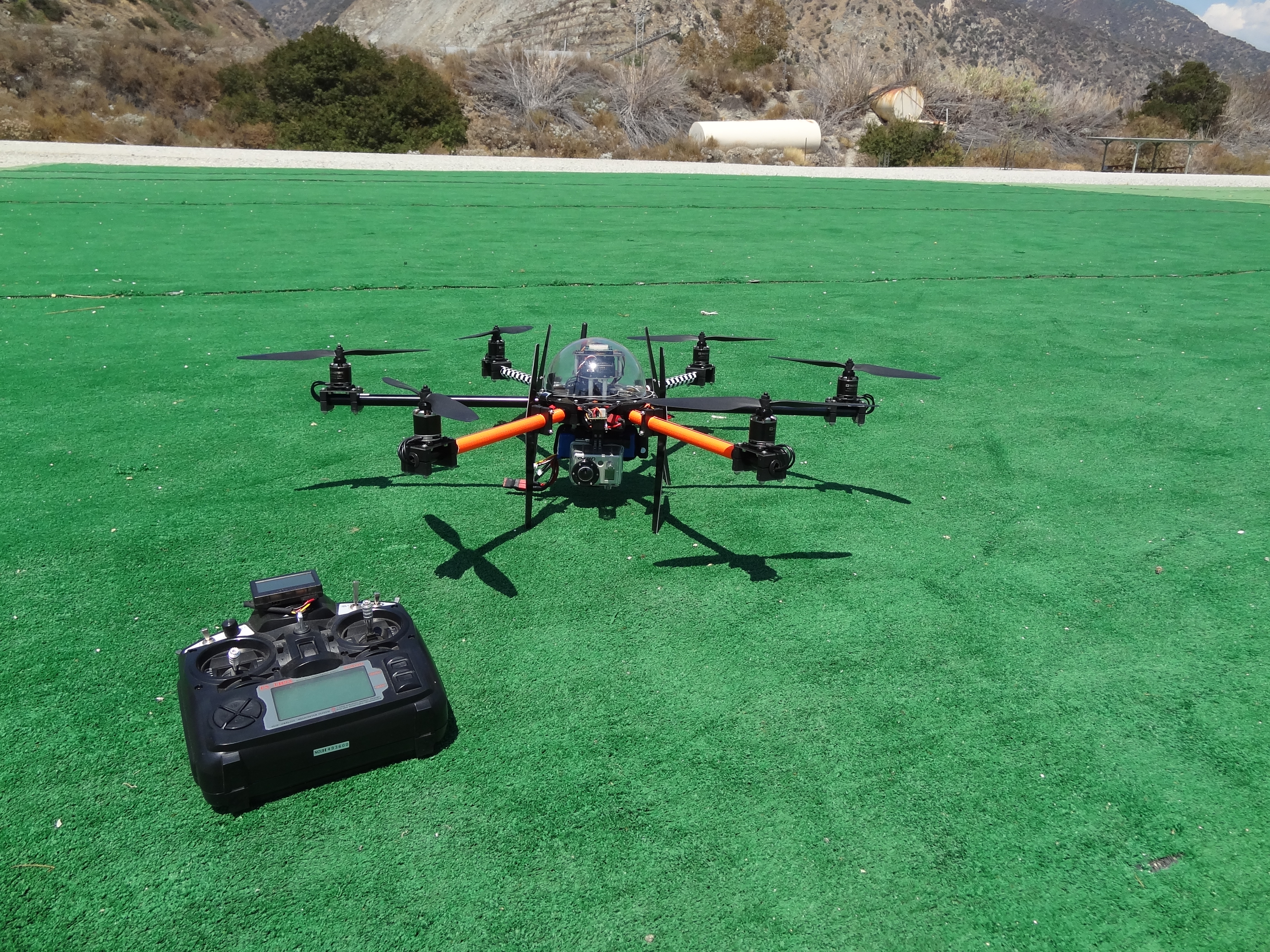

    Hey guys. Just wanted to post the hexacopter project I just finished. The specs are below and I am happily cutting G10 FR4 parts out as needed. I am using a 0.063 chip breaker bit and a 5 ipm feed rate and a 10 ipm plunge rate. It seems to work just fine at those speeds with the stock drill unit.

    If anyone wants more details or is interested in the somewhat rough files I will post them.

    Hexacopter Specs.

    Frame: 0.063" Garolite-G10/FR4 cut on Phlatprinter3
    Booms: 16mm OD aluminum
    Boom Blocks: quadframe.us 16mm boom blocks
    Flight Control: ArduPilotMega 2.0 Board & Case
    Software: Arducopter 2.7.1
    External GPS: uBlox LEA-6
    Sonar: MB1200 XL-MaxSonar-EZ0 Ultrasonic Range Finder
    APM Telemetry: 3DR Radio Telemetry Kit - 433 MHz
    Motors: 6x Tiger MT-2216 900kV
    ESC: 6x eRC "Rapid Drive" 25A Brushless ESC
    Battery: 3s-5000mAh
    TX: Flysky 9x w/ ER9X firmware with Frsky DJT Module & FLD-02
    RX: Frsky D4R-II RX using CPPM

    Weight with battery, no camera = approx 1.7 kg









    Attached files [​IMG] [​IMG] [​IMG] [​IMG]

  2. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38

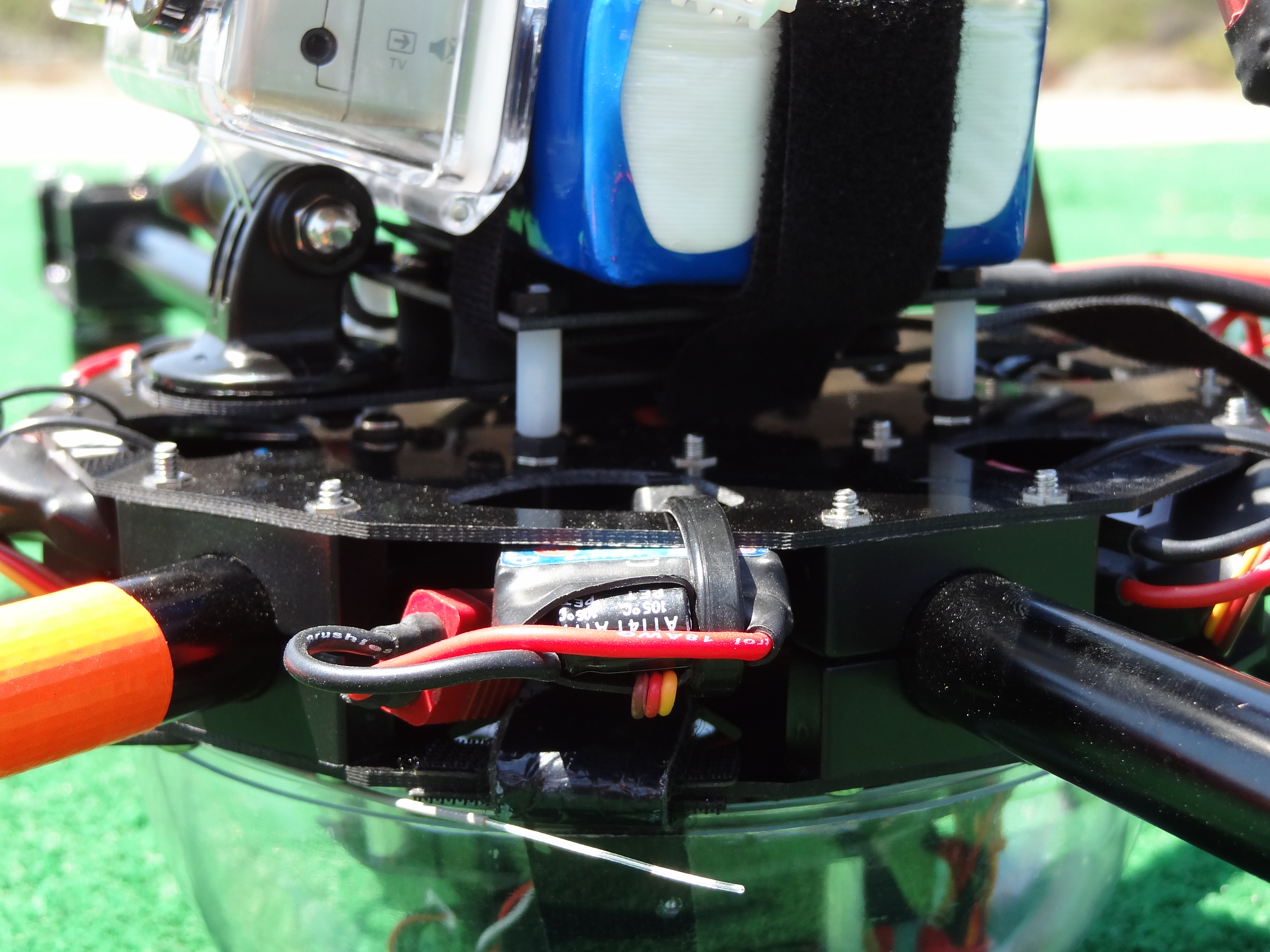

    That's pretty darned slick. In the last pic, I'm assuming you have something in the structure to keep the tubes from rotating?

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

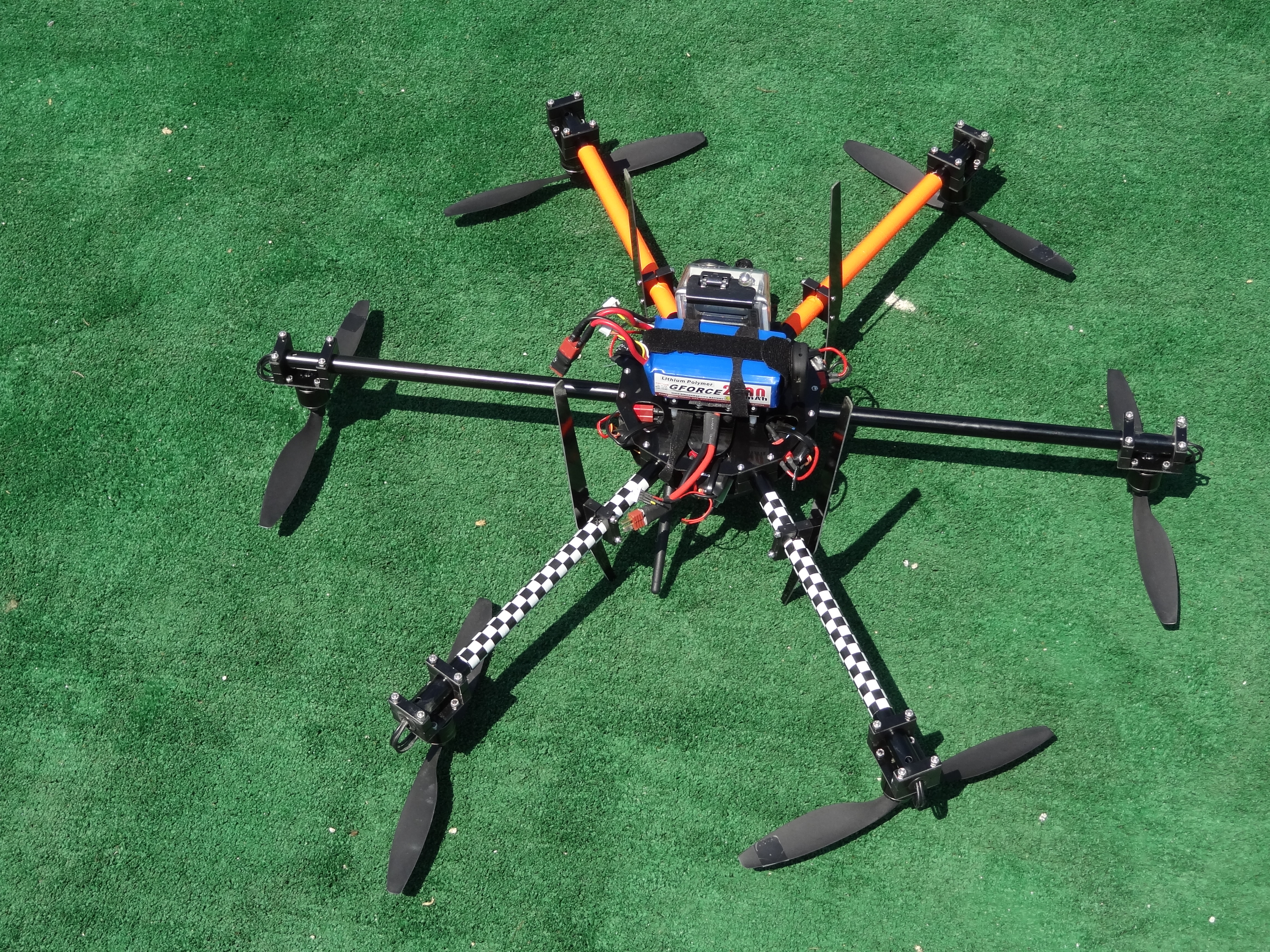

    WOW nice job gben! I like the way you did the landing skids ingenues
    Thanks for posting
    Mark and Trish
    p.s. the files would be great to have

  4. gben

    gben Member

    Offline
    Messages:
    57
    Trophy Points:
    6
    Location:
    Southern California
    Thanks. Each 16mm arm tube is clamped by two boom block pairs inside the central frame. When the boom blocks are tightened the tubes don't rotate unless they see a fairly large load (in a crash for instance). It acts as a mechanical fuse to dissipate energy without breaking something.

  5. ToxicToast

    ToxicToast Down in the weeds. Staff Member

    Offline
    Messages:
    483
    Trophy Points:
    18
    Location:
    Roseville, CA
    Your hex is one up on awesome! awesome++

    How do you like the Tiger motor setup? I'm looking to purchase a new set for my TBS Disco frame and haven't decided on a specific model/brand. I've been using RCTimer 1000KVs but they are hit/miss when it comes to quality/balancing.

  6. gben

    gben Member

    Offline
    Messages:
    57
    Trophy Points:
    6
    Location:
    Southern California
    Thanks TT. I've liked the Tiger MT motors thus far. They come will long leads which is nice when you want to route them back to the center of the frame through the arms. They run very smooth. The only thing I dislike about them at this point is the price. $50 each is painful when multiplied times six but I found with my first quad build that balance is everything with the props and motor rotor housings. I've seen some good things about sunnysky motors as well and they are more reasonably priced (approx $25 each or so).
