Hey Guyz,

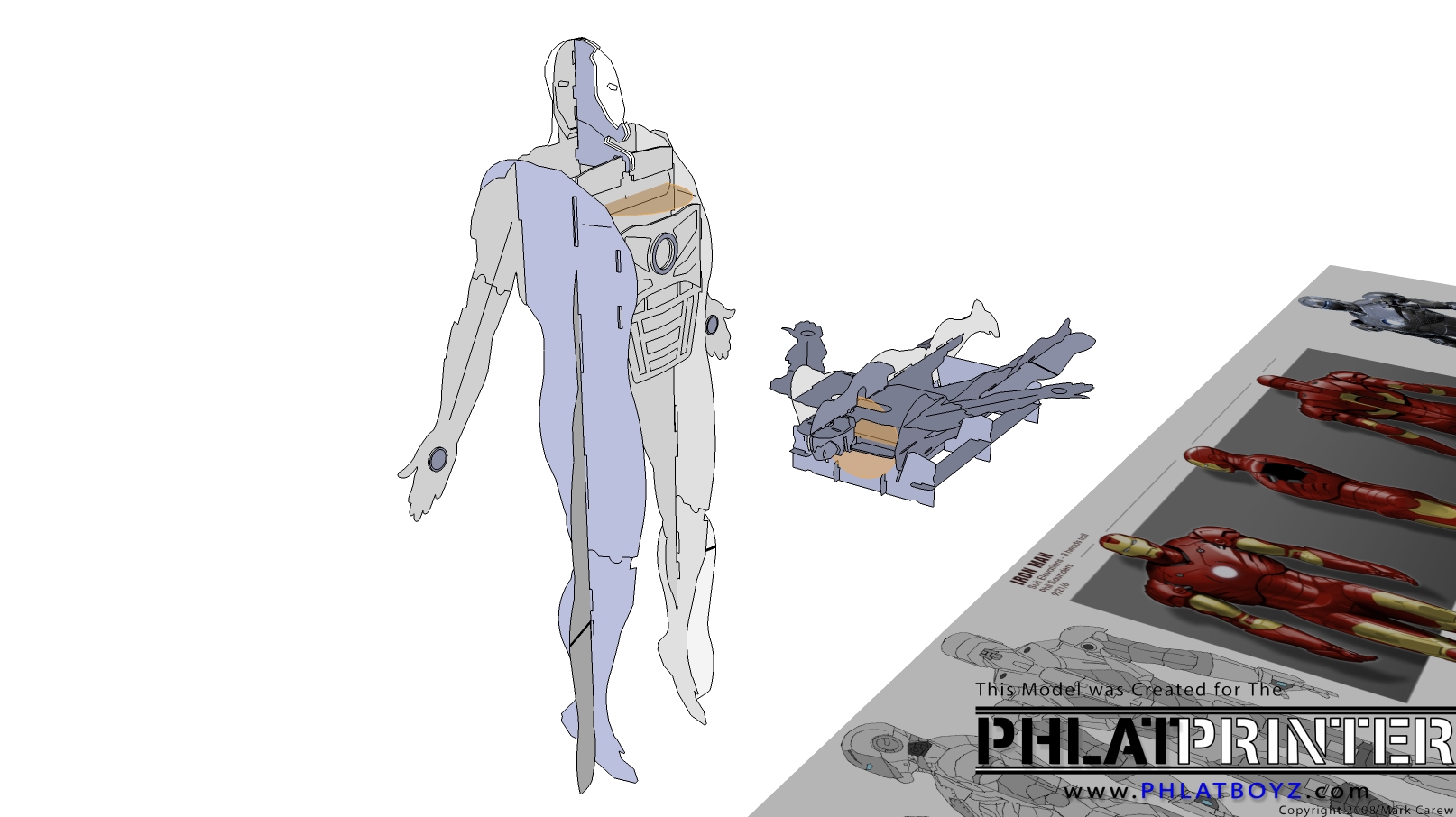

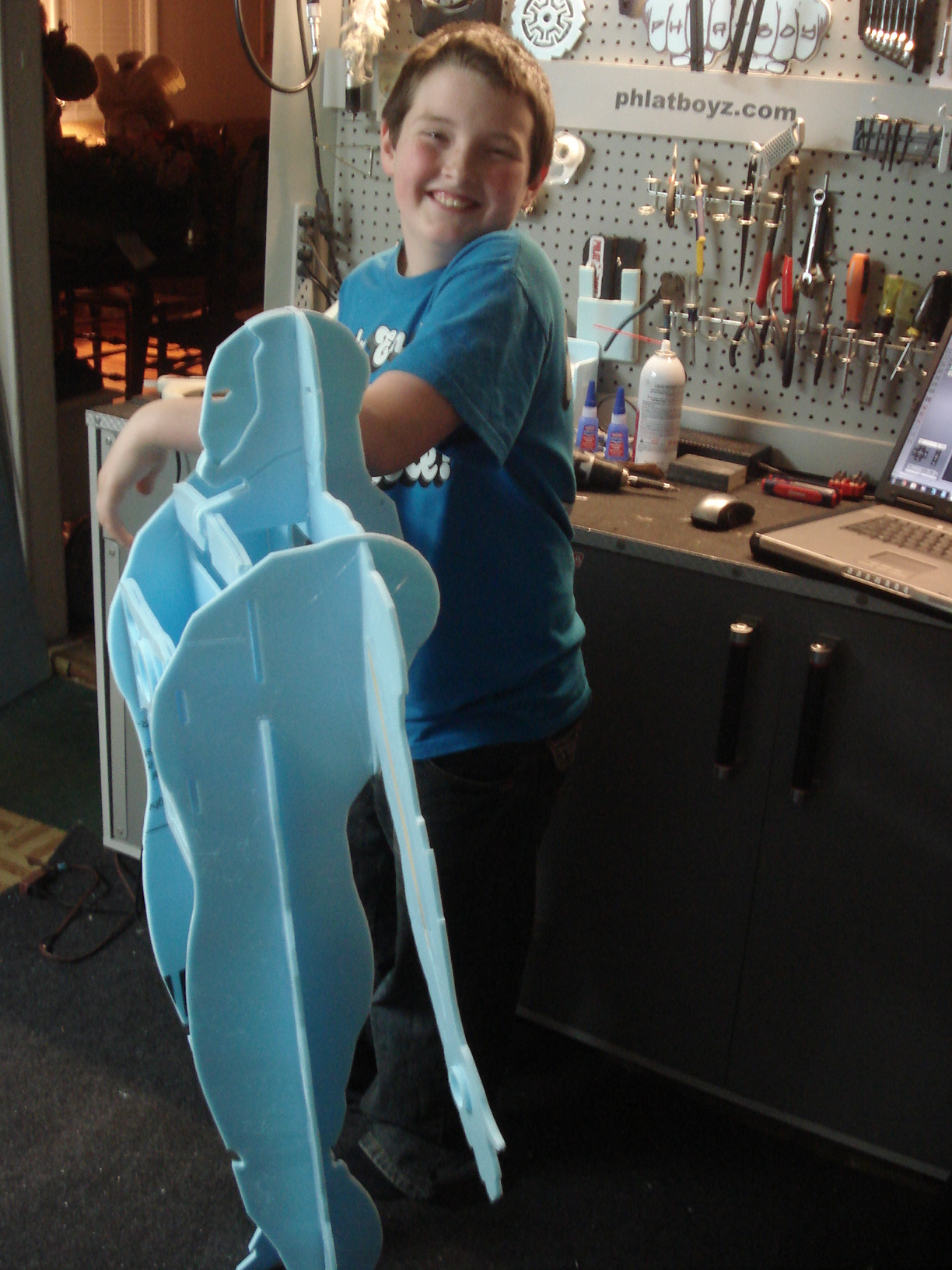

Here is the FlyDude we were working in the Christmas PhlatLAB show.
I ended up re-drawing the whole thing as well as modifying it to be the Ironman mark 2 suit!
Its aprox. 47" tall and will accept a 8" prop.
This should be a good foundation for other super hero designs as well as micro sizing it (just resize one of the slots to 3mm with the tape tool). It was a LOT of work to get this right and I have not cut it out yet so let me know if you find any problems. I did a quick layout (no tabs) and could not get the last boot to fit. So maybe you guyz can work with that and find a way so we can have it all on 2 sheets . The material is set for 1/4" fanfold or 6mm depron using the 1/8" Phlat Bit.
There is a lot of info over on an rcgroups thread about the electronics setup here: http://www.rcgroups.com/forums/showthre ... ght=flyguy
PLEASE post your completed versions here on the Phlatforum with information of your setups so that we can all make this a really fun flyer!
This is an early Christmas Eve present to all the Phlatboyz!
Merry Christmas Everyone!
Mark and Trish
P.S. Blue LEDs in the eyes/feet and the hands/chest arc reactors would look great!








Attached files FlyDude IronMan_48.skp (2.6 MB)Â FlyDude IronMan_48_SHEET1.cnc (124 KB)Â FlyDude IronMan_48_SHEET2.cnc (80.2 KB)Â FlyDude IronMan_48_SHEET3.cnc (34.8 KB)Â



Now , this is just cooler than KOOL!!!
Its a outstanding Christmas Eve Present...
Thank you Mark & Trish...
Have a Merry Christmas



Awesome!



Thanks guyz I sure hope it flyz good
Should be lots of fun
Mark and Trish



Hey guyz,
Blindflight and I are working together on an improved version of the IronMan
Stay tuned and we will post it.
Thanks
Mark and Trish



The Ironman files in the first post above have been updated! Thanks to Blindflight! Thank you AL



No problem , my pleasure.......



Hey guys , here is the kinda boring video of the 48" Iron Man. (I did not have a camera man handy) lol lol



Nice job Al!
Thank you for posting this!
Mark and Trish



Cool guyz! well as for the specs we originally had a blue wonder in mind but it seems to be under powered, you may want to ask Blindflight as he is the only that has one flying here. We have gone back to the drawing board on this one and I really want to re-work these plans for a micro version (for the indoor flying weather)that moves the legs to turn , they seem to work much better. I hope to have it done soon, but if someone wants to help that would be great too I think Blindflight has started with the micro, so maybe he will pop on here and let us know where hes at with the build so far.
Mark and Trish



Hey guys,
Here are some info and pics of the "Iron Man_PhlatDude".
I used hot glue to assemble most of the parts and also used packing tape on the fuselage/ body sides, arms and back center area. Motor mount and control horn was "CA" glued in, servos, receiver and control guides were hot glued. The packing tape is an easy and strong way to strengthen the body and parts. I used wood spars in the arms and the center section just below the motor area. A 15 degree alinement jig is used for proper angle setting of the body.
This power setup will not have you go vertical. Its a bit under powered but will fly slow as seen in the video. I will be replacing the motor with a bit more powerful one with the same battery and see what happens. Make sure you set up your transmitter for "Delta / Flying wing" type craft to use "Elevons".
The two control surfaces will operate the "elevator and ailerons". Will have more info on the new power plant later.... Thanks Mark & Trish for posting the IronMan FlyDude...
Thanks , BLINDFLIGHT

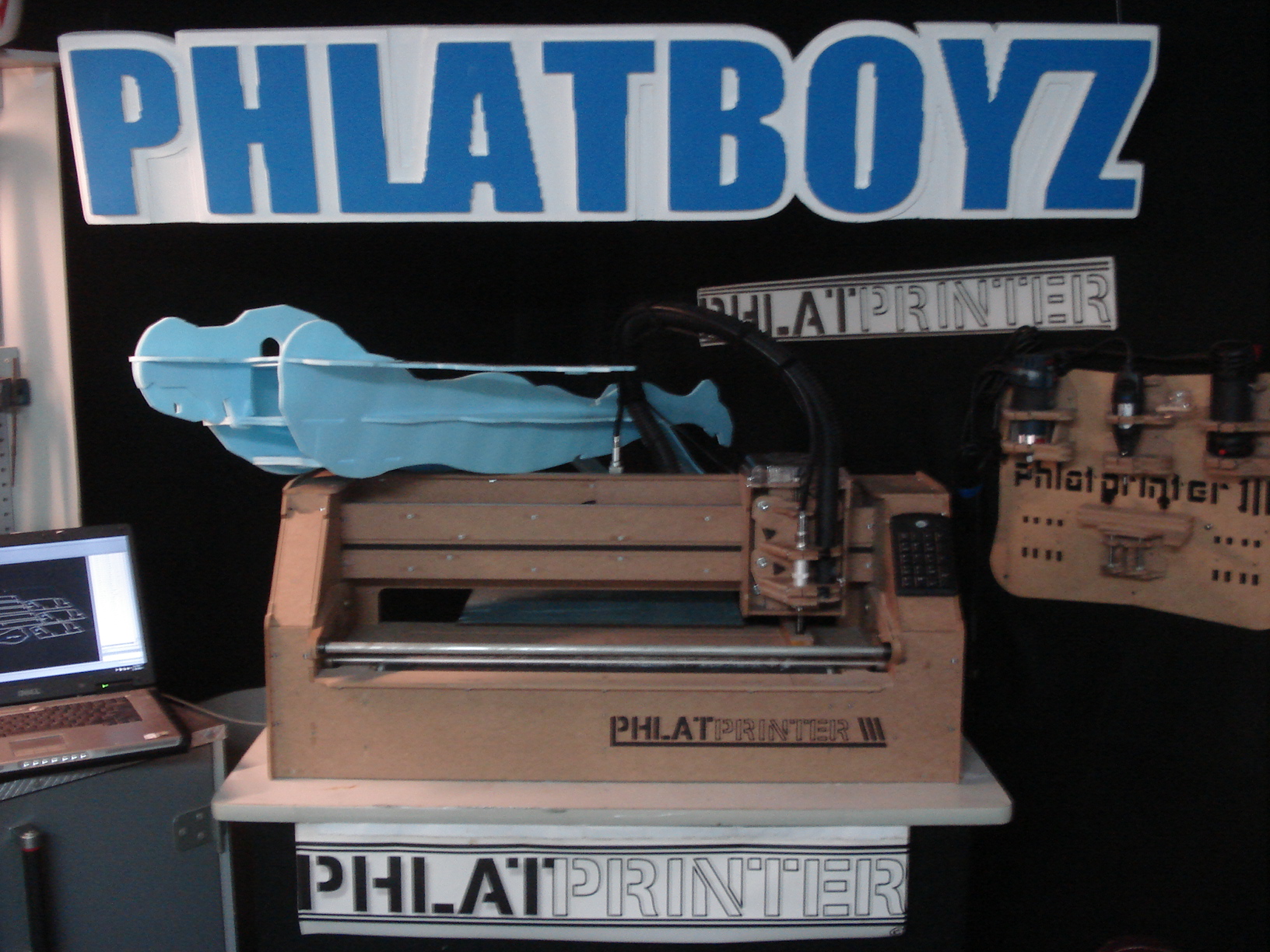

Cutting process: PhlatBoyz - PhlatPrinter 3
Material used: Blue Core / FanFold 1/4" foam
Glue: Hot Glue / CA foam safe
Weight: 17oz (had to add a1 ounce to balance @ 15")
Motor: Blue wonder 1300
Prop: 8x4
Battery: 1300 3 cell 25/50C
Speed Controller: Turnigy Plush 18A
Receiver" Spectrum AR6100e 2.4
Servo: HS55 (2)
Control Horn:"PhlatBoyz" design
Control rod: 1/32" Attached files nverted_files/37814=14427-100_8949 (Medium).jpg">



Thanks Al! Great post!
plenty of wing area for a bigger battery/motor
Mark and Trish



Here's mine . All Phlat and the motor will go on the top of his head

Im cutting the parts from the sheet tonight and doing a dry fit .

Also the legs will move on this one . Attached files



SWEET!!! Looking forward to this one Bruce
Are you built yet?!
mark and Trish



Ok Boyz, here is what i got.
I had found a small problem with the legs bending so i redid the knees
It all works now and the legs move great ....

I will be painting mine this weekend and putting in the gear.

Here are the files if any of you want to give this one a shot. Attached files Iron Man- 2.zip (433.6 KB)Â



Looks good ewo , How are you going to mount the motor and size?



The motor gets mounted to the head with a 3mm dowell rod. Its an eflight 180
I stole it from one of my UMX Beast's

Did a little airbrushing tonight just for the heck of it,
Now a little sharpie touch up and on to the building Attached files



What weight did it come out in Depron?..



I have no idea right now.
I will take it to work with me tomorrow and get the weight for you
Im thinking though , Somewhere around 2 oz........ But thats just a guess



Bruce you are the man! I was looking in the chat you said today you may have it flying?!
Videos!!!!
Good luck with the maiden
Mark and Trish



Well - The maiden didnt go so good .
I found out quickly after take off that my right and left controlls were reversed.
"NOT GOOD:

Any ways. after replacing the prop and re aranging the servo's
its all good now.
So i will try it again tomorrow..........

Looky here at the leg's
