Need Help with trainer sketchup to phlatcode

Discussion in '* Scratch Built Section *' started by vrealm, Jan 22, 2010.

  1. vrealm

    vrealm Member

    Offline
    Messages:
    38
    Trophy Points:
    6
    Hello Gentlemen, I have just spent the last four hours drawing up this fine trainer design for my son. It should resemble a shark and i based it off of a design i found on RC groups. At this point I need some direction to the next steps to go from my drawing to phlatcode. I would also like to create a 3D representation.

    Thanks Attached files shark.skp (186.5 KB)Â

  2. kyyu

    kyyu Active Member

    Offline
    Messages:
    1,183
    Trophy Points:
    36
    Location:
    Maryland
  3. vrealm

    vrealm Member

    Offline
    Messages:
    38
    Trophy Points:
    6

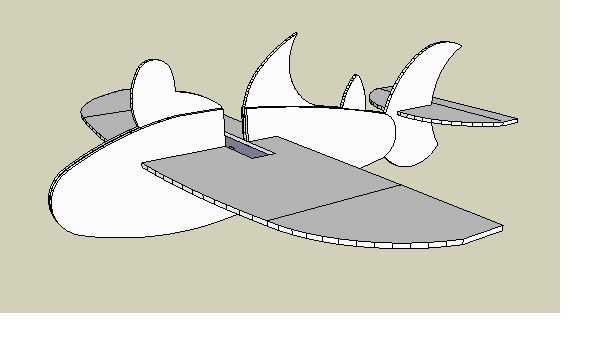

    Thanks! Kwok, I did watch the video but I am not the sharpest crayon in the box. Your videos helped tremendously. Please review my 3d model, I think it will work. I am having trouble when aligning the parts for the 3d model and I noticed in the video you were "locking" the corners. Could you explain this as I was not able to use it.

    Thanks again for your help. Attached files 3dshark.skp (392.9 KB)Â [​IMG]

  4. vrealm

    vrealm Member

    Offline
    Messages:
    38
    Trophy Points:
    6

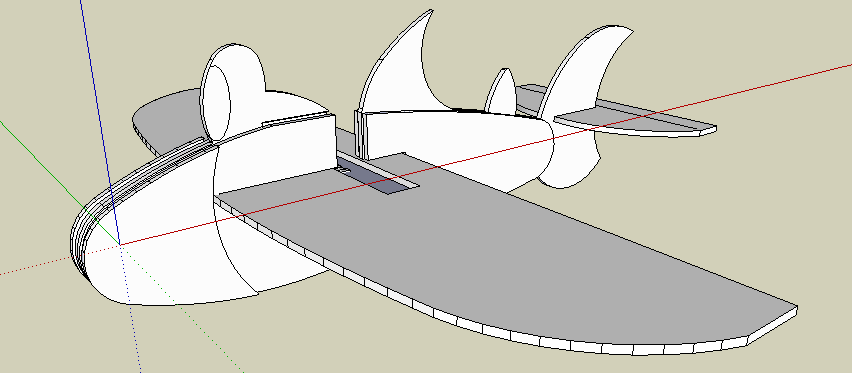

    Updated the drawing and 3d model




    I am still having alott of difficulty lining things up in the 3d model. I also want to add a fold 6 inches from each wing tip for poly dihedral, add a cut for carbon fiber in the wing, and add a angled cut for the rudder. Attached files 3dshark2.skp (734.4 KB)Â [​IMG]

  5. vrealm

    vrealm Member

    Offline
    Messages:
    38
    Trophy Points:
    6

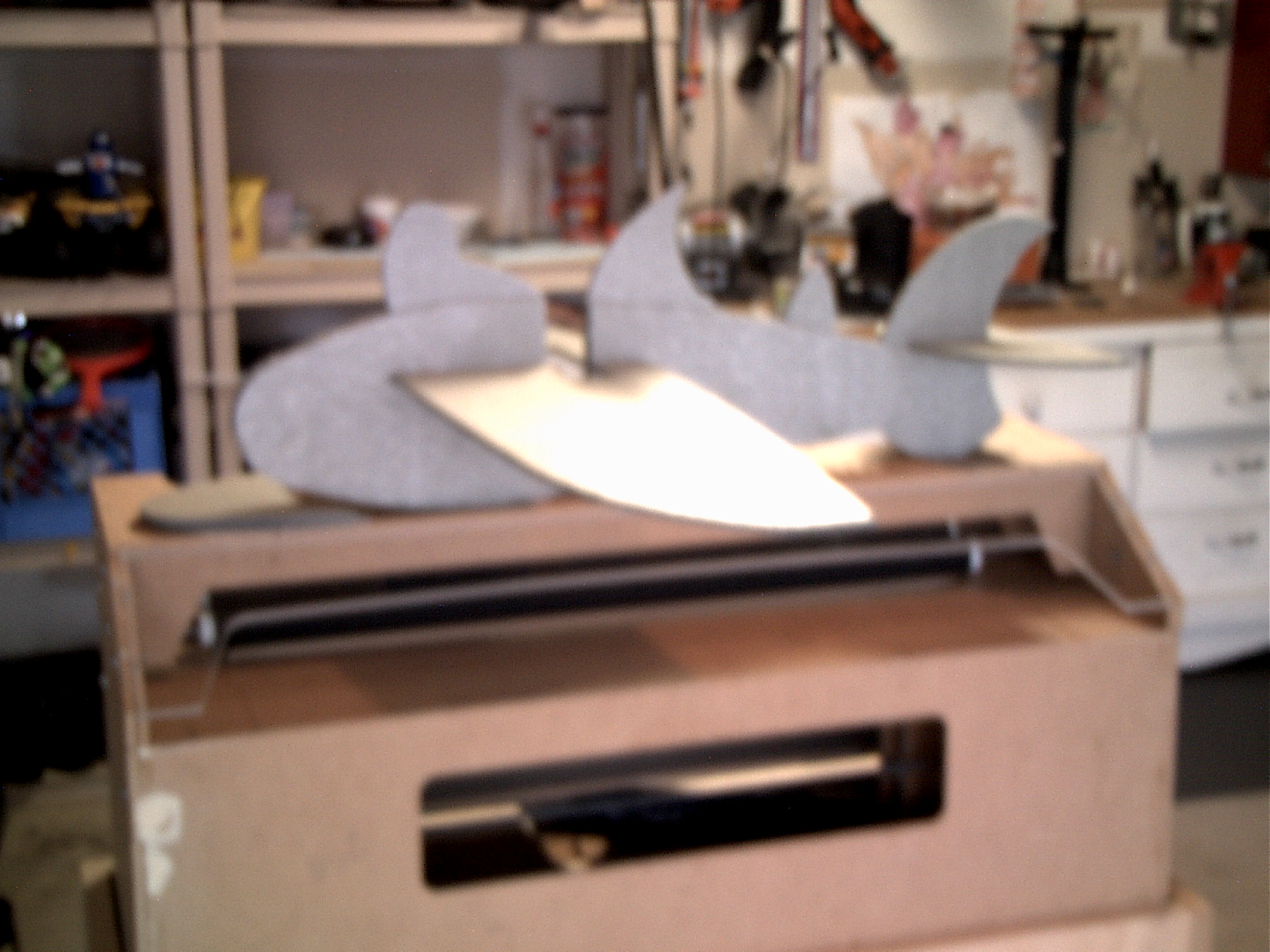

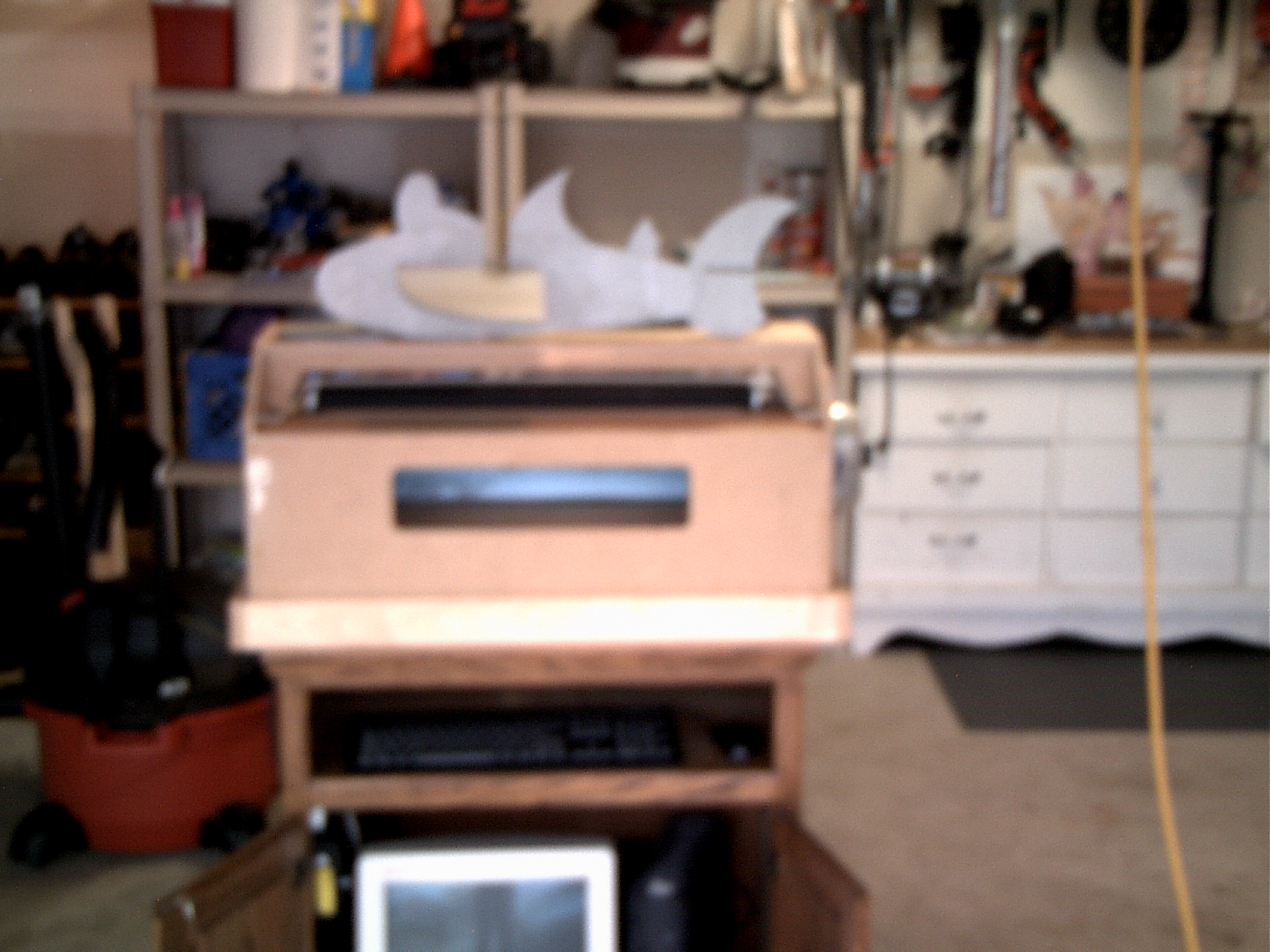

    I decide to cut it out to see how things looked... to my surprise it's not all that bad.



    Attached files [​IMG] [​IMG]

  6. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    There are a couple concerns even though I like the concept. Mid motor and short nose will prob cause you some CoG problems and the fins being so large and in front of/on top of the wing area may cause some problems.
    I suggest making the shark fins smaller and moving the motor out to the front.

    I made some changes that I think would work better as a trainer platform for you, check it out and see if you think this would work better for you Attached files 3dshark2edit.skp (715.3 KB)Â

  7. kyyu

    kyyu Active Member

    Offline
    Messages:
    1,183
    Trophy Points:
    36
    Location:
    Maryland
    Did another video for you. :) -Kwok
    (video deleted)

  8. vrealm

    vrealm Member

    Offline
    Messages:
    38
    Trophy Points:
    6
    Thanks again Kwok, I will apply what you demonstrated in the video. My problem was definitely from not zooming in and using the xray view. I can see the advantages that makes.

    Jeff thanks for your advice, the changes look great. When you get a chance please explain how you added the dihedral to the ends of the wing.

  9. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    vrealm, you draw the wing than you decide where you want the dihedral to begin. you make a fold-line there, set to maybe 30% depth. Make a template printed on the Phlaty and use it to get the angle that you want and apply two or three dubs of hot-melt glue in the open side of the fold-line.

  10. vrealm

    vrealm Member

    Offline
    Messages:
    38
    Trophy Points:
    6
    Thanks for the help Yoram. I believe I understand how to do it with the phlatscript (will attempt it today) but i would like to understand how to do it in the 3d model. I also have another drawing I started and it has a undercamber wing that goes through the wing. I am also struggling with the cuts needed on each side of the fuselage where the wing will go through.

  11. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    Basically I just cut the tips off the wing and make them a separate component, then just rotate them to the desired angle and mate them to the wing.
    That is just for the 3-D drawing, on the cut file the wing is all one piece with a fold line where I want to the dihederal.

  12. vrealm

    vrealm Member

    Offline
    Messages:
    38
    Trophy Points:
    6

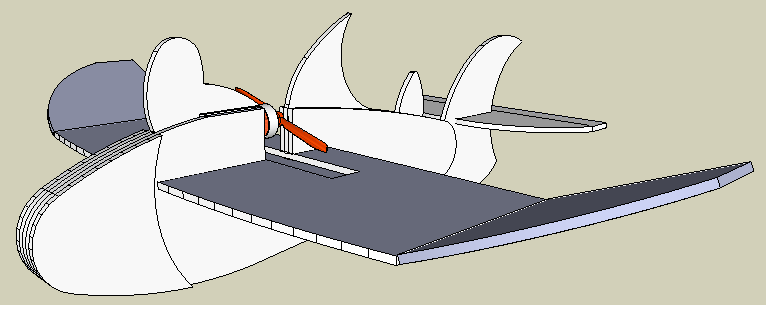

    Thanks Jeff, I think I get it now. My latest version is below, I think I am finally getting a handle on things.

    Attached files [​IMG]

  13. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Looking good vrealm!
    Mark
