Phlat Quake Sky Scraper Contest

Discussion in '* Contests * Win Cool Stuff!' started by theothers, Aug 10, 2011.

  1. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    Design a Platform Gimble for the Phlat Quake Sky Scraper

    The object behind this contest is to design a stability platform gimble system to be attached to the bottom of our Phlat Sky Scraper and our Phlat Quake table. The object is to keep to see who can keep the building the most stable for the longest amount of time.

    In the included SketchUp file, you will find the model of the building as well as the build area to work in. This is a maximum build area. You can go smaller than this. The idea is to create a platform system that will dampen the effects of the shaking table system.

    Be creative in the way you use the foam. There are lots of ideas out there on the net for dampening systems (i.e. springs, sliding mechanisms, swinging levers, etc.) Have fun!!

    Of course, there must be rulez and here they are:
    1. The design should be based on one sheet of fan fold foam (we might end up using green guard). All parts of the design must be able to fit on one sheet.
    2. Please use tab and slot construction for ease of assembly and include build instructions.
    3. The Phlat Code and Sketch Up file should be emailed to phlatboyz@phlatboyz.com.
    4. All entries must be received by 11:59 PM EST on September 6th. We will cut them out and build them on our live show on Wednesday, September 7th. If time does not permit us to complete cutting and building them all in one show, we will continue to cut and build them on the following week.
    5. The design should assume the 1/8" stock Phlatprinter bit will be used.
    6. Foam and hot glue only.

    How will the winner be judged?
    Judging is simple. When Phlat Kong falls from the top of the Phlat Sky Scraper, the clock stops.
    Each platform will be tested 3 times each. The best time will be taken.

    The platform that allows Phlat Kong to stay on top the longest wins!

    The winner will be announced on our LIVE weekly Wednesday night show on September 7th (or will be pushed back if we are unable to cut and build them all in one week).

    What is the prize?
    Planet-CNC's Awesome 9 axis CNC USB Board MK2!
    http://www.planet-cnc.com

    Questions or Comments,
    please post in this thread so everyone can benefit from the question and the answer.

    Thank you, in advance, for participating in the contest. It's going to be a lot of fun!


    We reserve the right to cancel this contest with or without reason.
    We reserve the right to refuse any entries to our sole discretion.
    By entering this contest, you agree to hold Mark and Trish Carew and/or Phlatboyz, LLC harmless for any injuries and or damage to self or property that may arise out of the use or misuse of any of the products offered on our website, http://www.phlatboyz.com.
    No purchase necessary to enter.
    Chances of winning the contest are based on the number of entries.
    We reserve the right to update these rulez at any time by posting on this thread.

    Check out the LIVE show with our first run demonstration!

    http://phlatforum.com/viewtopic.php?p=30089#p30089 Attached files x-width:300px" /> Earthquake shakerBUILDINGx2.cnc (27.6 KB)Â KKblack.cnc (2.9 MB)Â KKcutout.cnc (53.8 KB)Â [​IMG] PhlatQuake_Contest.skp (5.7 MB)Â

  2. ToxicToast

    ToxicToast Down in the weeds. Staff Member

    Offline
    Messages:
    483
    Trophy Points:
    18
    Location:
    Roseville, CA
    Interesting and gives me lots of ideas....

    Any developments on this?

  3. Thewz

    Thewz Moderator

    Offline
    Messages:
    269
    Trophy Points:
    0
    Location:
    Temecula, CA
    Sounds cool guys....I live out here in "earthquake country"....this is near and dear to my heart.

    I don't have a PhlatPrinter III (still have my limping MK 1/5)....can I still participate?

  4. tsknutsen

    tsknutsen Member

    Offline
    Messages:
    65
    Trophy Points:
    6
    Hi, any eta for this contest? .. Been working on ideas ever since i heard it where around the corner, which in turn results in sleepless nights thinking out different sollutions.. Would be great to have some rules to go after though :)

  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Hey guyz,

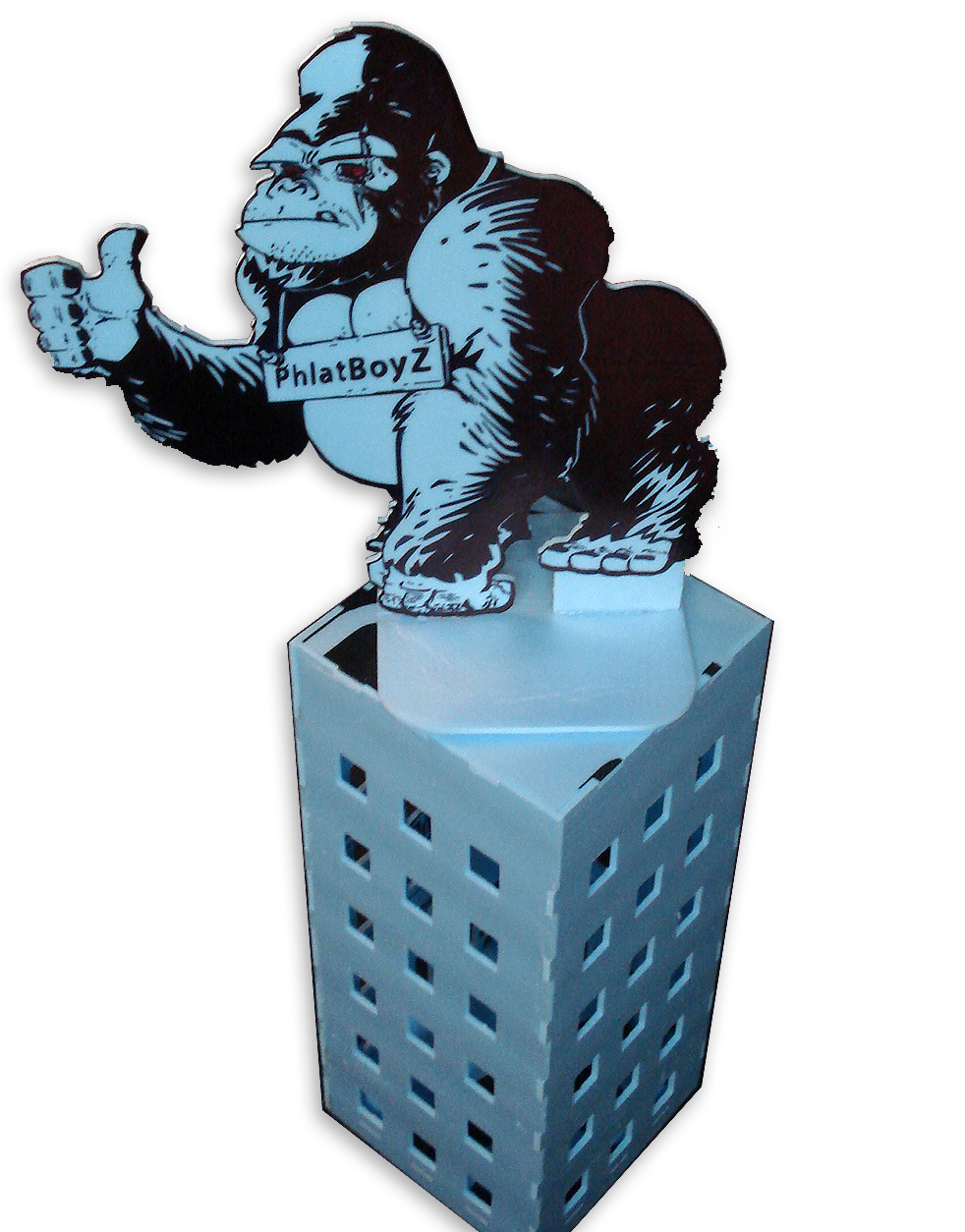

    Here is a short video showing the Phlat Kong being drawn :doubleup:
    Started out at 100 ipm, but slowed down to 75 to keep from skipping steps. Worked pretty good, went back and did some touch-ups where they were needed.

    Mark and Trish

  6. 66tbird

    66tbird Moderator Staff Member

    Offline
    Messages:
    431
    Trophy Points:
    18
    Location:
    Deserts of Arizona
    Ahh yes I remember it now, and I remembered I had zero ideas after many thought paths were taken. I'm getting a few more now with the phlatkong.(great idea).

    Thank you Mark, That's what I needed.

  7. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Hi tsknutsen,
    The contest has started tonight. All the info needed is in the first post now.
    Have Fun! :good:

  8. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Most welcome 66 :good:
    Mark and Trish

  9. 66tbird

    66tbird Moderator Staff Member

    Offline
    Messages:
    431
    Trophy Points:
    18
    Location:
    Deserts of Arizona
    I saw the sk file was in 7,, I've moved on to sk8. afaik an sk8 won't load into sk7. Is that a non issue for you Mark?

  10. Thewz

    Thewz Moderator

    Offline
    Messages:
    269
    Trophy Points:
    0
    Location:
    Temecula, CA
    I got 8 too.....do I need to find 7 and install it again?

  11. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    You guys with 8 can just save the file as 7 in the save as file type.

  12. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I have them both on my system 7 and 8, but I am only using 8 to load 8 files and save them back to 7 so I can open them in 7 :D
    I just like 7 it works good for me. So I will be able to open them either way, but if its not to much trouble for you, please save them in 7 for me. Like Shaun was saying you can click the Save as: dialog and pick 7 when you go to save your files.
    Thanks guys
    Mark and Trish

  13. Thewz

    Thewz Moderator

    Offline
    Messages:
    269
    Trophy Points:
    0
    Location:
    Temecula, CA
    Hi Guys, I've been trying to do some simulations to see how the designs affect toppling but found it difficult to simulate an earthquake...pistons, rollers, springs....oh my. I found a design online (BTM uploaded it to the Google Warehouse) but it was pretty big...7 meters square. So I modified it to 4'x4'. There are 3 platforms (each connected to pistons). The top most platform affects the Z-axis....since I don't think Mark's physical Earthquake simulator does this I set it to 0. The other 2 affect the X and Y axis. I've got it to where I think it looks about right but y'all can adjust it in the UI for Sketchyphysics. You have to download and install SKetchyphysics for this to work...:)

    http://code.google.com/p/sketchyphysics/

    Please enjoy the simulations....I put the basic building with Kong and the maximum size "box" for the platform in the sim.

    NOTE: This is in Sketchup ver 8....I'll need to recreate it in 7 if y'all want....You can always create the components in 7 and just simulate them in this with 8. Attached files earthquake_simulator.skp (7.5 MB)Â

  14. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thewz this is super cool! :D
    Thanks for sharing it.
    Mark and Trish

  15. 66tbird

    66tbird Moderator Staff Member

    Offline
    Messages:
    431
    Trophy Points:
    18
    Location:
    Deserts of Arizona
    Thanks for reviving that Thews. I'd been at an impasse with the plugin for a year. An hour of research found that the 'AutoCenterPoint' plugin is an issue. I 86'd that and now SKetchyphysics is working fine for me. Simpler than Solidworks for sure. I've got my entry done, now I'm bored ;)

    The attached are skphy files. The first is a marble drop and roll into a lot of dominoes, few hundred I think. I had a thousand but that slows the sys down to much. btw, sk is a single core app so if your a dual core at 3ghz your good to go here.

    The next is the shaker table in all its basic crude form. I left it that way to show everyone what its doing. (crank the motor speed up and set attribute as needed per your contest design)
    Yea I know there are lot of prettier ways to do it, but I'm a functional type designer and I leave the fluff to the artist. Attached files physicsLearning.skp (258.4 KB)Â skphy fun3.skp (2.5 MB)Â

  16. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    Thank you tknutsen, Evil Tunes, 66tbird, asking, and 7up for your entries :doubleup: This is going to be a fun show!!

  17. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    I was wanting to get an entry in, but I couldn't get one done.
    Good luck guys!

  18. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    Hey guyz. Just realized we hadn't posted the show here yet. Sorry about that.

    As we work on the other contest entries, we will stream live and record them and post them here. It's going to be awesome!!

    [pre] <object classid="clsid:d27cdb6e-ae6d-11cf-96b8-444553540000" width="480" height="296" id="utv708260" name="utv_n_742149"><param name="flashvars" value="loc=%2F&autoplay=false&vid=17130697&locale=en_US&hasticket=false&v3=1" /><param name="allowfullscreen" value="true" /><param name="allowscriptaccess" value="always" /><param name="src" value="http://www.ustream.tv/flash/viewer.swf" /><embed flashvars="loc=%2F&autoplay=false&vid=17130697&locale=en_US&hasticket=false&v3=1" width="480" height="296" allowfullscreen="true" allowscriptaccess="always" id="utv708260" name="utv_n_742149" src="http://www.ustream.tv/flash/viewer.swf" type="application/x-shockwave-flash" /></object> [/pre]

  19. tsknutsen

    tsknutsen Member

    Offline
    Messages:
    65
    Trophy Points:
    6
    awesome show, saw i the day after on your ustream channel :)

  20. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I was going to watch it too but that annoying ad keeps popping up every 90 seconds or so and covers about 25% of the screen so I bailed out.

  21. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thanks tsknutsen :good: Nice design brother!
    Best of luck to you :doubleup:
    Mark and Trish
    p.s. We know Ustream has gotten worse with the ads lately and for this we apologize but there really is no other place we can use at the moment. You can usually close the ads by clicking on the little x in the top right corner. There is some hope that youtube will be allow its users to go live soon, looking forward to that.

  22. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Just use firefox and get the adblock plus add on. You will not see a single ad.

  23. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I'm using Firefox, Shaun. I'll look into the adblock widget, or whatever it is.

  24. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    The contest was a success thanks to all who entered and watched. Thank you all so much.

    A big THANK YOU goes out to Andrej of http://www.planet-cnc.com for donating this contest prize, the CNC USB MK2 board.

    Here are recordings of the week's Phlatlab LIVE Show:

    [pre] <object classid="clsid:d27cdb6e-ae6d-11cf-96b8-444553540000" width="480" height="296" id="utv217002" name="utv_n_20729"><param name="flashvars" value="loc=%2F&autoplay=false&vid=17275461&locale=en_US&hasticket=false&v3=1" /><param name="allowfullscreen" value="true" /><param name="allowscriptaccess" value="always" /><param name="src" value="http://www.ustream.tv/flash/viewer.swf" /><embed flashvars="loc=%2F&autoplay=false&vid=17275461&locale=en_US&hasticket=false&v3=1" width="480" height="296" allowfullscreen="true" allowscriptaccess="always" id="utv217002" name="utv_n_20729" src="http://www.ustream.tv/flash/viewer.swf" type="application/x-shockwave-flash" /></object>

    <object classid="clsid:d27cdb6e-ae6d-11cf-96b8-444553540000" width="480" height="296" id="utv272572" name="utv_n_645555"><param name="flashvars" value="loc=%2F&autoplay=false&vid=17277996&locale=en_US&hasticket=false&v3=1" /><param name="allowfullscreen" value="true" /><param name="allowscriptaccess" value="always" /><param name="src" value="http://www.ustream.tv/flash/viewer.swf" /><embed flashvars="loc=%2F&autoplay=false&vid=17277996&locale=en_US&hasticket=false&v3=1" width="480" height="296" allowfullscreen="true" allowscriptaccess="always" id="utv272572" name="utv_n_645555" src="http://www.ustream.tv/flash/viewer.swf" type="application/x-shockwave-flash" /></object> [/pre]

    Congratulations to Both Evil-Tunes and 7up. Evil-Tunes for winning the contest and 7up for getting his prize :think: Evil-Tunes is already the proud owner of the CNC USB Board MK1 so he donated the MK2 board to 7up who is rocking his Original Phlatprinter currently using a parallel port.

    7up's Best Time 16.9 seconds


    66tbirds Best Time 16.6 seconds



    Evil Tunes Best Time 34.8 seconds



    Asking's Best Time 12.3 seconds



    tsknutsen's Best Time 14.6 seconds

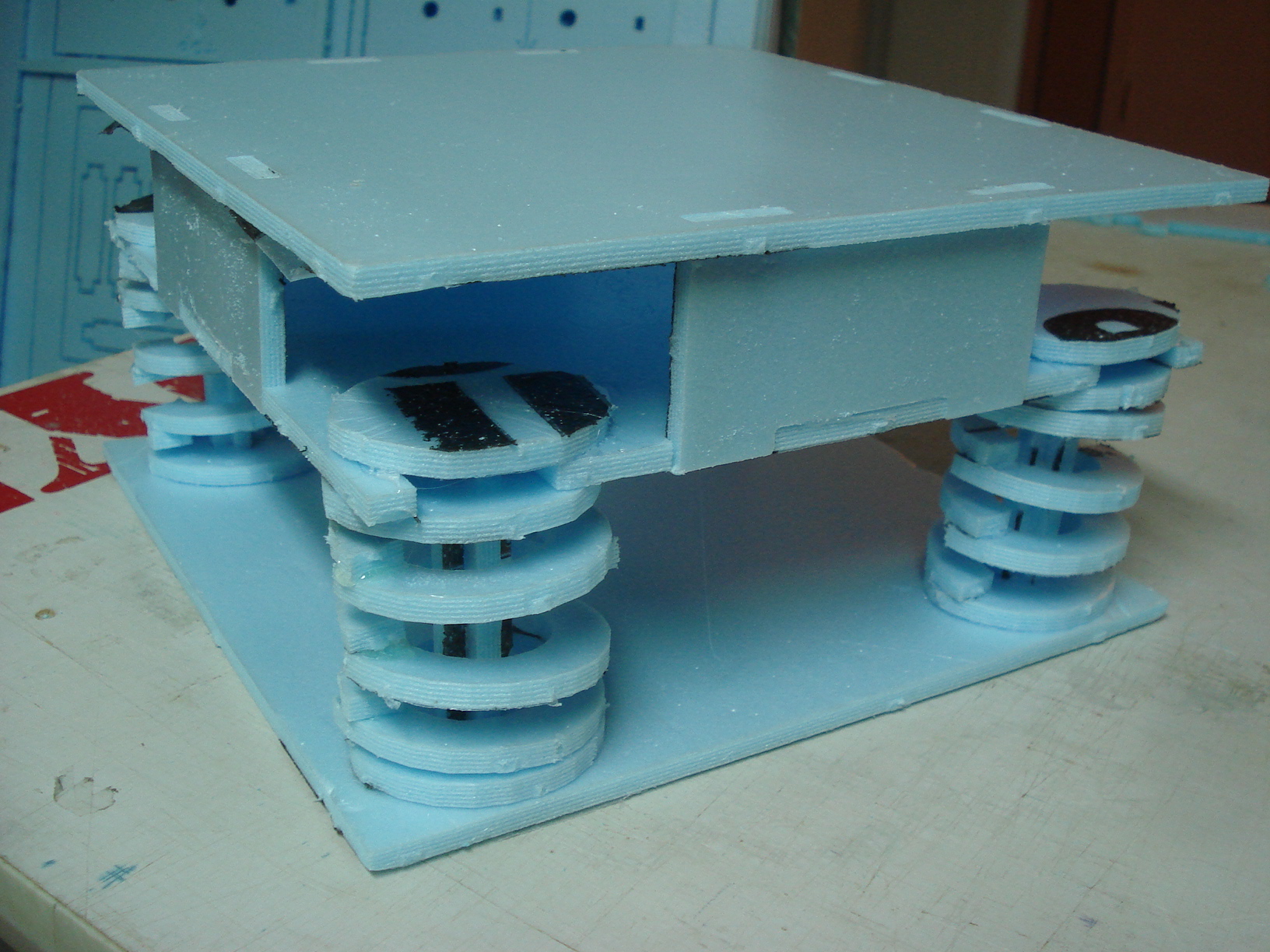

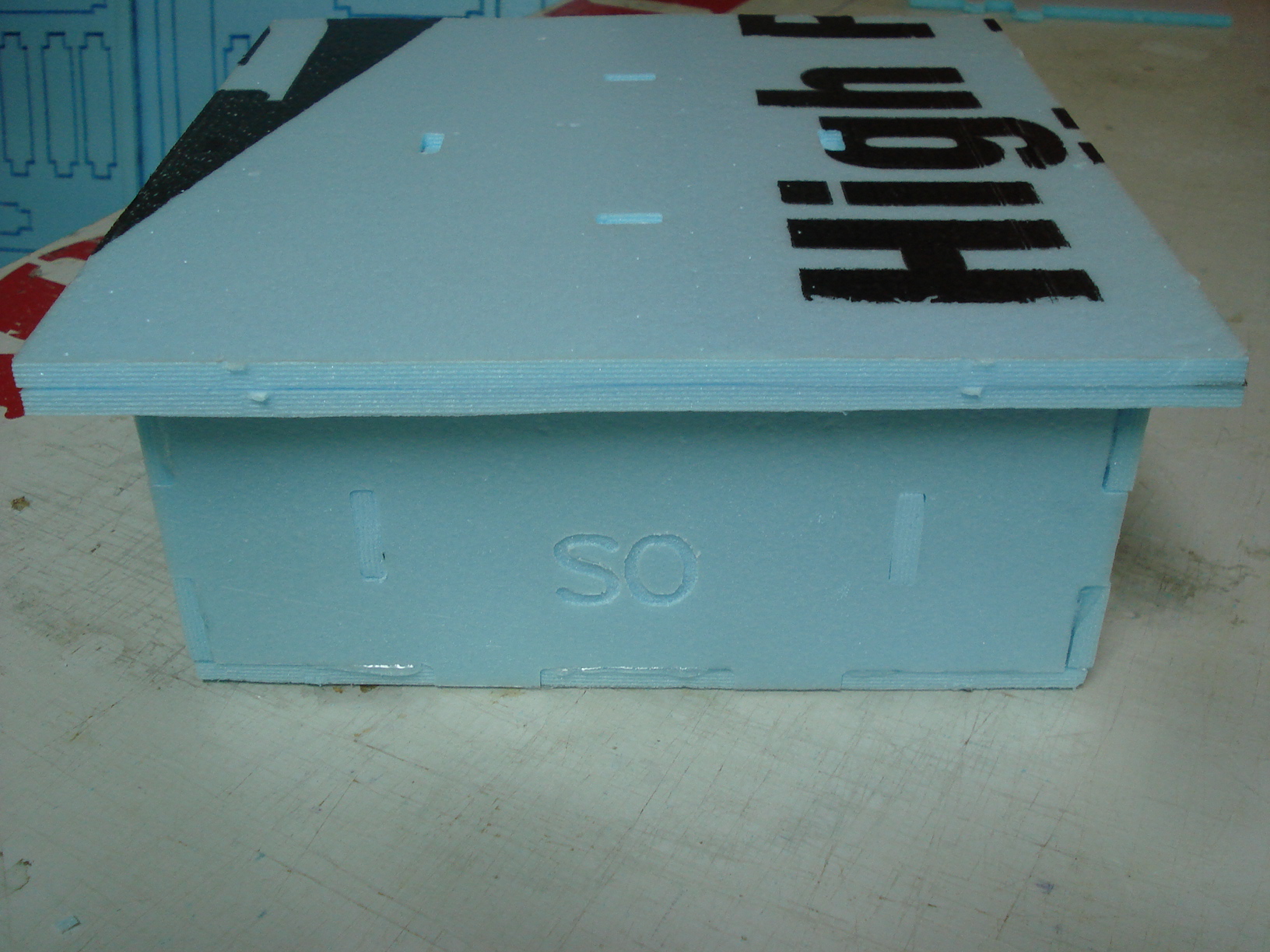

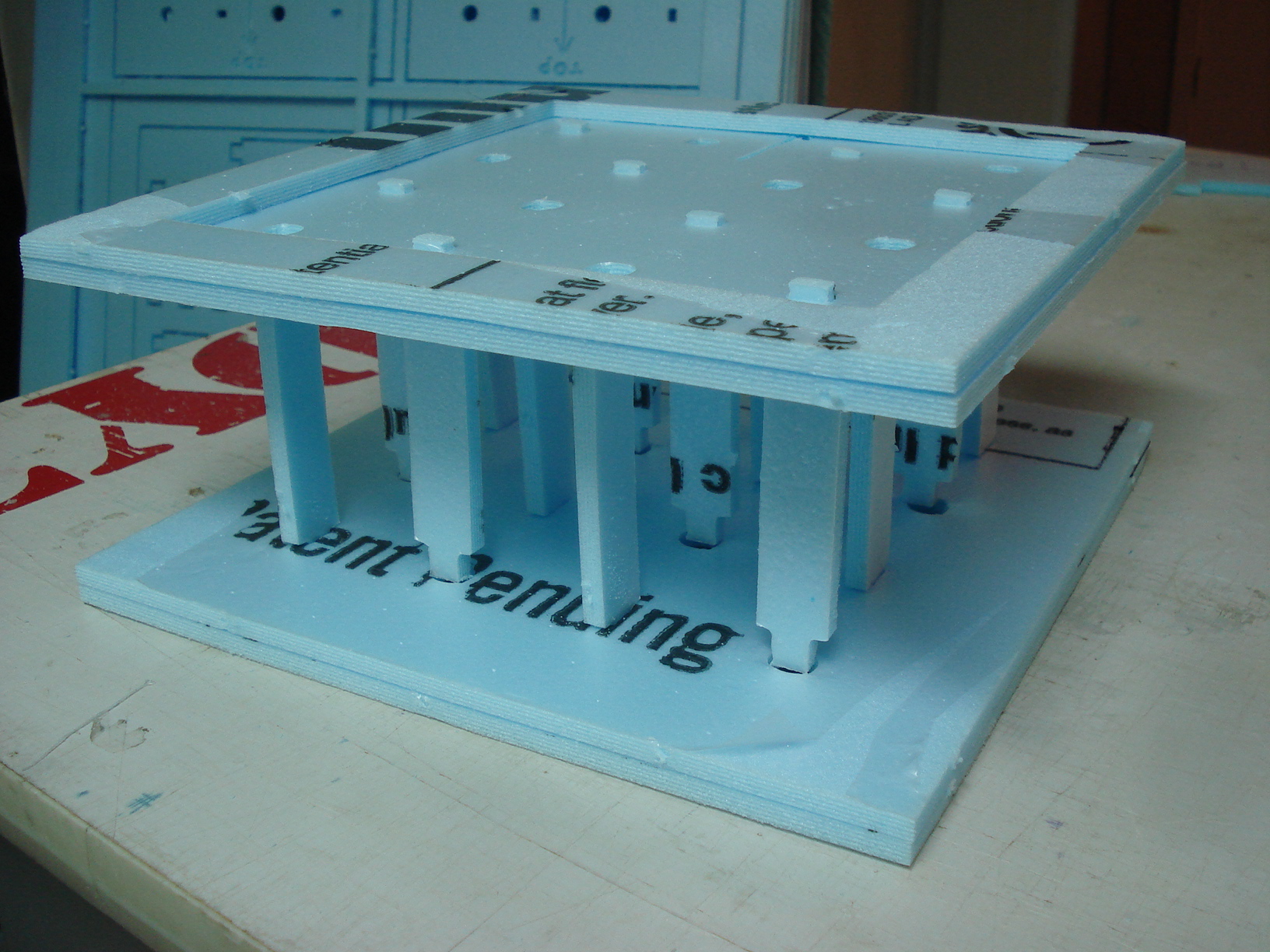

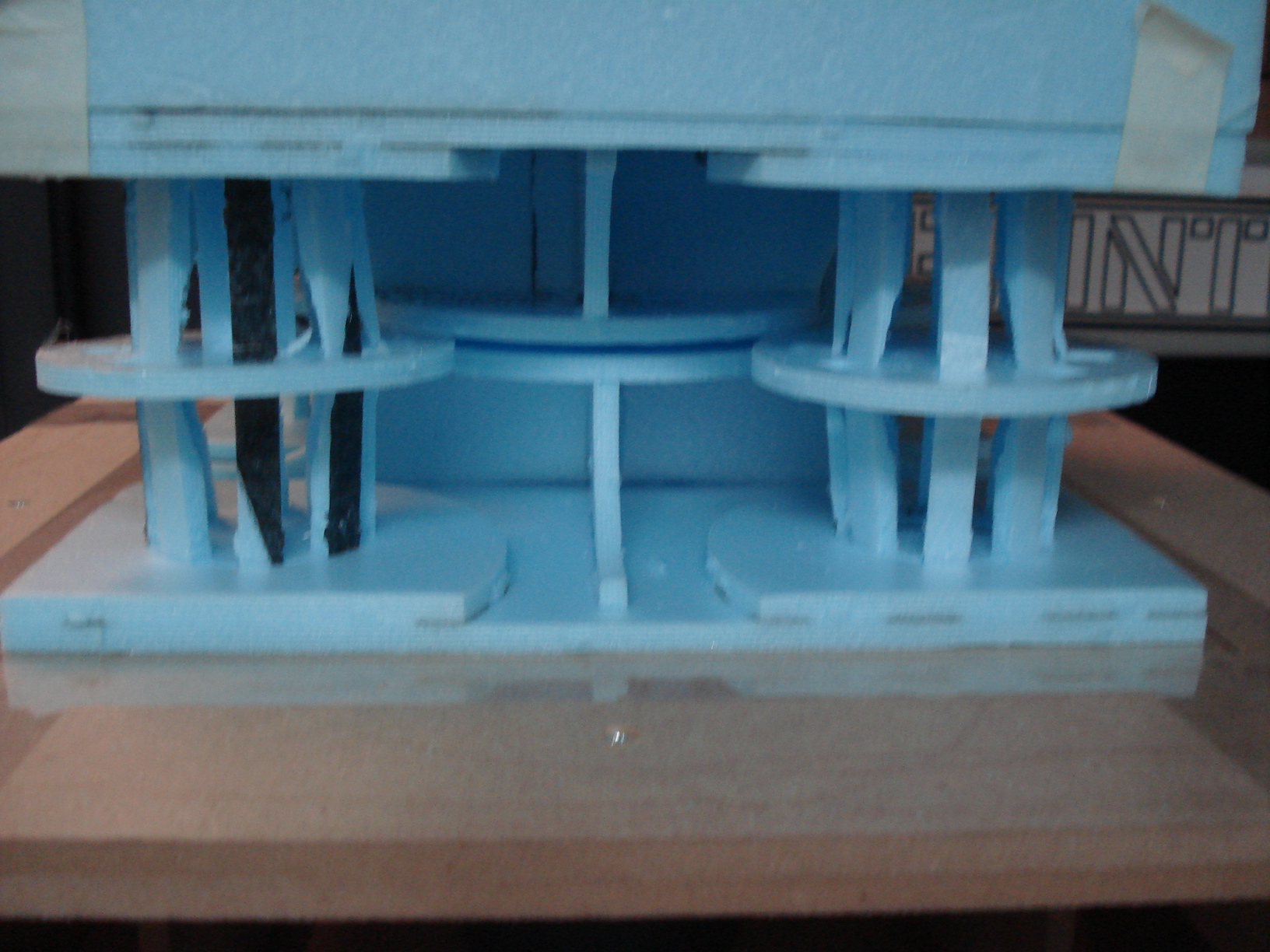

    Attached files [​IMG] ww.phlatforum.com/PhlatforumVB/converted_files/30702=12454-DSC07142.JPG" class="gc-images" title="DSC07142.JPG" style="max-width:300px" /> [​IMG] [​IMG] [​IMG]

  25. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Great designs everyone. They were all pretty close except for ET. He ran away with it.

    Thanks for the contest Phlatboyz. Thanks for the prize CNC USB, and thanks for passing this CNC USB board along to me ET.

    This will get me one step closer to owning a Phlatprinter .

    Very cool! :doubleup:
