Phlatprinter cutting 1/4 MDF

Discussion in 'General Phlatprinter Stuff' started by 3DMON, Feb 8, 2010.

  1. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Hey guys,

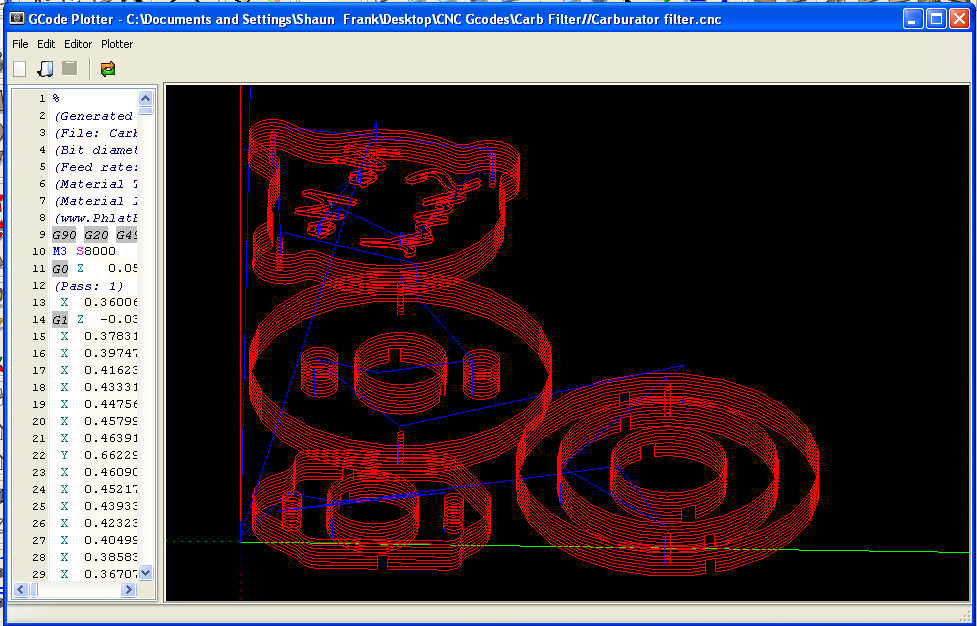

    I thought I'd show off the pp cutting 1/4" MDF using a multipass cut. The depth for each pass was set at .030 going 30 imp.

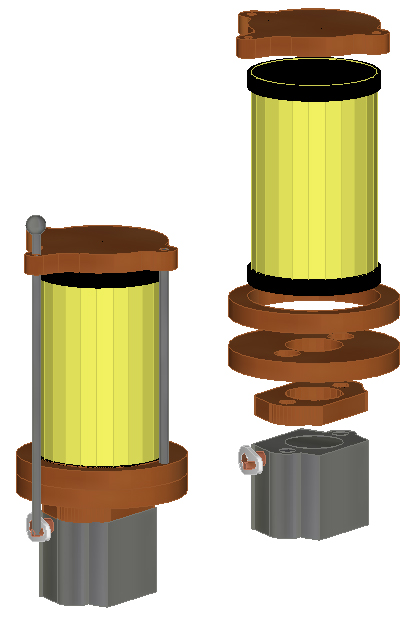

    The project is an air filter for my new DL 30 gas engine. I'm replacing my OS 1.60 with it in my 74" Extreme Flight Yak. Our field got 3 truckloads of sugar sand dumped on it to help level out the low spots...What a huge mistake. I don't know what they were thinking when they did this one. Anyway the sand is ruining everyones engines and this is one way to fix it.
    I plan to paint the MDF and poly over it to make it fuel proof. I'll post more pics when I get to that point.


    [vimeo]http://www.vimeo.com/9293387[/vimeo] Attached files [​IMG] [​IMG]

  2. Flashsolutions

    Flashsolutions Active Member

    Offline
    Messages:
    1,123
    Trophy Points:
    38
    Location:
    Leesburg, Florida
  3. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    Silly questions... how do you set up for multipass?
    and what bit are you using?

    I was playing around with some aircraft 1/8" ply this weekend and was having all sorts of problems. I cut 1/8" ply before with no problems, but the new sheet must be harder, or my bit is getting dull as the cuts were garbage.

    Thanks
    Dave

  4. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Hi Dave I was using the multipass that is in the betatest of the Phlatscript but Fozzy's Multipass Manglerizer is what you could use. Here is where it is at: http://www.phlatforum.com/viewtopic.php?f=185&t=1294.
    I was using a 1/16" diamond cut bit (same as the standard foam bit just smaller)

  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Shaun this is is awesome brother!
    We have to put this one in the announcements for sure :)
    Great job
    Now I have to give this a try on the MK II
    Thank you for sharing
    Mark

  6. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    shaun, way to go man...that mangler program is the best thing, well since gettin the phlatprinter...small cut depth is faster feeds..very nice. randy.

  7. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I have been using the mangelizer for a while now. My biggest problem is skuewing.

    I like your guides. I will , Must incorperate something like this on my cutter !
    You are always going beyond. The glass now this ! whats next Shawn?
    Whatever it is, I look forward to it ! :)

  8. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    Thanks for the link... Geesh I didn't check this place out for a mere 9 months and see what happens. :D

  9. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    LOL.
    I have a hard time not going a day without checking the forum.
    Hello my name is Shaun and I'm a Phlat-addict :mrgreen: .

  10. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    That what next thing is still in the works, but it's gonna be awesome.

  11. JBourdon

    JBourdon New Member

    Offline
    Messages:
    101
    Trophy Points:
    0
    I didn't dare to talk about it, but I have done similar cuts...

    One of the reasons, is that I thought I would get censored as it shows the phlatprinter is capable of partial self-replication in a similar way as the reprap project... of course, that would be hurtful to Mark and Trish business... so not advised but still possible.

  12. mavacpjm71

    mavacpjm71 New Member

    Offline
    Messages:
    167
    Trophy Points:
    0
    Man, that is simply AWESOME.... 1/4 MDF - incredible...

    Peter

  13. FozzyTheBear

    FozzyTheBear Member

    Offline
    Messages:
    261
    Trophy Points:
    16
    AWESOME Shaun!!! that's doing the business!! :D

    It still astounds me what can be cut using multipass... I'm just doing the cuts on the case for my synthesizer build http://www.phlatforum.com/viewtopic.php?f=147&t=1582 and that's in 1/2" Mahogany!! WOW, I thought it was tough cutting 1/4" Teak. This 1/2" Mahogany is beautiful timber, but it's like cutting through solid rock.... :D it's all very cool, I must post some video of it cutting out.

    Best Regards,
    Julian (Fozzy The Bear)

  14. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Yes you must. We wanna see.

  15. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida

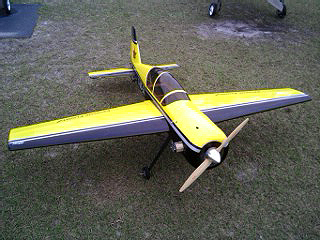

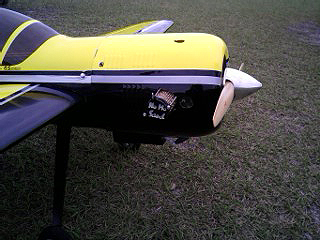

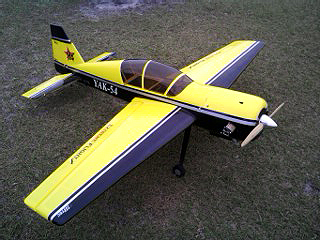

    I got the filter finished and painted up.
    It looks like a muscle car err plane with that filter hanging out the side. It worked like a charm too.
    The pics were taken with my phone so they weren't the best.


    Attached files [​IMG] [​IMG] [​IMG]

  16. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    What a great project.
    Nice job Shaun looks like it came out great.
    Thank you for showing us the finished pics
    Mark

  17. ToxicToast

    ToxicToast Down in the weeds. Staff Member

    Offline
    Messages:
    483
    Trophy Points:
    18
    Location:
    Roseville, CA
    Anyone recommend a source for 1/4 MDF? My local (norcal) box stores aren't carrying it :x

  18. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    My local Home Depot has 2'x4' sheets.

  19. kyyu

    kyyu Active Member

    Offline
    Messages:
    1,183
    Trophy Points:
    36
    Location:
    Maryland
    I get it from Home Depot. They have it in 2' x 4' sheets.

    -Kwok

  20. ToxicToast

    ToxicToast Down in the weeds. Staff Member

    Offline
    Messages:
    483
    Trophy Points:
    18
    Location:
    Roseville, CA
    Thanks, I'll have to go pester the manager at my local HD!
