Phlatprinter sharpie art

Discussion in 'Projects on your Phlatprinter 3' started by ewo, Feb 2, 2011.

  1. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I thought about this last night when we were without power.
    Funny how your mind wanders when you have nothing at all to do !


    Anyways . when the power came back this morning i decided to real quick draw up a file for the 8 ball everyone has came to know and love :)

    I think most every one will have a sharpie attachment very soon

    Some of this stuff would be really cool if printed on the foam before cutting out the plane ! :doubleup:

    Here is my starting contribution.

    If anyone has any artwork they would like to share. It would be Most appretiated . Even if the files need work . No problem ! :p Attached files 8 Ball .skp (156.9 KB)Â Red Bull.skp (1.3 MB)Â [​IMG]

  2. Flashsolutions

    Flashsolutions Active Member

    Offline
    Messages:
    1,123
    Trophy Points:
    38
    Location:
    Leesburg, Florida
    Here is one I put together to test my sharpie attachment... I used Cambam to create the file so I don't have a Sketchup file for it.

    The drawing is 5.2 x 4.3"

    Thank you scraighamilton for making the Sharpie Attachment available to us. It is cool! :good: Attached files [​IMG] [​IMG] HARLEY_DAVIDSON_LOGO.cnc (23 KB)Â

  3. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Kool Thanks Flash. I can use this but i might need to get it into sketchup to resize
    That is not a problem ! :D

  4. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I could not get your . cnc file to run in Mach 3. It wouldnt even show up for that mater.

    So i redid it in sketchup and i got this.
    Thank you ! :D Attached files Harley Davidson Logo.skp (1.1 MB)Â Harley.cnc (186.6 KB)Â

  5. Flashsolutions

    Flashsolutions Active Member

    Offline
    Messages:
    1,123
    Trophy Points:
    38
    Location:
    Leesburg, Florida
    That came out nice. You must have exported the gcode to DXF in the USB software and imported back to SU. Very cool!

  6. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I dont have the USB software :fugly:

  7. scraighamilton

    scraighamilton Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    Coeur d'Alene, ID
    I'm happy you guys are enjoying the attachment. I'm also glad you are sharing graphic files for it, because I don't have any, and I have zero artistic ability. :?

    Flash does the pen fit okay in the holder? It looks like its a little loose on top. One notch should be bigger then the other. you may need to turn the holder around for the pen to fit better. :D

  8. Flashsolutions

    Flashsolutions Active Member

    Offline
    Messages:
    1,123
    Trophy Points:
    38
    Location:
    Leesburg, Florida
    The pen fit just fine. I think it would be a little better if the whole attachment were a bit lower. The low point is very close to the extreme end of travel, but other than that, It seemed to work pretty good.

    I had one area in which the pen seemed not to want to drop far enough when I was testing, but it could have been my zero was not set as good as it could have been.



  9. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Whoot 100 ipm
    Not too shabby i guess ..........

  10. scraighamilton

    scraighamilton Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    Coeur d'Alene, ID
    Thats pretty sweet! :good2:

  11. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Nice Bruce!
    I like the rubber band trick.

  12. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I converted the Road Runner file that came with Mach 3
    Into a dxf. Then imported the dxf into sketchup. I cleaned
    up the sketchup file by removing the travel lines .Now we have a
    perfectly scaleable and useable file . :D Attached files Road Runner.skp (219 KB)Â

  13. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    With Marks permission
    Here is Andy the Aviator
    :D Attached files Andy the Aviator.skp (312.2 KB)Â

  14. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thanks ewo! :D
    Here is the test skull I made for multi color testing.
    You guyz are going to have to make the fills as the ones i have are not the best. Please post the cnc files if you get this one to work.
    Thanks
    Mark and Trish Attached files Skull Sharpie.skp (5.8 MB)Â [​IMG]

  15. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Ok then Here is the red file .

    I will update when the rest is done :p Attached files Skull_Cutout red.cnc (58.7 KB)Â

  16. ToxicToast

    ToxicToast Down in the weeds. Staff Member

    Offline
    Messages:
    483
    Trophy Points:
    18
    Location:
    Roseville, CA
    Bruce, that is AWESOME!

  17. scraighamilton

    scraighamilton Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    Coeur d'Alene, ID
    That was fast Bruce. Did you use offset lines?

  18. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Is this what its supposed to look like ? :p

    I still have some work to do !
    I dont own a gray marker, so i used blue in its place :roll: Attached files [​IMG]

  19. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Nice! That skull came out really good.

  20. scraighamilton

    scraighamilton Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    Coeur d'Alene, ID
    I have been working with the skull drawing and the Sharpie Attachment.
    First on Depron and then on EPP foam. This is what I came up with. Attached files [​IMG] [​IMG]

  21. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Man this Sharpie art is looking really good. I may not find myself doing much airbrushing with results like this. :doubleup:
    Great job guys!

  22. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :banger: You guyz rock! :banger:
    Very cool indeed! Thanks for posting :D
    Mark and Trish

  23. scraighamilton

    scraighamilton Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    Coeur d'Alene, ID
    Here is the code for the skull drawing.

    It is just the tool paths and the registration marks.
    I did blunt the tip of the sharpie to draw about a 1/16" line.

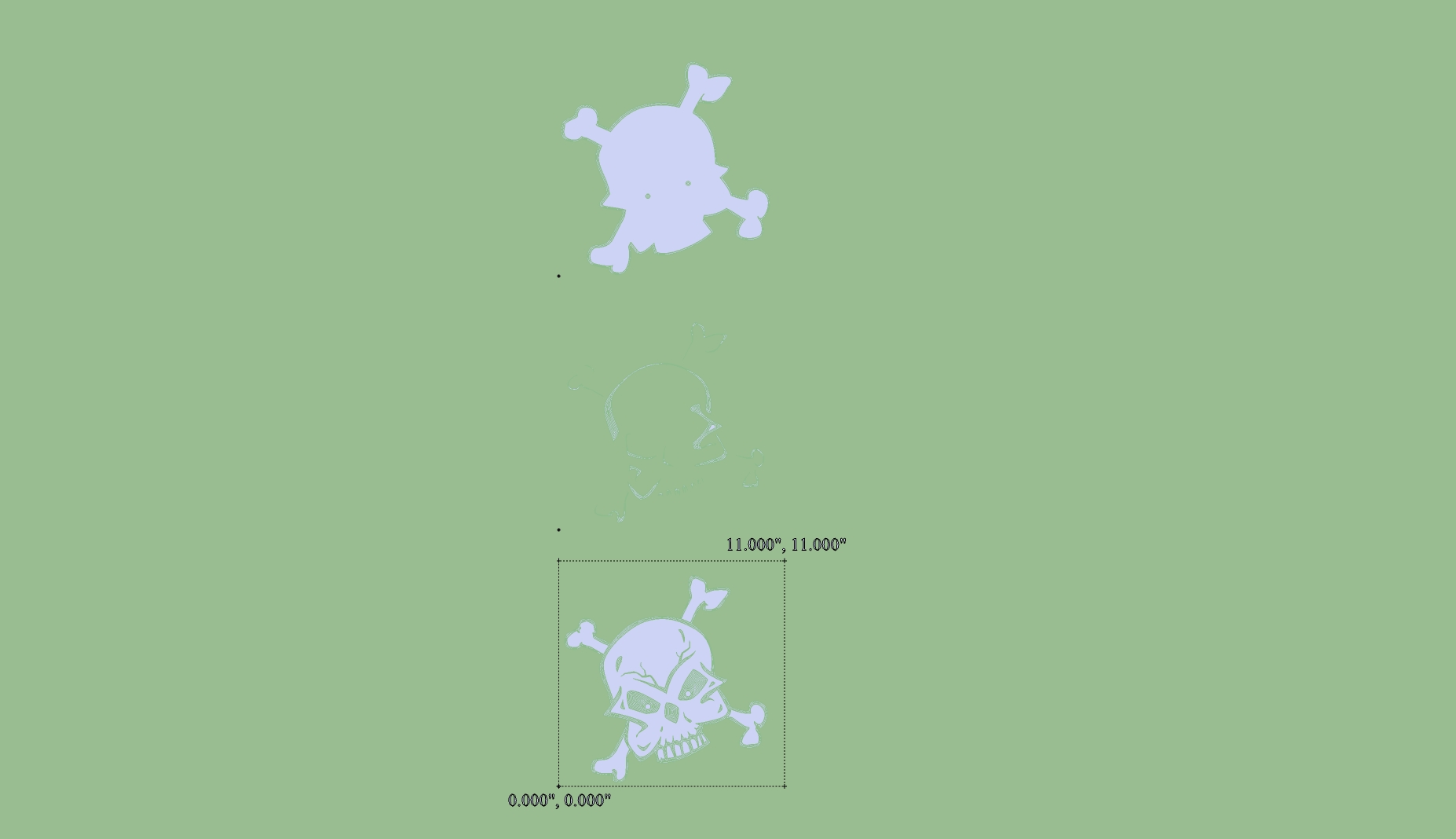

    Sorry about the green background but it is easier on my eyes then white. Does anybody know if it is possible to change the color of the centerline tool's tool path? Attached files Black.cnc (267.4 KB)Â [​IMG] Skull Test 2.skp (3.6 MB)Â red.cnc (107.4 KB)Â silver.cnc (135.3 KB)Â

  24. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Thank you Craig :doubleup:
    This is supper :p

    I dont know how to change the color , but someone here does !
    Hey MARK ! :banger:

  25. xtremeRCpilot

    xtremeRCpilot Member

    Offline
    Messages:
    736
    Trophy Points:
    16
    Location:
    Cleveland, Ohio
    Awesome guys, why is there a 25% depth cut for the drawing? I would think it should be 10 or just enough to make contact with the foam!!

    Cool stuff!

    John
