So this is just a plane that I've been tinkering around with... and it is AWESOME!!!!!!

I have been working on the sketchup files, but am trying to make it perfect... This is my first REAL model with G-Code, so It's coming a little slowly. It will be good, I promise! Release date is soon!

So what this plane takes:
1 sheet 6mm Depron
1 1500kv BLue Wonder
1 18 amp ESC
3 5 gram servos (4 if you want rudder, I have not experimented with that yet.)
1 about 850mAh 3S LiPo
Camera if wanted!

Wing span is 27 inches, I've stayed up for 15 minutes on the 850. It glides nicely, and could carry quite a load. We will know more about FPV Capabilities when my stuff arrives.... :girl_cray2:

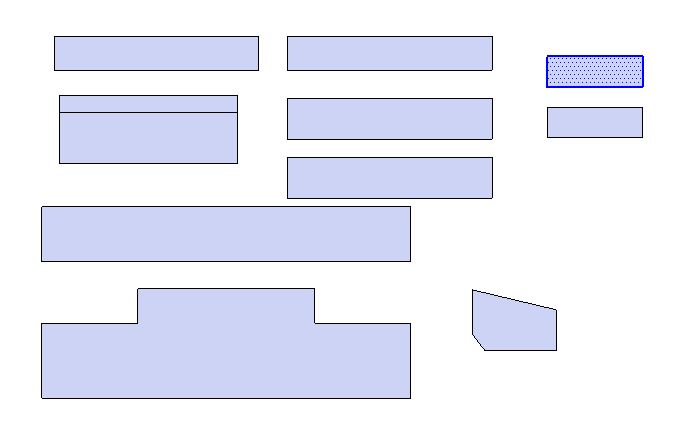

*UPDATE* Getting closer on the sketchup file, going to format it for the foam I have, may be different than yours, so be sure to check it.

Working through this as I watch the SKetchup Basics DVD, so far, 5 out of 5 stars! Great job Crash on making it!





Enjoy the videos.





BUILD VIDEO



~ Nathan Attached files dronecoded.cnc (10.4 KB)Â dronecoded.skp (98.4 KB)Â microdronev3.skp (46.1 KB)Â



NICE, Nathan. What's the all up weight?



It has a bigger brother? I have been wanting to make a giant EPP version of this, but can seeing some issues of weakness of where the tail booms connect to the wings.

For those of you that fly FPV, is it possible to fly from your PC via a video capture dongle? Or would a separate monitor like the little haier LCD be better? :questions:

Thanks,

~ Nathan



Ok, thanks Just browsed a little, I'm trying to keep it inexpensive, is there any difference between that one and this one? http://www.ebay.com/itm/New-Ezcap-USB-2 ... 23137713e2

Thanks,

Nathan



I think Ezcap is out of the UK, I can across this:
Be warned. Sadly there are lots of fakes now made in China. To combat this, the manufacturer has had to change their trading name from Easycap to the trademarked name ezcap™ and radically redesigned their product. If you are offered an Easycap product, it is a fake. You get what you pay for. To read what we are constantly asked by persons who have purchased a copy..........

http://www.ezcap.tv/

I would go with the original.



Ok. Thanks for the info. Definitely going original.

~ Nathan



I see. I found the original off of that site. Thanks!

~ Nathan

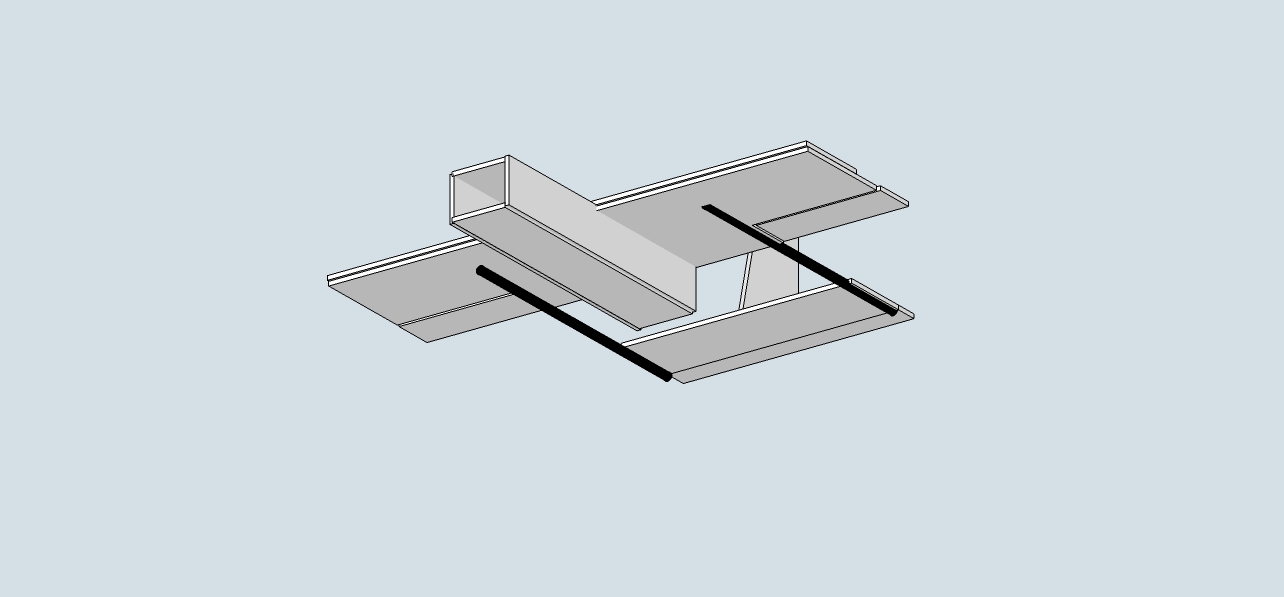

3D Model, Setting it up in the safe area right now!




:look: The final product is in site!

~ Nathan Attached files



It's up!!! Be sure to check it as this is my first try.... :02cents:

:beta:

Enjoy!

~ Nathan
