hey guys,
i wonder if someone have dxf/dwg/skp of rhino head 3d puzzle.
the one I'm aiming for is cardboard safari's rhino head like. Attached files



Shalom Yotam

Where did you find this picture? Maybe the place has also a picture of the parts and then it's easy to convert it to a SKP.



kram242 the slicer plugin is very limited.
it would never ever be able to slice such a complex form.

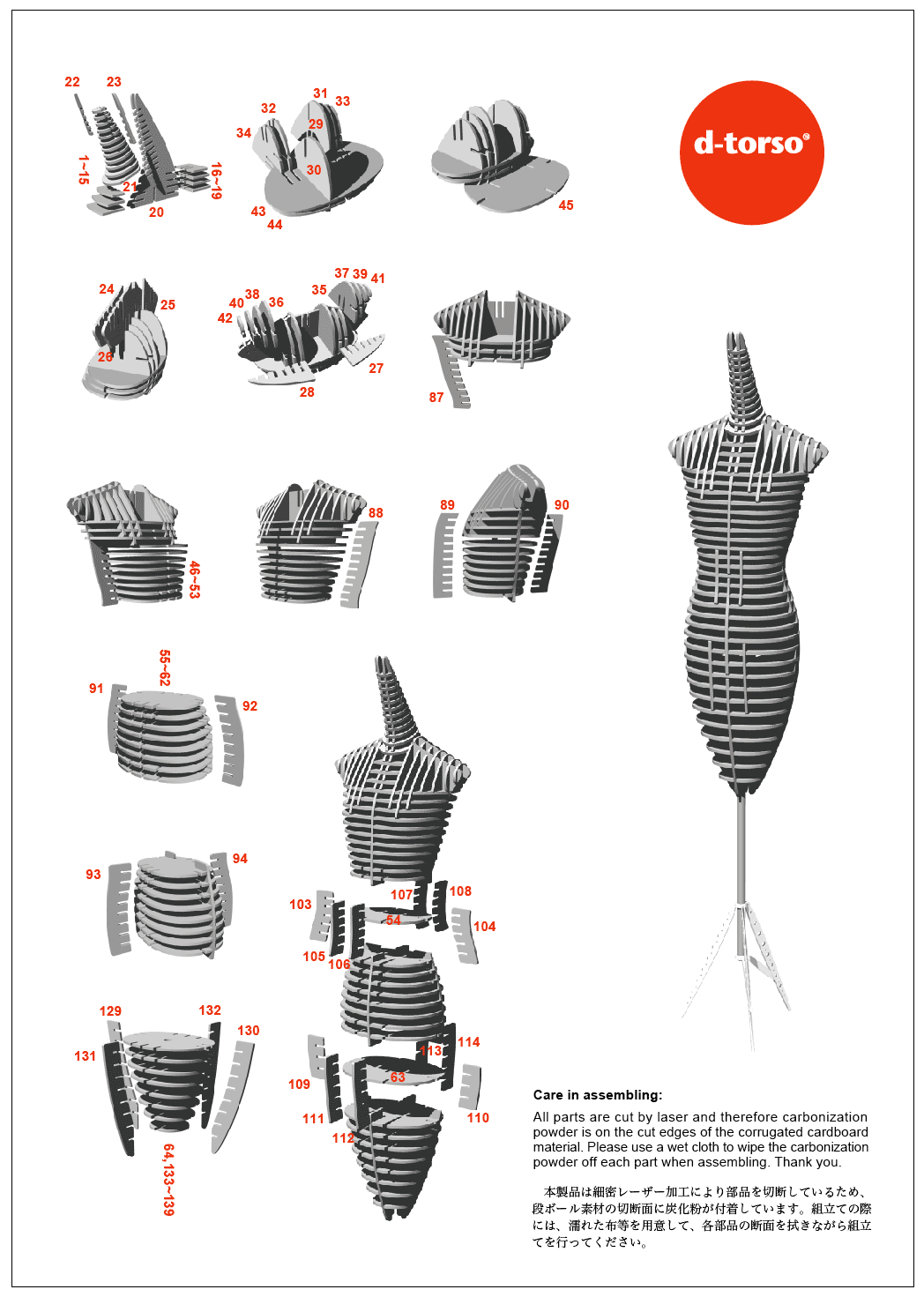

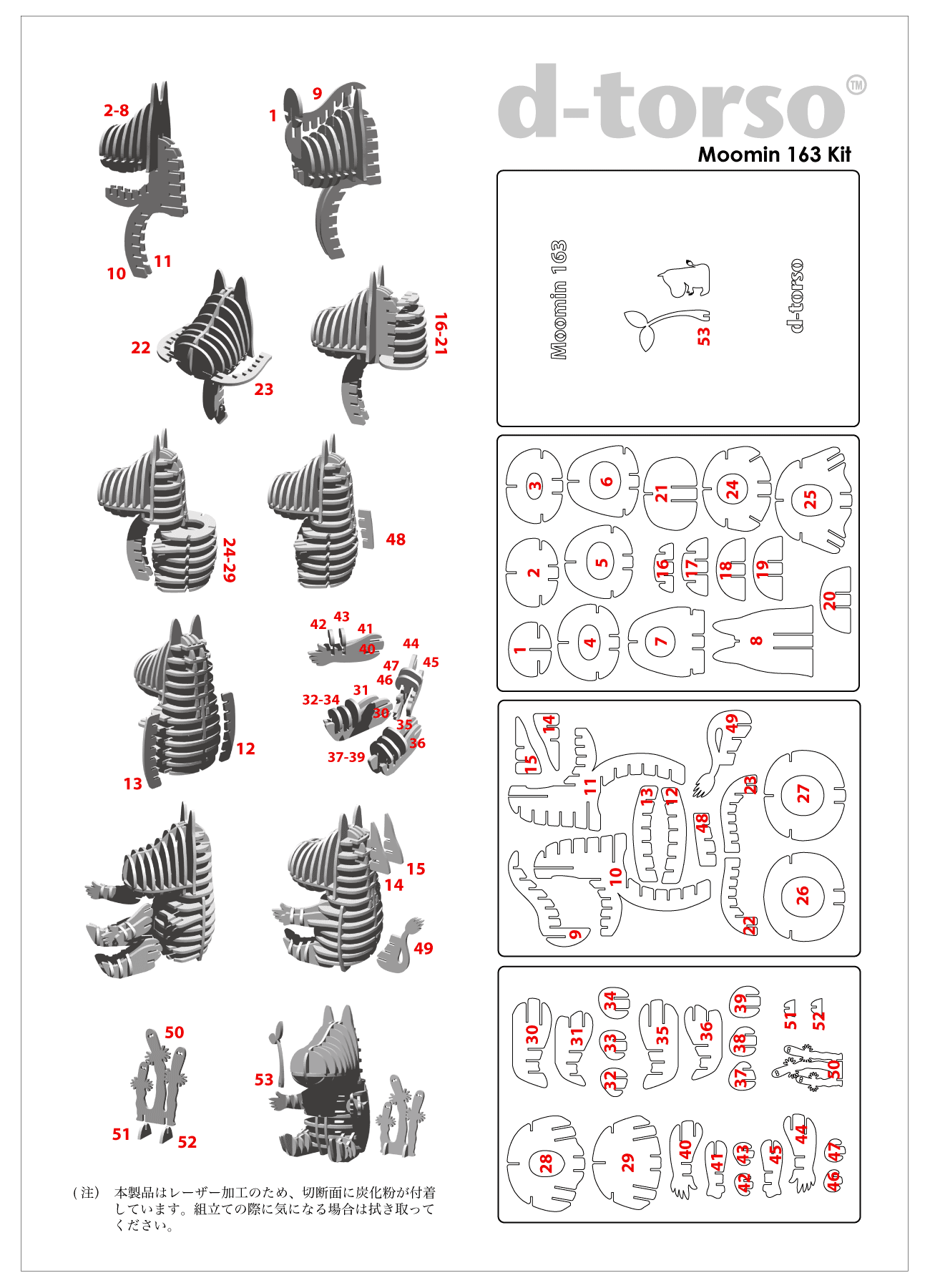

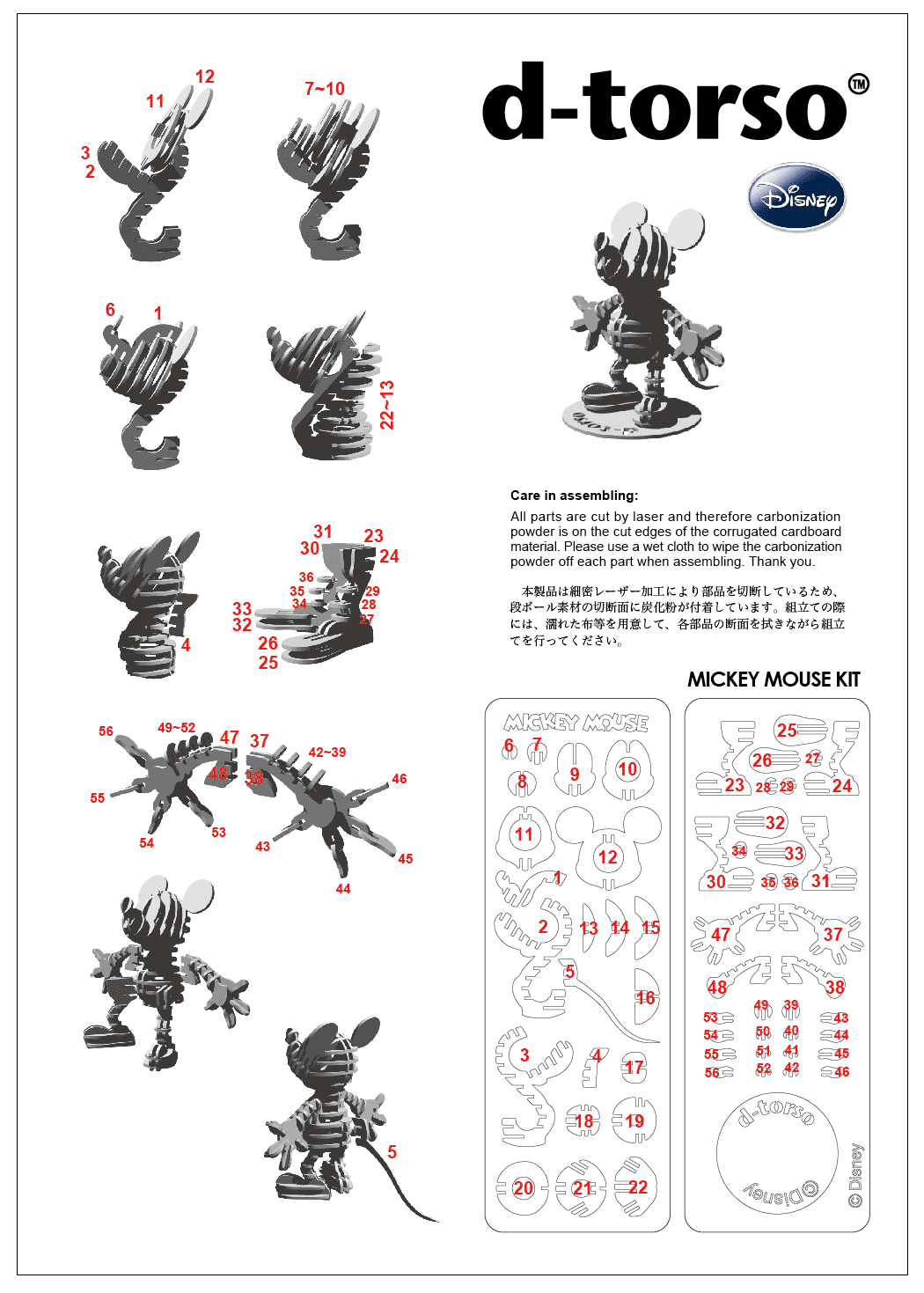

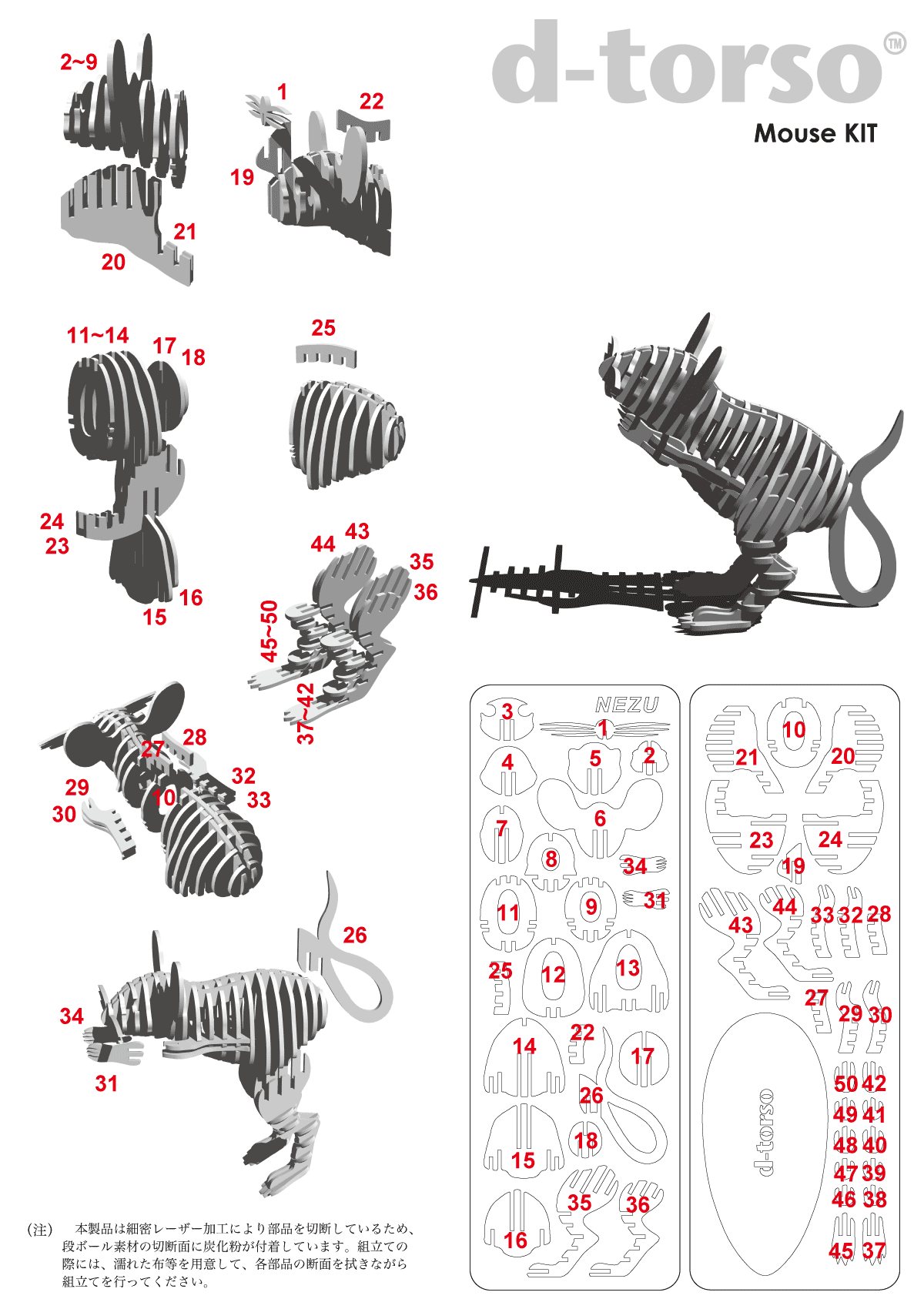

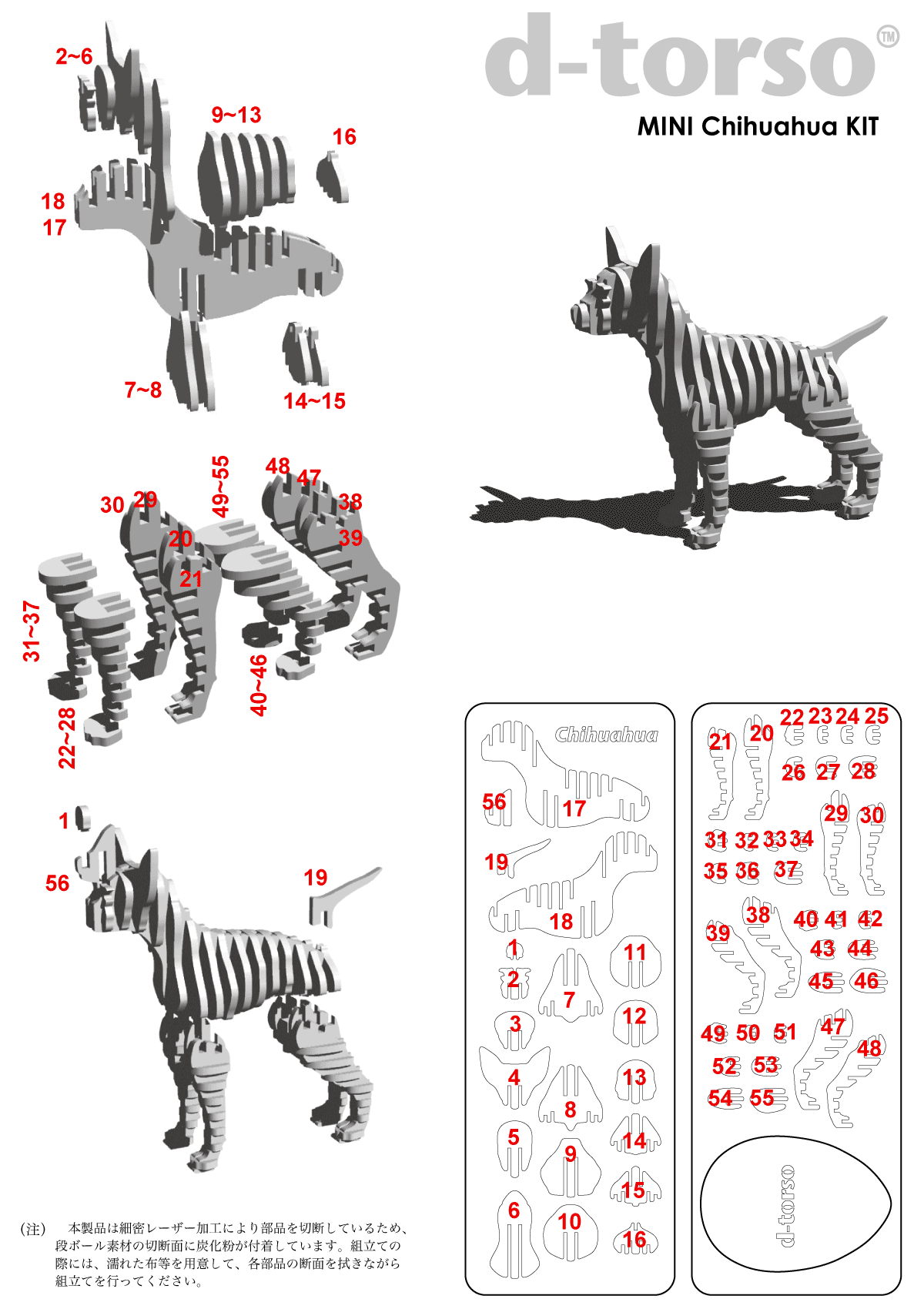

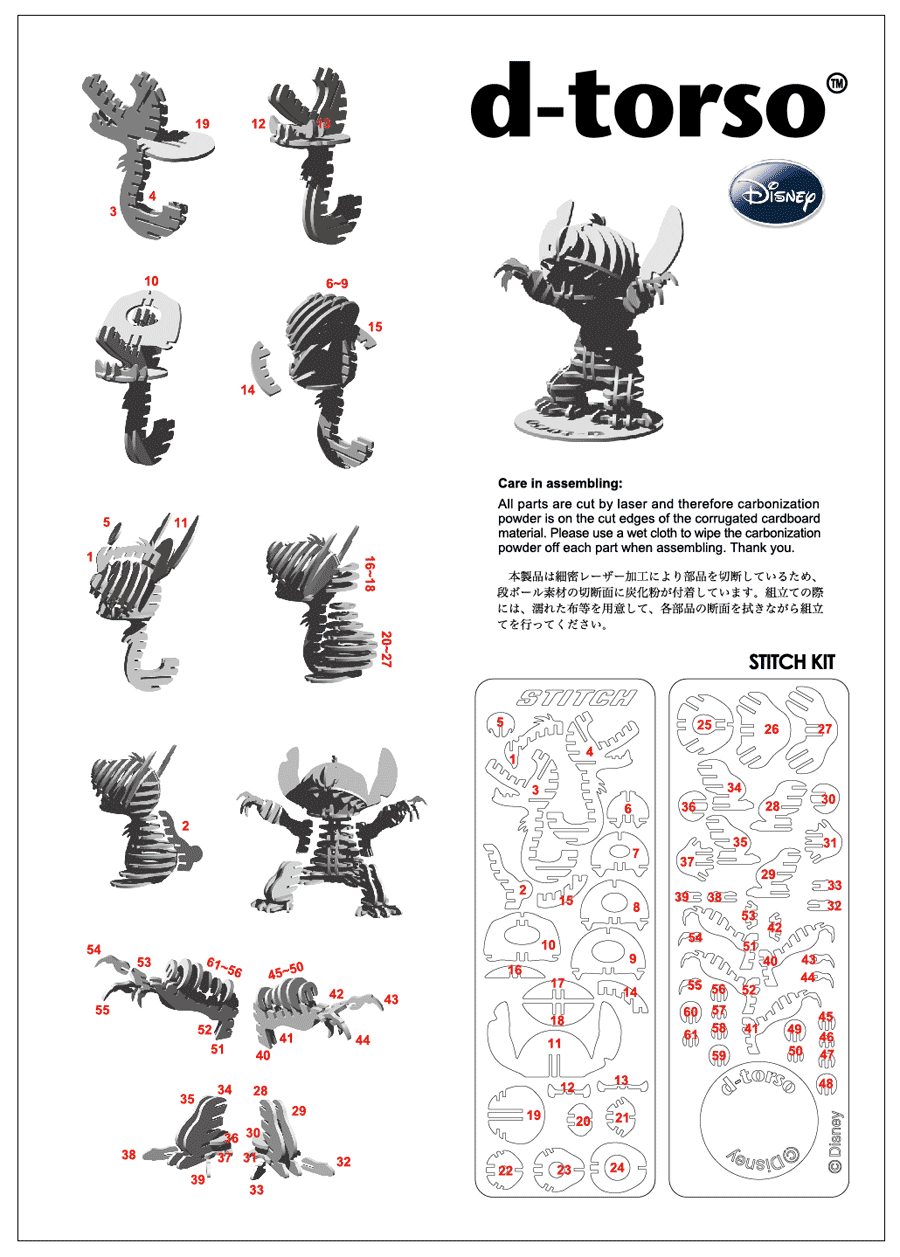

i have so many great pdf's with great slice-forms models,
however i find it almost impossible to transform it into skp.

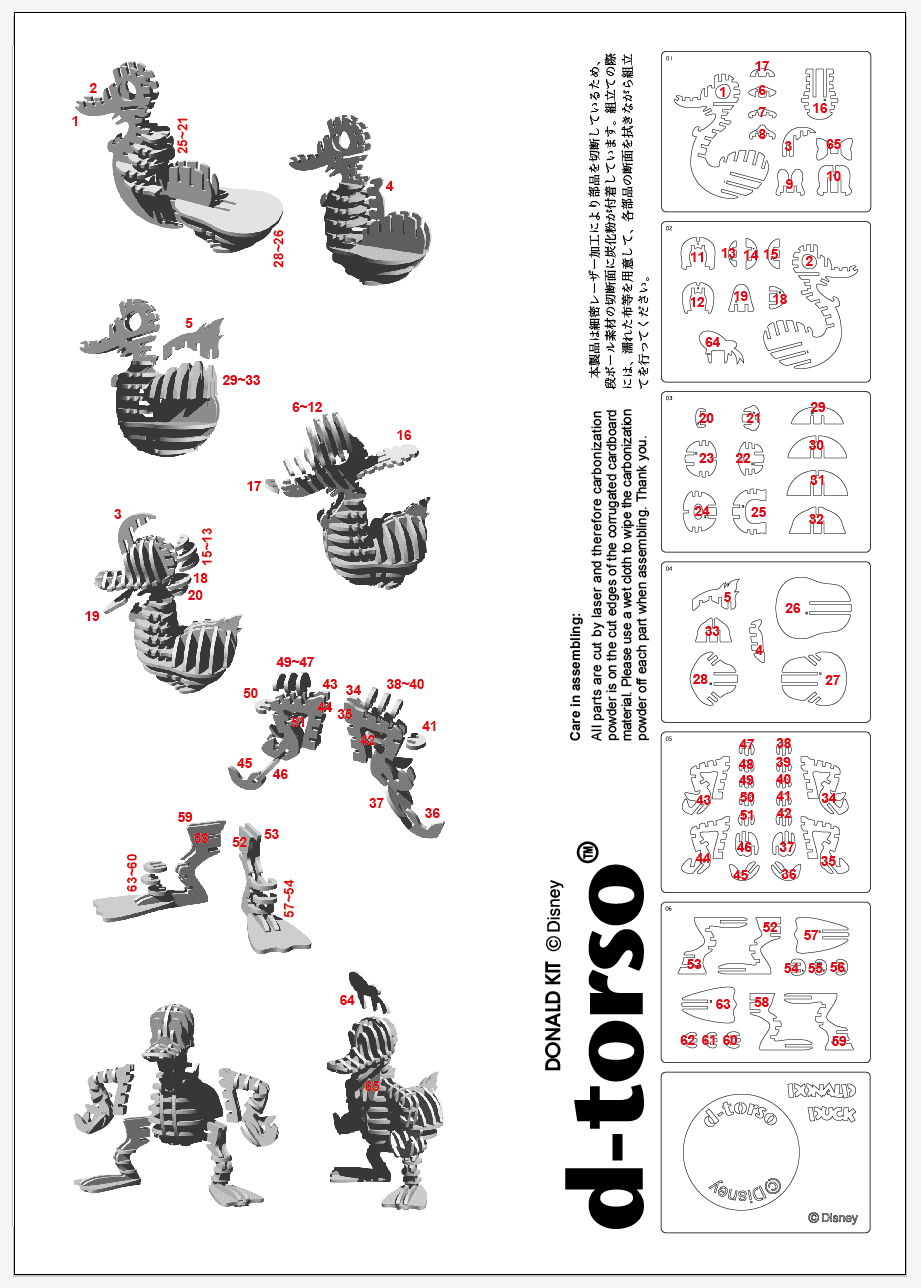

i attached some of them, maybe you guys will find it useful. Attached files



Can you post a pdf I might be able to at least get it to DXF format



wow dxf files could be the answer for my prairies

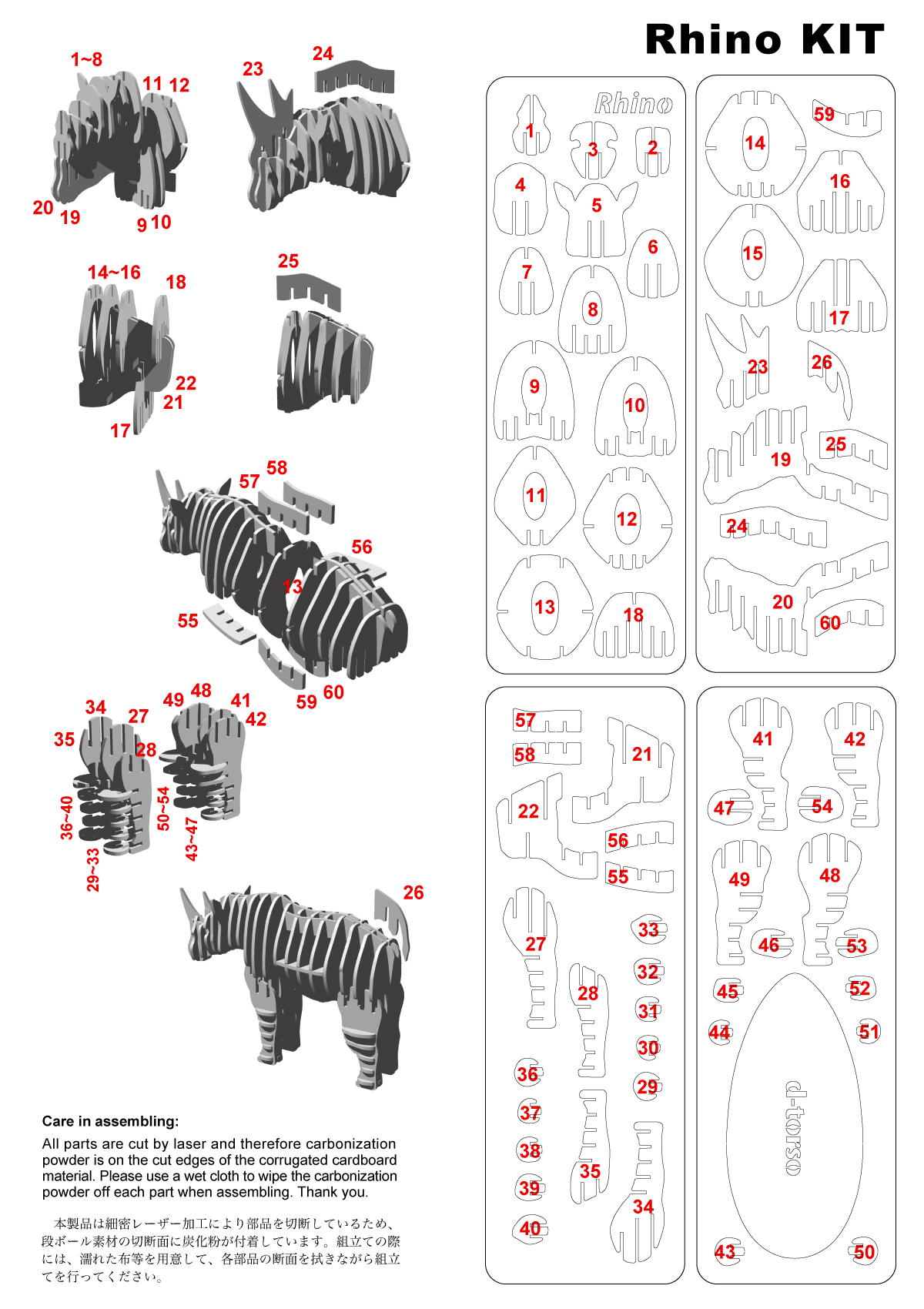

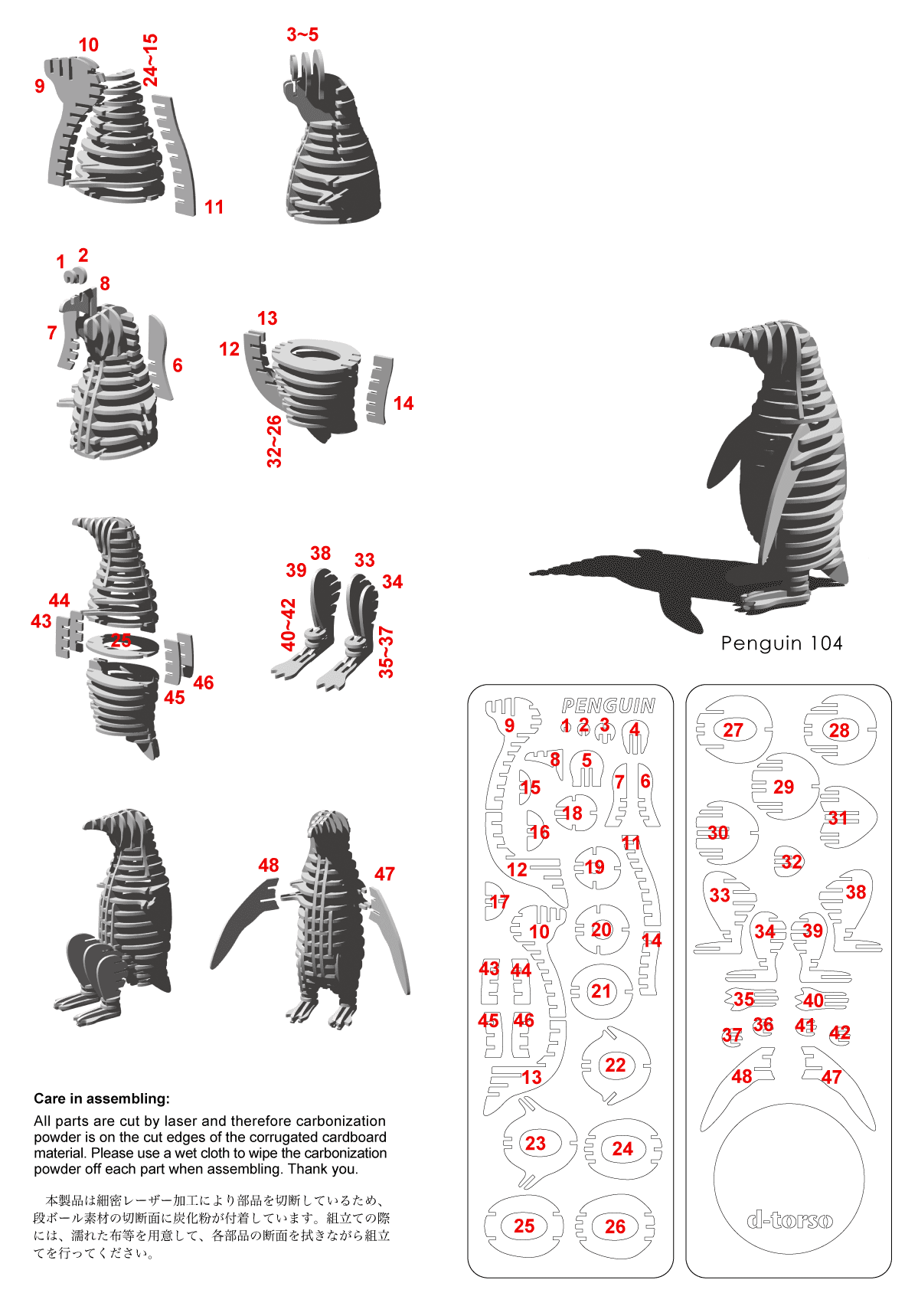

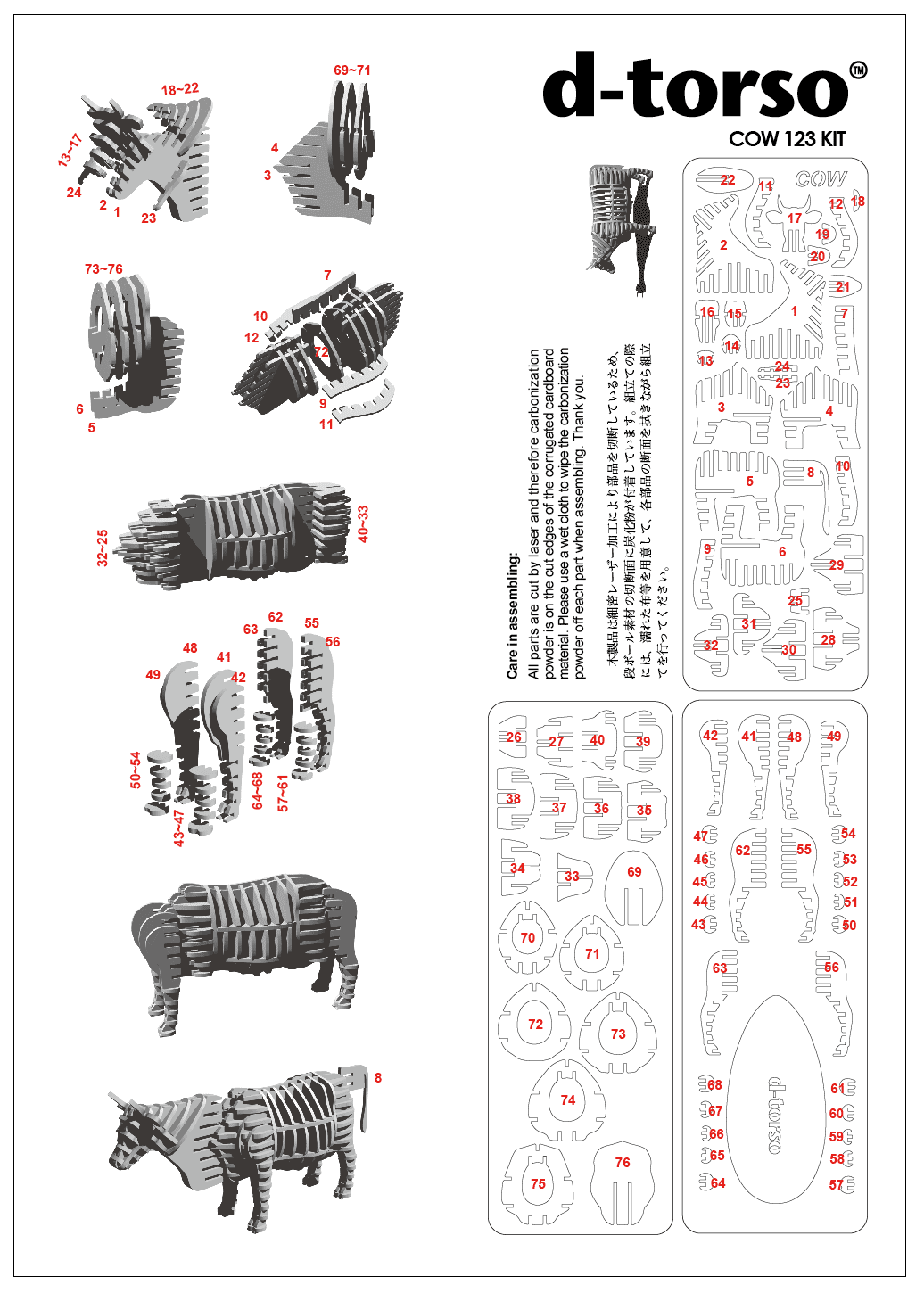

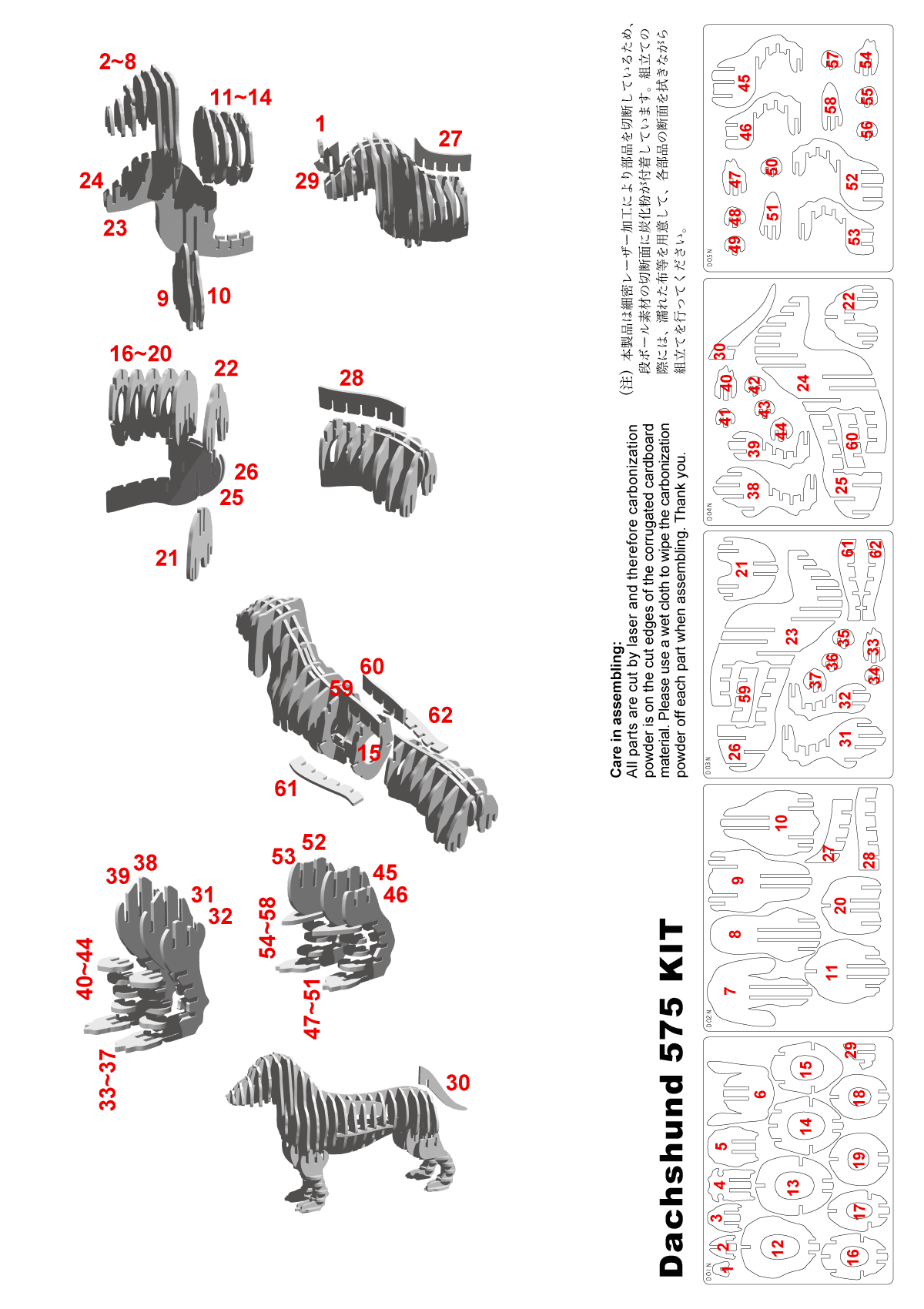

Attached files cow123_instruction.pdf (343.8 KB)Â dax575_instruction.pdf (394.4 KB)Â giraffe_instruction.pdf (416.7 KB)Â ibo145_instruction.pdf (440.8 KB)Â penguin104_instruction.pdf (406.6 KB)Â pig121_instruction.pdf (446.4 KB)Â rhino_instruction.pdf (440.5 KB)Â tiger185_instruction.pdf (1.4 MB)Â



can someone please post these pdfs as dxf? please?



Yotam, I've tried to convert it to dxf but it doesn't work. I think the reason is that the pdf file is not a true pdf but a picture made into pdf and that is not possible to convert to dxf.

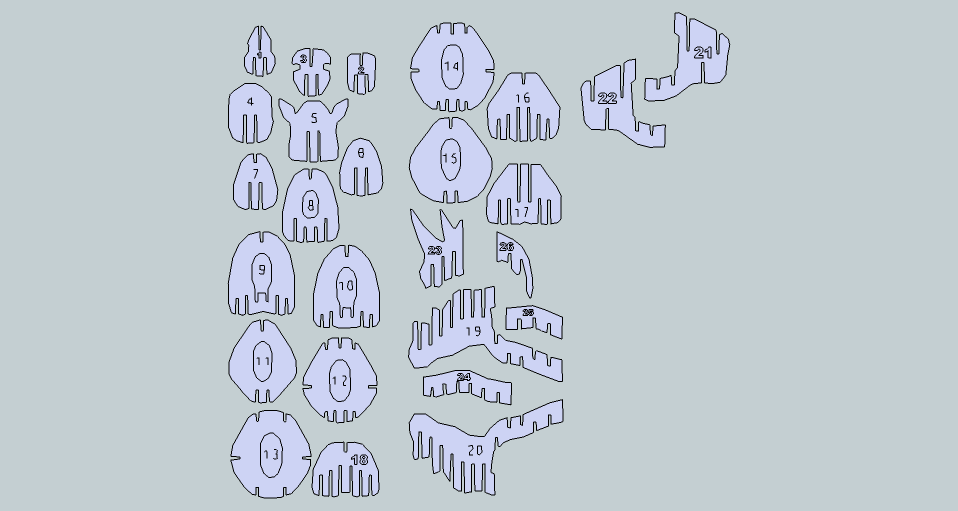

I find it easy, albeit very time consuming, to convert from your files to skp. I may take the challenge on one but for sure not of all of them.

BTW, can you post the one for the rhino head? For that matter, can you post what-ever you have? Like you did above, a picture and the file, so that you know before you download what it is and if you like it.



There are no vector object in the pdf to convert, I don't have the image converter



i don't have a pdf with the rhino head.

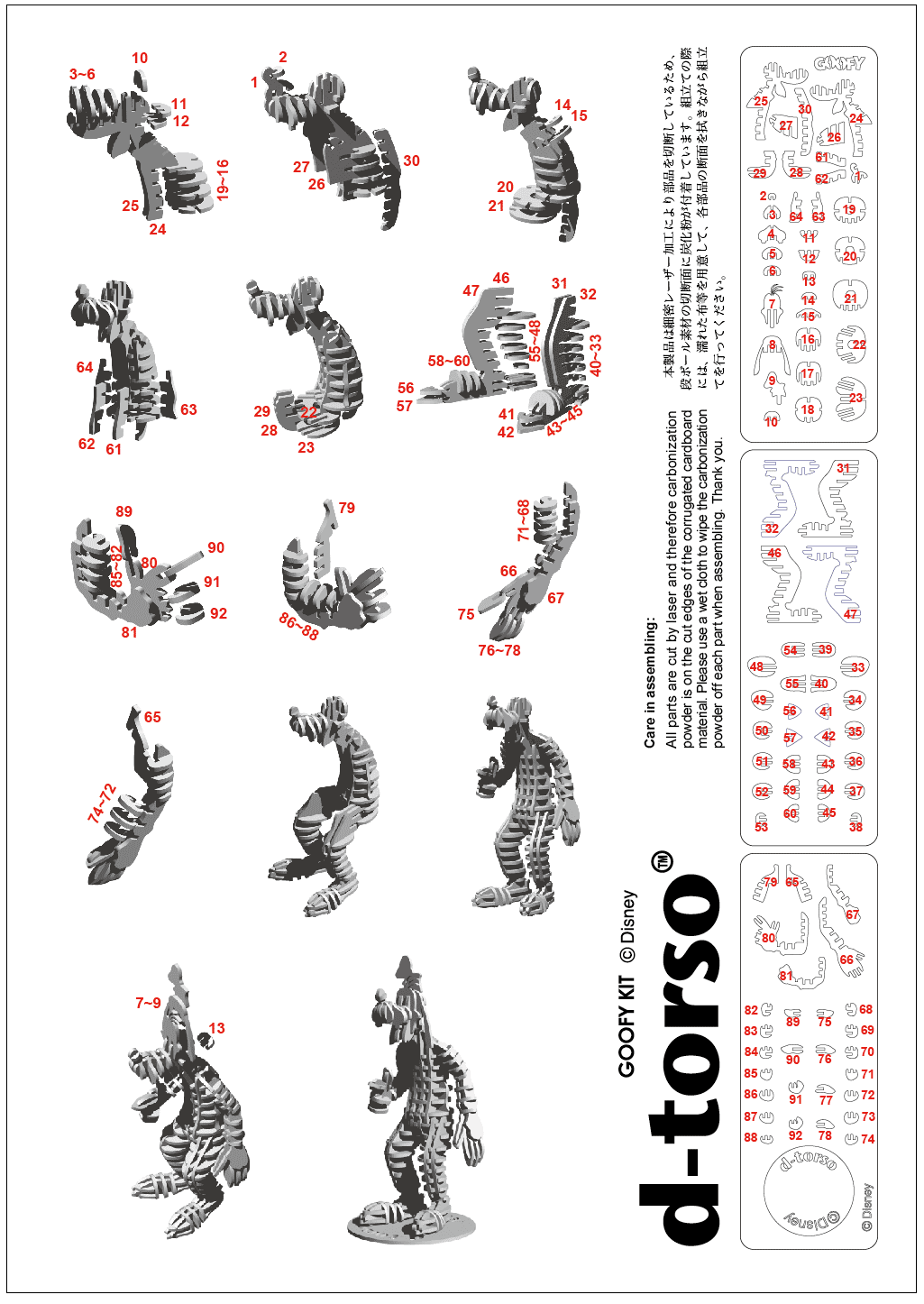

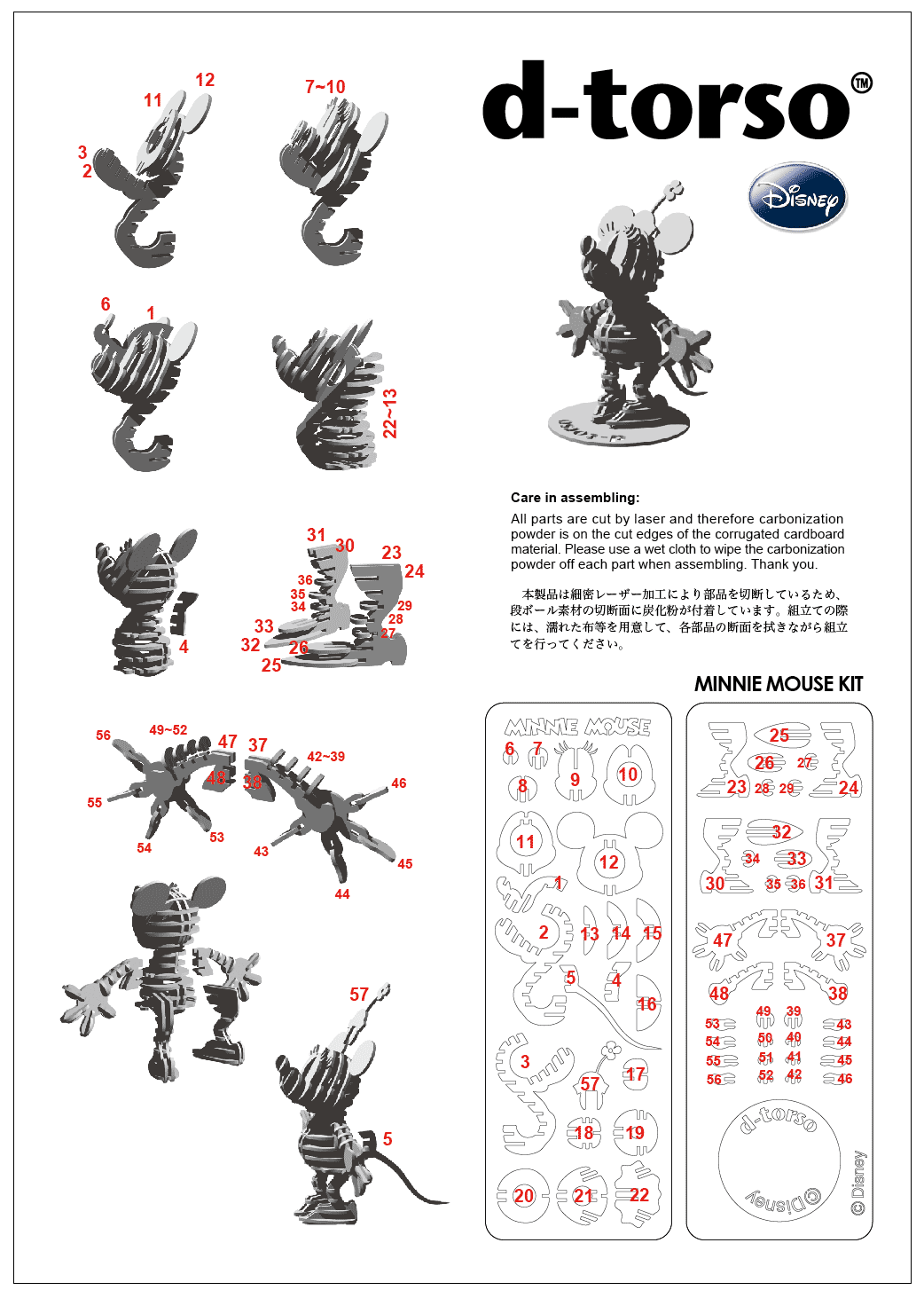

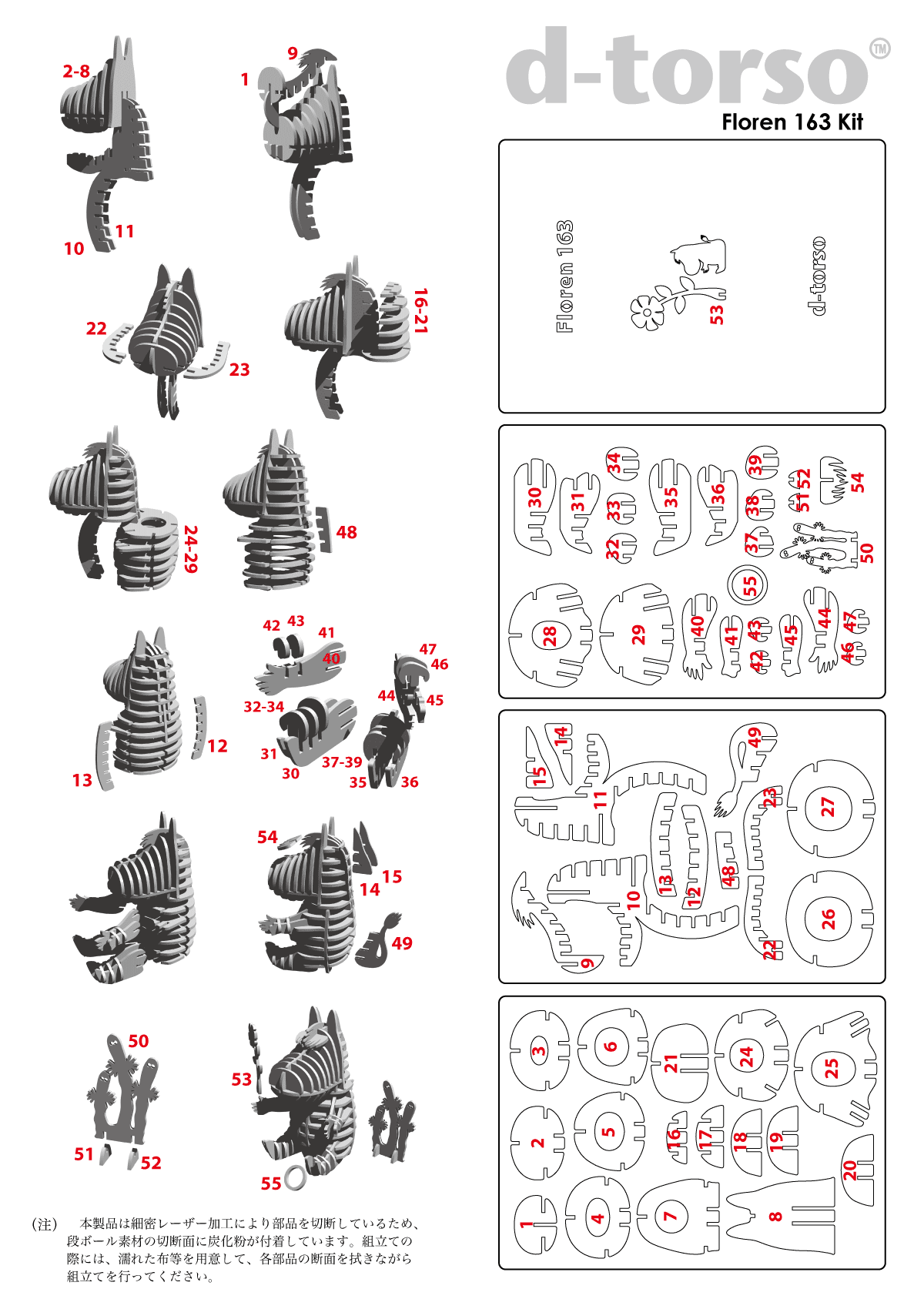

However, i will take the time to post all the stuff i do have.
If you do take the time and convert any of these files, please let me know.



thanks, these files are far to rough to be used.
i will see if i can clean it and make it ready to cut.
if anyone else is up for the challenge i will be more then happy.



as per as your request .. Attached files



Thanks, my man!



What program did you use to convert? I tried it and the file that came out was not readable.



photoshop.. need help?

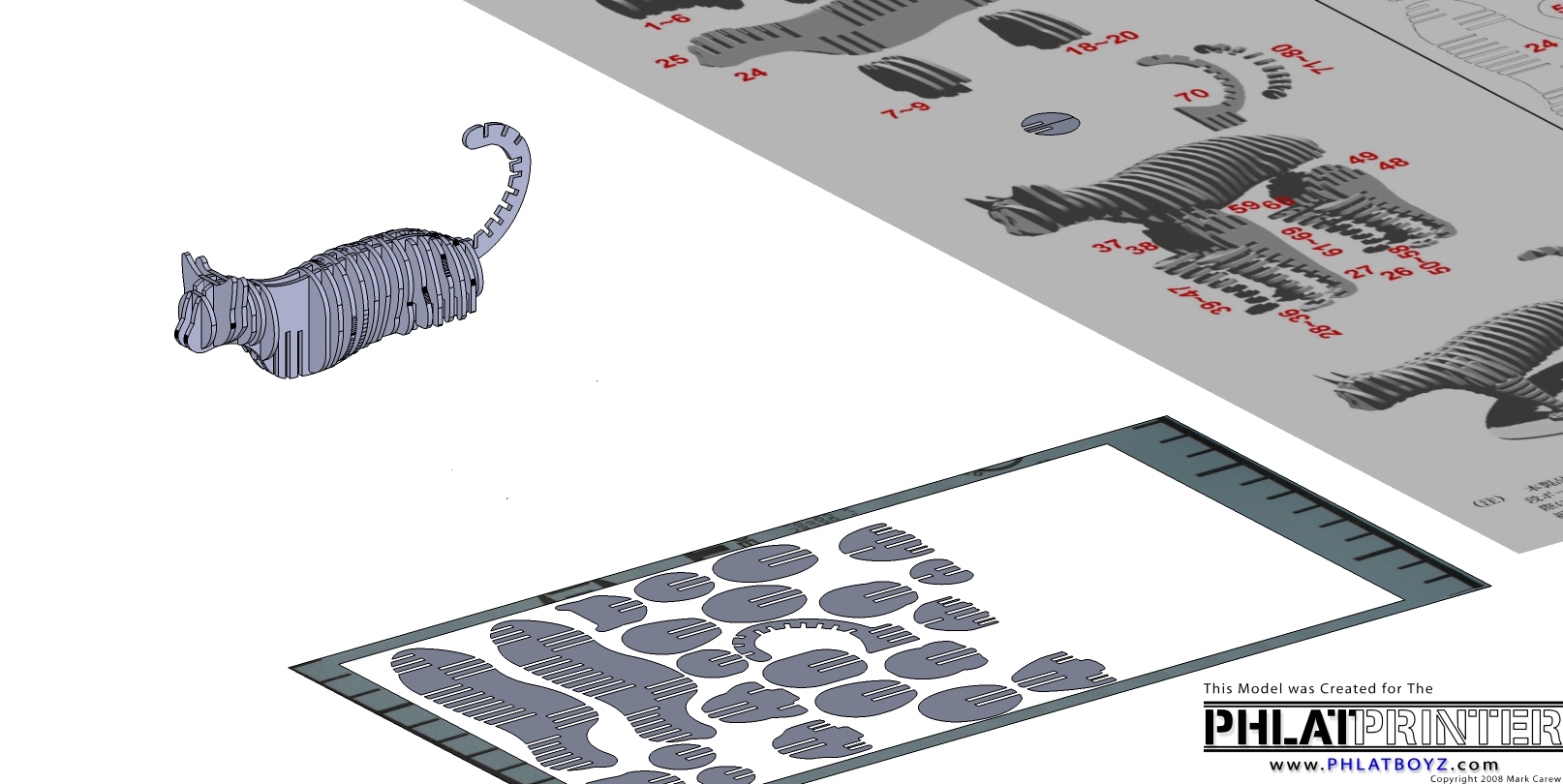

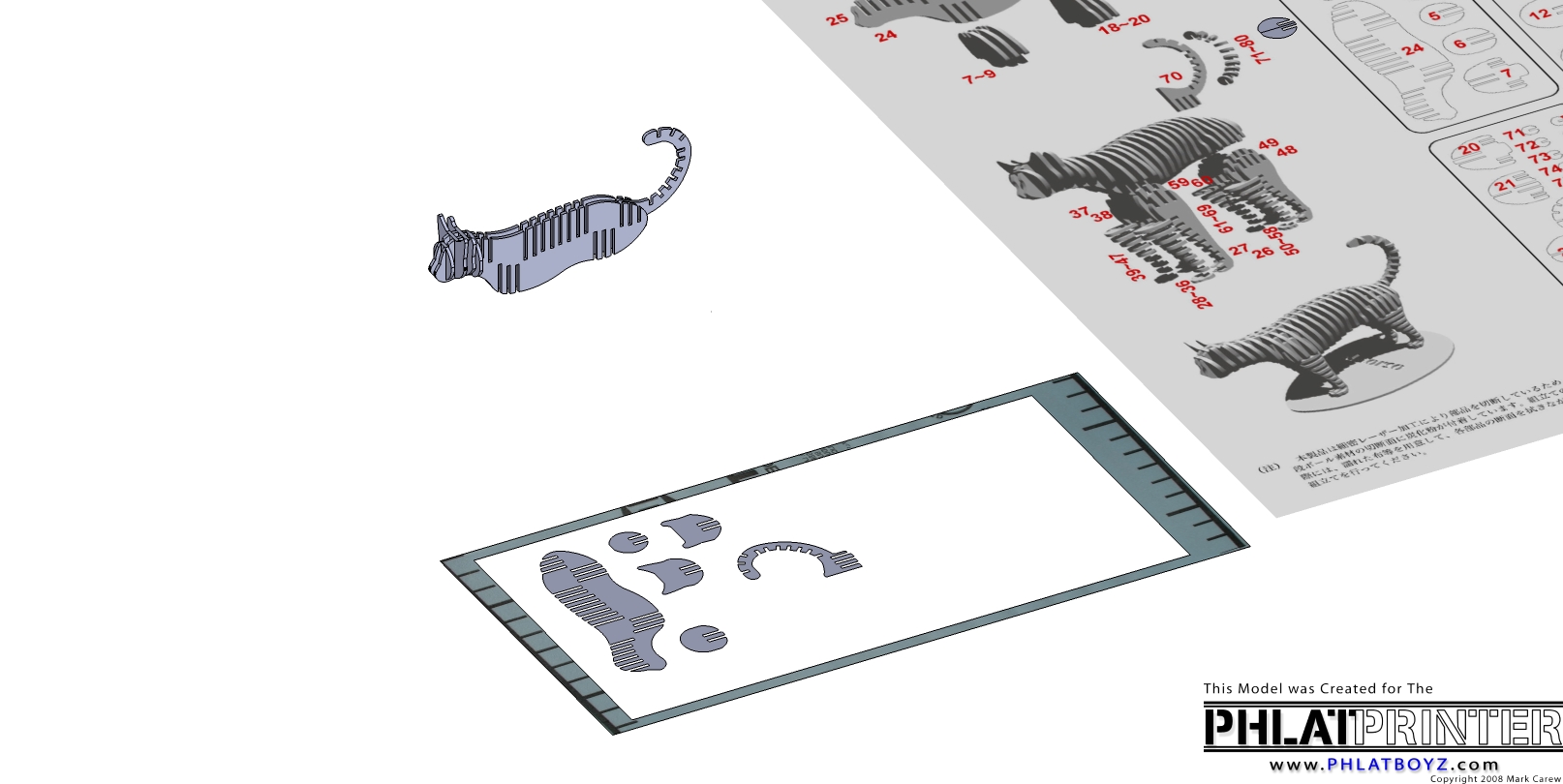

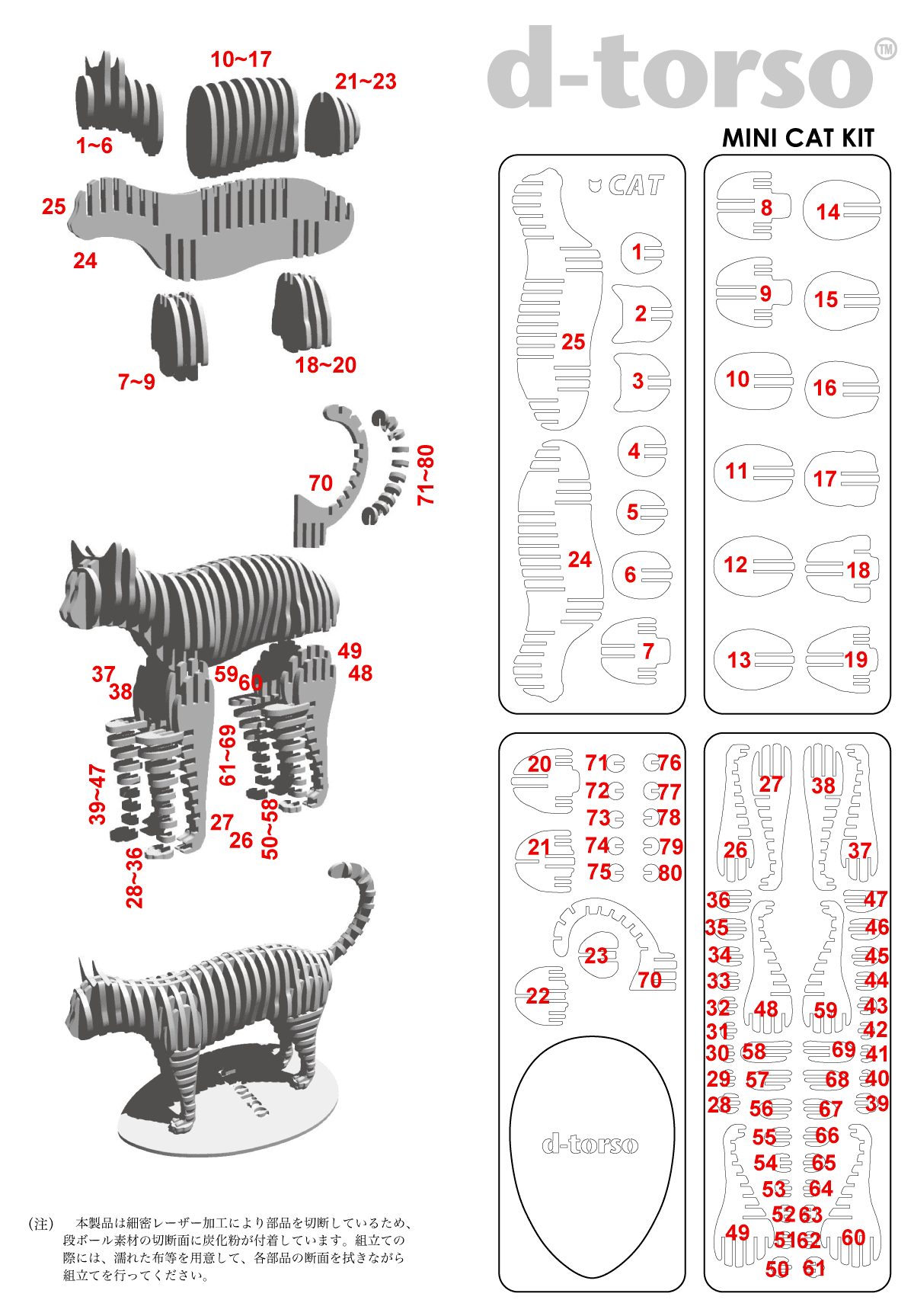

Been working on the cat one, wow, it's way too much work to trace each part out and get the size of the slots correct.

Attached files



nice job Jnida63!!!!
try the penguin i think he is the easiest.
my method is to trace the whole piece (no. by no.) and then cut out the needed slots.
its much faster that way.
by the way let me know when you finish the cat im so exited about it.



Got a little more done on the cat

Attached files



I'm almost finished with the penguin. Only a few parts left. Made it for 1/4" foam.
