Sea Horses Stacked - Escher

Discussion in 'Shapes' started by kram242, Jan 10, 2010.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

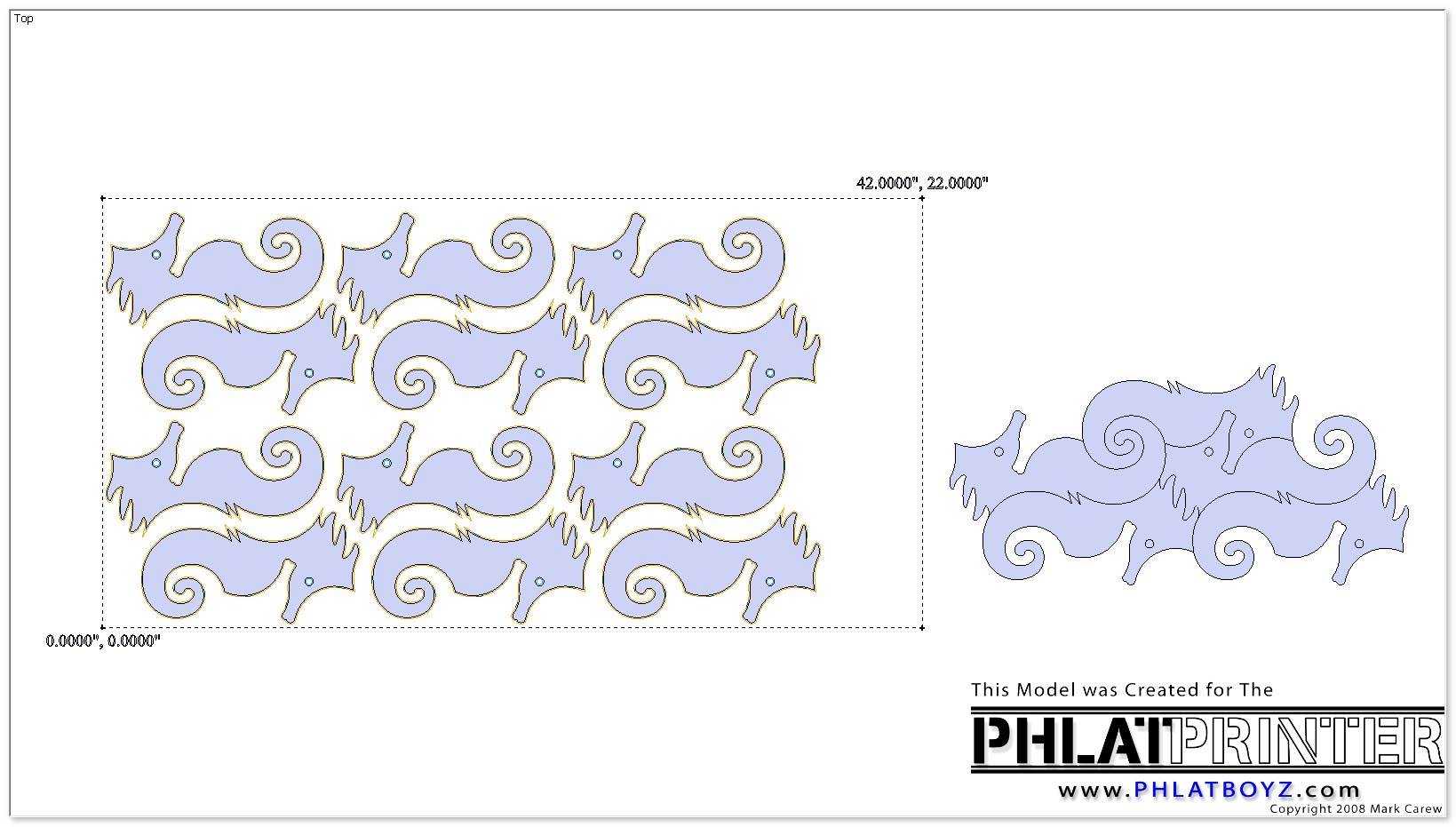

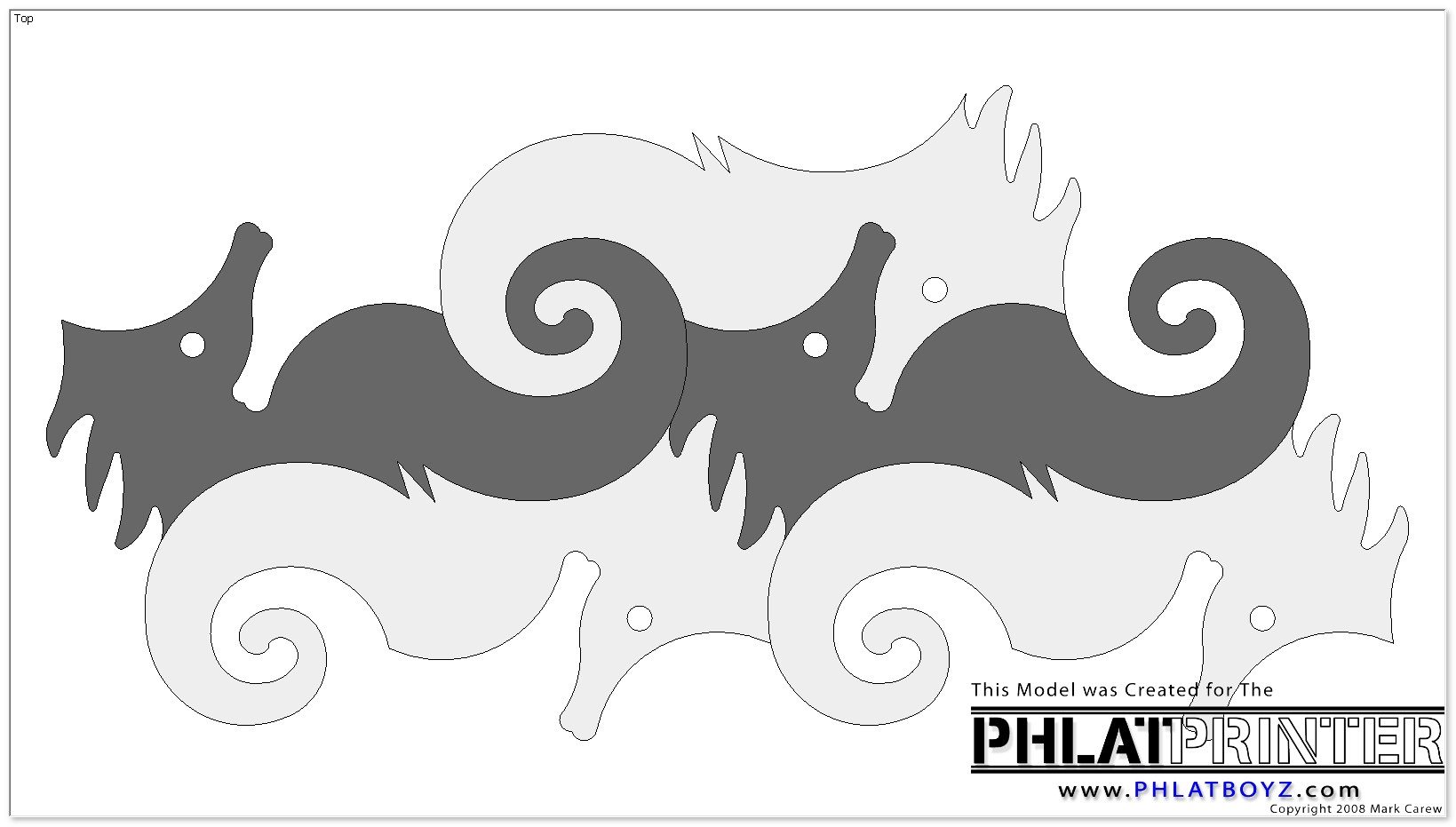

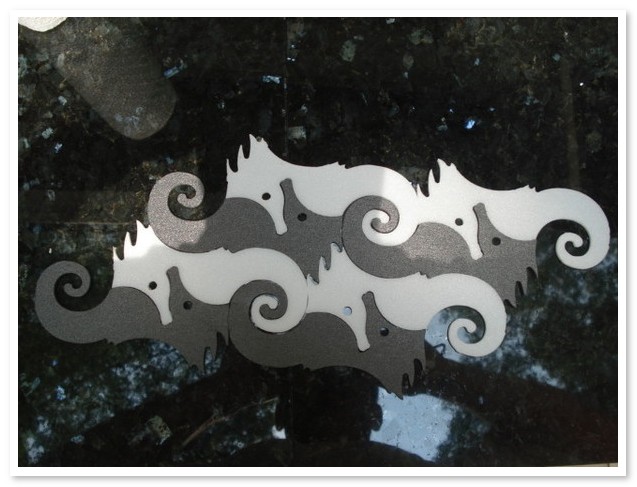

    Here are some cool inter-locking sea horses designed by M.C. Escher.

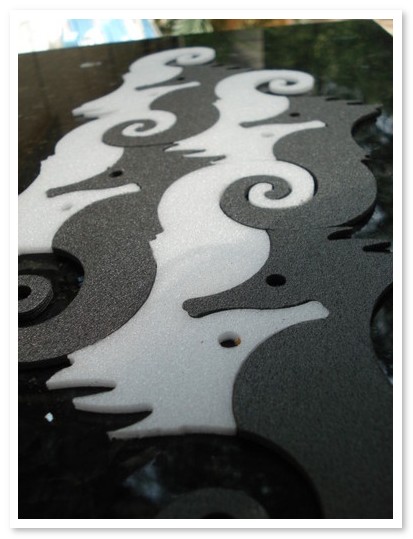

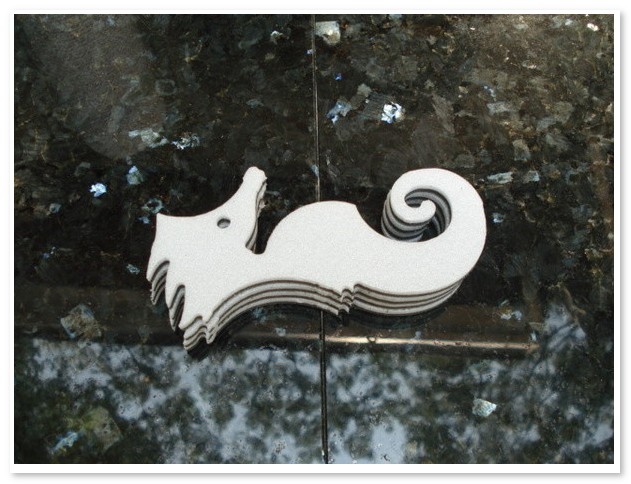

    Whats cool about designs like this is that you can stack your foam in the Phlatprinter and print more than one set at a time! I have tried this and it works with the long stock 1/8" bit.
    Don't worry about gluing the sheets together once the first cut is made the foam will fuse together and hold to the next one.
    Also included is the 1/16" code for a single sheet at a time cut out.
    Have fun
    Mark

    More about M.C. Escher designs can be found here http://en.wikipedia.org/wiki/M._C._Escher

    Example video here Attached files Esher_SeaHorse_16thBIT.cnc (153.7 KB)Â Esher_Stacked_SeaHorse_8thBIT.cnc (154.4 KB)Â Esher_Stacked_SeaHorse_8thBIT.cnc (154.4 KB)Â [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] Seahorse_16BIT.skp (1.9 MB)Â StackedSeahorse_8thBIT.skp (2.2 MB)Â

  2. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    Nice project for the kids !! Cool....

  3. xtremeRCpilot

    xtremeRCpilot Member

    Offline
    Messages:
    736
    Trophy Points:
    16
    Location:
    Cleveland, Ohio
    Cool, Thanks Mark, the kids will love these :) Im running out of foam to make planes LOL :D


    John
