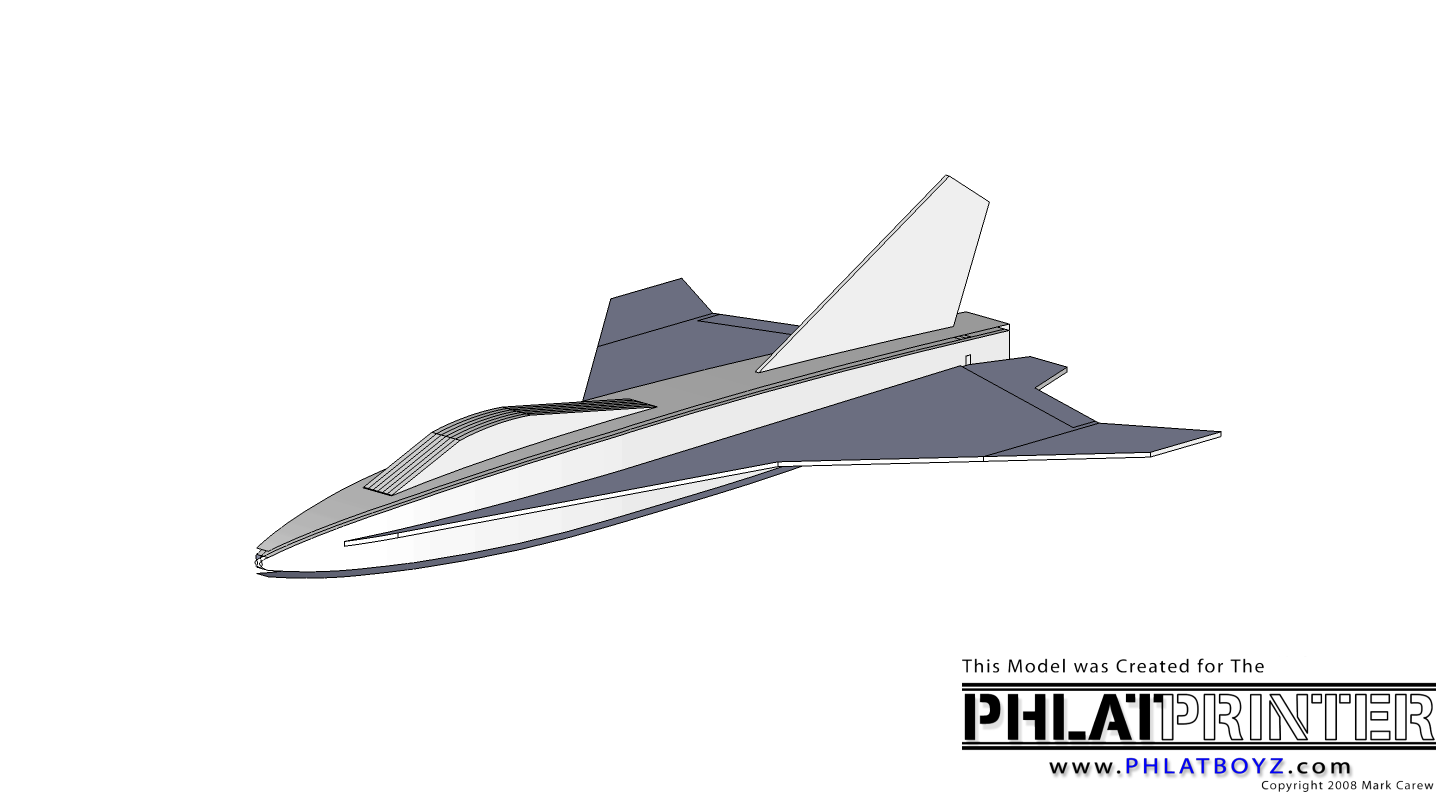

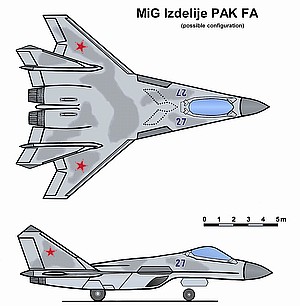

This plane was modeled after one of those artist conception pics of what the PakFa was going to look like, of course the real plane wasn't even close but still thought it could make a cool park flyer.

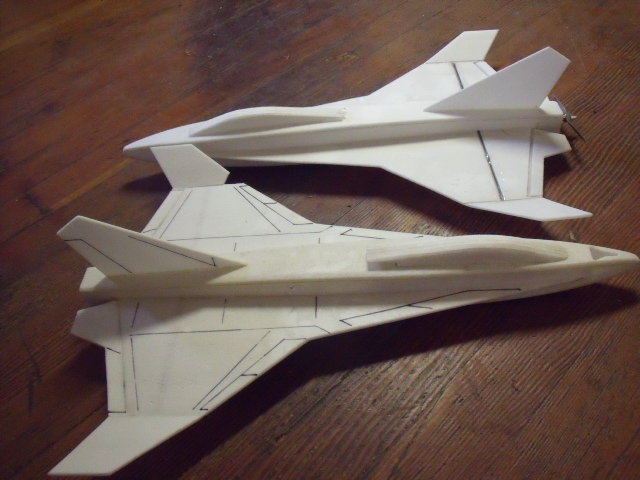

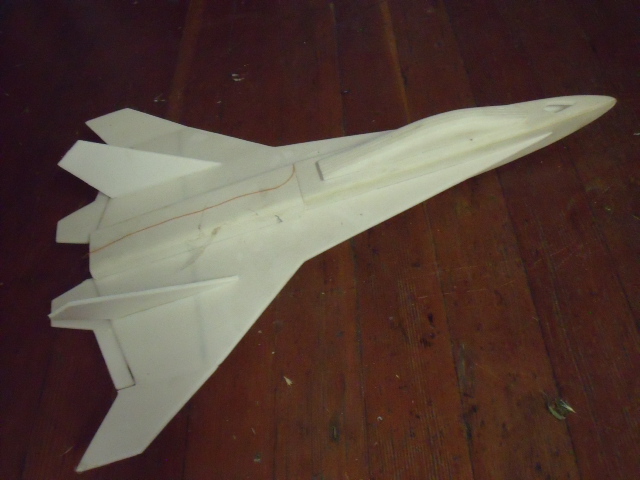

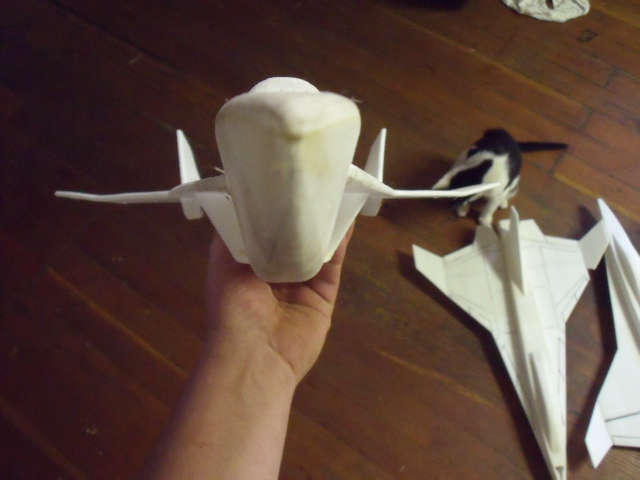

Simple box fuse construction, flat plate wing for easy building, the canopy construction idea was borrowed from ET, thanks ET!

I used a 3500kv 10 gr outrunner & 4' prop, 10 amp esc, 2 blubird bms 303's & a corona 4 ch rec.
Auw with a 800 2 cell 4.8 oz.
Its small and quite fast in this config so those of u who fly-by-brail will have to scale it up




I also used a 2000kv 10 gr outrunner with a 6" prop, flies more like a 3d plane in this config but still very fun.

CnC files are for Dollartree foam board & the stock 1/8" bit, made for the MK1.

Questions, comments, constructive critisism welcome.

There will be an edf40 version of this plane coming soon-








Filthybeast- Attached files Pak-prop-final-sht-10f2-1-8-bit.cnc (19.5 KB)Â Pak-prop-final-sht-20f2-1-8-bit.cnc (50.8 KB)Â Pak-prop-final.skp (3.1 MB)Â



Sorry, forgot that detail, it's 18" on the WS



Neat



Thanks for the kind words, flattery gets u everywhere All the credit really goes to the great people in this community so willing to share their ideas & plans. Places like RcGroups & the Phlatforum are a wealth of knowledge for us modelers.

Mark, this plane & prob many others wouldnt exist if not for the work U & Trish did to design the phlatprinters, I would still be cutting out others designs with a blade if I didnt have my MK1.

Over 3 years now my MK1 has been going strong, Ive cut hundreds of planes, stock, other than Erics ZBN's, it still amazes me how accurate this machine is.



Thanks for the for the nice jet plans.
I look forward to building it.

AWESOME JOB.

GHB



Excellent work Fred.

Tweakie.



Cool looking minijet!! Where is the CG located?



X marks the spot on the wing, or the theres 3 holes set to peck drill in the bottom fuse piece, put my finger on the center hole & balance. seemed to fly best at that point.
