Gcode is for 6mm & 1/8 bit, I buy full cases of depron so my layouts are 22x48, u guys lucky enough to get FFF will have to rework it.

Rcgroups Build Thread-http://www.rcgroups.com/forums/showthread.php?t=628812#post6761174 Attached files F-22-6mm-sheet1.cnc (69.3 KB)Â F-22-6mm-sheet2.cnc (27.4 KB)Â f22-shumate.skp (822.1 KB)Â



Thanks for posting this! The .SKP file seems to only have the lower set of parts shown above??? Is this a full fuse version?



Yes its full size,
There on layers, one half is tuned off, go to Windows-Layers, then select it-

I didnt include any of the thrust vectoring pieces, its mostly 3/8 stick with 2 pieces of ply, which I dont cut on my phlatprinter. If you want the TV pieces follow the build thread link above and download the PDF's-

Fred



I have this one in sketch up as well and I build one a few months ago cut by hand. This has got to be one of the best flying planes I have ever built. It is not a build for the faint at heart however. It is a lot of work and the results are well worth it. The thrust vectoring is a must in my book as well as the "optional" rudder with the servo installed in the upper turtle deck.

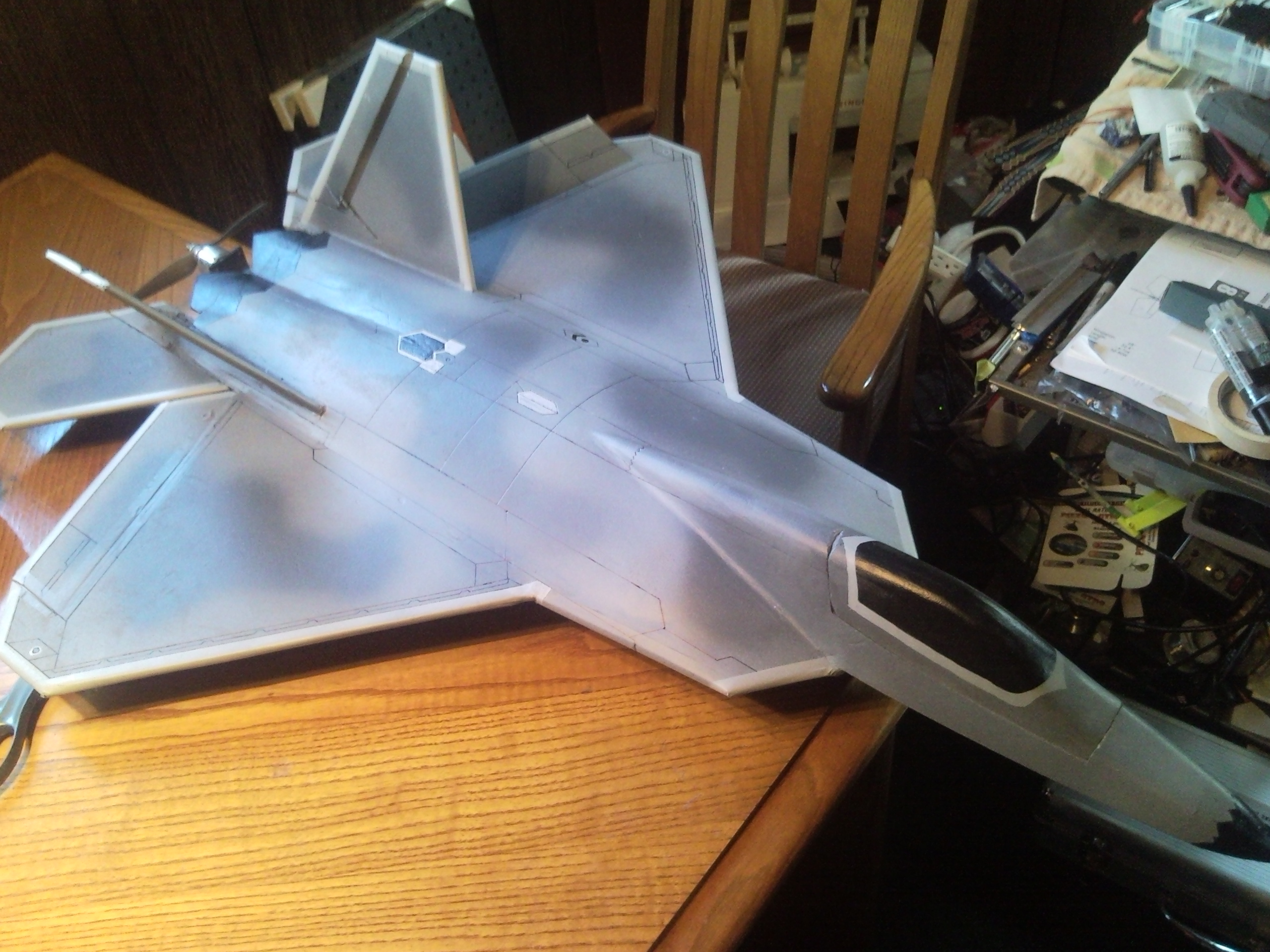

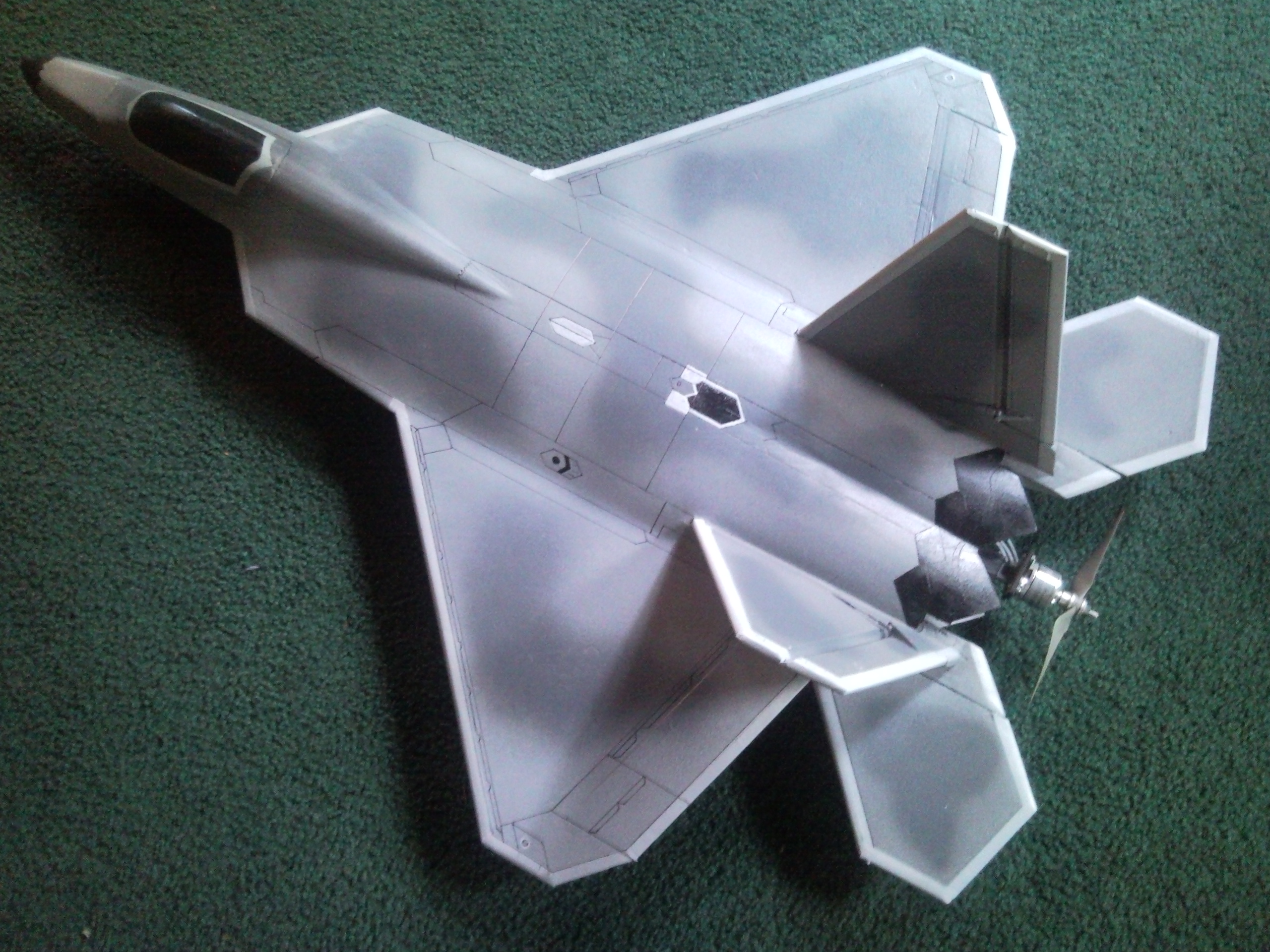

Here is a few shots of mine built.

Thanks for the file, I will check it against mine. Attached files



Very nice job on that f-22 Power, I'll be happy if mine comes out half as nice



Wow! Super job!
How did you get the surface so smooth?



ancient depron voodoo secret........ well I guess I can tell you, it is a mixture of water and ultra light weight sparkling compound. I use it to fair and blend all the joint.
All the edges of this and many of my depron plans I apply gift tape(only the green kind) to the leading and trailing edges. On the f-22 this is really important, it not only looks nice but at the speeds that this plan can fly with a 2550 kv motor and 3 cell pack that put out 31 oz of thrust, any exposed flaw would be ripped off.

built right this plane performs great around 70+ mph and has very little slow speed bad habits.

I did a few modifications to the design and build for better performance and strength, but over all, you cant go wrong with this design. It is going to be one of the first designs I cut out with my new Phlatprinter.
