Sliced pig

Discussion in 'Slice forms/Sculptures' started by Bozikovine, Feb 5, 2010.

  1. Bozikovine

    Bozikovine Member

    Offline
    Messages:
    78
    Trophy Points:
    6
    Location:
    HR (Croatia)
    Here is a project ... sliced pig (4mm plate) ;) .

    Have fun
    Bozikovine Attached files [​IMG] [​IMG] sliced_pig.skp (391 KB)Â

  2. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Good grief, what size is this monster? The slots are 1219.2mm wide! :eek:

  3. Bozikovine

    Bozikovine Member

    Offline
    Messages:
    78
    Trophy Points:
    6
    Location:
    HR (Croatia)
    Slots are 4 mm - sorry, my mistake. :oops:

  4. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Bozikovine,
    Thank you for sharing this :)
    I re sized it to 6mm and started to build the 3D model for reference when I build it in real life, but this is a tough one to figure out.
    Do you have any pictures of what it looks like assembled?

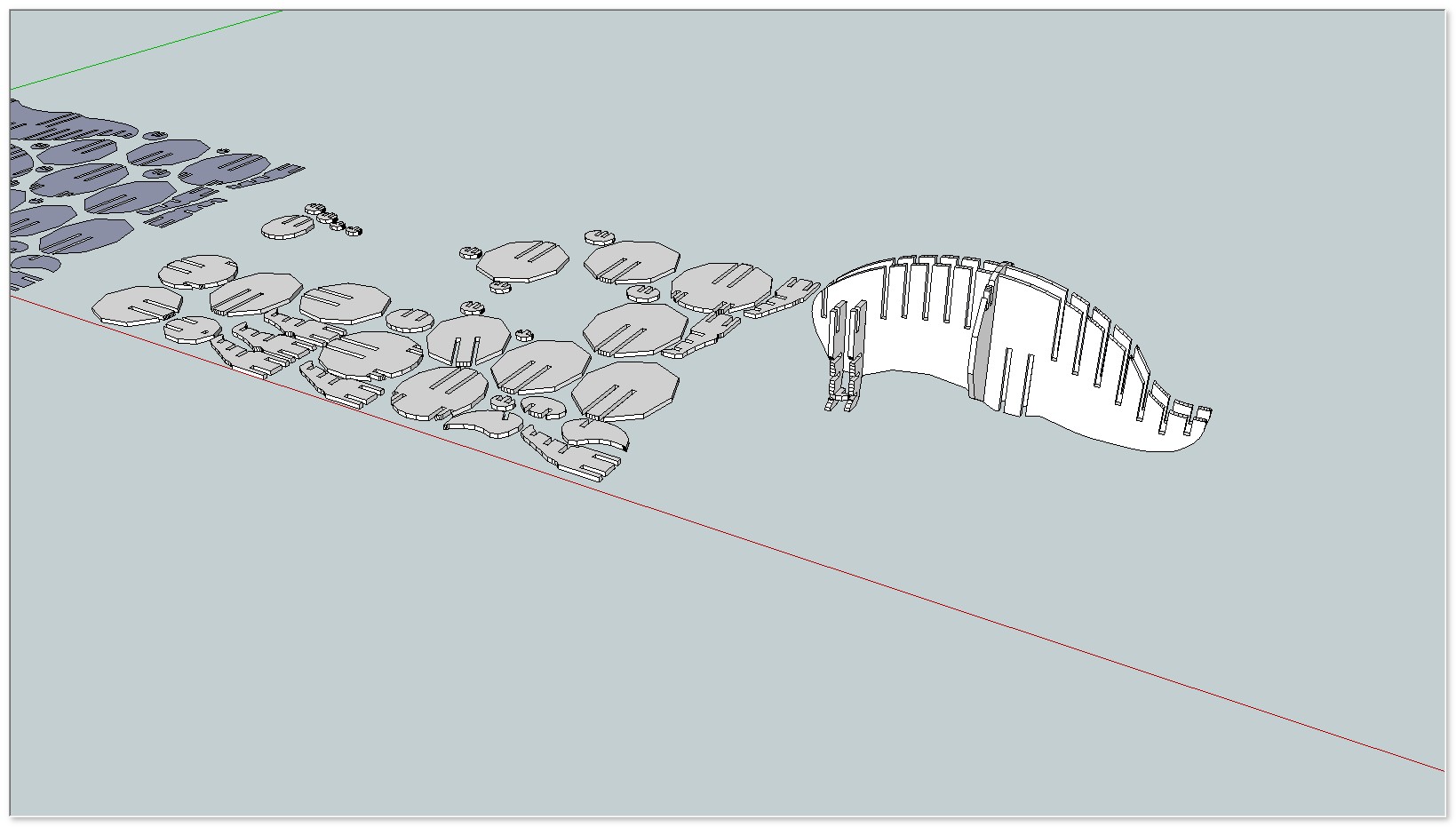

    Here's what I have so far Attached files [​IMG]

  5. Bozikovine

    Bozikovine Member

    Offline
    Messages:
    78
    Trophy Points:
    6
    Location:
    HR (Croatia)
    I edited my first message and add picturess.

    Have fun and don't eat pigy. ;)
    Bozikovine

  6. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :D Thanks Bozikovine
    Looks really cool
    Mark

  7. jovanifive

    jovanifive New Member

    Offline
    Messages:
    3
    Trophy Points:
    1
    please dfx files

  8. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Here you go
    The dxfs
    [attachment=0]sliced_pig[1].dxf[/attachment] Attached files .dxf]sliced_pig[1].dxf (932 KB)Â

  9. jovanifive

    jovanifive New Member

    Offline
    Messages:
    3
    Trophy Points:
    1
    tanks muchas gracias :D

  10. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    i'm having problems with this little pig.
    when i cut it the rounded parts are not rounded. they look more like pentagon.
    it does not look like the pic above.
    any ideas?

  11. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    i did some work on this file. here it is

    Attached files fixepig.dxf (800.3 KB)Â

  12. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Are you using the Phlatscript to code him?
    Mark

  13. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    no. i use "zung" machine. so i am trying to work with dxf files.

  14. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I see,
    The reason I asked is there was a problem with the g2/g3 command in the Phlatscript a while back that would cause something similar to what you are describing. That has been taken care of now.
    As for the dxf files, I did a quick google search to see if there was any program out there for smoothing a dxf file, but have yet to find one. I am thinking that there may be something out there and that would be a great find!
    Mark

  15. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    'Smoothing' a dxf file? I'm not sure what you mean by that, Mark

  16. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Hello Yoram,
    I am thinking there may be a program out there that takes an existing dxf 2d line drawing and adds more vertex points to create a smoothing effect, or has an algorithm that can determine the best way to connect two line segments without getting that block look.
    Here is one that may do the job. http://www.kandusoftware.com/products/w ... uct=Bezarc
    I have not tried it yet.
    Mark
