Some centercut lines being skipped

Discussion in 'SketchUcam Bugs' started by mx270a, Jun 4, 2015.

  1. mx270a

    mx270a New Member

    Offline
    Messages:
    15
    Trophy Points:
    3

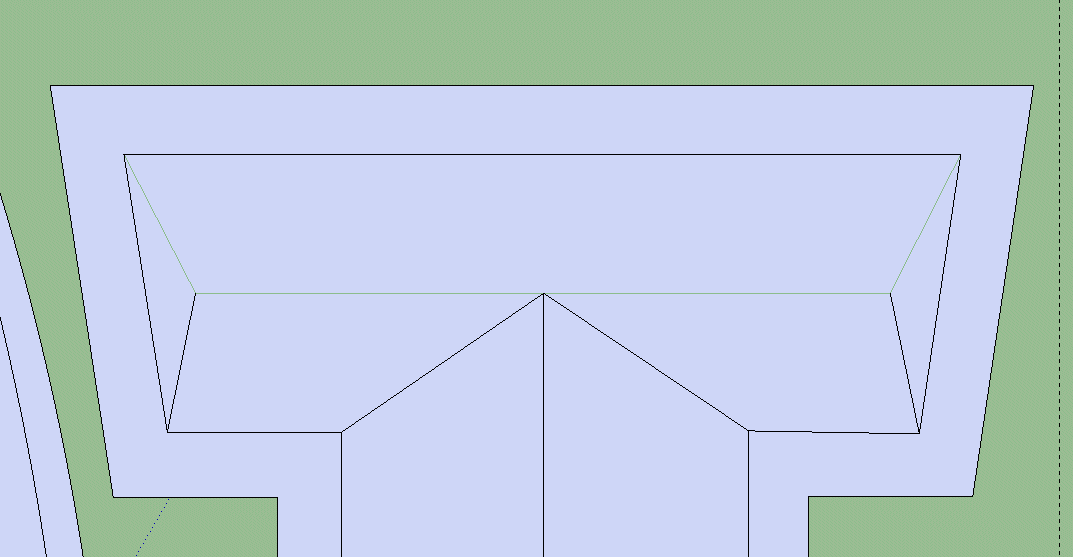

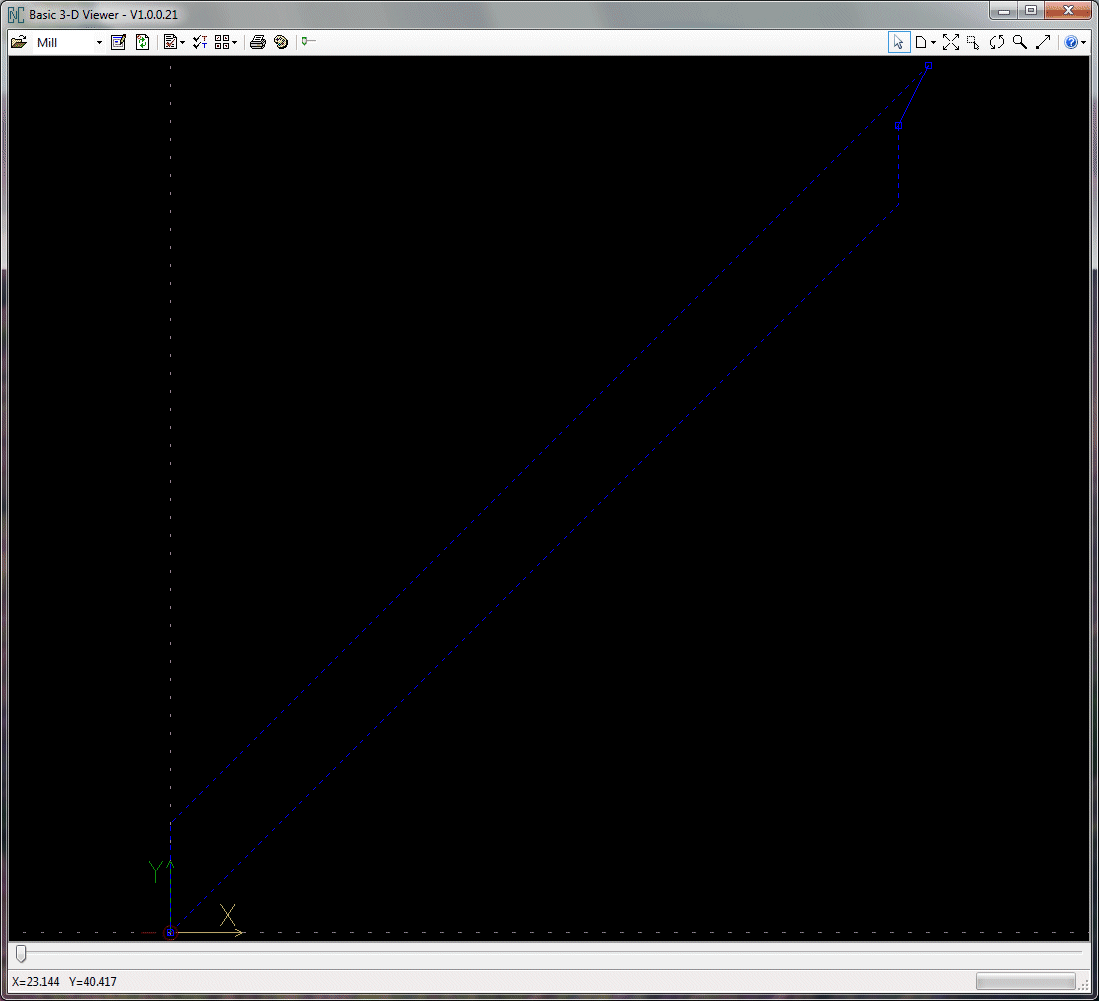

    SketchUp 2015, SketchUcam 1.3a. I selected some lines to be centercut and generated the gcode for it, but noticed that some of the lines are not included in the cut path. However, if I select a line below, then all the lines are included. Here's the source file with 4 line segments selected for centercut and only one shows up in the gcode. Image1.gif Image2.gif


    Attached Files:

  2. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    use the 'fold' tool for those lines so that they disconnect from the lines that are not cuts.

  3. mx270a

    mx270a New Member

    Offline
    Messages:
    15
    Trophy Points:
    3
    [Facepalm] Yep, the fold tool does exactly what I want. Not sure how I forgot about that option. Thanks.
