SPYder QUAD

Discussion in 'Multi-copter/Helicopter Plans' started by kram242, Mar 11, 2011.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Hey Guyz,

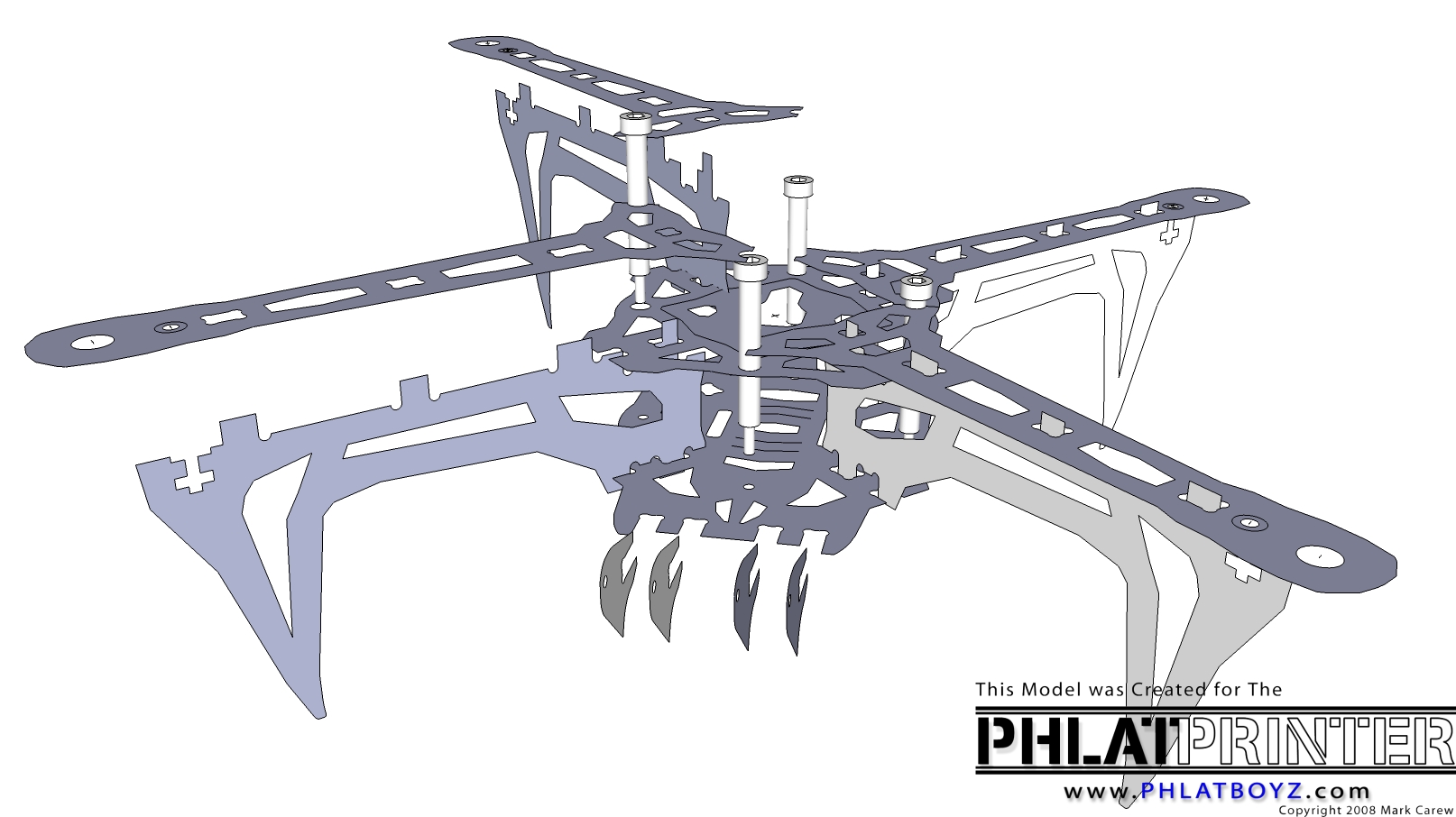

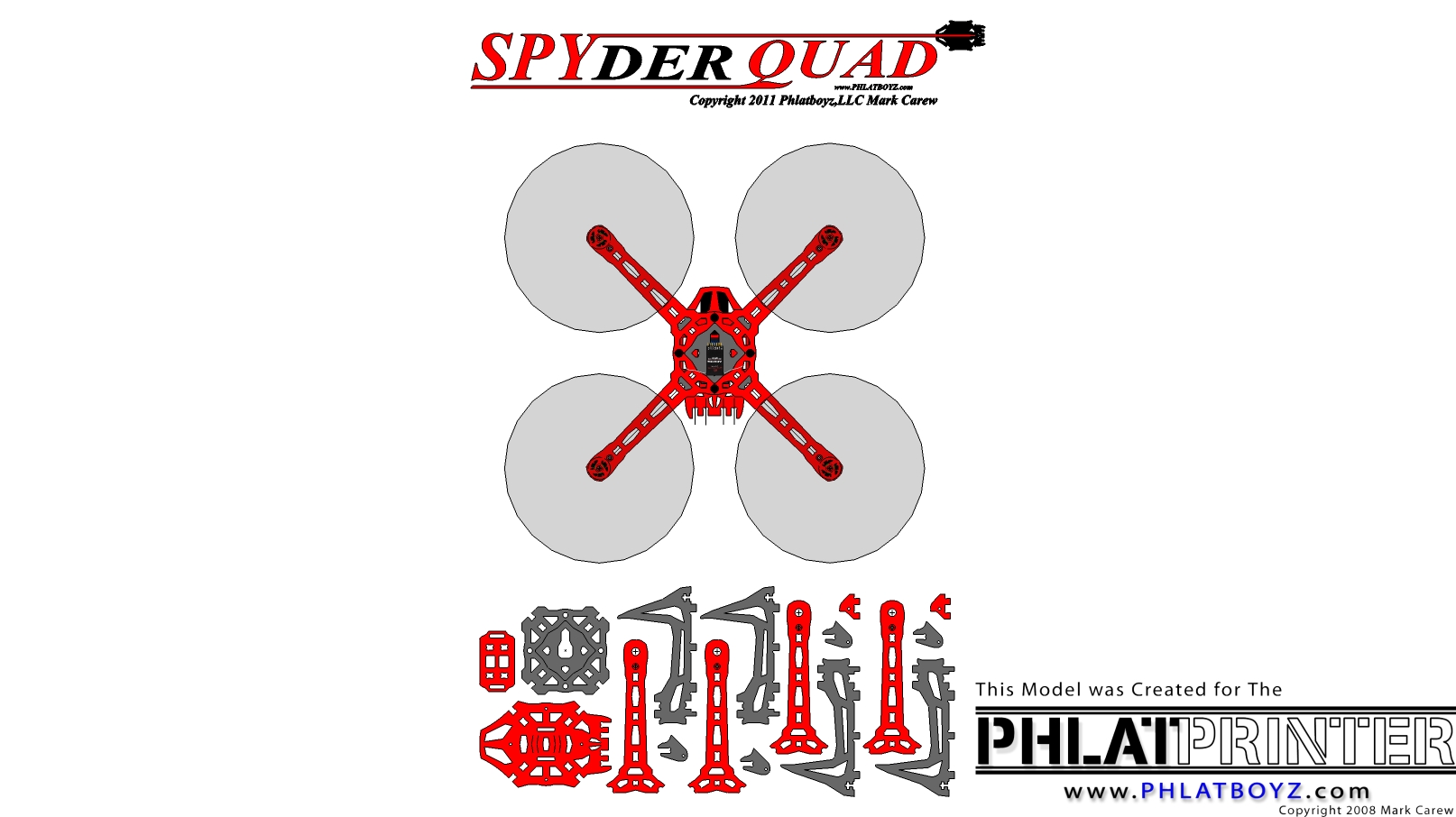

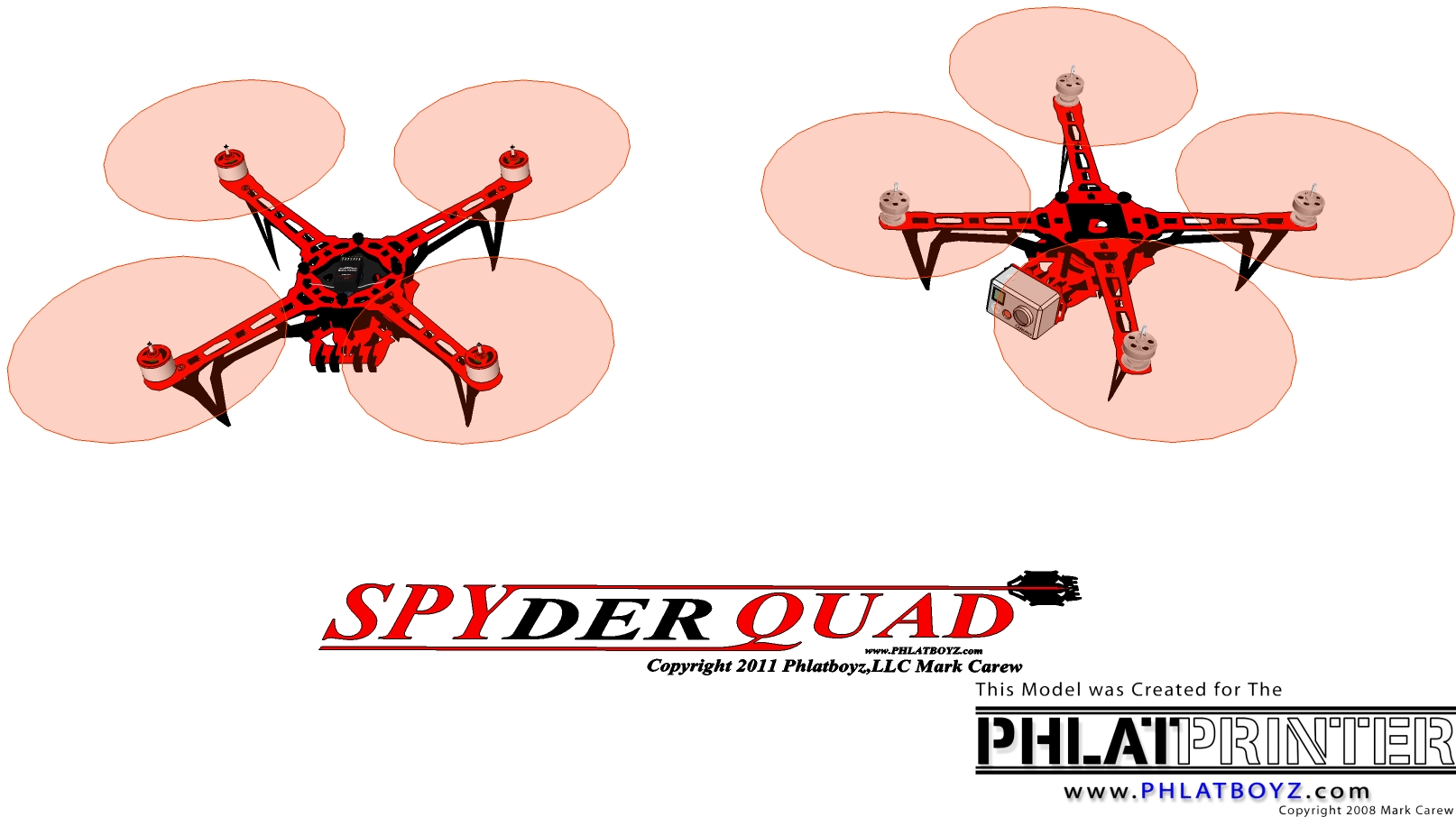

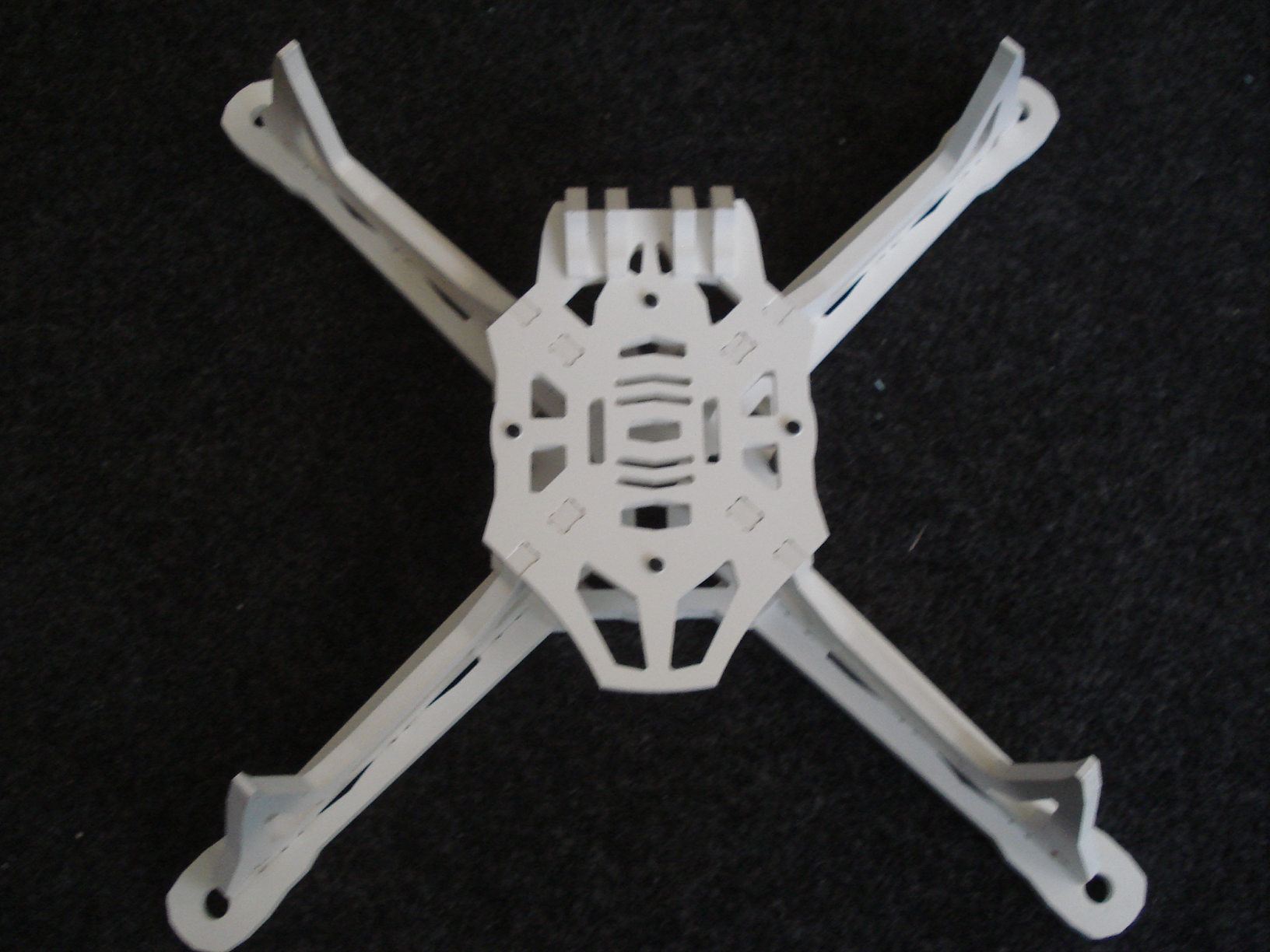

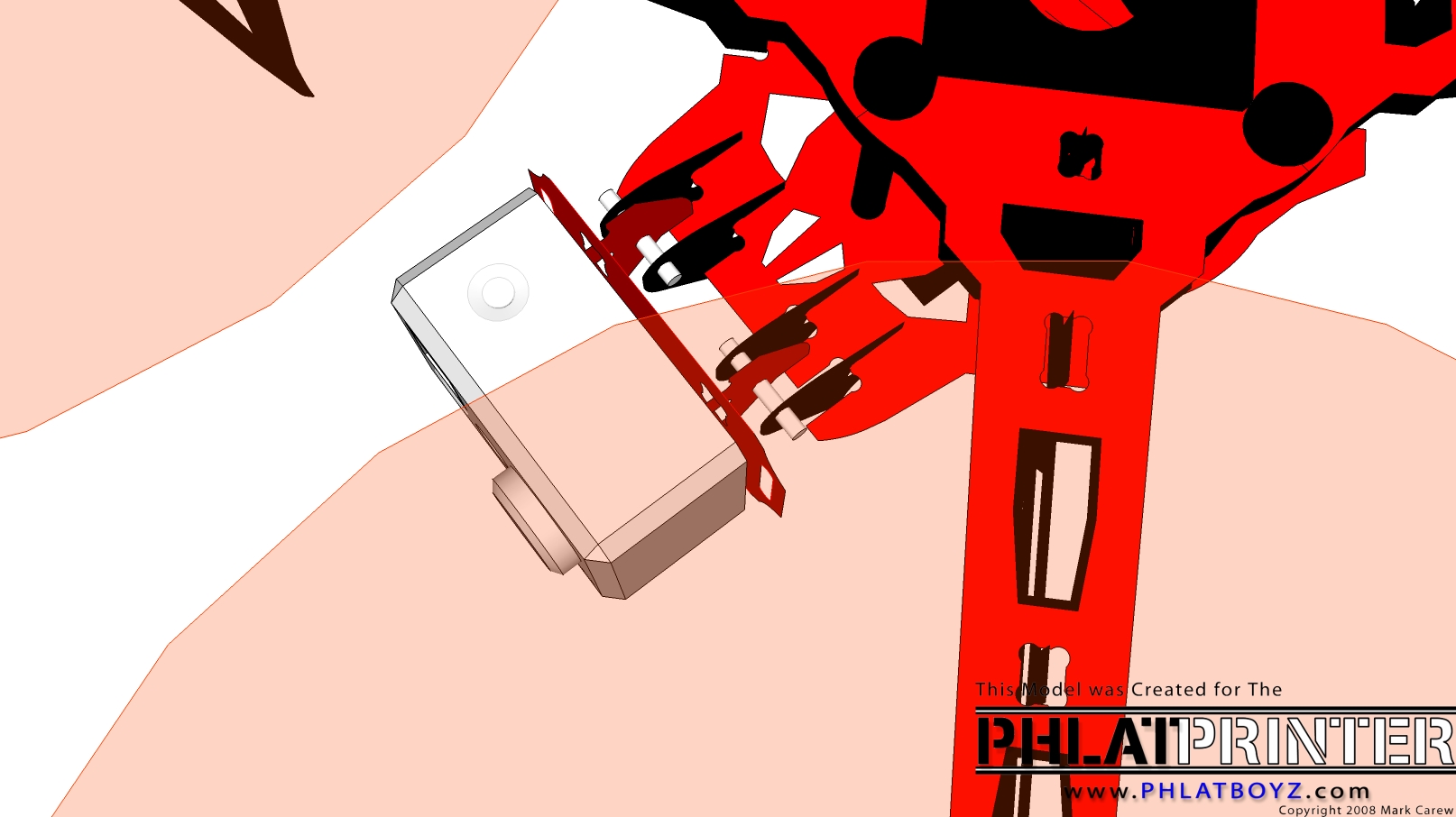

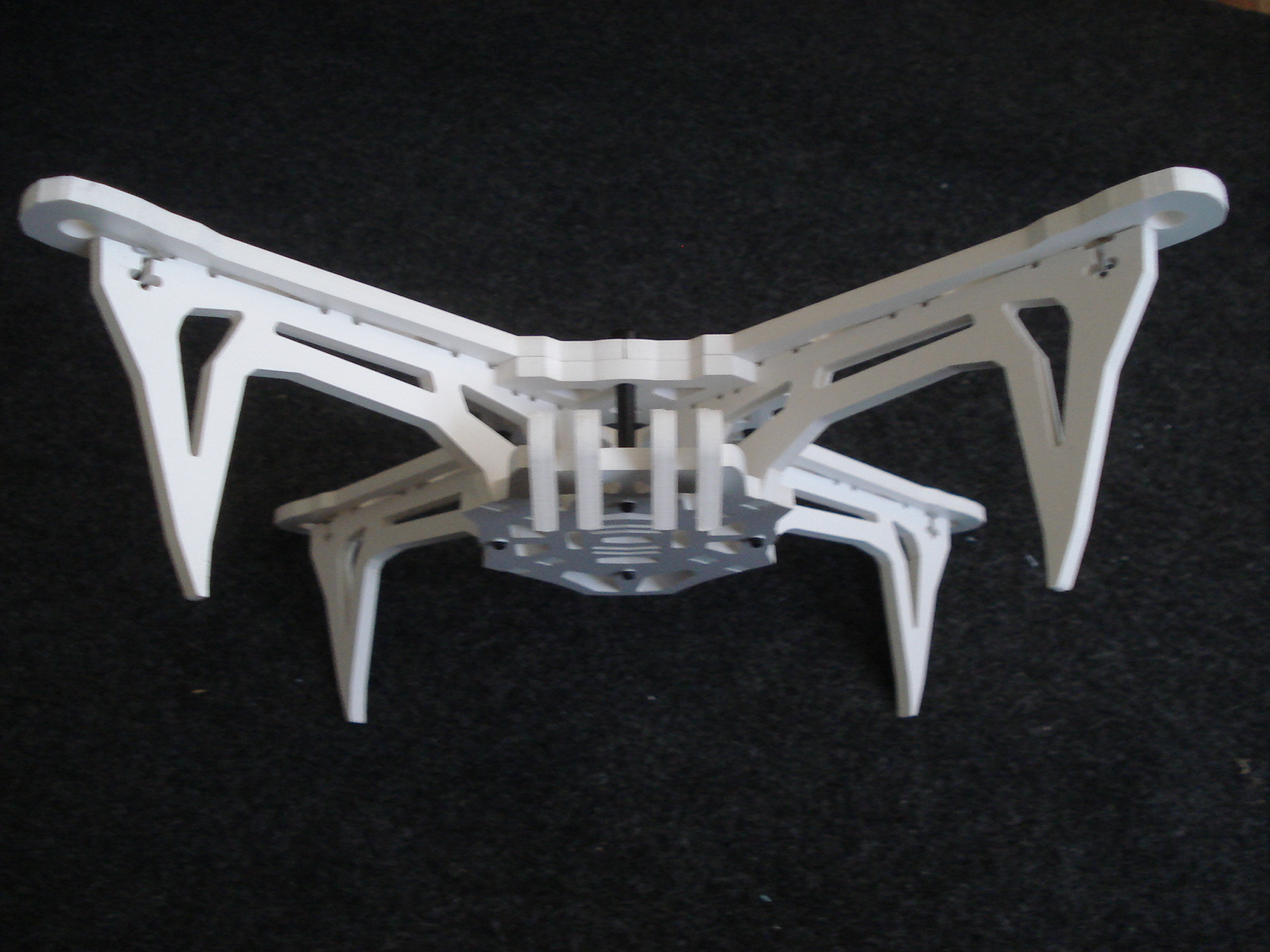

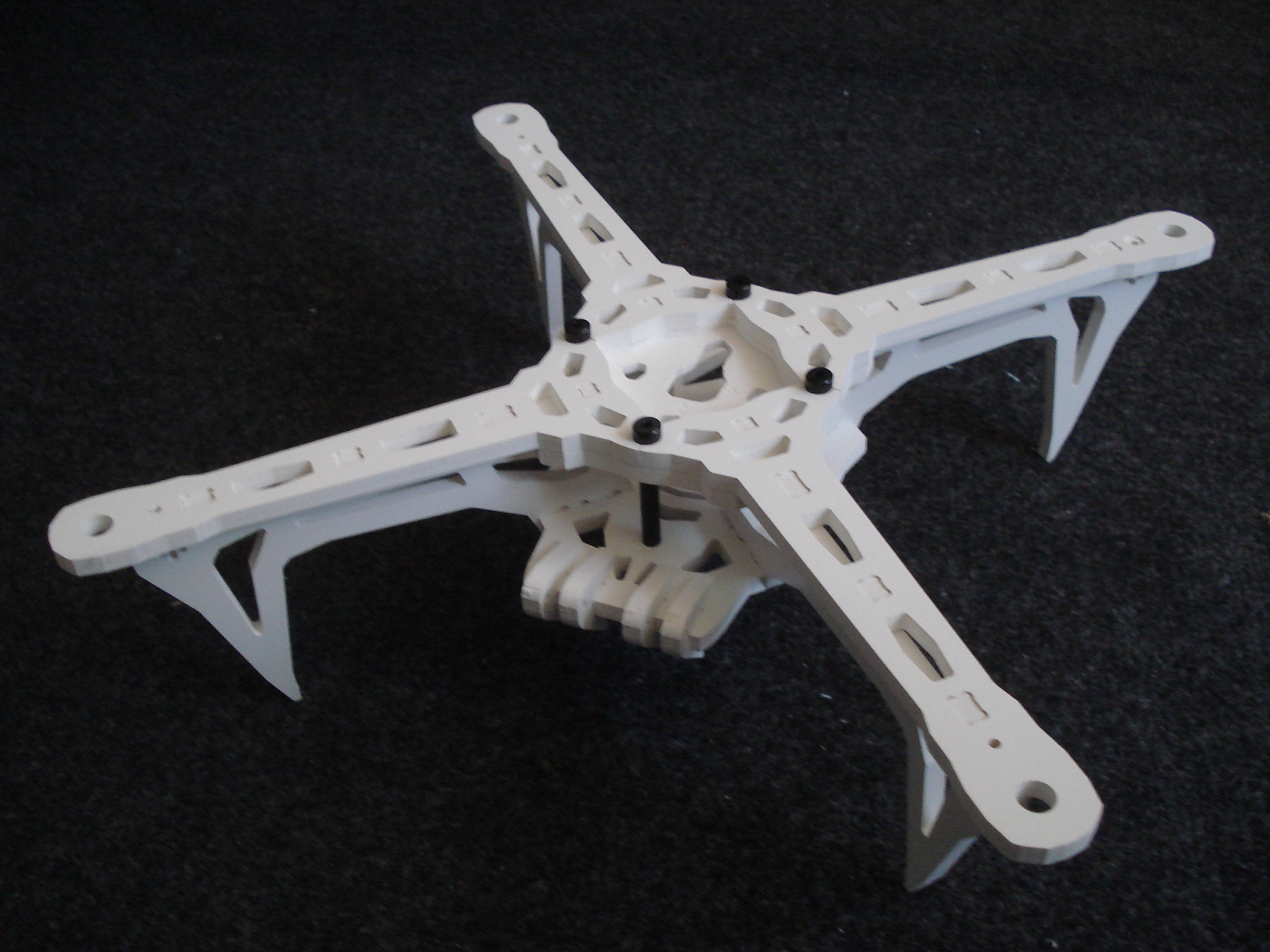

    SPYder quad is here! You can doanload it and try it out for yourself
    Have fun!














    Materials:
    McMaster 91255A152 Alloy Steel Button Head Socket Cap Screw, 6-32 Thread, 7/8" Length
    McMaster 94831A001 Zinc-plated Steel Serrated-flange Hex Locknut, 6-32 Thread Size, 5/16" W, 11/64"
    McMaster 93897A315
    Nylon Shoulder Screw, Black, 1/4" Shldr Dia, 1-3/4" 4
    McMaster 94900A011
    Black Nylon 6/6 Hex Nut, 10-24 Thread Size, 3/8" Width, 9/64" Height 4
    Lowes
    Velcro

    Be sure to grab your SPYder Gear here:

    http://www.phlatboyz.com/SPYder-Quad_c_19.html
    [​IMG]

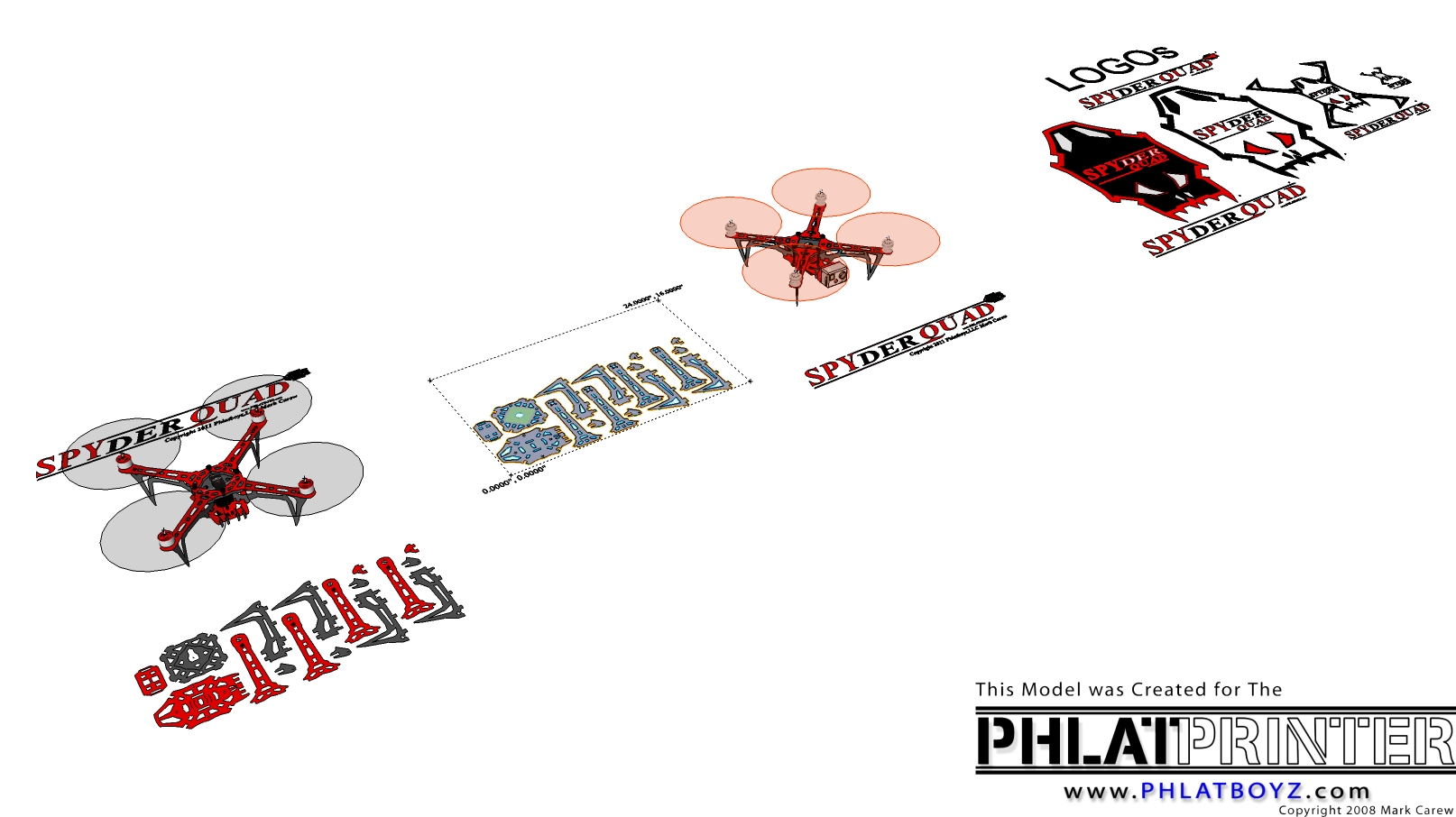

    Mark and Trish Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] SpyderQuad_5 1-4 inch.skp (5.5 MB)Â [​IMG]

  2. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Very cool! Time for a new Wednesday night give-a-way? :dance3:

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Ok guyz,

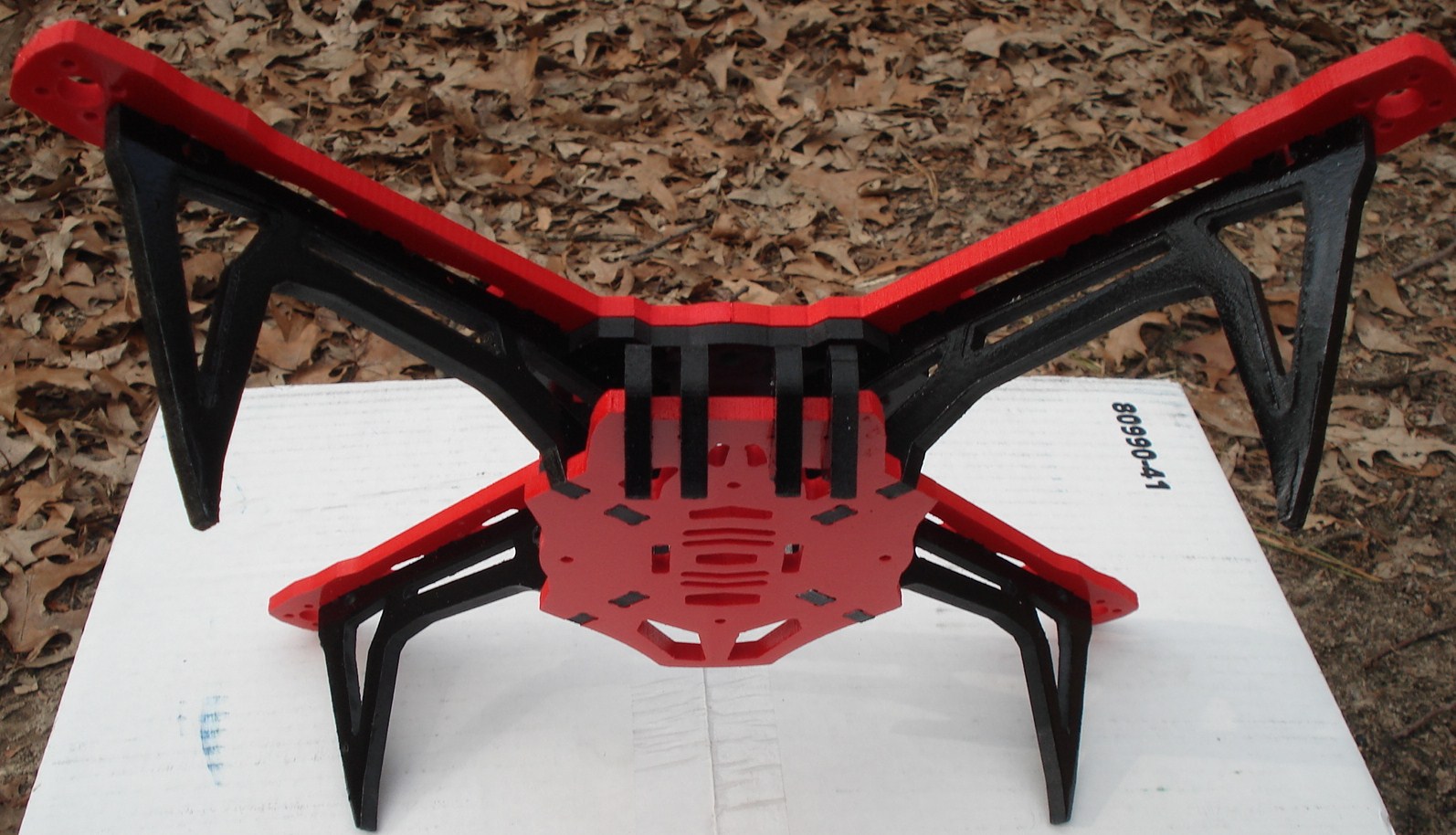

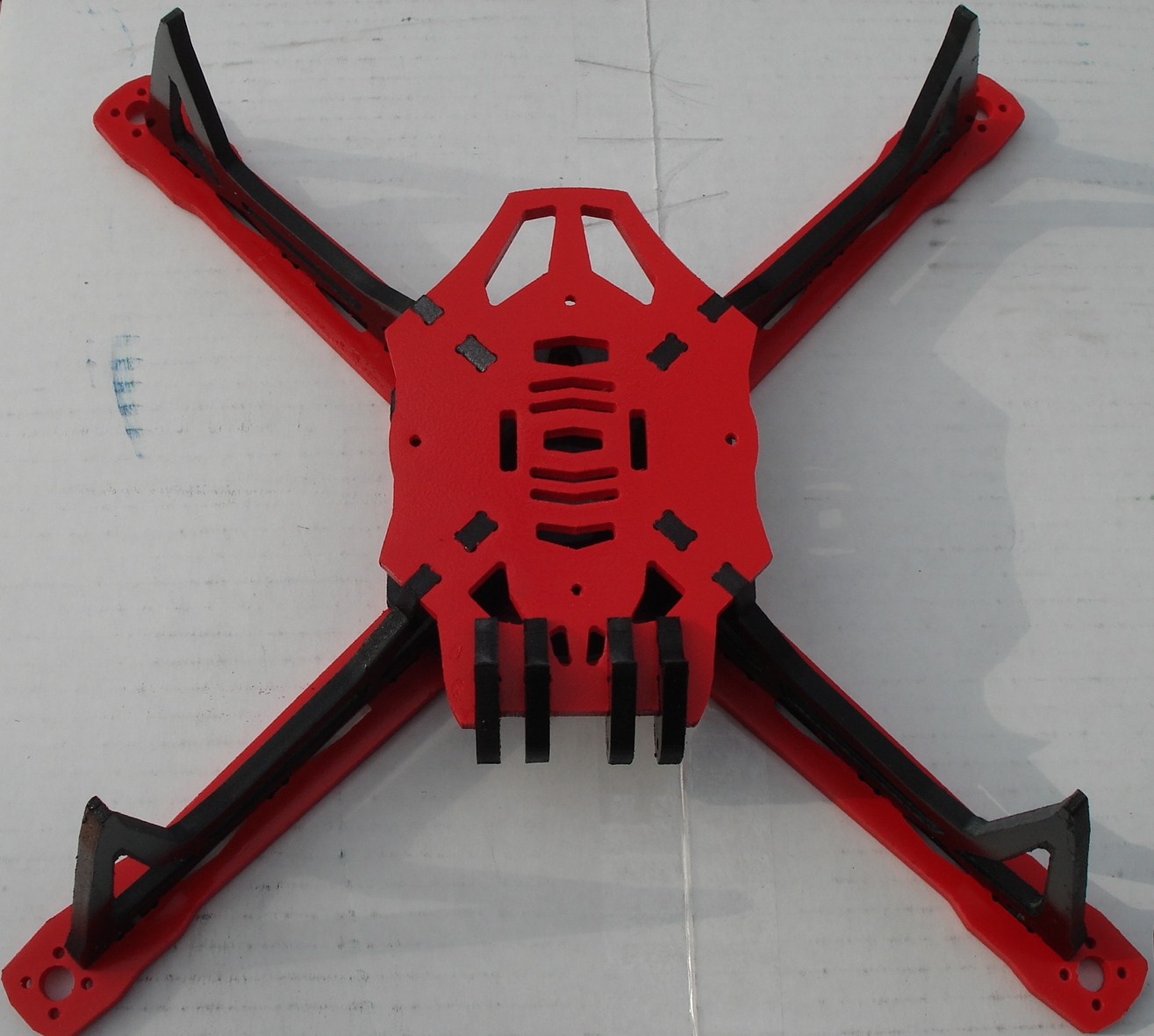

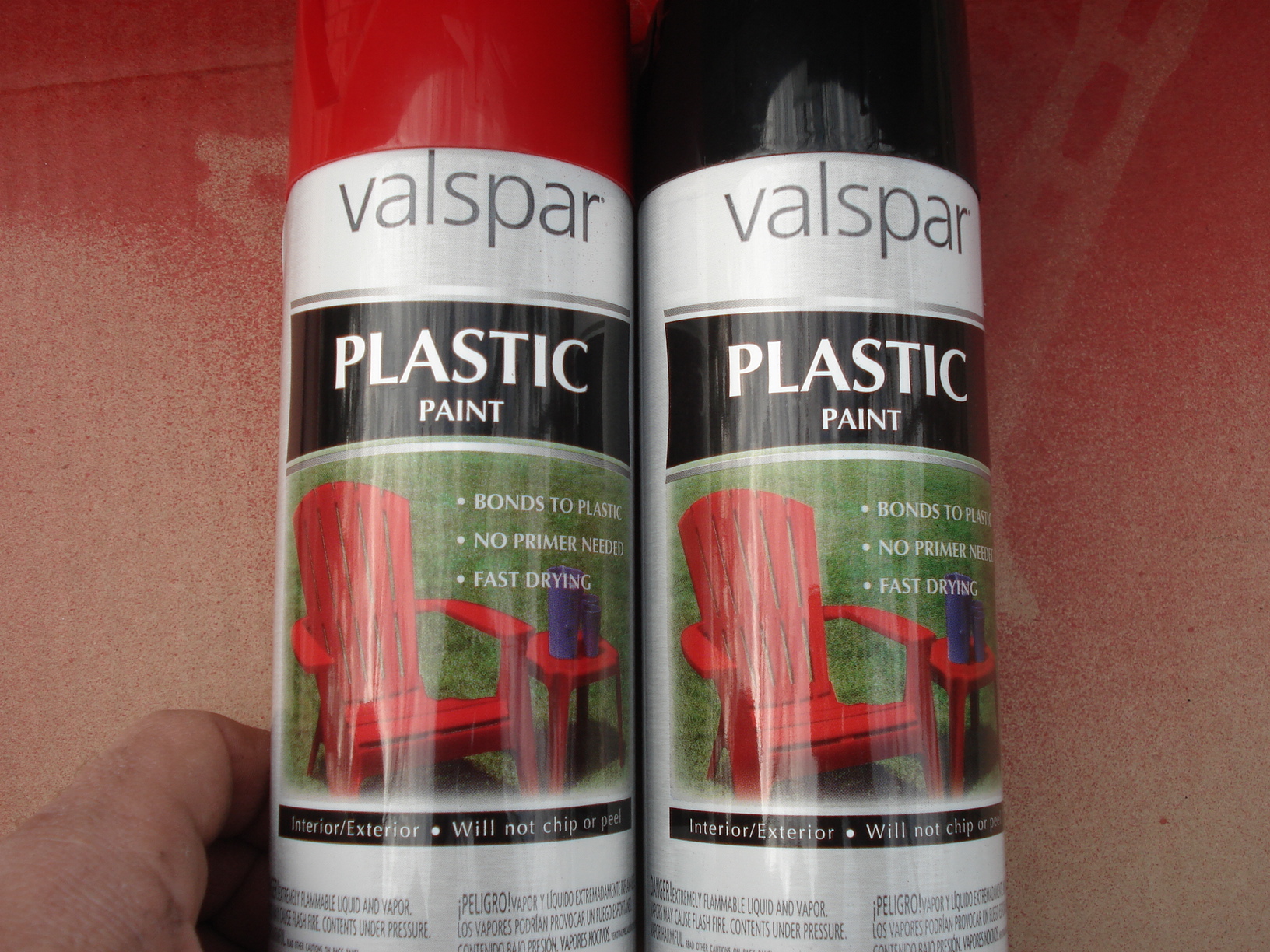

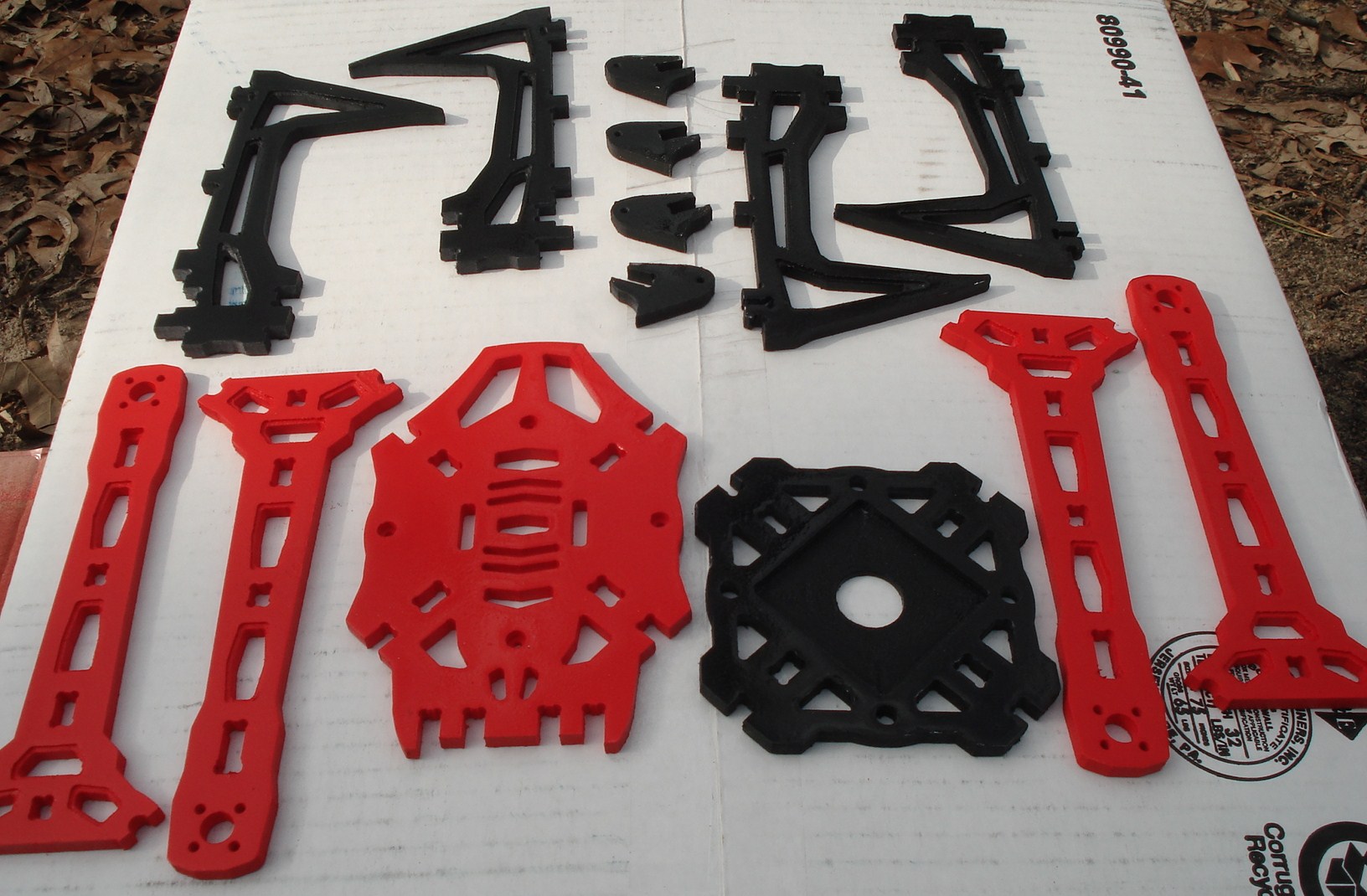

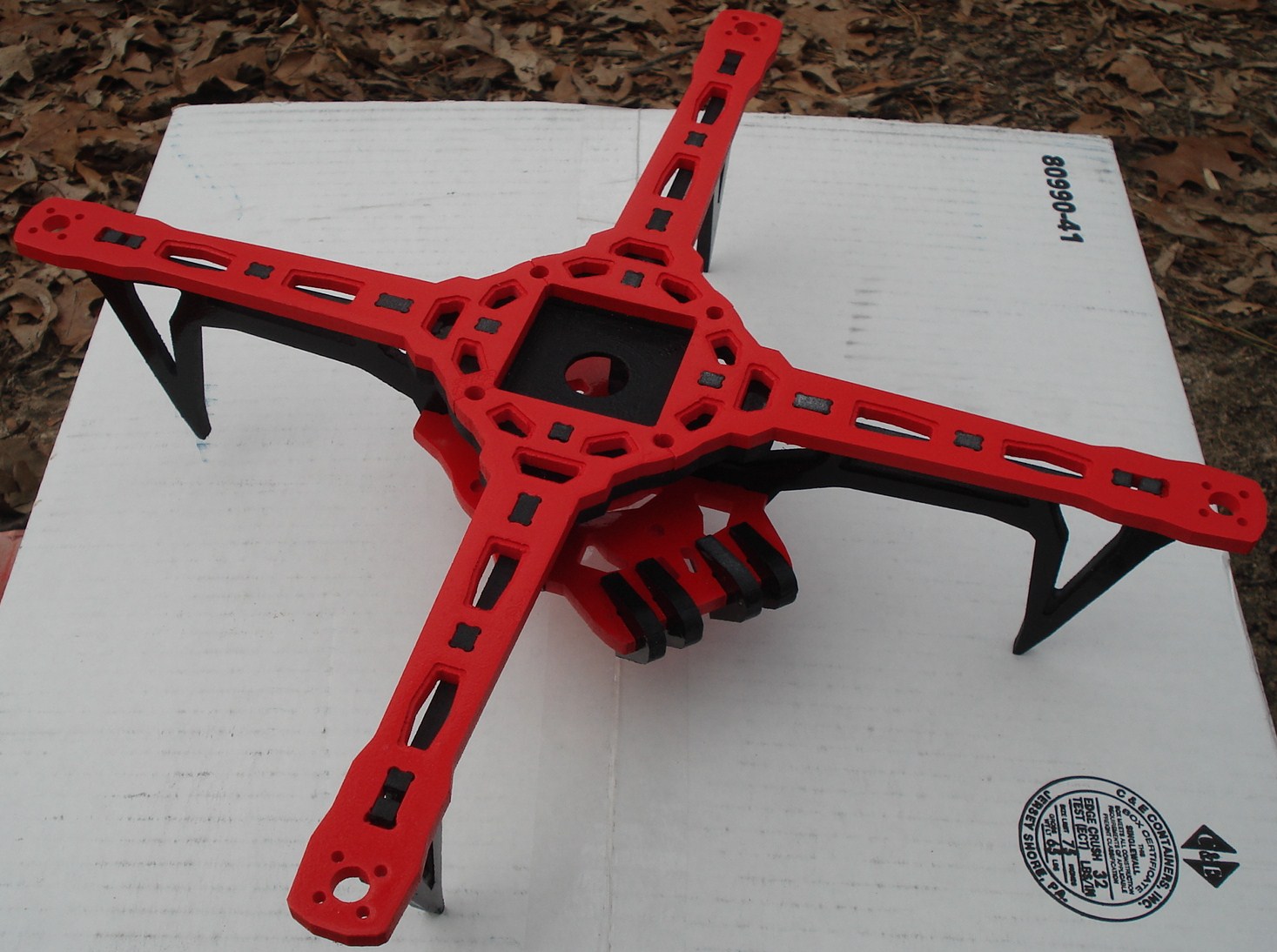

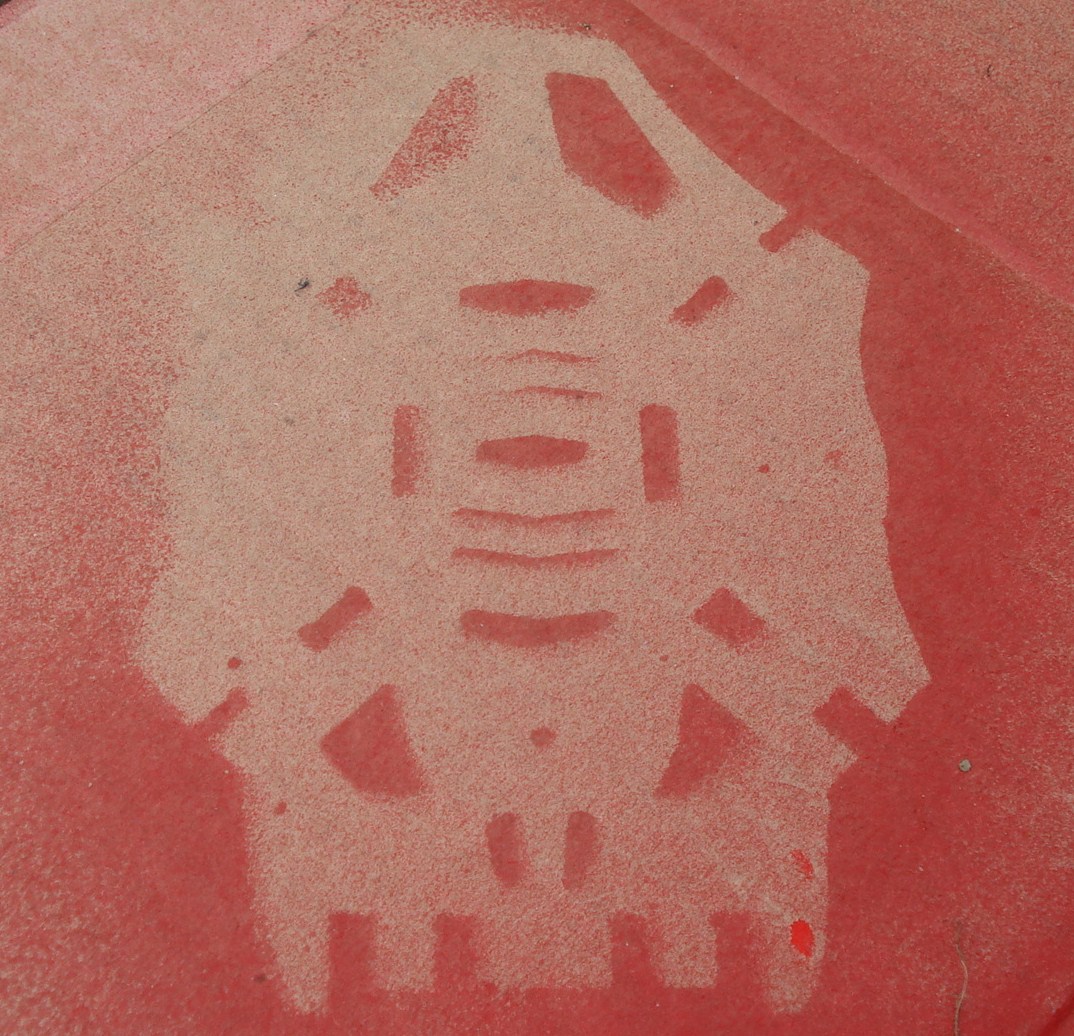

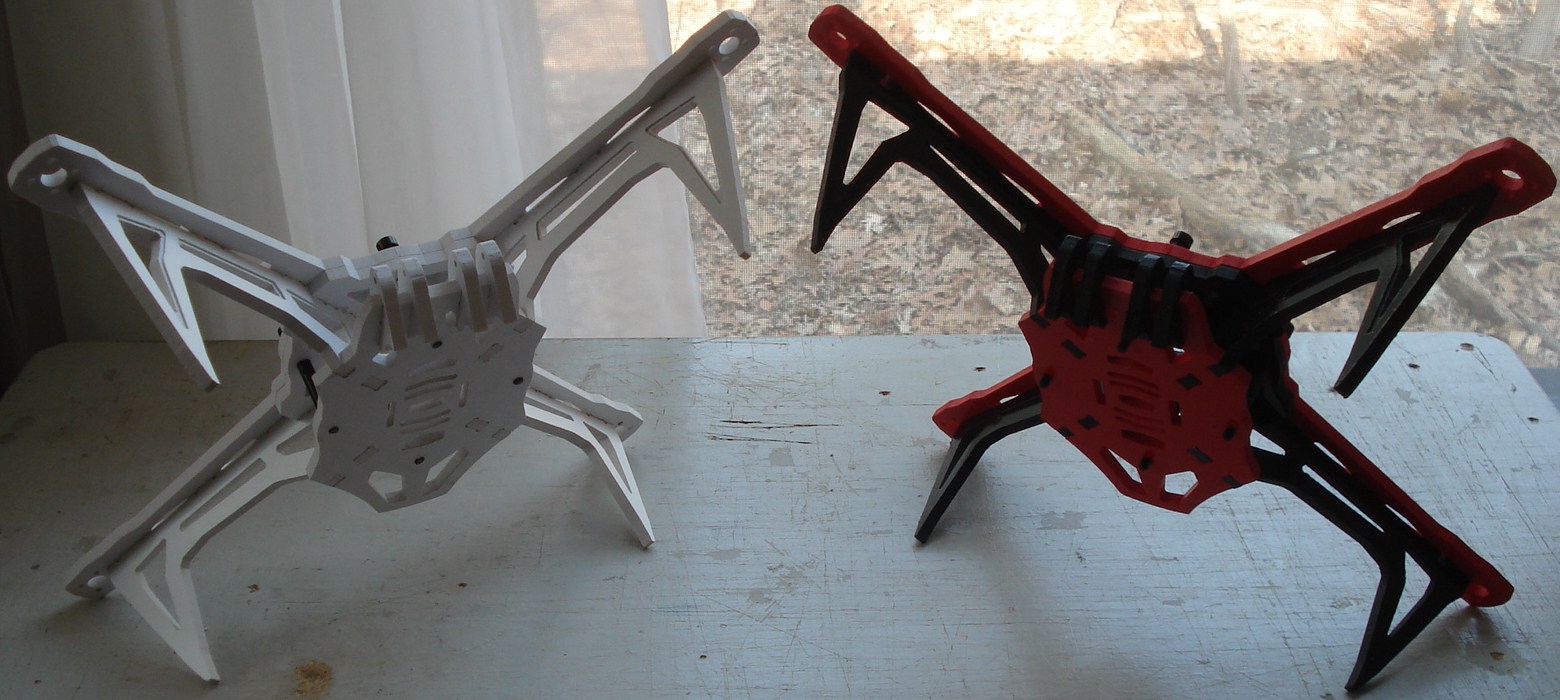

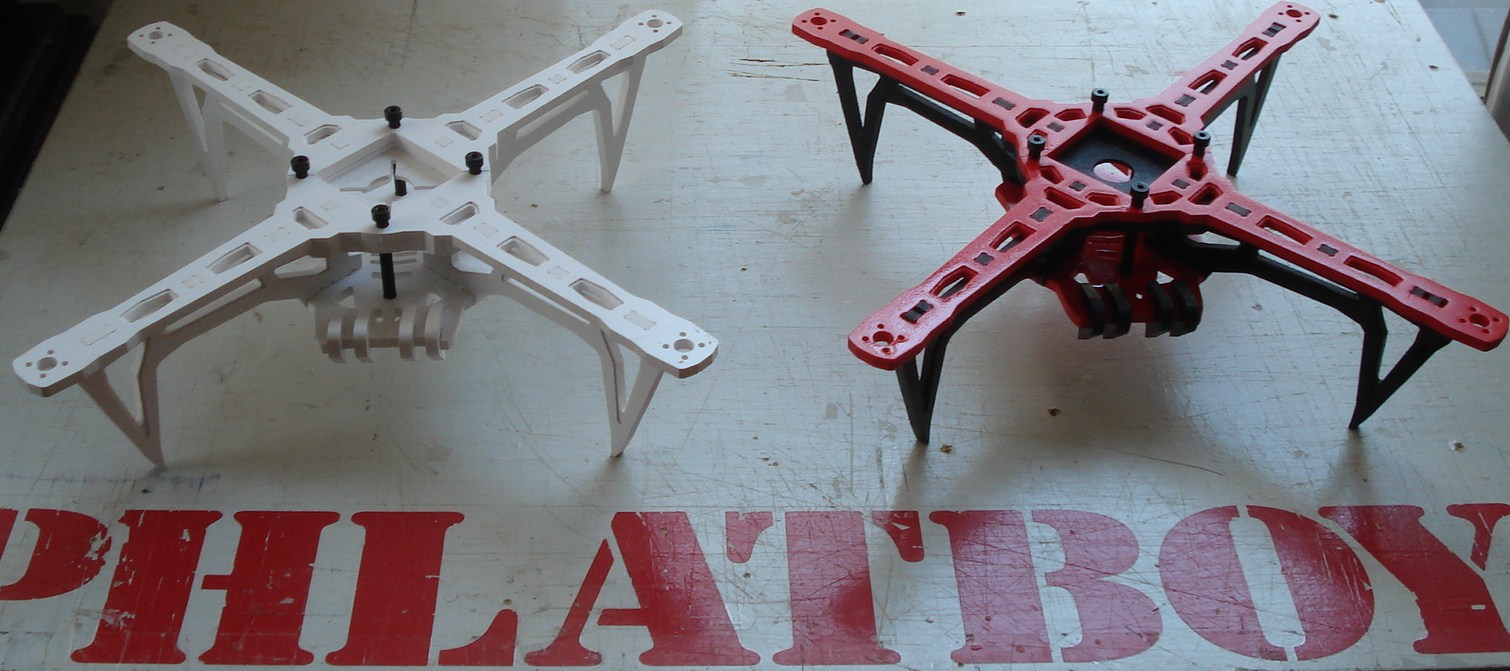

    we are working out the prototype bugz and came up with a cool new snap lock in the process (more on that later) we also did a little test paint on the Phlat bonez while the sun was out for a few minutes.
    I was not patent and put too much paint on for the first coat so I got some globs, but still looks fantastic! We are really happy with the outcome :good:

    Here are some pics to check it out
    More to come! Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  4. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Man, that thing looks ready to pounce on its prey, and the colors are perfect. :doubleup:

  5. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    Spyder Quad build started: I'd like to thank Mark & Trish / PhlatBoyz for letting me do some testing on the new "Spyder Quad" frame . I'm getting all my electronics gathered up for the build. I'll be using two different boards to do the testing in the "+" configiruation: #1 is with the "HoverFly " & the KK board I built (yet to be tested ) :twitch: . Here are some pictures so far....More to come :doubleup:

    Attached files [​IMG] [​IMG] [​IMG] [​IMG]

  6. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    Blind Flight What Motors are you going to use?

    Getting rdy to start on Mine Soon.


    Cheers
    E-T

  7. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    ET,
    I'm going to start out with a TR2217/20 850Kv / Suggested prop: 11x4.7 E-prop motors from HK , only because I had thought I had 1100+ Kv motors on hand. Its rated @ 22Amps. I'll try smaller props even the 3 bladed ones also.
    I did order the TGY AerodriveXp SK Series 35-30 1400Kv / 470w. Which will spin Suggested Prop: 9*4.5, 8*4, 7*7.... I have a few 3 bladed props I would like to try also on these motors.
    So, until my other motors come I'll be using the 850Kv & a 3 cell 2200 / Hobby King 25 / 30 amp programmable speed controllers and see what she dose. Remember on the "X" and "+" quads you want counter rotating props..

  8. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Very cool Al! :D I can't wait to see how she does. Hurry up Hobby King I need my parts! :)
    Evil Tunes has a double set of motors/escs that he said we could use so we may have to have a day where we sit down and build these together. Its going to be a lot of fun for sure :doubleup:
    Great job BlindFlight and love the avatar L:good:
    Mark and Trish

  9. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    . :dance3: Motors and ESC's are Done...... :dance3:






    . :spiteful: Preview Shot :spiteful:





    She is A little heavy for these Motors I Think
    2822-14 1200kv

    W/Batt 1lb 13 oz
    Cheers
    E-T Attached files [​IMG] [​IMG]

  10. lovebugjunkie

    lovebugjunkie New Member

    Offline
    Messages:
    57
    Trophy Points:
    0
    You do like living on the edge!! :lol:

  11. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    Today I wired up the motors & speed controllers and mounted the motors. I did make new holes for the motor. I installed the 3 bladed 8x4 props, Will also try the 9x5's...All seems good !! :dance3:

    Attached files [​IMG] [​IMG]

  12. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Al and Glen these are beautiful! Thank you for posting! :doubleup:
    I can't wait to see these bad boyz in the air!
    Keep up the good work guys and thank you for help with the testing :good:
    Mark and Trish

  13. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    Kram242 and E-T Testing Flight of the Spyder Quad

  14. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    Nice job on the build ET :doubleup: She is up and running , very nice!! Mark did some nice flying :banger:

  15. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :banger: ET that video was AWESOME!!!! :banger:
    Thank you so much for letting me fly! That was a blast and we got the chance to try out the SPYder QUAD frame.
    Guyz,
    It fly's great but the frame does not take to hard landings as well as we had hoped. It may have been the cold weather that made it brittle, we are not sure. In the meantime we are trying other ideas :)

  16. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    mark, never, ever, build to land hard.....build to land gently, and land gently. :D

  17. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    These quads are cool!
    Now that I'm done with my Tri and am liking it I am gonna go the quad route.

  18. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    :fugly: Easier Said Than Done :fugly:

    Cheers
    E-T

  19. Crash

    Crash Moderator Staff Member

    Offline
    Messages:
    469
    Trophy Points:
    18
    Location:
    Waco, Texas, USA
    Woot! Great video!

    Now the big question - will Mark ever want to fly fixed wing again? LOL

  20. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    LOL Randy so many people have told me this famous quote of yours over the past week, and its so true :D
    I have to say as cool as this version is to fly. The problem Glen and I found on the first flight test is that with this PVC it holds up great indoors at 70 degrees even with an over weighted drop test at head height, but outdoors when we were testing at about 32 degrees it became brittle and we found it snapped way to easy. So I have redesigned it and I hope it will be much stronger in any climate and lighter? We will see. I will post pics and video as soon as I get this next version built and tested.
    Randy I wish I would have jumped into this cool multi copter stuff back when you and Al (Blind Flight) were flying them around! Thanks to Glen (Evil Tunes) bring his over for its maiden flight, I'm hooked and I pretty sure he is too!
    I got a fever, and the only prescription...are more rotors!
    :doubleup:
    Thanks guys
    Mark and Trish

  21. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    yea mark, i don't think i will be flying my planks much anymore....i am still waiting on my compass and gps for my X-650, its only a few weeks away from release they say....i got my gopro hd-hero ready with the sunex lens mod, just waiting for the nice weather to hit up here. randy.

  22. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I still love to fly the planes though it just that these are a whole new area for me, like helis but a lot more fun! :D
    Randy that sunex lens mod you did looks really cool!
    Mark and Trish

  23. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    Ok I busted up the spider the other day. I tried to gas it straight up and the front flipped up and over and I lost controll. It hit the ground very hard to the point all four arms broke off and busted the props.

    I had a Proto type frame from M&T and decided to build it today. I did a few mods like super glue the whole frame including the bottom piece. I also put 4 carbon arrow shafts conecting the end of the arms.



    I will be flying this in the + direction not the X as before.


    Cheers
    E-T Attached files [​IMG]

  24. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Great job Glen! :good:
    Mark and Trish

  25. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    I did the maiden after work. Flew OK, but I didn't like flying in the + style. Not being a Helicopter Guy I'm struggling a bit flying the SPYderQuad. It got away from me again and hit the ground Medium.

    With the whole Quad being superglued it made a evil snap. The temp outside was 47 deg but I dont think that was the problem.

    [attachment=0]IMG_0470[1].jpg[/attachment]

    I talked to M&T and will be waiting on the next prototype to test.

    Cheers
    E-T Attached files .jpg][​IMG]
