Talk it up about the MKII

Discussion in 'GENERAL Phlatprinter MKII Talk' started by kram242, Feb 23, 2009.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

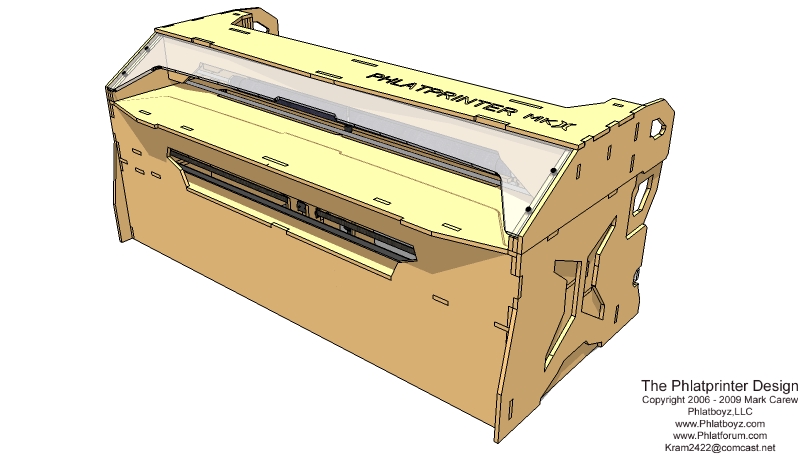

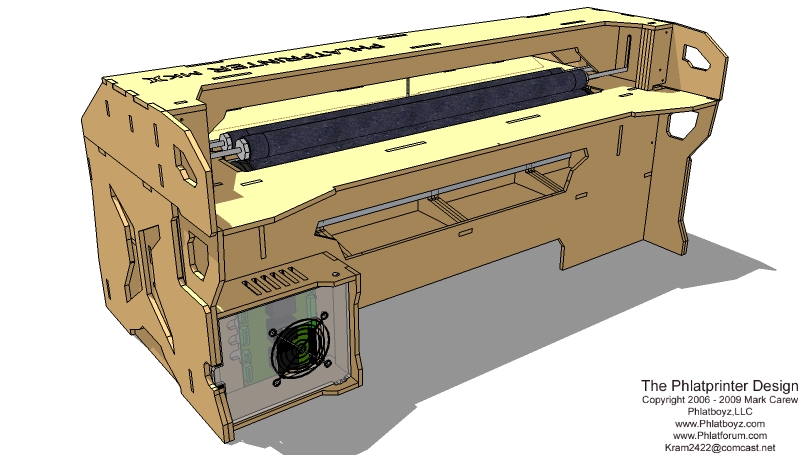

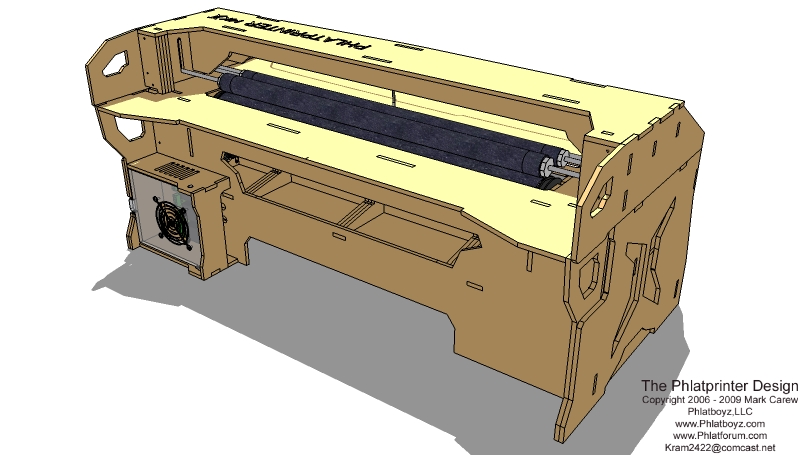

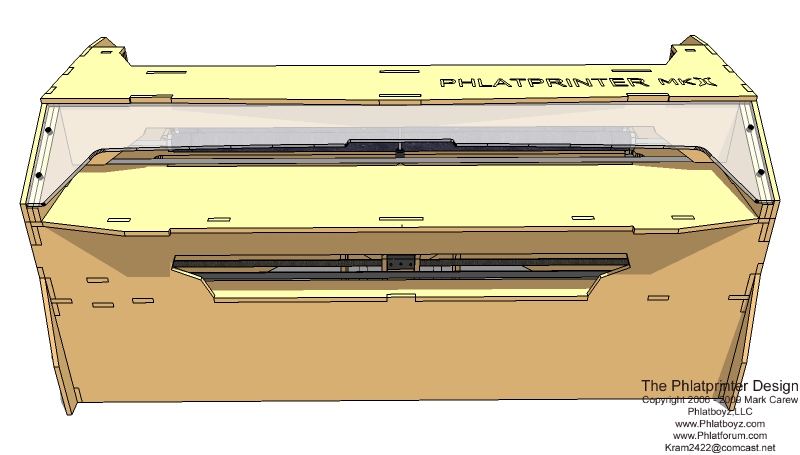

    What do you think of the second edition of the Phlatprinter The MKII?




    Attached files [​IMG] [​IMG] [​IMG] [​IMG]

  2. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    mark, alot of us fellas are older men....and i am still recovering from my heart attack.....man your killing us, lmao, randy.

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    lol Sorry about that you guys :) I think this project has added 5 years for me JK I am starting to get grey hairs! :eek: LOL
    This has really rekindled the fire for me, I just can't wait to see if you guys like it as much as I do.
    Mark

  4. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    You really know how to keep a guy in suspense. PICS! or VIDEO! :D

  5. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    mark, do i bring my tax return check to toledo??. lols. randy.

  6. 66tbird

    66tbird Moderator Staff Member

    Offline
    Messages:
    431
    Trophy Points:
    18
    Location:
    Deserts of Arizona
    200 ipm in all directions-- :D :D :D

  7. Crash

    Crash Moderator Staff Member

    Offline
    Messages:
    469
    Trophy Points:
    18
    Location:
    Waco, Texas, USA
    Hey, I saw the video from where Mark retro-fitted the belt drive system on one of the PP kits. It was totally amazing! The sound was kind of scary, too. That baby was munching foam like a beast!

    I was wanting to build another machine to incorporate all of the mods that you guys have come up with since mine was built. Now it looks like I'll get the chance, but with the belt-drive speeds!

    Hurry up, Carews! I'm wearing out my F5 button! :lol:

  8. Crash

    Crash Moderator Staff Member

    Offline
    Messages:
    469
    Trophy Points:
    18
    Location:
    Waco, Texas, USA
    I could be wrong, but I was thinking that Mark and Pete may have been working on a special version of the PhlatScript to allow for ramps in the tabbed areas so the machine didn't actually have to come to a stop to do a tab - it would just ramp down and up again for the tabs....

  9. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Unreal! :eek: UNREAL! :eek:

  10. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    just watched the video mark....man nice work!!.... hey this question is for trish....for how many hours mark have you in the workshop with your hacksaw??, lols, randy.

  11. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    WOW!!!! That video was awesome!!!
    It shows 300ipm at the end not 200ipm even more impressive.
    Great job Mark!

  12. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thank you guys, :mrgreen:

    That video was an early test of the first prototype belt drive system with the pex pipe so the cuts were a little shaky but man does it get the job done. You want a plane no more waiting 15 - 30 min its done in 3 - 5 min if that some times :D it truly acts like a printer now

    Mike sorry about the same video bro there will be new ones soon.( I sent Mike the same video so he is still waiting for a new one :) )

    Mike is right about the Vtabs they make a huge difference in speed and the video will show that instead of having to stop and retract and then move over and re plunge, it is all once smooth movement, it happens so fast that it looks like the bit is pooping out tabs as it cuts :lol:

    We are really excited about this MKII and can't wait to get this going. I am trying to film on my own today just to throw you an real quick overview of the new features, so I better get back to it.
    Thanks again everyone, talk to you soon.
    Mark

  13. JBourdon

    JBourdon New Member

    Offline
    Messages:
    101
    Trophy Points:
    0
    omg, just seen the new video ....
    so cool. now I have to hide my credit card! because i want it already :-(

  14. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Man I love all the added features. Great stuff Mark!!!

  15. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thank you guys it makes it all worthwhile when we get comments like this.
    I have more videos I will be add in a little while about the mods to your existing PP to upgrade the Y axis to a belt drive system.
    Also adding a video show casing a lot of cutting going on with the MKII :D
    Mark

  16. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Mark, in the video you didn't mention anything about the steppers. What steppers are you using this time, torque wise? Also, I see above mentions of 200ipm and more, in the video I didn't here you say it. Is that the speed that you are getting on the prototype?

    Yoram

  17. Crash

    Crash Moderator Staff Member

    Offline
    Messages:
    469
    Trophy Points:
    18
    Location:
    Waco, Texas, USA
    If I may be so bold as to step in and field this one...

    The machine in the video showing 300 ipm was using the same Easy-CNC steppers that the rest of us got!

    The problem with most, if not all, of the steppers out there is that when you kick up the speed, torque levels are sacrificed. The faster you push the motors, the more torque you lose. The glory of running a belt drive system is that you have the ability to design the gear ratio in the system to get the speeds you want to see while keeping the motor(s) running lower rpm, thus staying in the "torque band". Of course, there is a balancing act, but now Mark's done all that for us! :D

  18. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    TigerPilot, Good point soory about that.
    I am using the 90oz stock steppers from easy cnc. The speeds posted are right it is capable of speeds of 200ipm and more. :)
    I use 200 for my everyday cuts. The stepper has less of a turn to make to move the gantry, so you are getting pleanty of torque from these stock steppers without ever having to worry about losing a step again.
    Yes these are the speeds we are grtting with the prototype machine, and we expect even better results from this version we will know in a few days :D
    Thanks
    Mark

  19. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    Saw the video and am impressed with the new and improved design. Eats like a MaKo shark , fast and hungry!! The addition of the top being able to stand up on its own with a built in stop, compartment for the board & fan, precision ground rods, etc ..This thing is going to soooooo-smooth.. And the new outside design is a good choice.. Great job Mark! :D

  20. kyyu

    kyyu Active Member

    Offline
    Messages:
    1,183
    Trophy Points:
    36
    Location:
    Maryland
    Mark,

    I can't believe all the stuff you get done. What about the X axis? Did you have to change the gearing?

    -Kwok

  21. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thanks you guys :)
    Kwok I left the X alone because it works so good with the gearing that we figured when we did. I really didn't need to mess with that too much at all with the exception of lowering the drive roller.
    Mark

  22. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Mark, are you micro-stepping those motors @ 1600 per rev, or did you bring that up to 1/4 or 1/2 step (theoretically to raise the step-voltage and torque) also?

  23. WW8S

    WW8S Member

    Offline
    Messages:
    44
    Trophy Points:
    6
    Location:
    Ohio
    Three questions: Where is this video showing it cutting at 200 ipm?
    How do you get Mach to accept something over 47ipm?
    When can I order a MKII?
    Dave

  24. kyyu

    kyyu Active Member

    Offline
    Messages:
    1,183
    Trophy Points:
    36
    Location:
    Maryland
  25. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    Great feedback everyone! Thank you, keep it coming. This is the hard part now, actually finishing what we started :eek: .

    Dave, here is the video showing the MK II cutting at 300" per minute!!

    We post our videos on Youtube. If you subscribe to them, you will be notified every time we post a new one. :p

    lol Randy, I think I proved in the build videos that I am not really into the tools end too much. :oops: On the other hand, my calculater is still smoking helping with all of the measurements and needed pulley systems calculations.
