Why Does This Happen?

Discussion in 'Sketchup Help' started by AnyAirRc, Feb 26, 2009.

  1. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0

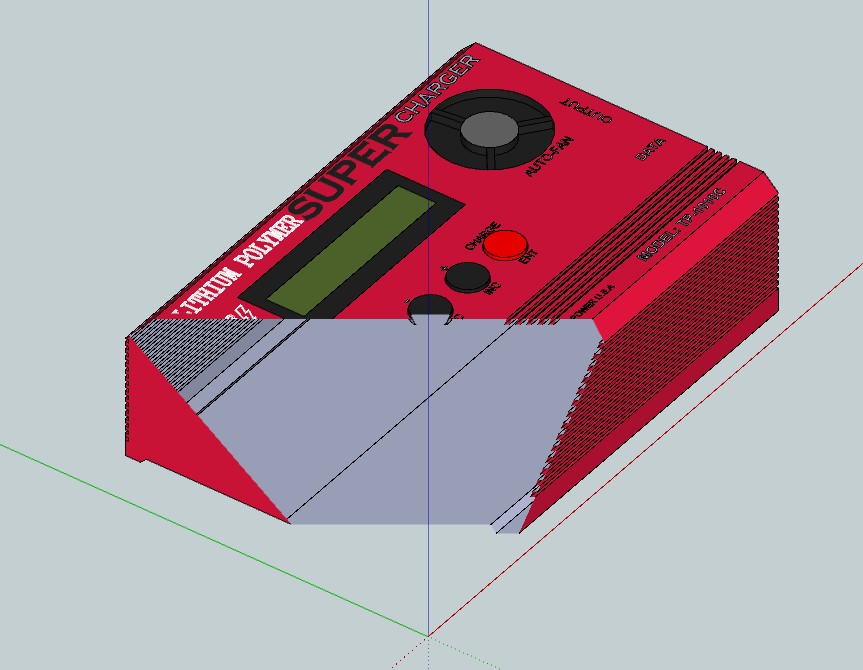

    Hey guys on two of my PCs when I am in parallel projection every once in awhile my model looks sliced even though it is not! see pic for example.

    How can I fix this??

    p.s. That is my 1010C charger, part of my next project! Attached files [​IMG]

    AnyAirRc, Feb 26, 2009
    #1
  2. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Try putting your camera in perspective view . You are zoomed in too close in parallel view :)
    Happens to me all the time.
    Mark
    That is my 1010C charger, part of my next project!
    Looking nice!

    kram242, Feb 26, 2009
    #2
  3. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0
    Mark I have one pc that this never happens on. I wonder what the difference is? My new 2.4mhz quad core pc with 512megs of video and 8 gigs system ram does it so I know it isn't processing power. It is strange that one pc is free from this problem and two others are affected...

    AnyAirRc, Feb 26, 2009
    #3
  4. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Funny I thought it was a video card issue because it happens sometimes to me too, but from your pc specs I guess not.
    When it happens to me I just click on top view then orbit back to where I want to.

    3DMON, Feb 26, 2009
    #4
  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Not sure but I get that from both of mine pc's. It maybe a setting in sketchup I never really looked into it because I thought it was normal :D Even back in my 3Dmax days I would get this problem.

    Maybe there is a setting in the Sketchup preferences under video openGL that would help?
    Mark

    kram242, Feb 26, 2009
    #5
  6. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    I wonder if we uncheck the hardware acceleration in the open Gl if that would fix it??

    3DMON, Feb 26, 2009
    #6
  7. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0
    I just tryed turning off hardware acceleration it did not fix the problem :cry:

    AnyAirRc, Feb 26, 2009
    #7
  8. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    That's some kind of clipping occurring I think. I wonder if there is anything on the sketchup forums about it. Lots of info to sift through.If you guys want to help me look I am sure we can find it.
    Mark

    kram242, Feb 26, 2009
    #8
  9. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    kram242, Feb 26, 2009
    #9
  10. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Good find Mark.
    After reading that I realize it's when I move something off to the side to work on. The last on the list.
    Also I never use perspective so that just adds to it.

    3DMON, Feb 26, 2009
    #10
  11. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0
    Heck yea, I set my FOV to 30 and it has not had the problem yet

    AnyAirRc, Feb 26, 2009
    #11
  12. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Good deal you guys!
    That was too easy of a find :D
    Mark

    kram242, Feb 26, 2009
    #12
  13. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0
    bummer that didn't fix it... it just happened again and I made sure the FOV was still 30...

    AnyAirRc, Feb 26, 2009
    #13
  14. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    I use SDRC I-Deas at work, and creating a view like that is a commonly used function with that software. It's called "View Clipping" and it allows the user to view inside an object without actually removing any walls or other features. In I-Deas, it often happens accidentally when a person brushes the F6 button.
    Maybe there is a similar "On-Off" button or command that you're pressing. I'm at work so I can't look at my Sketchup to hunt for such a command.

    Anonymous, Feb 26, 2009
    #14
  15. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    AnyAirRc, man that stinks
    well hopefully Dorsal has better luck finding it. I will look some more too.
    Mark

    kram242, Feb 26, 2009
    #15
  16. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    I have started up SU7 different times and I am seeing to loose my settings & the template I was using. Is there a reason why this is occured?
    Thanks

    blindflight, Feb 26, 2009
    #16
  17. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Anonymous, Feb 27, 2009
    #17
  18. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I don't have a solution to the problem but I know it must be a parameter setting issue, not hardware. I know this because it happened to me once too, on a project I uploaded from here (I don't remember which one). Never happened before and never happened again.

    Yoram

    TigerPilot, Feb 27, 2009
    #18
  19. 1fatdog

    1fatdog New Member

    Offline
    Messages:
    10
    Trophy Points:
    0
    I have the fix for this... :mrgreen: :mrgreen: :mrgreen: I had this problem and it bugged the crap outta me... :twisted: :evil: The fix is to hit the zoom extents button. (magnafying glass with the four arrows). i think what causes this is when you pan around it creates a glitch in the section cuts. zoom extenting refreshes all the lines and TADA sanity regained...

    BENJAMIN

    1fatdog, May 16, 2009
