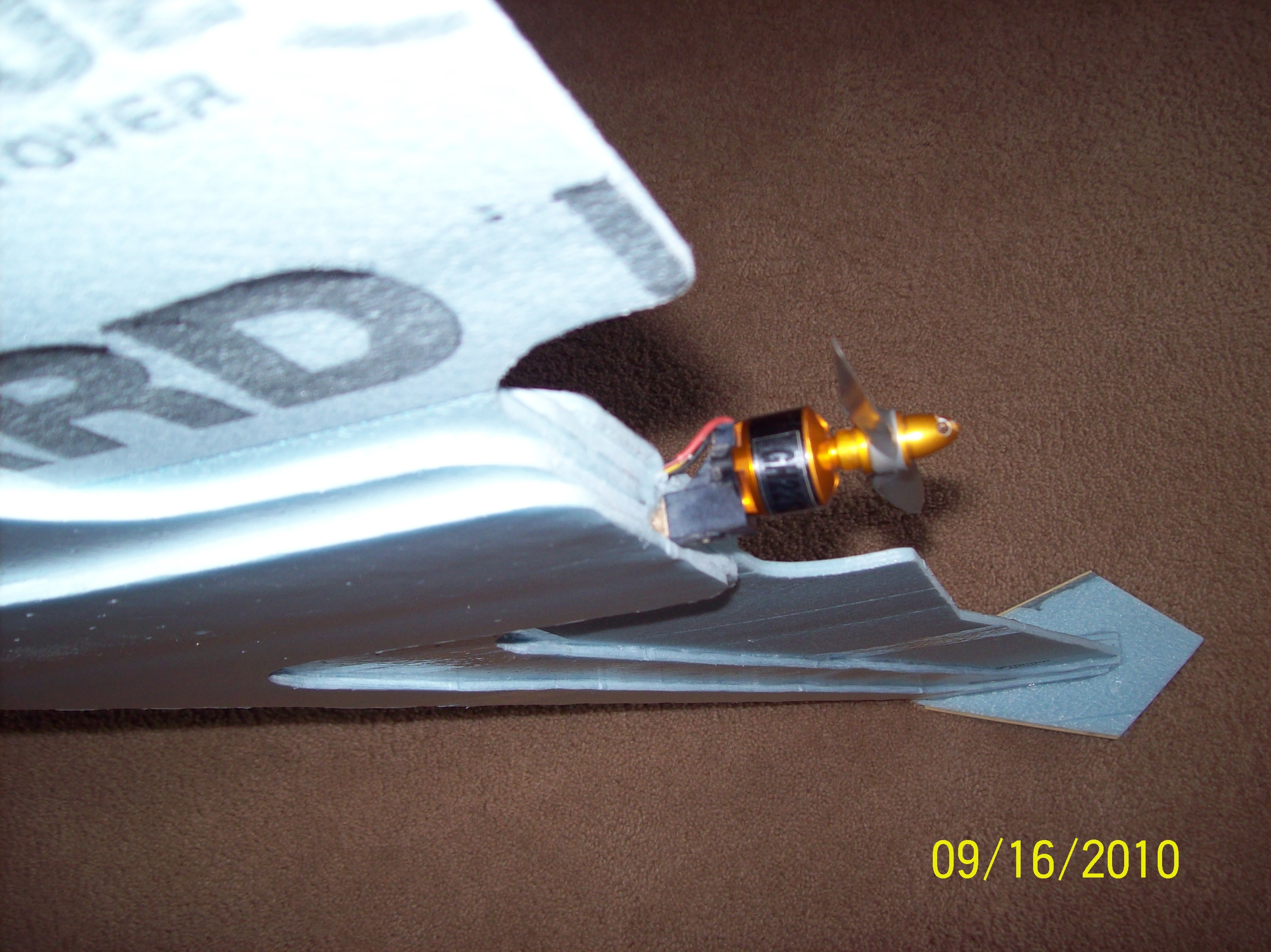

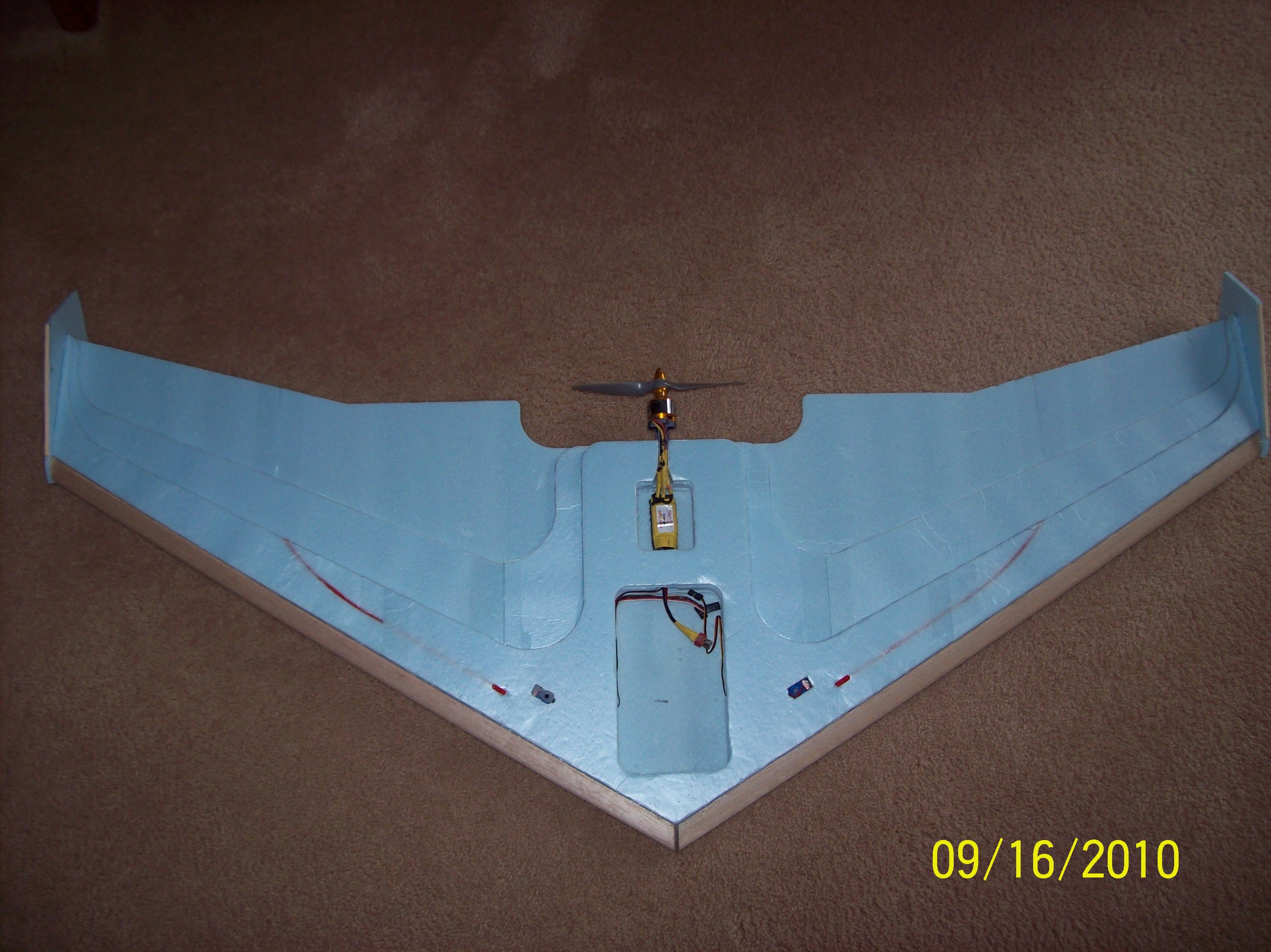

The Divinity II is progressing well... Got the leading edges fit and glued on. The build plan did not call for them but I thought they would add more strength to the wing and keep the flutter down. The motor is mounted and the wiring is run for the ESC and the servos. Wing tips are on, I recessed some bamboo skewers into the edges of them for strength. Next will be the elevons and rigging them... Mudman1959 Attached files



Looks Great Mudman!! Wings are a blast to fly and for the $1.50 for the sheet of foam... no worries ! LOL


John



Hey, no expense was spared on this one. It uses 3 sheets of foam.

Looking good mudman. Too bad you have to work tomorrow.



So how do you get these plans cut if you don't have a cutter? Do you just find someone local to do it for you or are there printing shops that can cut it if you take the files to them? S :| orry, I'm new to this forum but an avid reader on RCGroups. Looking for a new project. :mrgreen:



He suckered me into cutting it for him.

I actually just got off the phone with Mudman he maidened it today and says it flies pretty well.

Tim



Well since you're the only person I know with a cutter, what will it take to grease your wheels and sucker you into cutting another one?



09/22/10

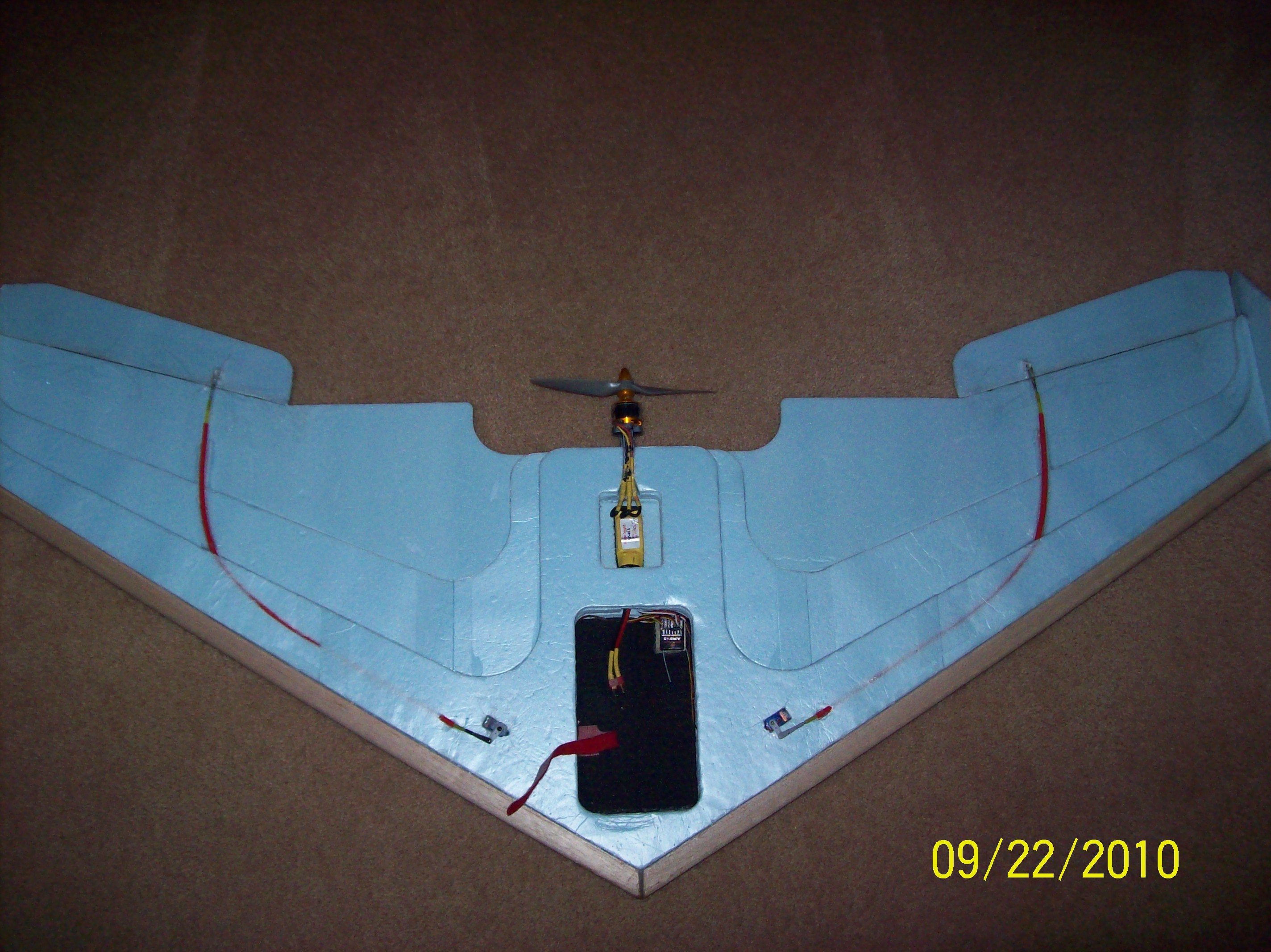

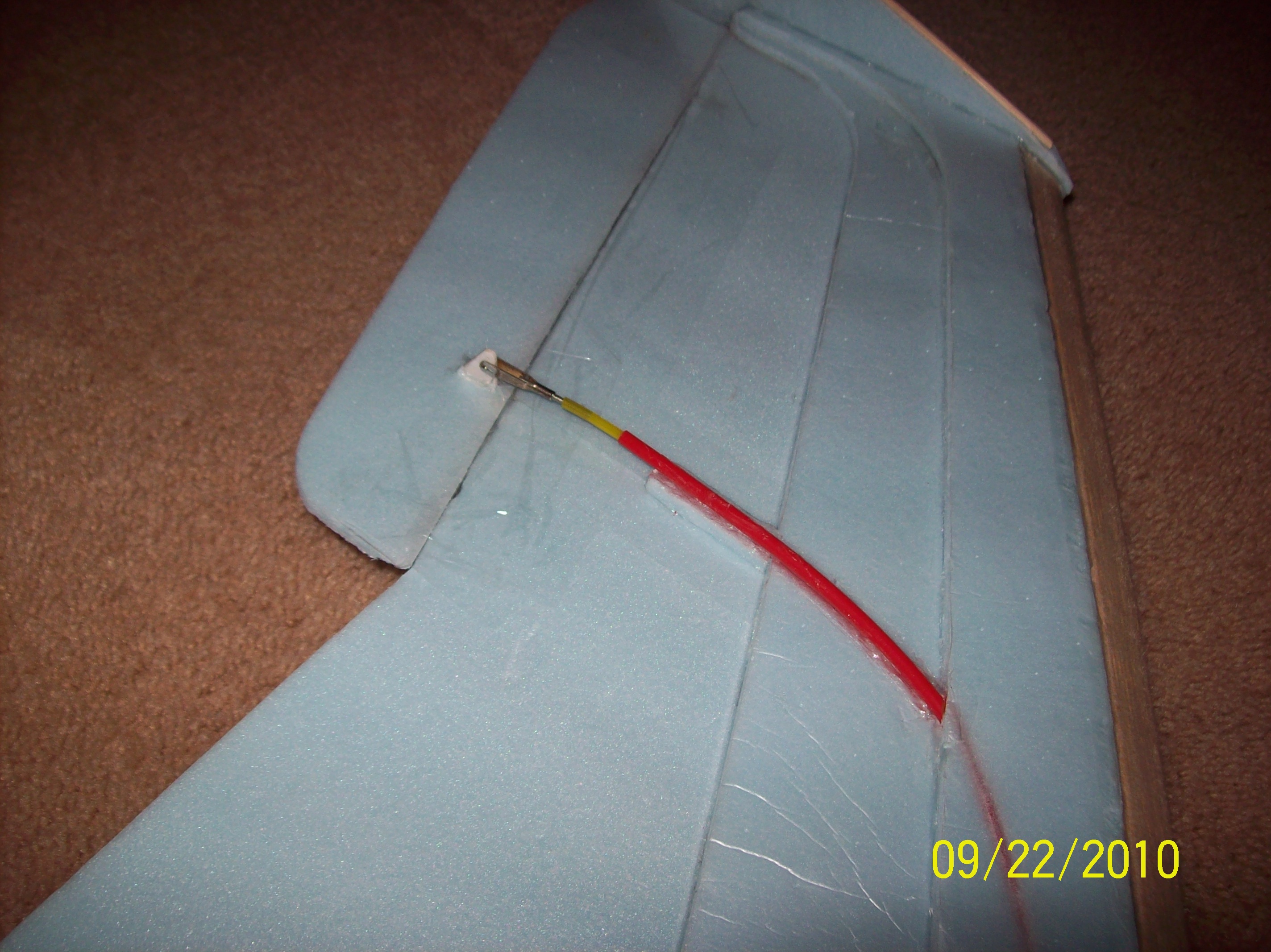

It Flies! Got the Elevons done today and did a few glide tests and it looked real good. First flight was a short one as the CG was to far aft and all it wanted to do was climb. Readjusted the battery further forward and decided that it was going up... and so it did. I now have four flights on it and I am pleased with the results so far. I am going to add a little ballast to the nose and fly it again to see if it helps the handling a bit. It wants to pitch up a bit under power and it is very pitch sensitive. I am also going to change the servos to bigger ones than the HS-55 I have in it now. I will post some videos of it on here soon when I can get my Gum Stick DVR charged up. I will also post more pics of the Elevons... Mudman1959 Attached files



Let's continue this conversation via PM. I don't want to hijack the thread.

Tim



The wind died down a bit... Time to fly!



Hey all... Just got back from flying the daylights out of the Divinity... I added 2 ounces to the nose to make the recommended CG point from the "Wing CG Calculator" and it came out to be 9 inches back from the very tip of the nose, this fixed the pitchy control issues I had yesterday. Now I need to add some color to this Beauty so that I can see it better at altitude. It flies equally good upside down or right side up. I need to replace the servos with a couple that are a bit bigger than the HS-55's in it now for more torque as the roll rates are a little sluggish when inputted otherwise control is Great... I was out in winds gusting to 25mph and it cut right through with minimal jumping. Glide is good and it still penetrates the headwinds good. With power on it has unlimited vertical climb and doing a Cuban 8 turn around is a blast! I will try to get a video of it to post when I get a chance... Work calls again tomorrow ... I highly recommend this wing, IT has enough performance that with a few changes makes it a skyburner, but it is still very controllable for a first wing... What can I say? I LIKE IT! Mudman1959



Sorry about the quality of the video... It was taken with a DVR Gum stick camera that I got from China for $20... Mudman1959


http://www.youtube.com/watch?v=A39qQkSHXT0



Looks good Mudman. I think I need to cut another one and build it myself.
I embedded your video link here.

Tim



Mark and Trish...
I would not change a thing... It all falls with the motor... Size, mounting... I have a GH2212-10 with a 7x5 on this one, not sure what the original design was calling out for but this motor has worked good for me for several years and when you find one that works... you stick with it! This also allows a person to add a camera if that's what they want to do with this plane. I do not think that the extra couple of ounces of weight I added did anything to the performance of this plane. It handles winds in the 15 to 25 mph range great. I still can thermal with it... I was flying the other day and started following a Turkey Buzzard while he was flying and chopped the throttle and I was able to stay with him for a bit in the thermal until I scared him by getting too close. So overall if someone builds one... they have a good plane to modify and personalize to their particular styles of flying... It flies as good if not better than some of the "Store bought" wings that are available out there, with less cost. Change it???? NOPE!!! Mudman1959
"I only feel Young, When I am Flying..."

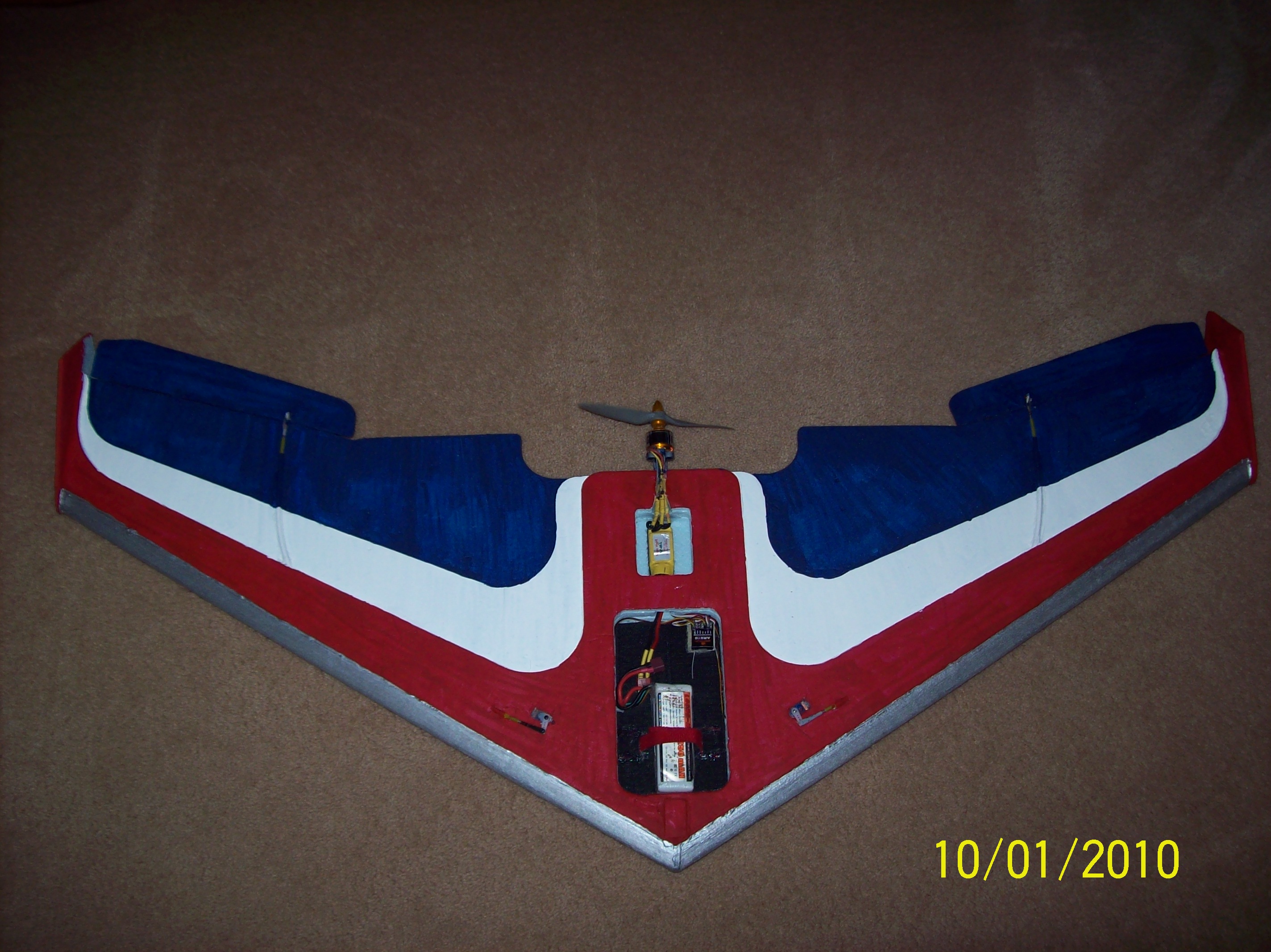

Well it is finally starting to look better... The Divinity is now taking on a Patriotic look. I will be putting a cockpit/cover on it here shortly and it will be red with white stars down the top. Should look like a B2 wing when I get it done... sort of. Looking for some latex blaze orange paint for the bottom for better high altitude visibility. Mudman1959

Attached files

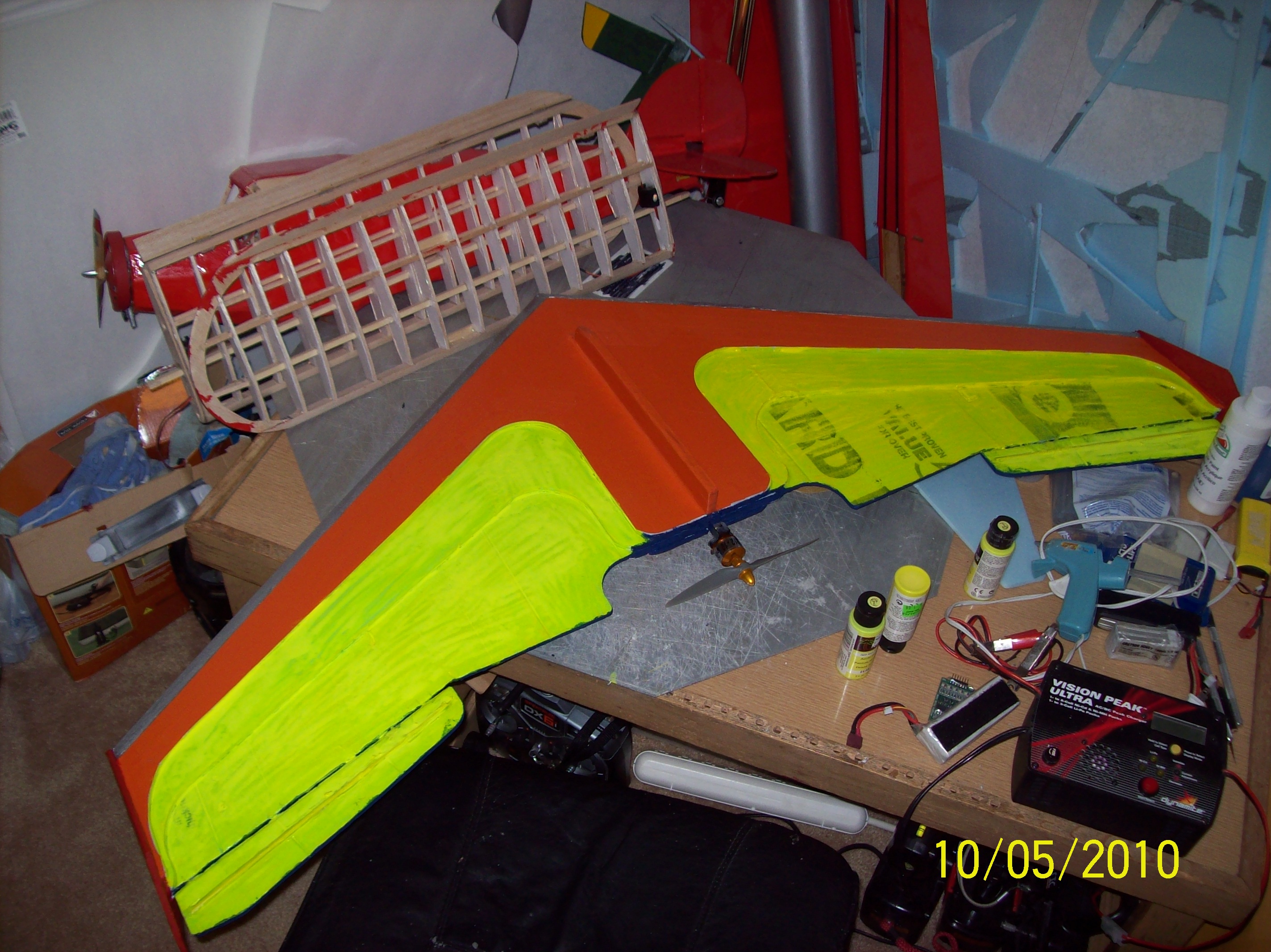

Working on the bottom of the Divinity making it more visible in flight... The orange is tape since I could not find any Blaze orange paint that did not have Acetone in it. The yellow is Acrylic Neon Yellow paint. This should be a lot easier to see than the light blue foam against a blue sky... Mudman1959

Attached files

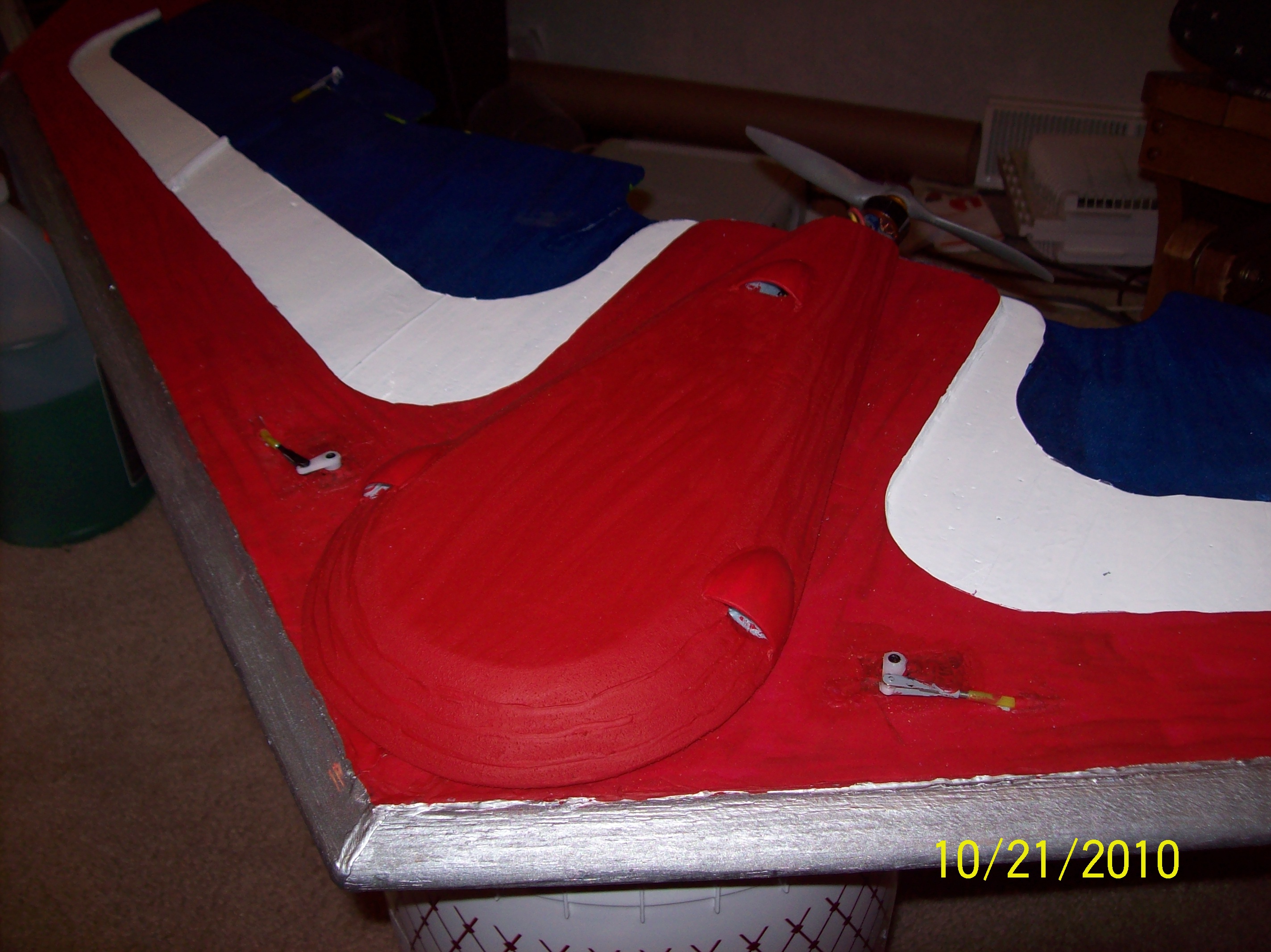

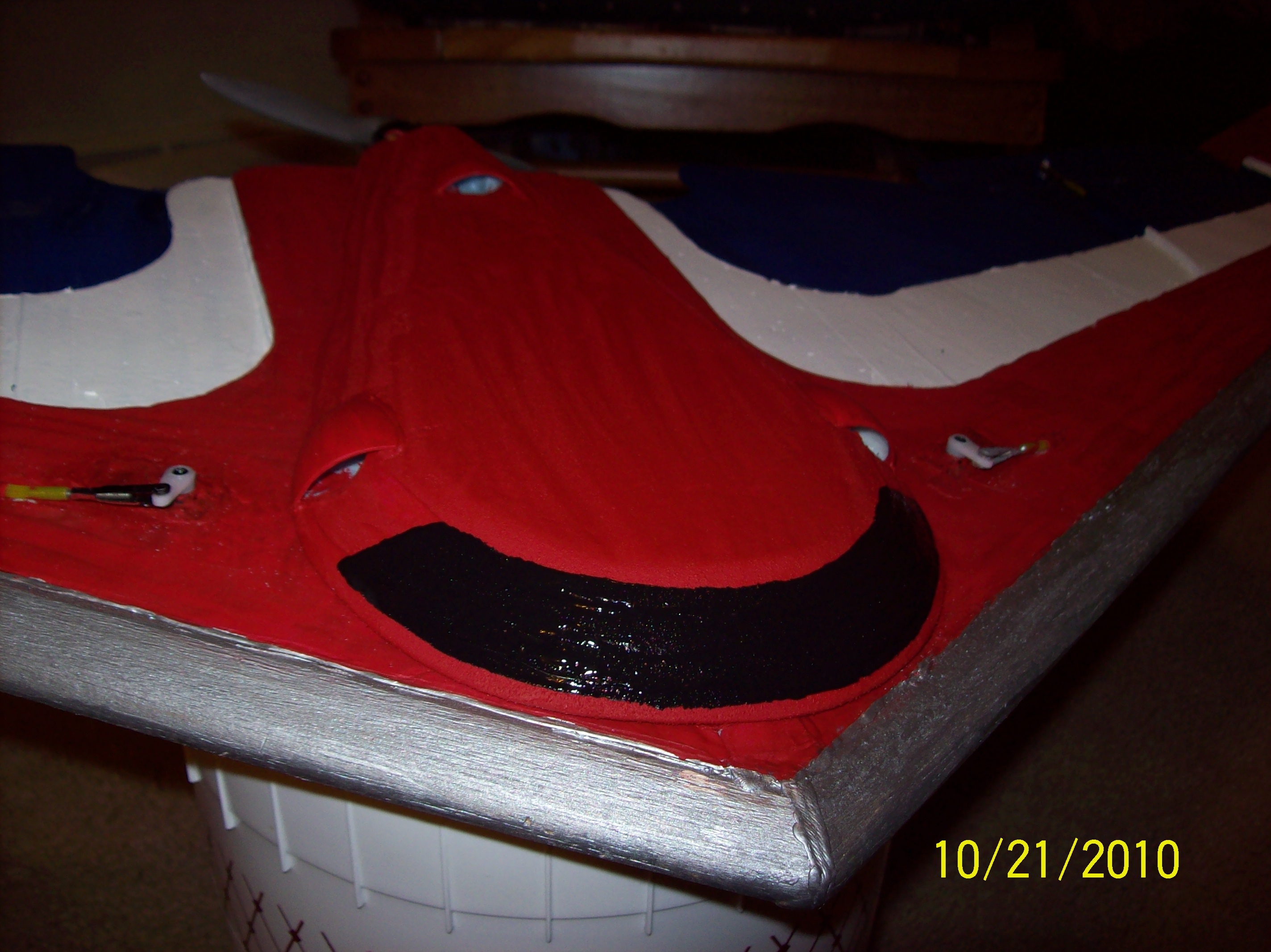

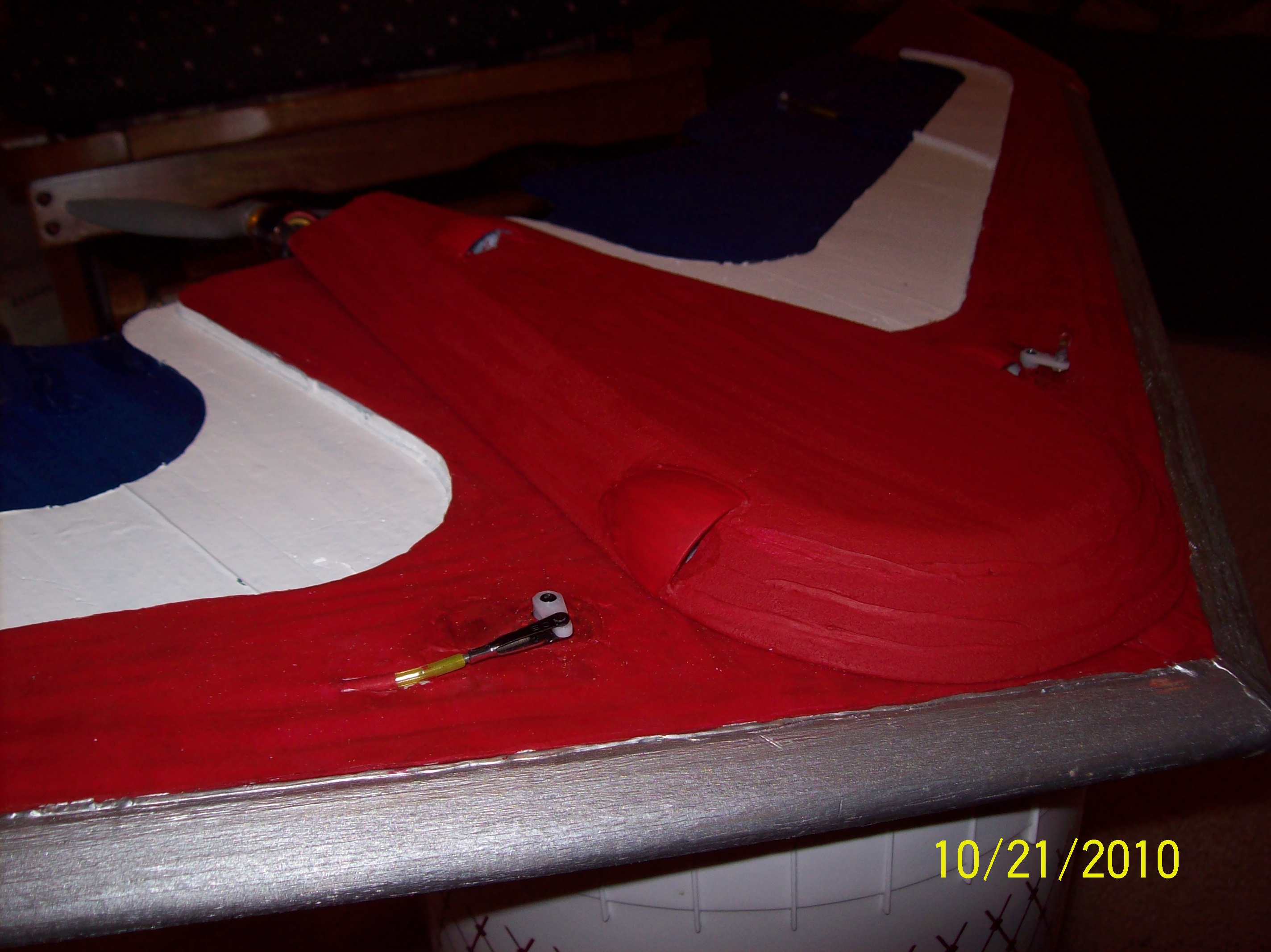

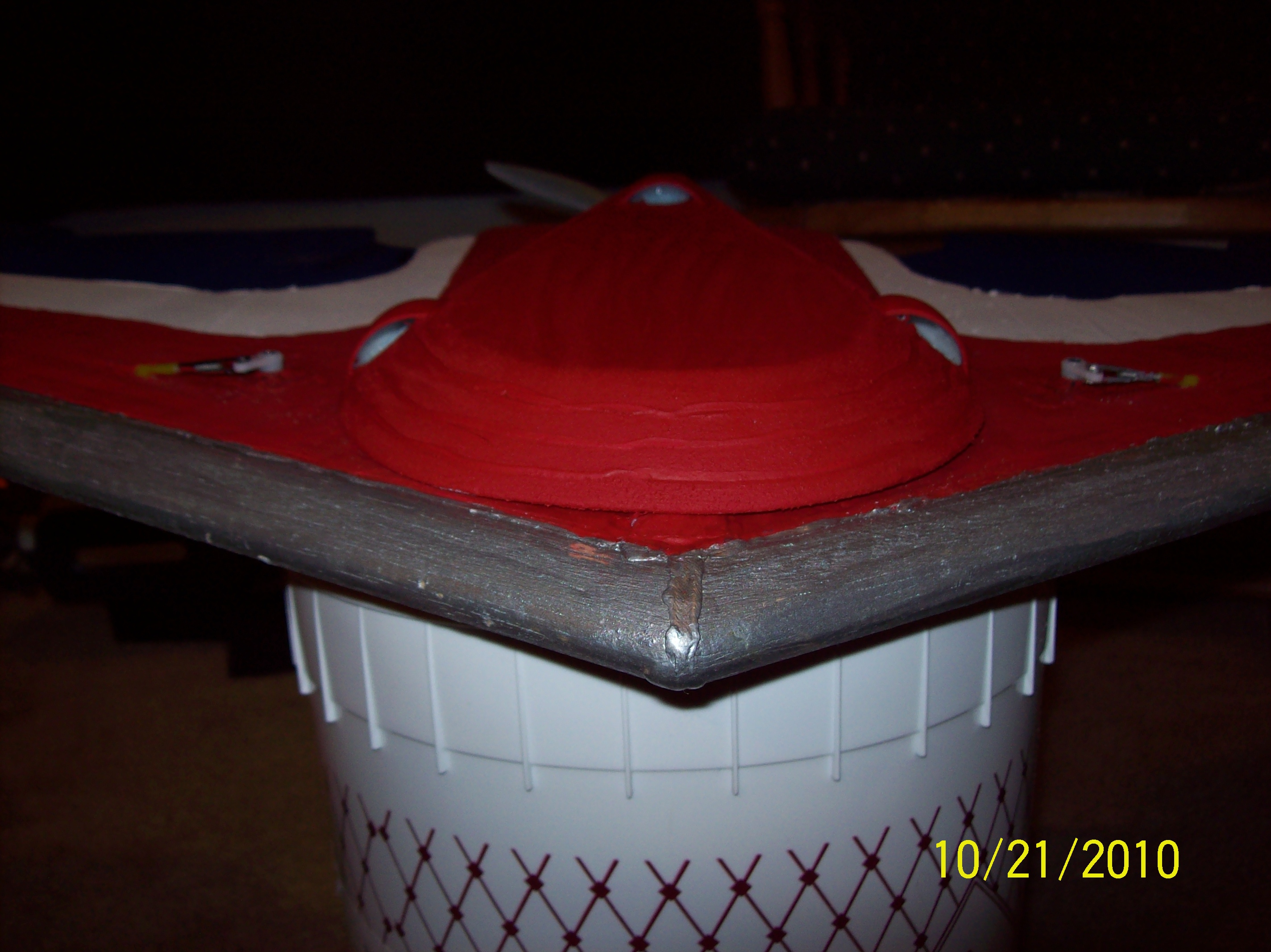

Cut out the battery cover and got it all glued together. Added "Spoon" cooling ducts for positive airflow across the battery and ESC. Next is to hinge the cover and use magnets to hold the other side down. The cover will open from the side. Sort of looks like a B2 Flying Wing...

Attached files



Hello to everybody, I got here following a link on RCG.
Very nice project
I'm wondering if there is a way to tile the plans and print them on a regular printer.
For what I can understand current plans are for a CNC that I don't have.

Thanks

Al



In the first post there is a file with the .SKP extension. It's not a CNC file, it's a SU file. It's not tiled, thought.

Welcome to the board, Al!



Post #1 on the RCGroups forum has a .pdf with tiled plans.

http://www.rcgroups.com/forums/showthread.php?t=1048425


Tim
