My new CNC

I share with you the new CNC I'm building (is almost done), 1100mm x 1600mm the table.



Very nice, Marco, and BIG.



In the second photo, my friend Bentão (a gentleman of 71 years who helped me in this project)

If all goes well, next week I will do some test cutting, hopefully post a video soon.



I did not design, in my original design side of the portico would be aluminum, as aluminum is not found in the supplier, made ​​with folded plate 3/16 "

measures: # 3/16 "x 100mm (top) x 400mm (height) x 250mm (base) x 35mm (fold)

The weight of the sheet was approximately as would be with aluminum.

The folded sheet, is domed, is necessary to beat, to obtain surface is flat

hugs...



The machine is ready.
A video.



I thank the colleagues of the forum, the code letters made ​​with Sketchup / Phlatscript

hugs



Marco, looks great. I see you don't have a vacuum attachment. Are you planing on having one?



Vacuum does not exist. Yes I'm interested!
I never studied this subject, and I do not know how it would be implemented, you could make any suggestions.

Thank you.



The gcode photo was made ​​with "Bmp2Cnc":
http://www.mr-soft.net/en/bmp2cnc.html

The gcode inscription was made ​​with "Sketchup / Phalatscript":

The control was done with Mach3

---------------

On this machine I used the driver unipolar CNC3AX (modified to fets IRF640)
viewtopic.php?f=257&t=2225

In stepper motors, 36v (The driver supports up to "80v" x 5A)
In the logic, 12v

hugs.



Marco, do a search of 'dust shoe' or 'dustshoe'. Do it on this forum, on CNCZone.com, and google general and you'll get lots of hits about how to do a vacuum attachment.



Thanks for the tip ...

Sorry, how to use online translator, things are not always with clear meaning; I thought you meant the vacuum table.

The vacuum cleaner (dust shoe) I know, and I've used on other machines.

Hugs

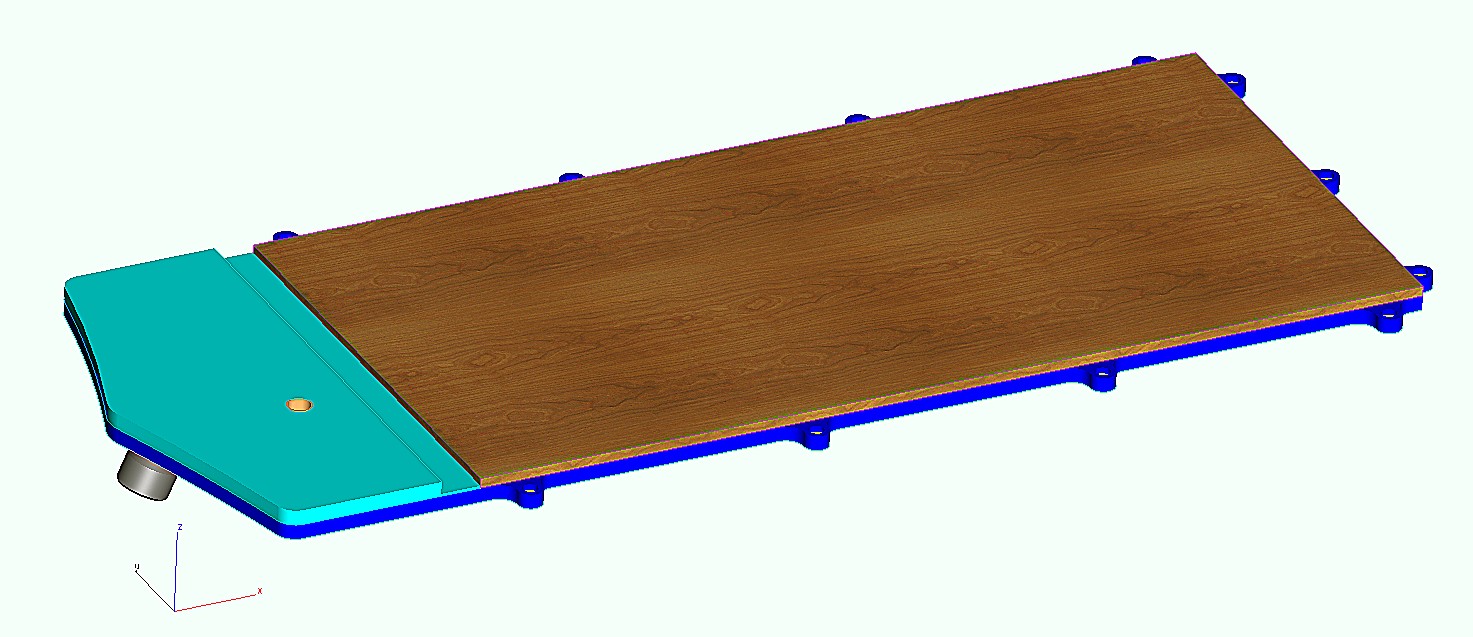

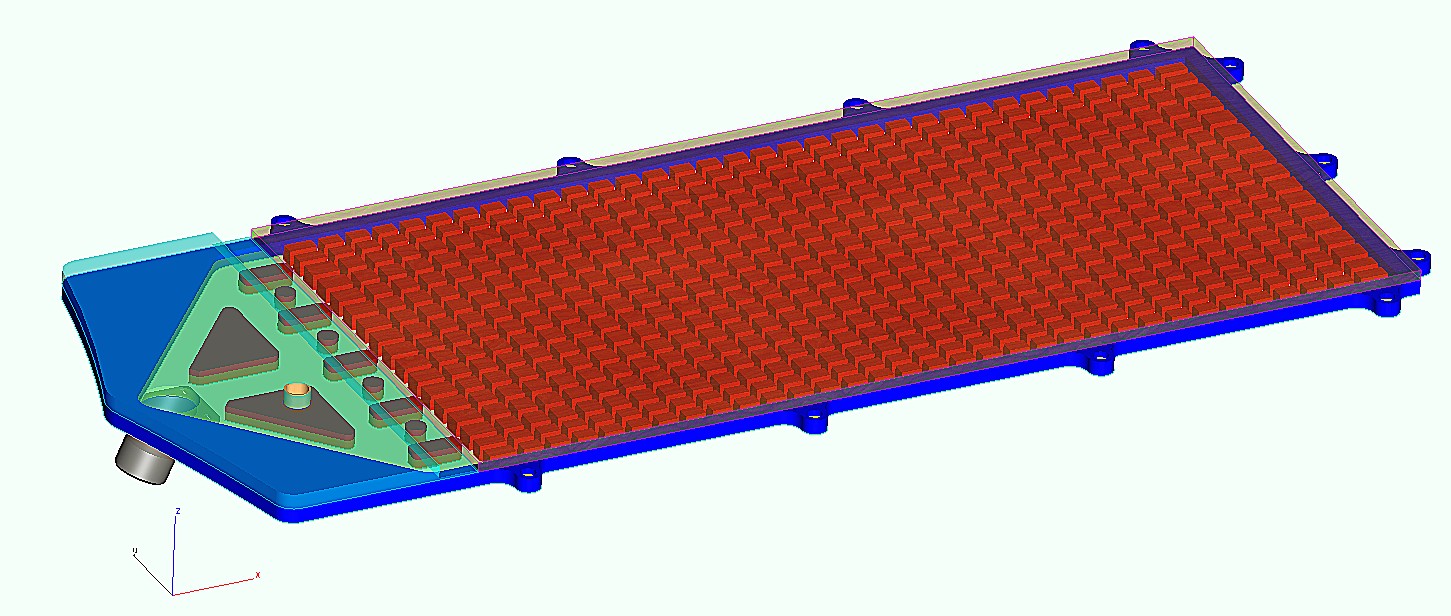

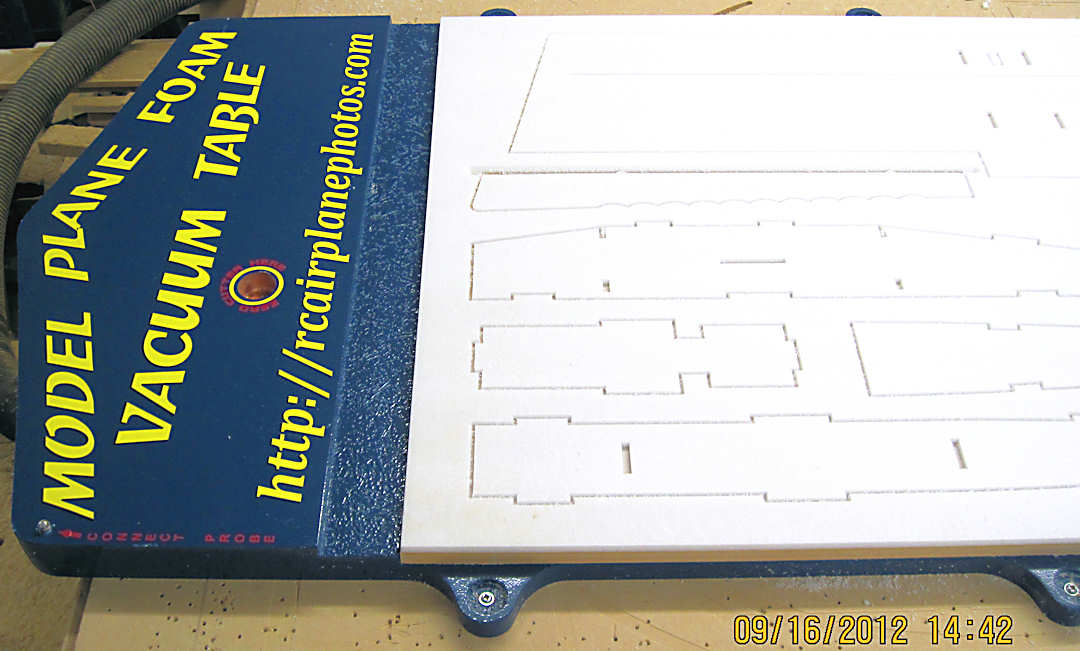

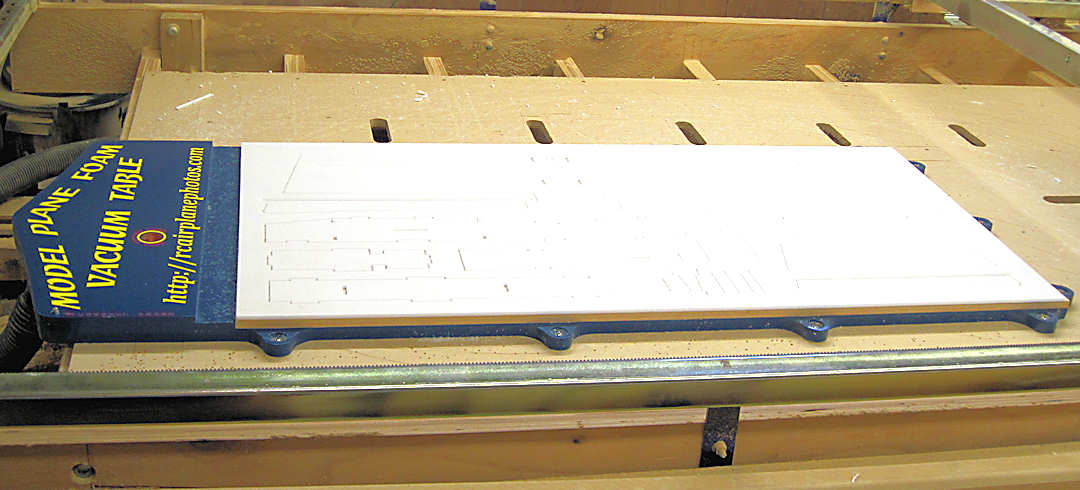

One way is to use a ShopVac or ShopVac motor and then build a portable vacuum table which you can put on and take off of your machine. I have several portable tables that I use for different jobs all of which I use a ShopVac for the Vac source. Here are a couple of photos of on I just completed to cut foam airplanes.


[attachment=3] Attached files



Thanks Mark. It works great and sure beats the old way of holding the foam down with double face tape.

Sam



Wonder...
Thank you very much...


Who likes WOW?

A new video (Gloria the Horde).



Your CNC is looking great
