OpenRail KX-5 Version

Discussion in 'OpenBuilds Projects' started by KX-5, Feb 12, 2013.

  1. SilverFox

    SilverFox Member

    Offline
    Messages:
    103
    Trophy Points:
    16
    Location:
    Charleston, SC
    I have the Bosch Colt on my 4x4 and it works great, especially since i added the Super-Pid controller. I can accurately select RPMs from 5000-30000. I've been cutting 3/4" Oak in.25" passes at 150 ipm. I can cut faster, but i don't feel like i need to. I picked up the 1/8" collet kit from Precise Bits and I'm very happy with that too.

    I would definitely recommend the Super-Pid and the collet kit for your Colt.

  2. KX-5

    KX-5 Member

    Offline
    Messages:
    241
    Trophy Points:
    18
    Location:
    Urbandale, IA

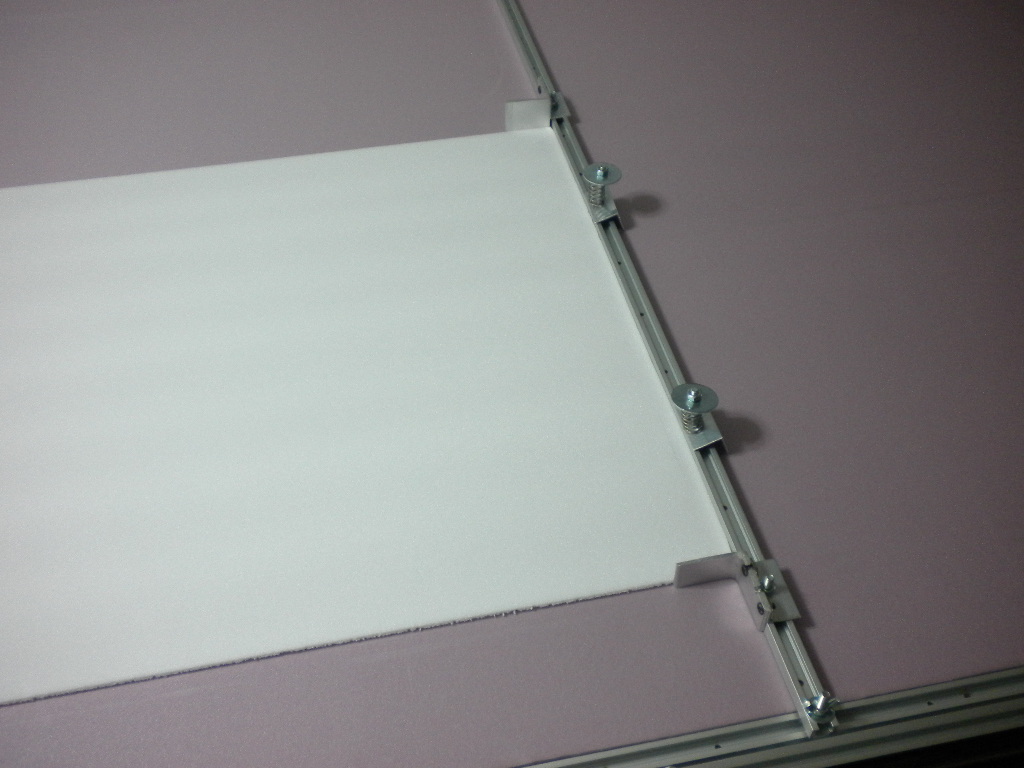

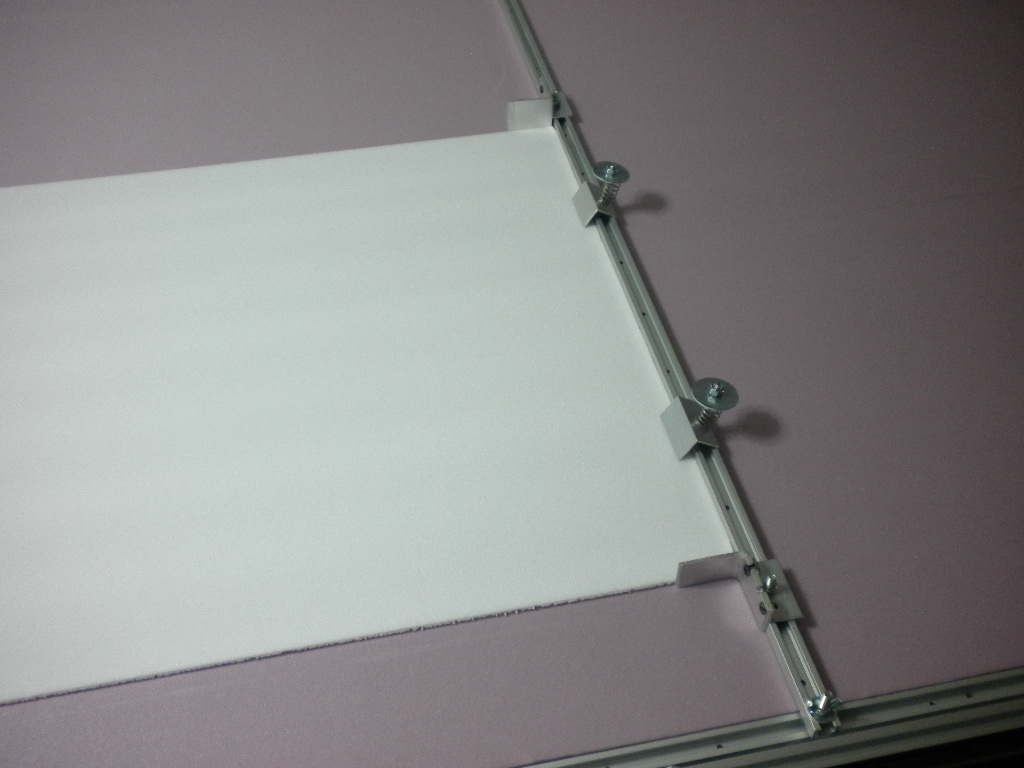

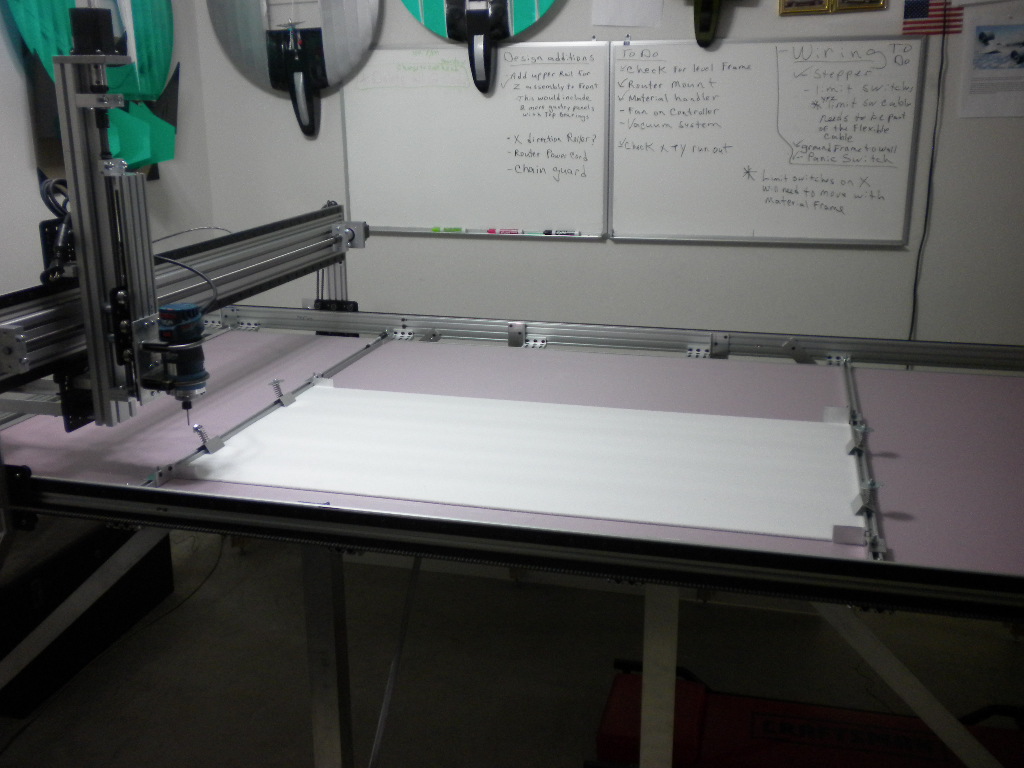

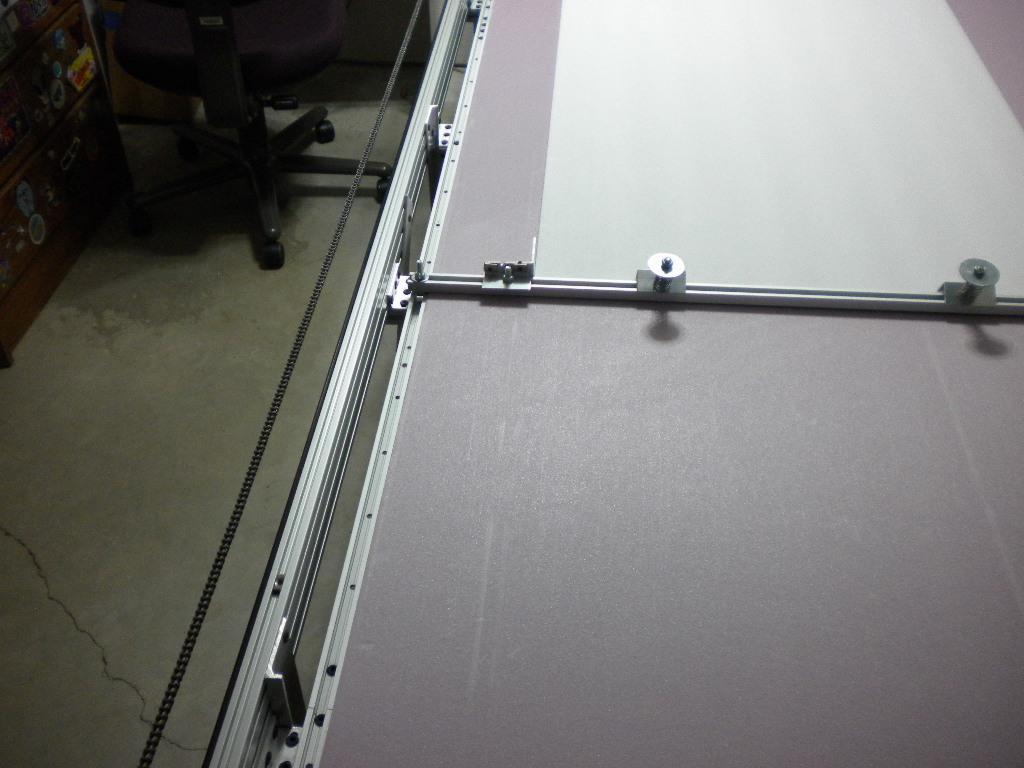

    Here's a few update pictures. These are of how I'm handling the material restraining part of the challenge.



    Attached files [​IMG] [​IMG] [​IMG]

  3. KX-5

    KX-5 Member

    Offline
    Messages:
    241
    Trophy Points:
    18
    Location:
    Urbandale, IA

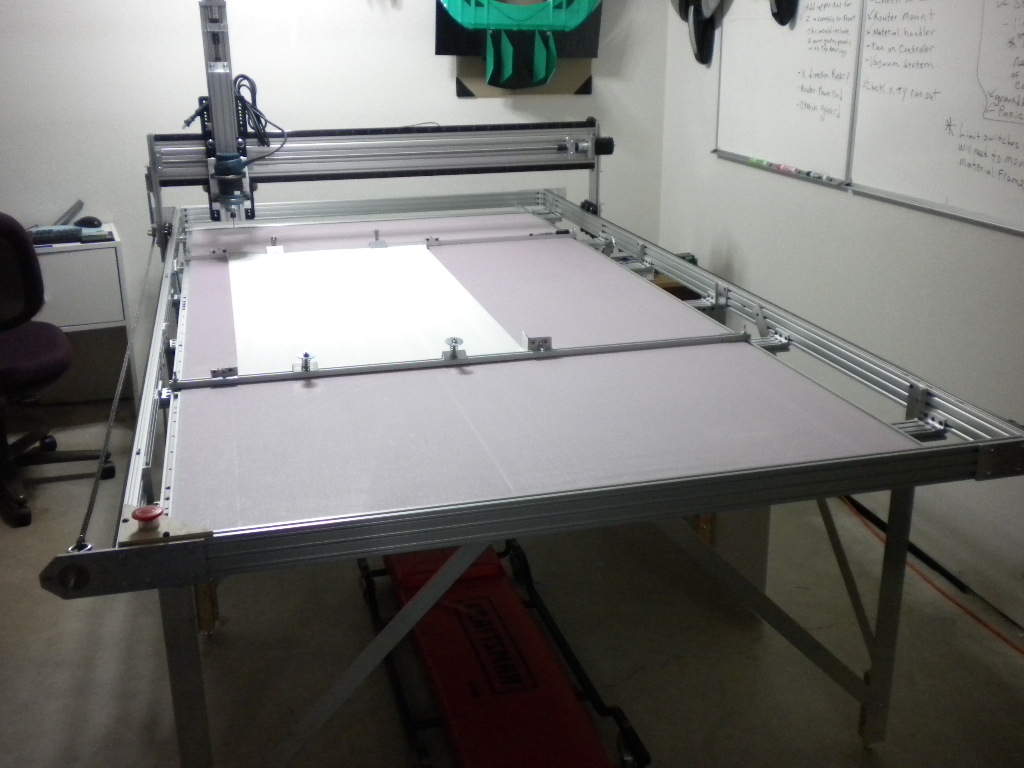

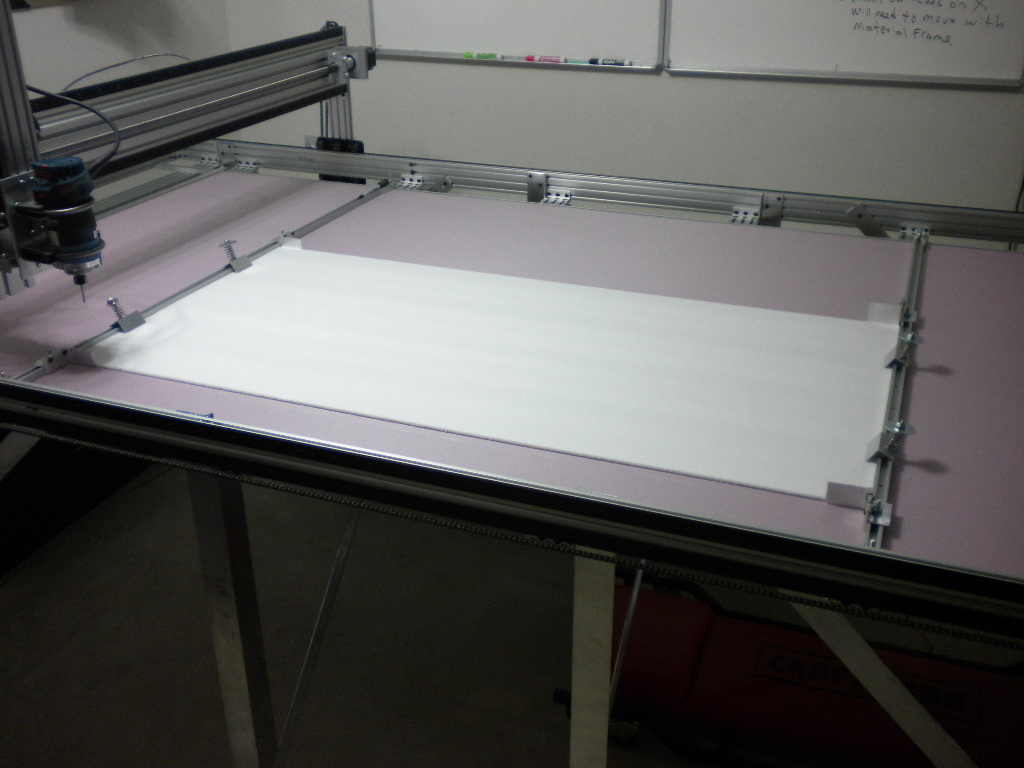

    I'm still a couple weeks away from cutting anything. Patience needs to be the main virtue to make sure everything works the way it should and in a safe manner. Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  4. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

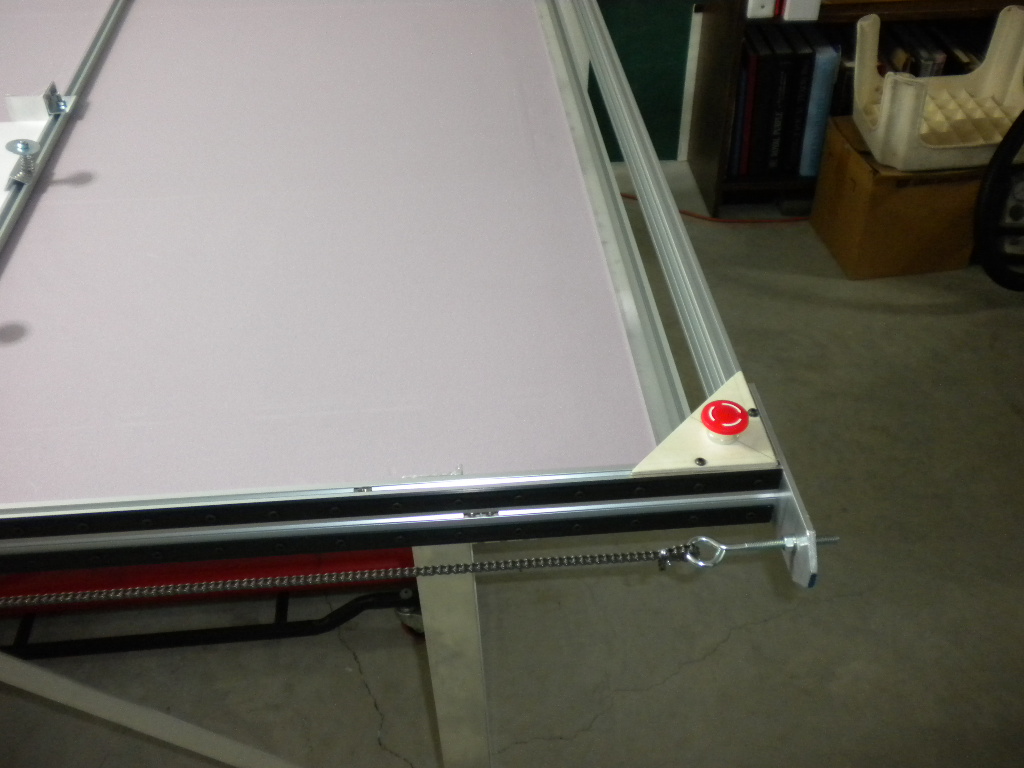

    :shock: Looking great Laverne! Love the way you did the e-stop and the hold downs its really looking complete.
    Mark and Trish

  5. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I too like the way you did the hold-down, LaVerne. I'll steal that idea too, if you don't mind! :D

  6. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Very nice setup. Excellent craftsmanship :good:

  7. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319

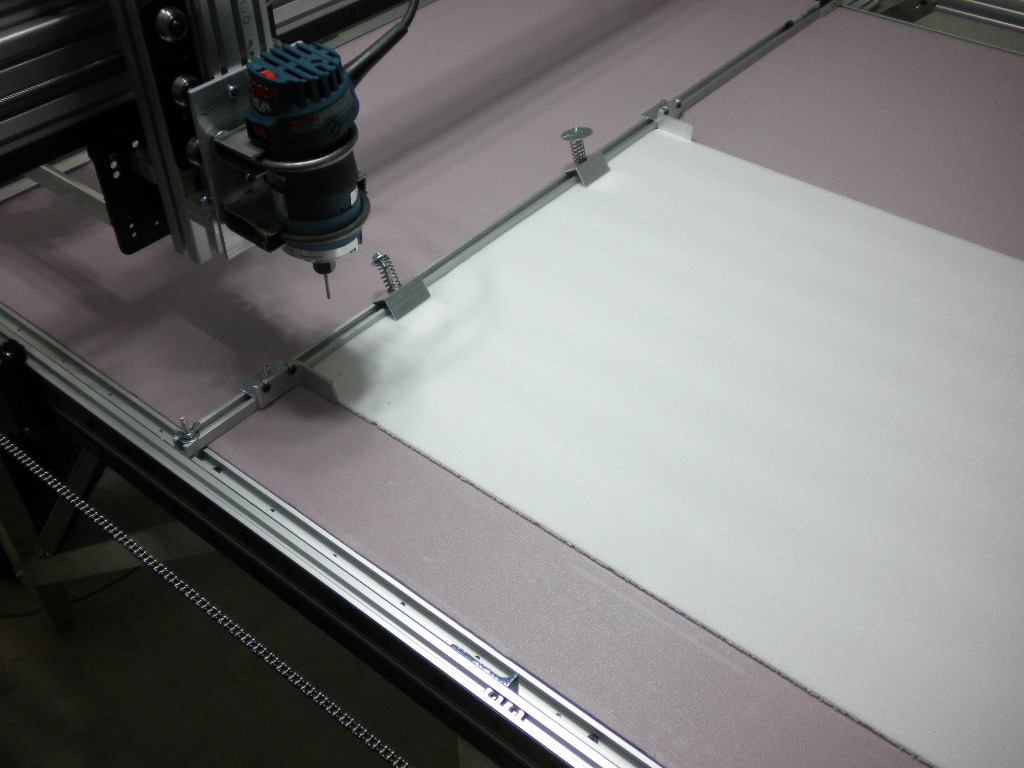

    I like the way your U channel holds down the foam. Looks well thought out.
    Your machine build looks really neat and professional. :cool: :doubleup:

    Keep up the good work. I think it's gonna be an AWESOME part making CNC machine.

    Cheers.
    GHB :D

  8. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I just realized that your using a foam board for the spoiler. Thats a great idea :good:
    Mark and Trish

  9. PAULE

    PAULE Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    FL
    :good: VERY NICE JOB :fugly: BUT I MUST ASK :twitch: WILL YOU BE CUTTING IN TO THE TABLE :D ON EACH PASS :flying:

  10. KX-5

    KX-5 Member

    Offline
    Messages:
    241
    Trophy Points:
    18
    Location:
    Urbandale, IA
    Paule, yes, each cut on the white foam will cut into the pink foam spoiler about 1/16". At some point, when the pink foam is messed up enough, I'll just flip it over and use the other side. I think it will be a good use of about $9. for the 4x8 sheet of pink foam.

  11. KX-5

    KX-5 Member

    Offline
    Messages:
    241
    Trophy Points:
    18
    Location:
    Urbandale, IA
    I'd like some feedback on the size of the vacuum system people have been using. Is a 5 HP unit sufficient to keep the router area clean?

  12. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    I would think so, I use a 6.5 hp sears vacuum.
    I think as long as you have a decent dust shoe it should be fine.

  13. KX-5

    KX-5 Member

    Offline
    Messages:
    241
    Trophy Points:
    18
    Location:
    Urbandale, IA

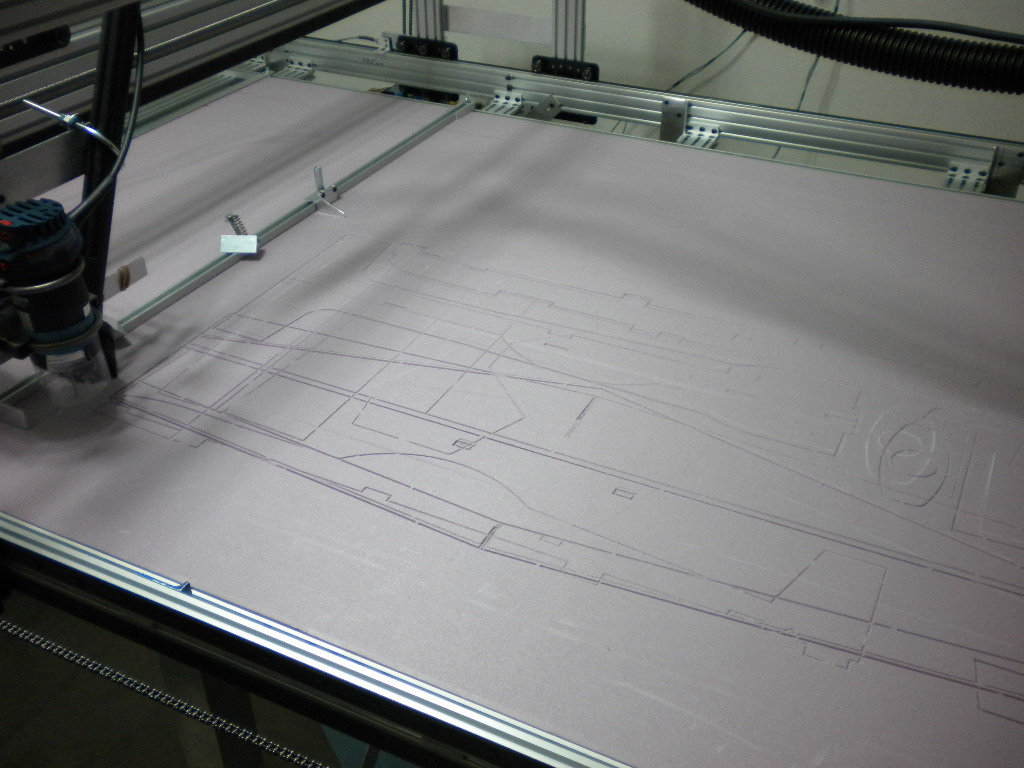

    You know what this picture means. Yep, it cut some foam today. And it was awesome. :dance3:



    Here's a video of it in action. The bigger the machine gets, the slower it looks like it's going. It was actually moving at 100ipm.

    Attached files [​IMG]

  14. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    !! OUTSTANDING !! :banger: :banger: :banger: :banger: :banger:

    Your machine looks great and looks like it cuts as good as it looks.
    I know you're going to enjoy making all kind of things with it

    Keep posting stuff as you make things.

    Great job.
    George H. Boyd :D

  15. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Way to go!

    Job Well done LaVerne!
    Second that motion! :doubleup:
    Mark and Trish Attached files [​IMG]

  16. nitro

    nitro Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    AWESOME!!

    Nitro :doubleup:

  17. KX-5

    KX-5 Member

    Offline
    Messages:
    241
    Trophy Points:
    18
    Location:
    Urbandale, IA

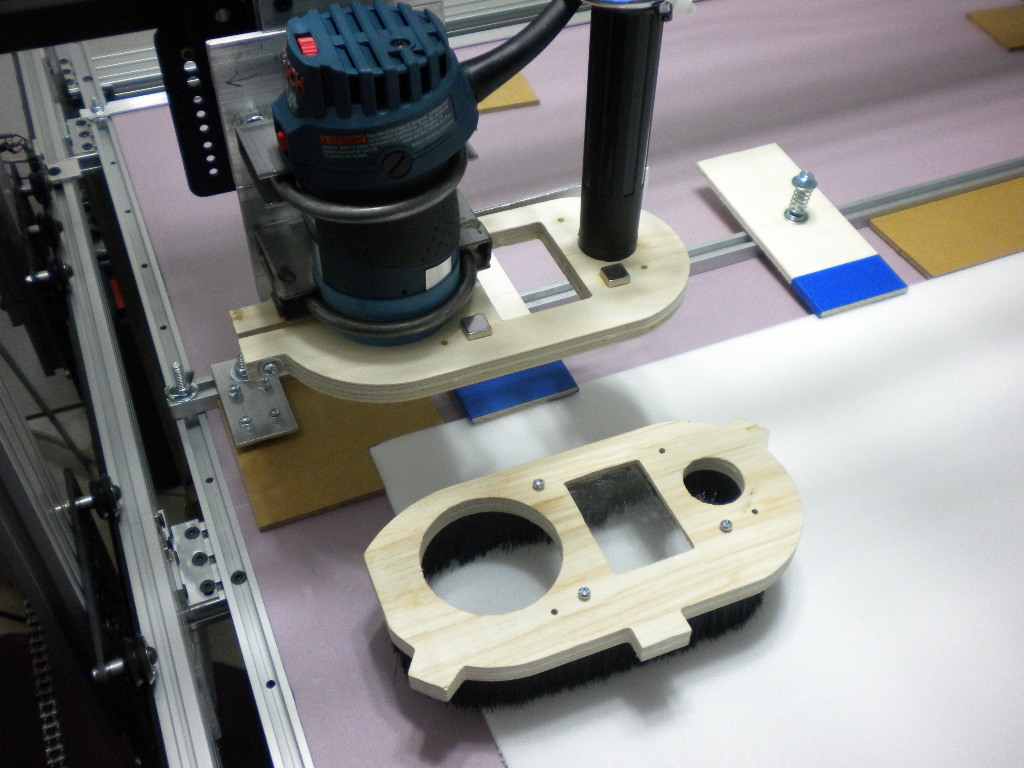

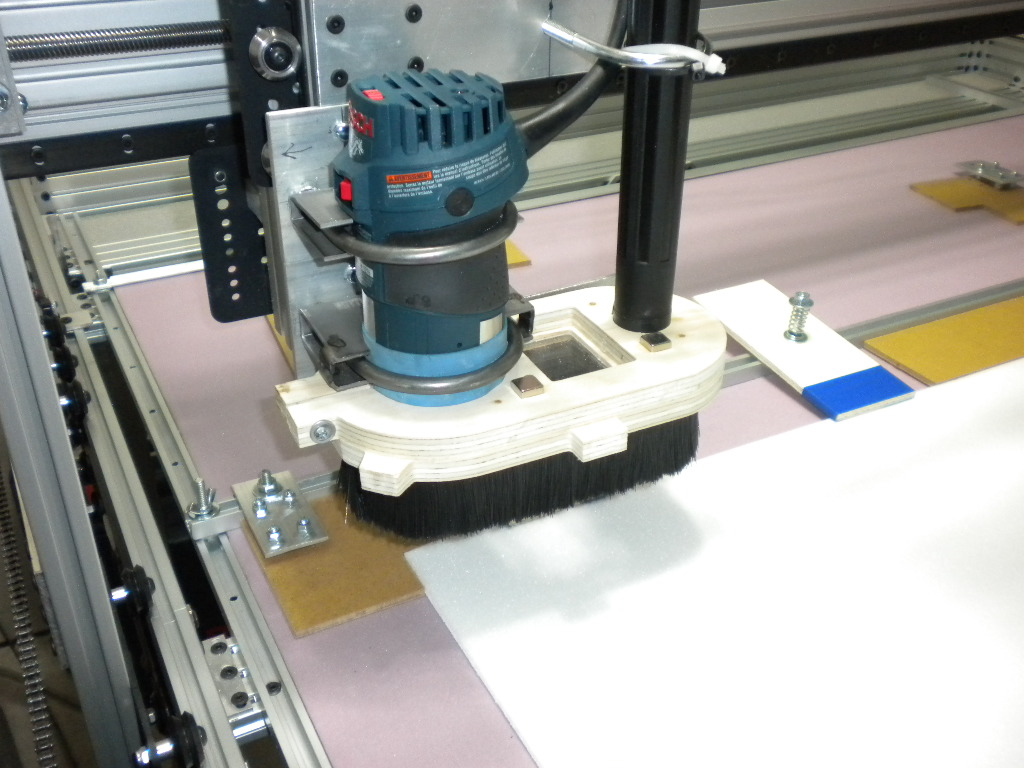

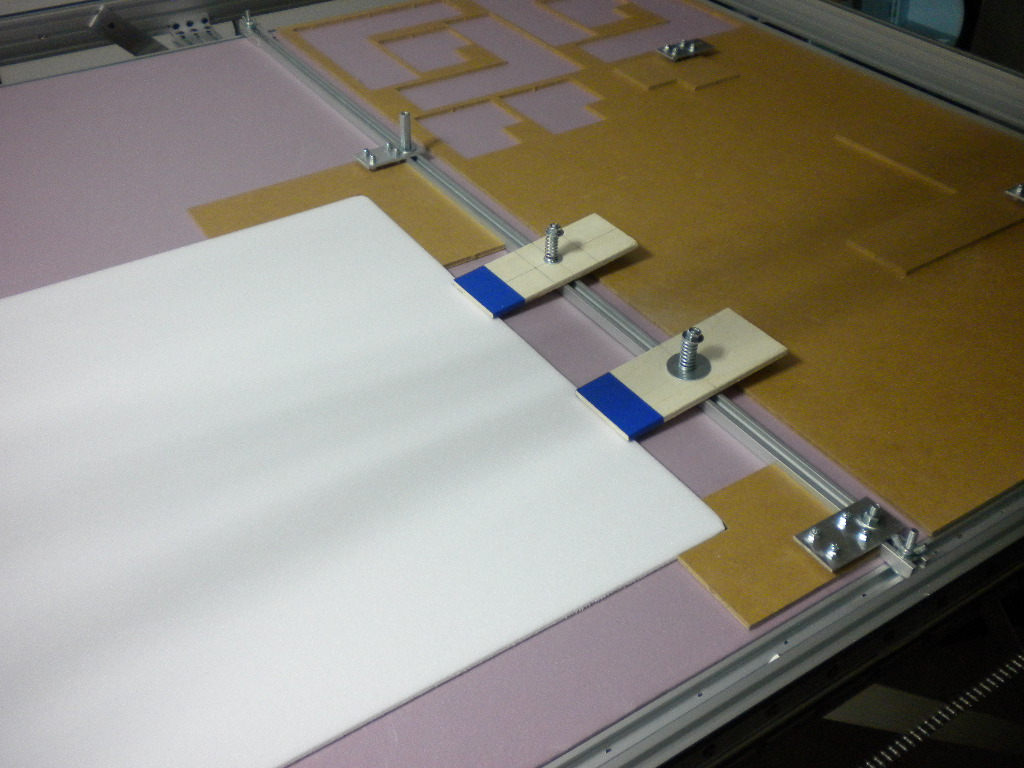

    Here are a couple of updates to my machine. I refined the corner pieces used to secure the material. I used the new machine to cut the new corner pieces out of 1/4" mdf. I made 2 sets. One set has 10" sides for larger material, and one has 1 1/4" sides to use with pieces down to about 3" in width. With these corner pieces and the spring loaded hold down clamps, I can safely cut within a 1/2" of the outer boundaries of a sheet of foam. So, on a 24" x 48" sheet, my safe cutting area is 23" x 47". I also completed my dust boot assembly. The machine did a great job cutting the 1/2" plywood pieces.





    Attached files [​IMG] [​IMG] [​IMG]

  18. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Your rock'in it Laverne! The dust shoe turned out great looking
    Mark and Trish

  19. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Nice Work, LaVerne! What goes into the cutout in the dust shoe?

  20. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    A laser! :spiteful:

  21. KX-5

    KX-5 Member

    Offline
    Messages:
    241
    Trophy Points:
    18
    Location:
    Urbandale, IA
    Thanks Mark and Yoram!! The cut out is a window to look inside. It uses a piece of plexiglass as the window. I like Mark's idea of a laser. Would be kind of cool to put a miniature video camera/transmitter there just to watch whats going on. Although I am gaining more and more confidence that it knows what to do in there and I really don't need to watch it.

  22. pagercam

    pagercam New Member

    Offline
    Messages:
    23
    Trophy Points:
    1
    why wouldn't you just make the whole plate of plexi? You would be able to see everything using a single peice.

  23. KX-5

    KX-5 Member

    Offline
    Messages:
    241
    Trophy Points:
    18
    Location:
    Urbandale, IA

  24. GorillaBob

    GorillaBob New Member

    Offline
    Messages:
    21
    Trophy Points:
    1
    Location:
    Arizona
    LaVerne,

    did you by any chance make a Bill of Materials for your build? As soon as school lets out, I want to start gathering components to build a router for myself. I was looking to buy a used PhaltPrinter III but seems everyone loves their too much! So I might as well plunge into the process and get one started for myself...

    Thanks for posting your build, it has both assisted and inspired me!

  25. KX-5

    KX-5 Member

    Offline
    Messages:
    241
    Trophy Points:
    18
    Location:
    Urbandale, IA
    Robert, I made an attempt to keep up with materials I purchased. However, not everything seems to get added. I know I made a lot of trips to Menards and Lowes for various nuts and bolts that don't show up anywhere. I know things like a material list can be very helpful so I'll post what I have. If more pictures or close ups of some area would be helpful, please let me know and I'll snap some more pictures. I really enjoy the OpenRail version of the CNC machine. I'm sure you will too. Good luck with your project and don't hesitate to ask questions. This was my first attempt at something like this and I learned a lot along the way.

    I just discovered that the site does not allow Excel .XLSX files so I've attached a zip file.

    Attached files PartsList.zip (72.3 KB)Â
