PB4Y-2 Privateer

Discussion in 'WarBirds' started by kram242, Apr 25, 2012.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Lots more interesting information about the PB4Y-2 Privateer found here:
    http://en.wikipedia.org/wiki/Consolidated_PB4Y-2_Privateer




    Hey Guyz,
    As soon as I got the latest edition of the Park Pilot this bad boy was on the cover and I just had to make one :D
    With the help from fellow Phlatboy BlindFlight(Al) I am happy to say that we knocked this one out in record time.
    Here you go, the U.S. Navy PB4Y-2 we built on the PhlatLAB show here:
    PhlatLAB Show Live Build
    http://www.phlatforum.com/viewtopic.php?p=38061#p38061

    These plans are based off of the Park Pilots article. Original build designed and shared by 'Dick Sarpolus'
    Park Pilots is the magazine that inspires,informs and instructs small-field and indoor aviators
    http://www.theparkpilot.com they share great Built-It plans in the PDF format :good:

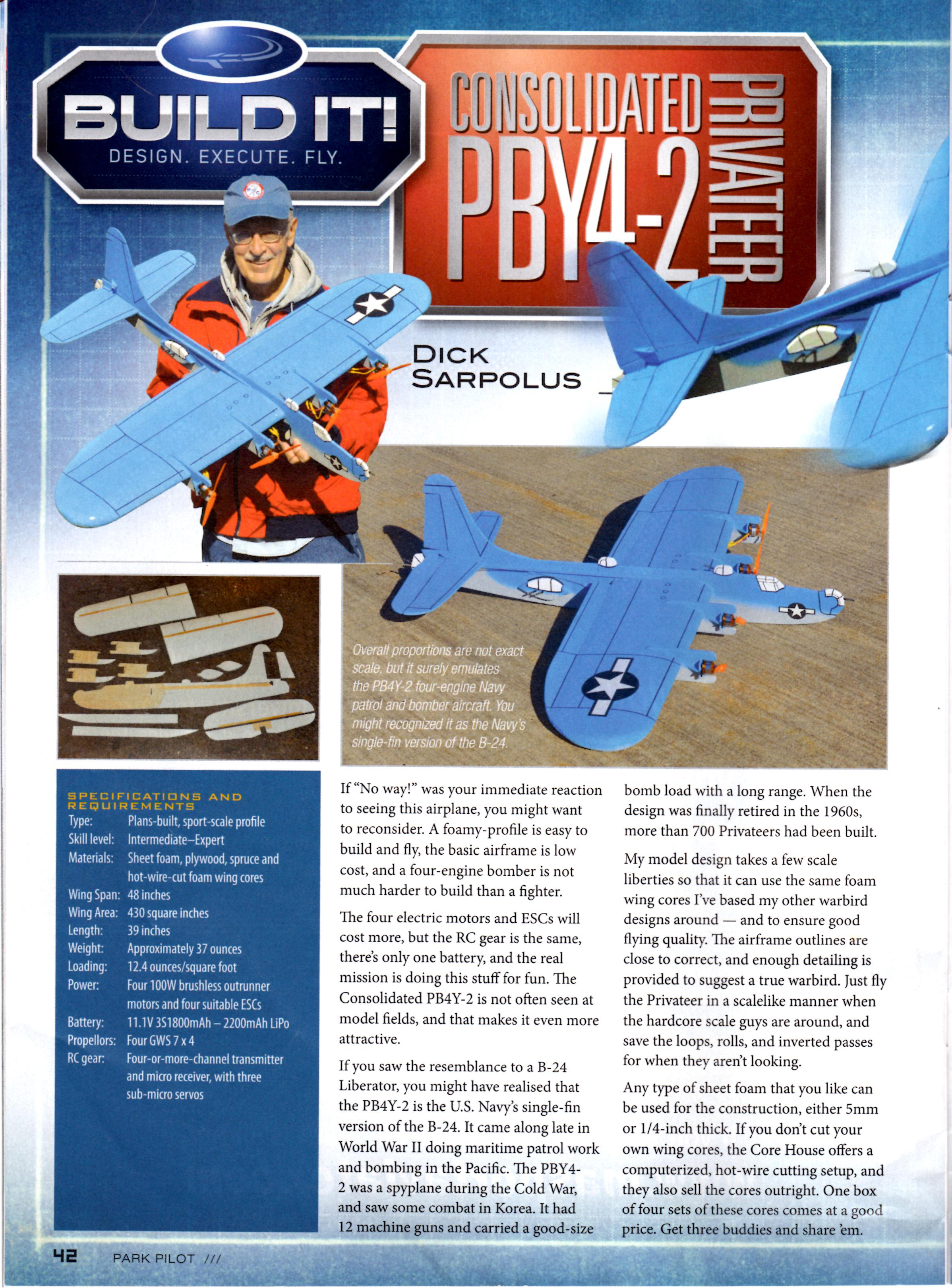

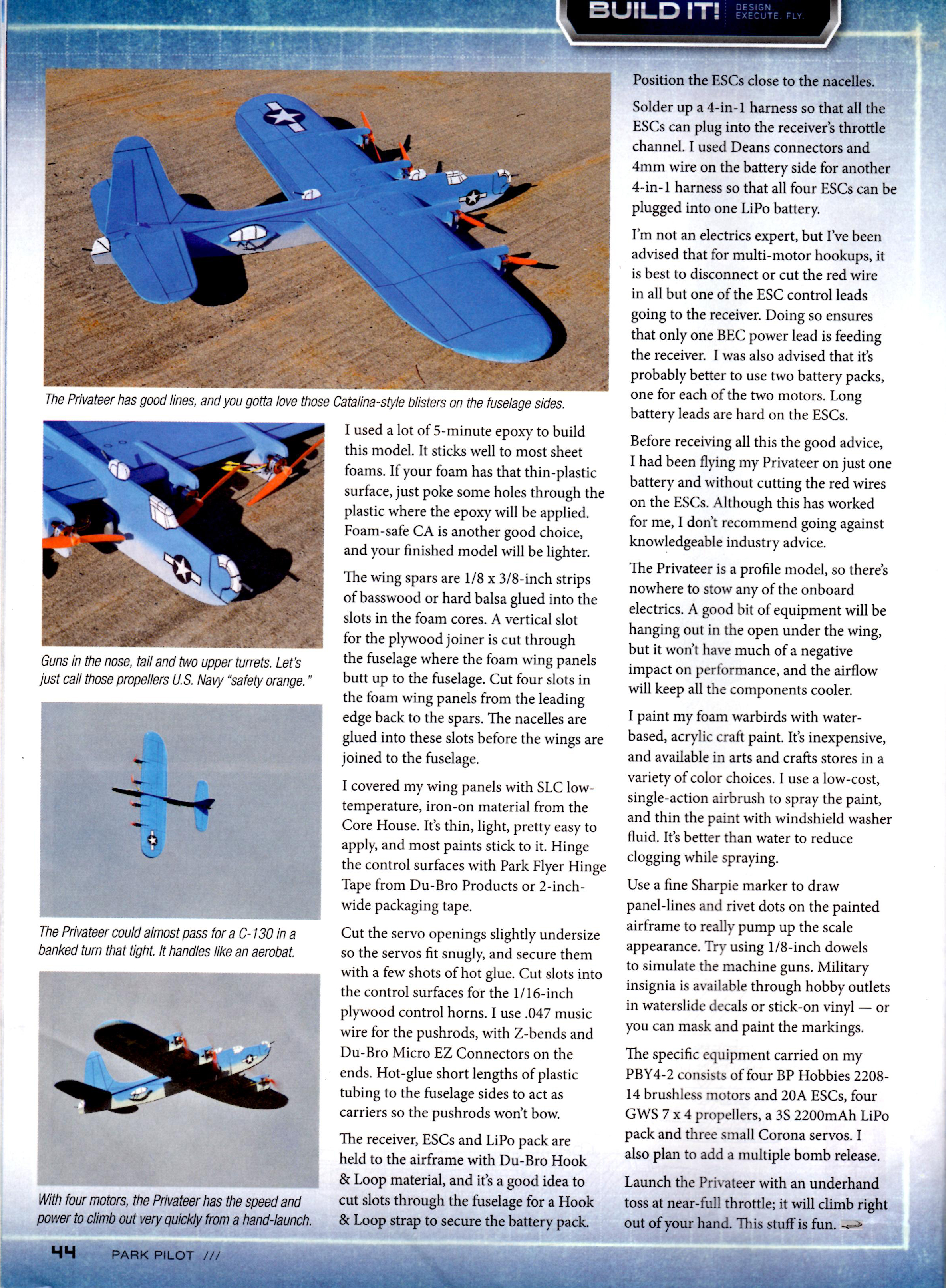

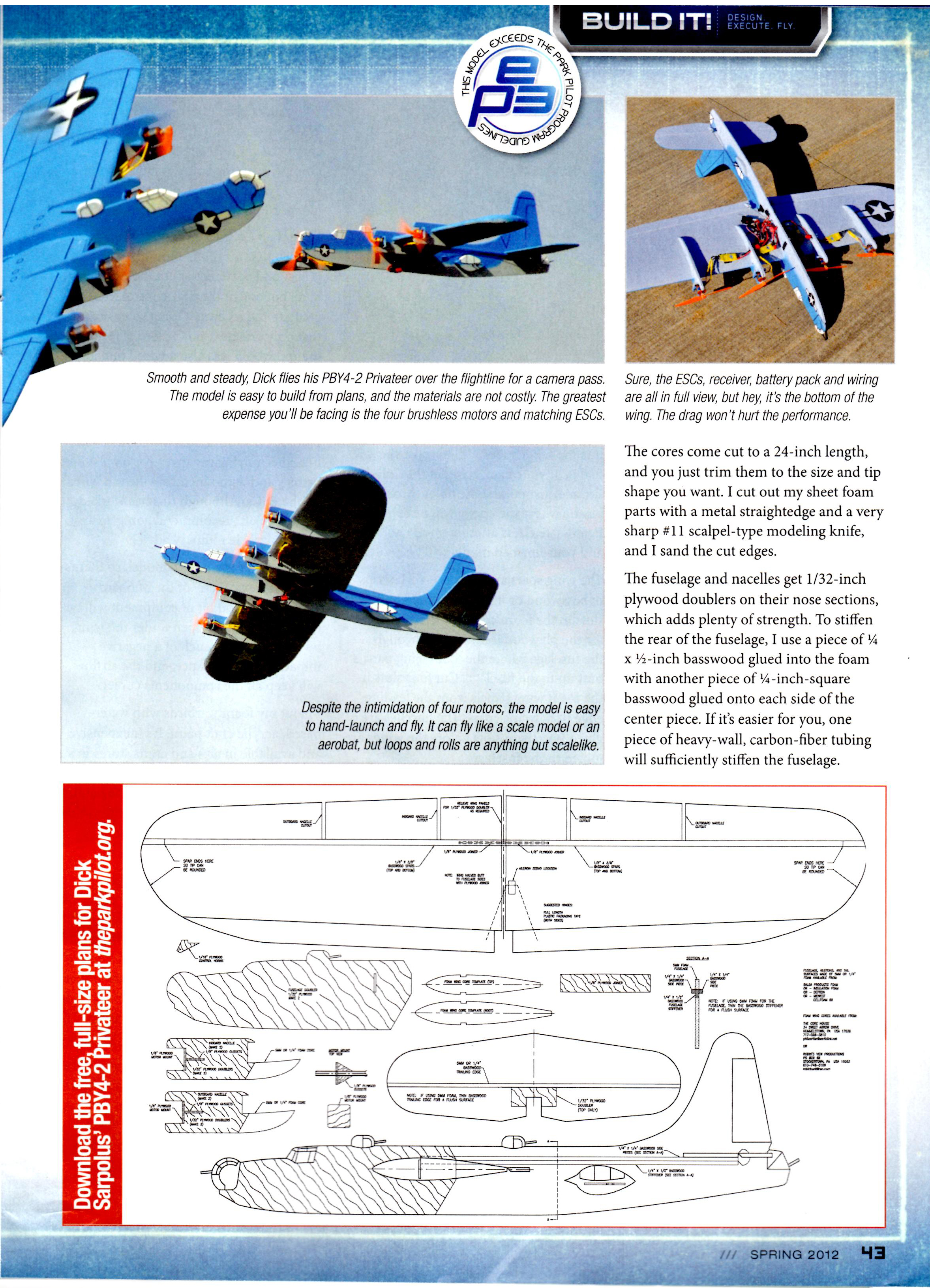

    The Article:(click for larger pictures)

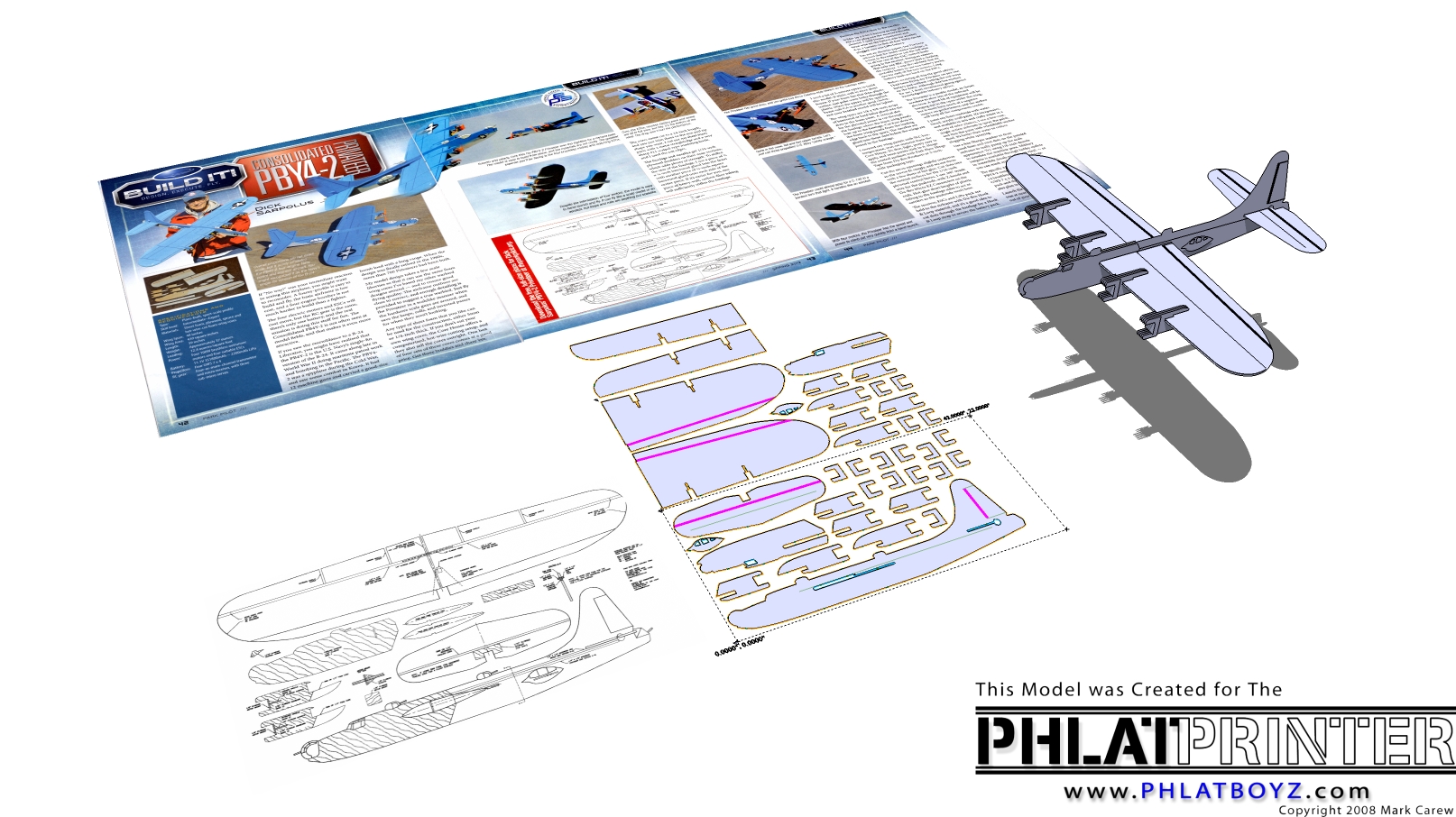

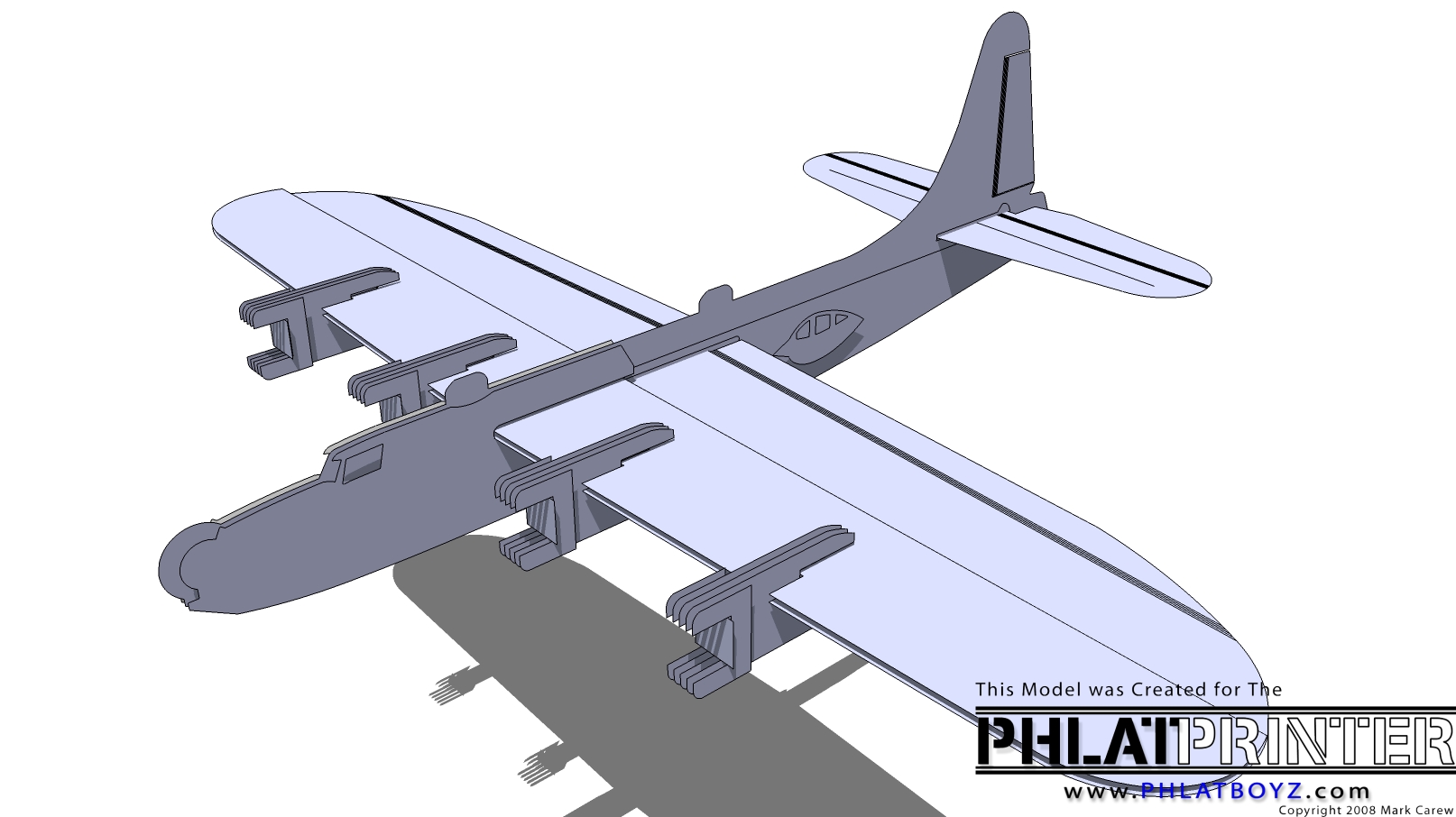

    The Files:

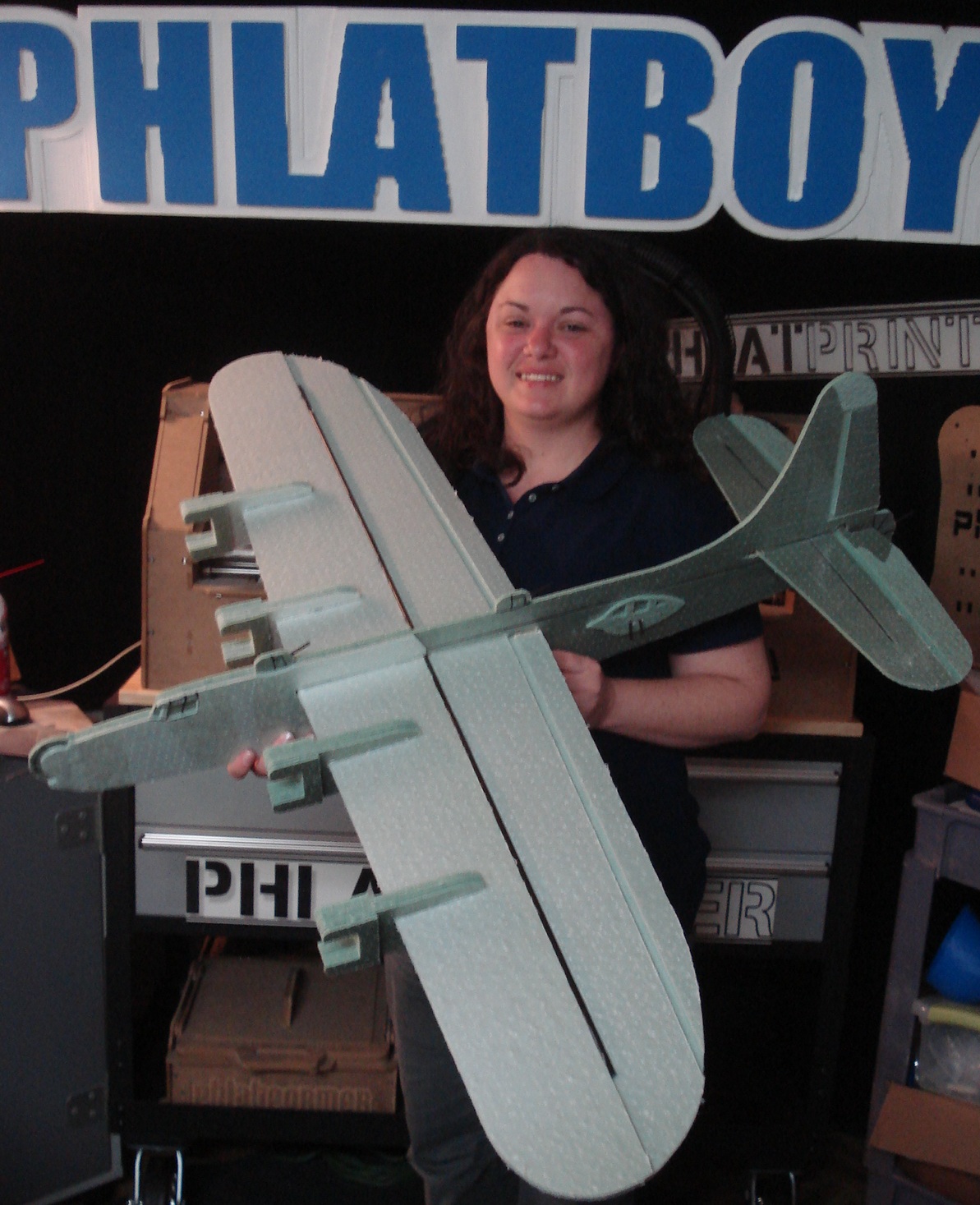

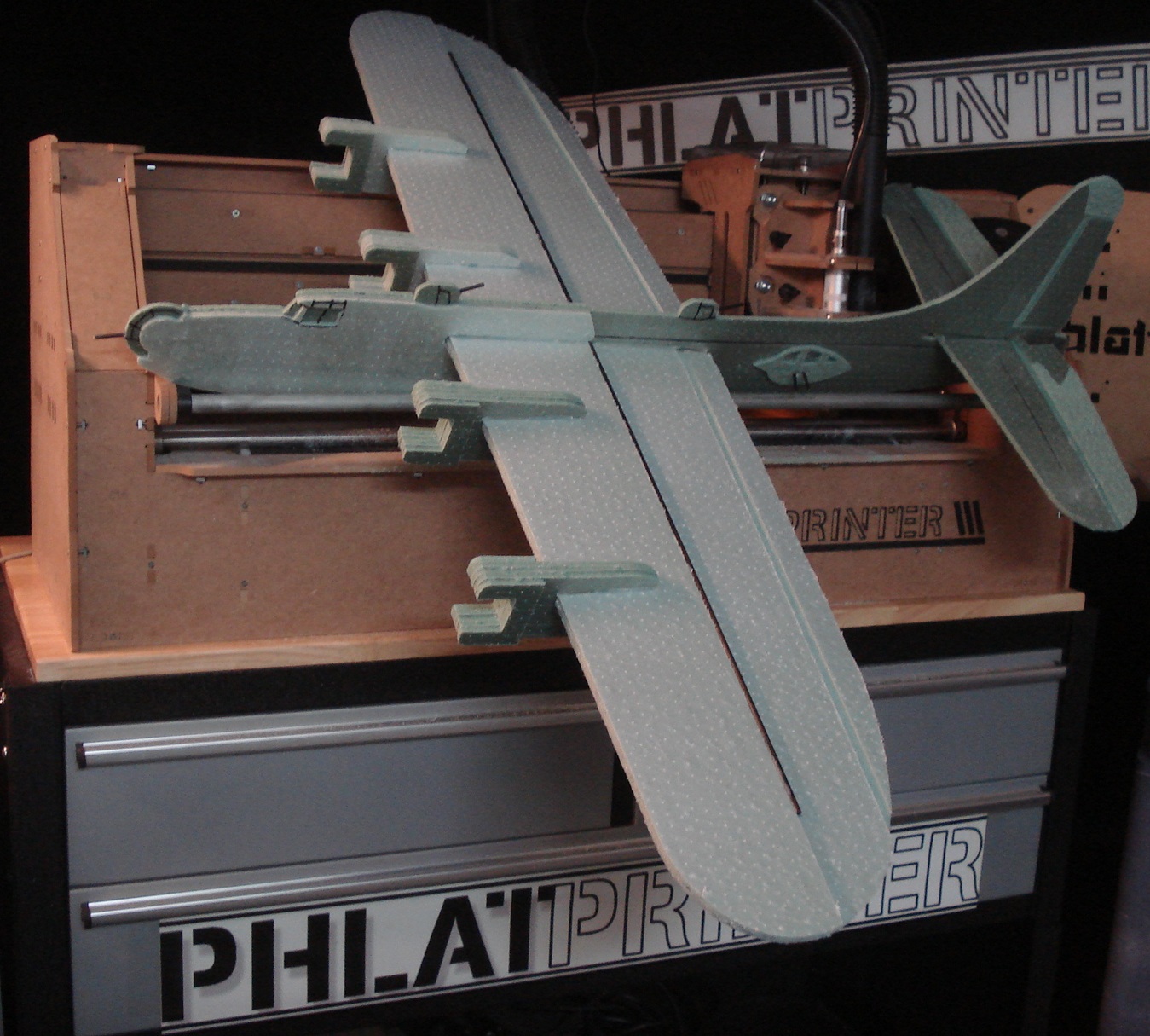

    The Build:




    :doubleup: Enjoy!
    :doubleup: Attached files [​IMG] [​IMG] [​IMG] [​IMG] PBY4-2 Privateer.skp (13.8 MB)Â PBY4-2 Privateer_SHEET 1.cnc (77.3 KB)Â PBY4-2 Privateer_SHEET 2.cnc (48.8 KB)Â PBY4-2 Privateer_SHEET 3.cnc (7.3 KB)Â [​IMG] [​IMG] [​IMG]

  2. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    Thanks Mark, This has the fixes?

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thank you Al for all the help on this one! :good:
    The two fixes were that the wing spar hole in the fuse was too small, but it just as easy to cut that out square. Second there were two many of the C's for the sides of the motors I did update the amount of C's in the sketchup but that's it so far. If anyone finds changes that need to be made please feel free to update this plan and we can fine tune it into a great flying craft. :)
    Mark and Trish
