Oh...forgot to say the markings on the wing and vertical fin are printed on this PC onto 8.5 x 11 clear label adhesive stock and then sprayed with clear laquer to seal the print from the elements.

Chuck



Mine has the really light colored tape. I just kept running strips to cover the wing. nothing fancy. I was really just wanting to add some extra strength to the wing.



The foam is from RC FOAM, 6mm white full sheet Depron and it comes 27" X 39". I usually cut a few inches off the 27" side to fit easily through the machine. Basically, the cut has to fit in a 39" space. That could be tough but maybe things can be scrunched up enough to do it. Even two sheets would be okay if necessary and like I said, that would allow for a 40 or so percent KF doubler to be cut at the same time for either over or under the wing. I wanted to fly PhlatJak again this morning (switched to a 1500kv outrunner) but it is nasty windy and looks like rain. Maybe will have to wait. By-the-way Frank, running lengths of thin tape is an excellent way to make the wing stronger.

Thanks
Chuck



Hey Chuck. I think I am going to have to try the epp route also. Fanfold was great but I have a box of the 24x36 9mm epp just waiting to be cut up



A nice straight 9mm EPP Phlatjak would be a sight to behold! It would be perfect for a 150% version so long as the tabs and slots and servo holes remained the same size as they now are. I am having trouble with every 24gram outrunner I put on this plane, they all make a strange noise at high RPM and it does not seem right. One of the flat out quit after making the noise. I am inclined to think it is a front bearing in the little motors. Now I am thinking about switching over to a bigger, heavier outrunner but about the smallest I have is 400 size and that is almost exactly double the weight on the Blue Wonder. Too much to think about, think I will take a break since it is far too windy to fly the Phlatjak again.

Chuck
...somewhere in Indiana...



Check the timing on your ESC if the motor is squealing under high power. Make sure your prop isn't too big either, I think a 9 X 4.7 is the biggest prop they suggest for the 1300kv motor



I was wondering about the timing. I think I have one of those timing cards around somewhere, I never use them and never check timing on anything and that could be the problem. Where should the timing be? I have tried three different motors now, two 1300KV and one 1500KV and they all make a rather noticeable "clicking" noise if I really power them up. I smoked one 1300KV, but doubt that was a timing issue. It got hot. I have been testing these motors with a 8x3.8 and that should be not too much. Also, Hextronic says they are best suited to 11.1V. I will try to check out the timing Jeff. Thank you. Oh...can the timing be checked/set with just the transmitter or is the timing card needed? Isn't there some sort of a beep system. The Blue Wonders come with absolutely zero instructions or specs, so it is areally up in the air. I just wanted to add all of you guys are great on this forum for offering suggestions and help.

Chuck
...somewhere in Indiana...



Chuck, it depends on where you got the ESC and what type it is, Lazertoys 10 amp ESC comes with instructions on how to time the ESC but timing a different brand with those instructions could be harmful to your ESC.



Yipee! Thanx 7up. Jeff, gotcha on the esc and the timing. I think I am using Turnigy esc and their timing card - the one with the led's and programmable music. I'll check it out.

I am anxious to get that 22 x 36 inch file in the system. Man-o-man do I appreciate that!

Chuck



Chuck, if you've got one of those Turnigy programming cards, life is good! I've used mine to set at least a dozen different brands of ESCs without any glitches.



Haha, I also redrew it with the wing servos farther out front, the Blue Wonder 24G motor just doesn't weigh enough to balance on a smaller Lipo, Instead of dead weight, I put a 1320 3S pack in it to balance it, The downside is that it weighs 12 OZ now instead of 7.

Hopefully get a flight on it tomorrow as the wind is crappy today



Jeff, anxious to hear how it does. On my gram scale, the 24gram blue wonder weighs almost exactly one=half as much as a 400 size outrunner. I could use the 400, it will fit, but it seems like overkill and then I would not want to use a 2S with such a motor. Keep us posted!

Chuck



Earlier this evening the 24gram Blue Wonder pulled the PhlatJak with authority. It flew right out of my hands. I was not the pilot, I was the "tosser". The plane flew straight and powerful for a short time when all of a sudden, all control was lost and the airplane began doing whatever it pleased regardless of stick commands. Symptoms were the same if someone turned on a TX with the same frequency, but that was not the case. The plane went into the ground pretty flat and the only damage was a slight break in the adhesive holding the motor mount on. This was caused by the prop hitting the ground. I am guessing the receiver is bad. No other reason can be found so I will switch out the receiver and give it another go after I glue the motor back on. The point here is, really, that the 24gram motor with a 1000mAh 3S and a 8x3.8 prop will provide more than enough performance for the PhlatJak. Great design! Gotta get if fixed and flying.

Chuck
...somewhere in Indiana...



7Up - great job on the revised PhlatJak c.n.c. for a single sheet of white Depron. Thanks a million. I cut one today (after I solved the scalloping issue on my MKII) and it came out real nice. I have not assmbled this one yet, I will keep it ready to go when needed. Thanks for your extra effort on this, I most certainly appreciate it.

Chuck

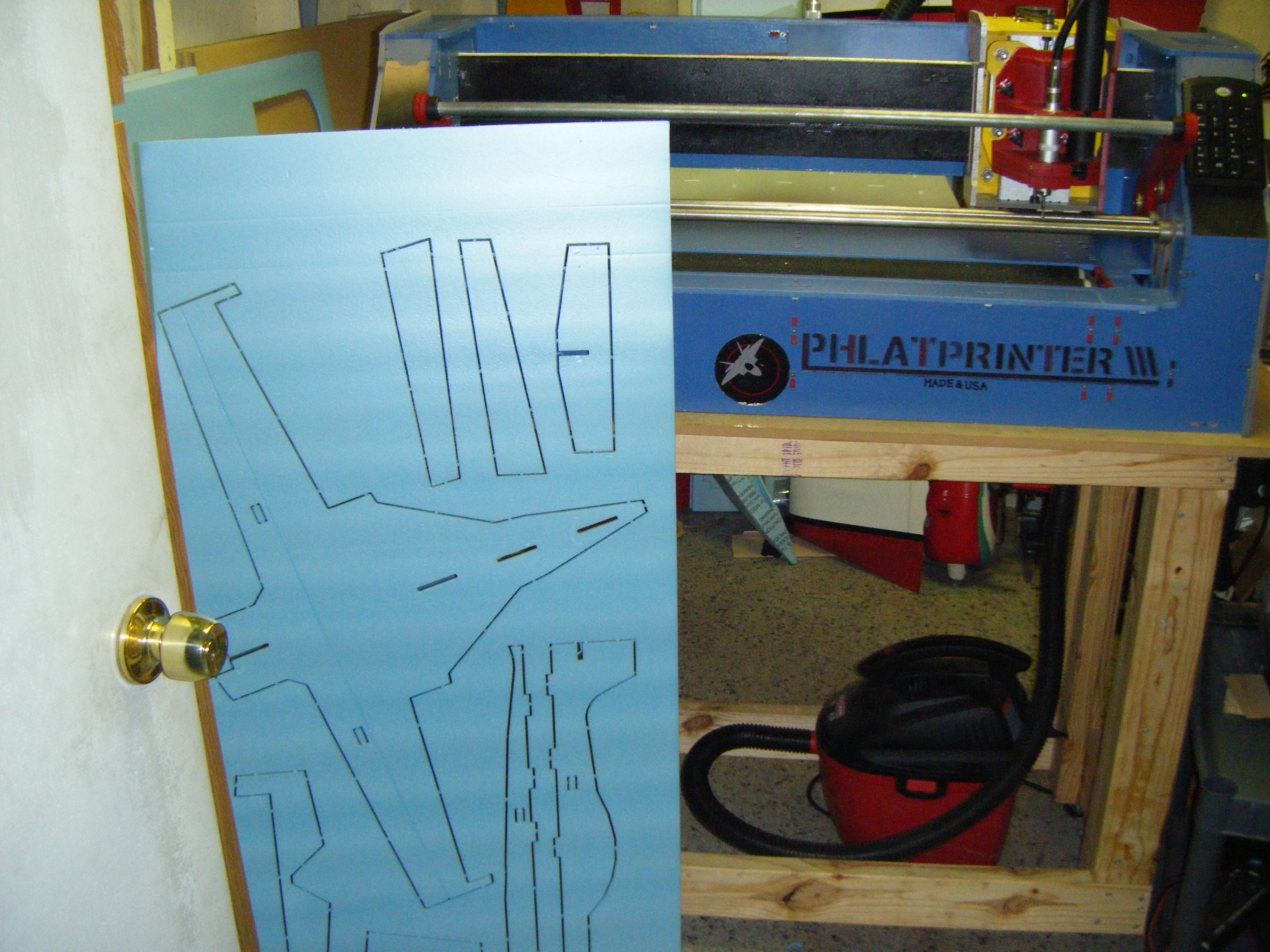

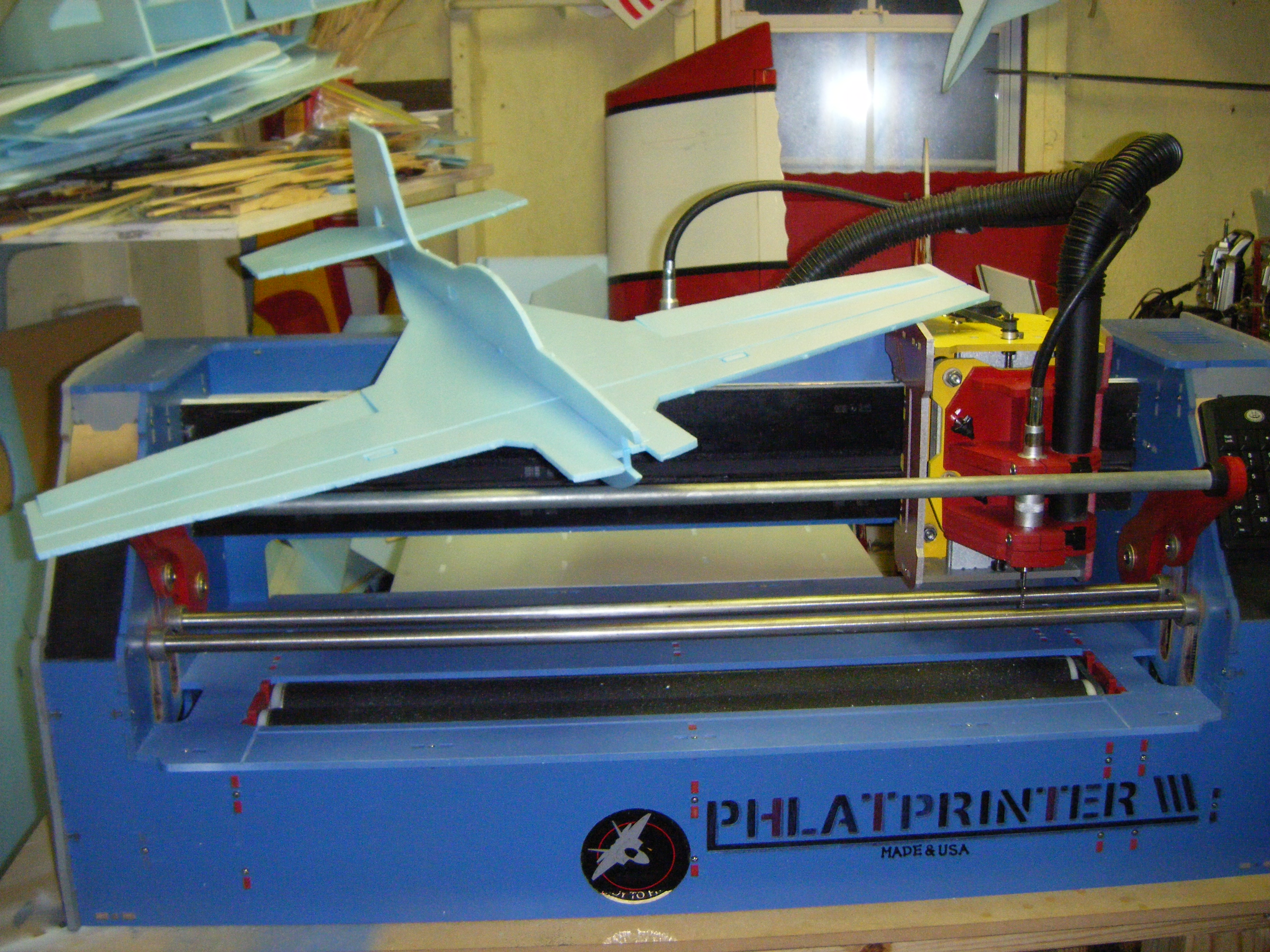

mark it cuts out fine.great job.

Attached files

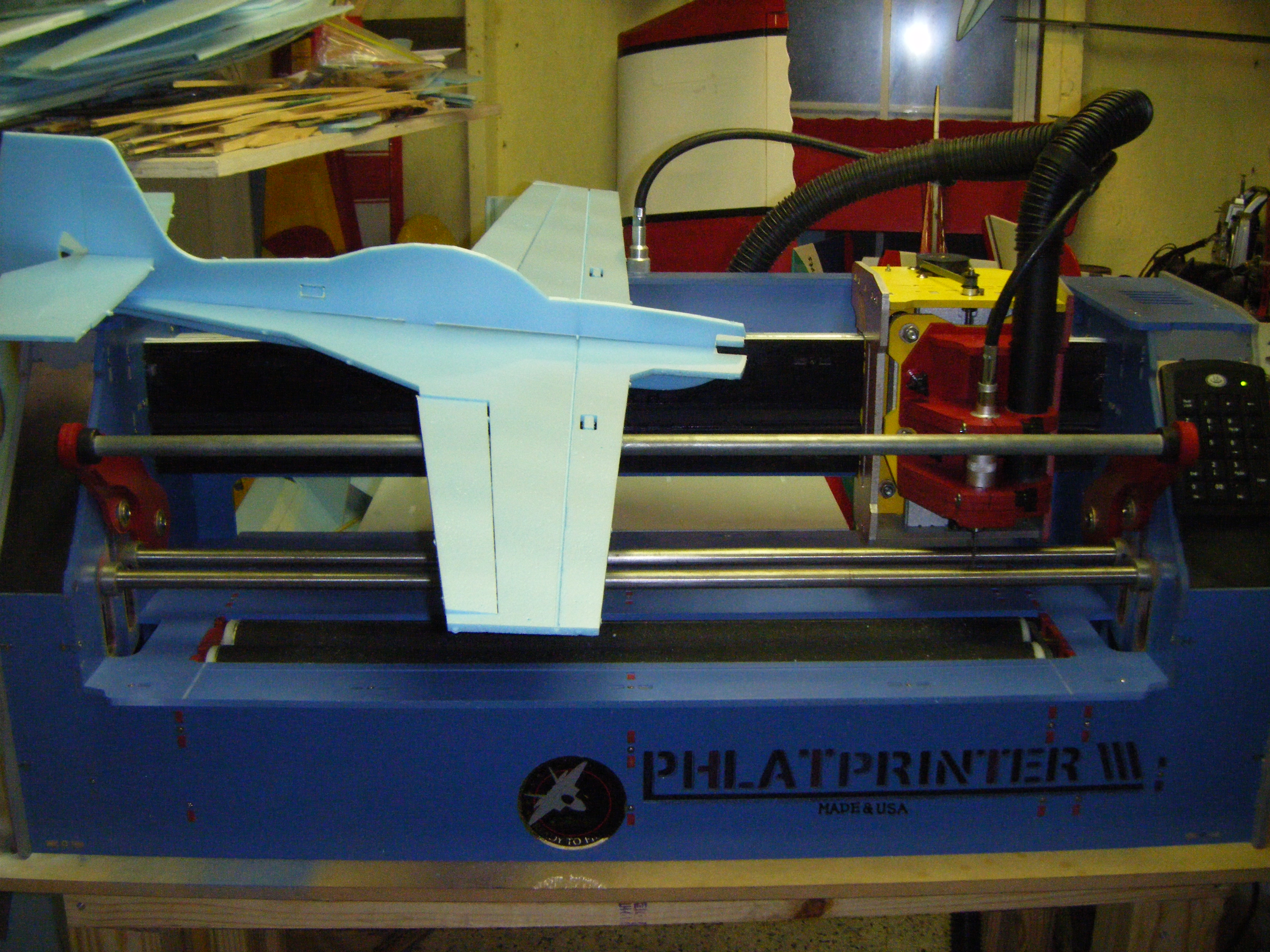

Hi Popedan41, is it just me or does the last tab towards the tail angle to the right a bit?


Eric



eric its strait its the picture.



Ok, thanks.


Eric
