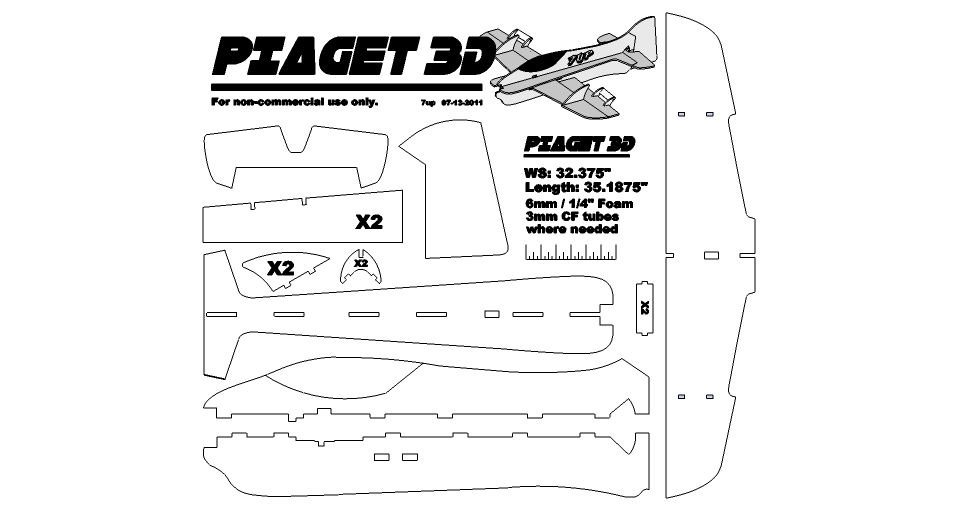

Yes, I know, another profile 3D plane . I worked this plan up for a guy who wanted some CNC cut, but due to some health issues I haven't been able to cut them, but the plans are done and no need for them to go to waste. Maybe someone can use them.

Your choice of 1/4" / 6mm foam, tab and slot construction, carbon fiber where needed, you know the routine.

Oh yea, the air-brakes are optional. If not desired, don't cut out the two slots on the trailing edge of the ailerons.

Now, back to my airboat.




Attached files



Thanks John!

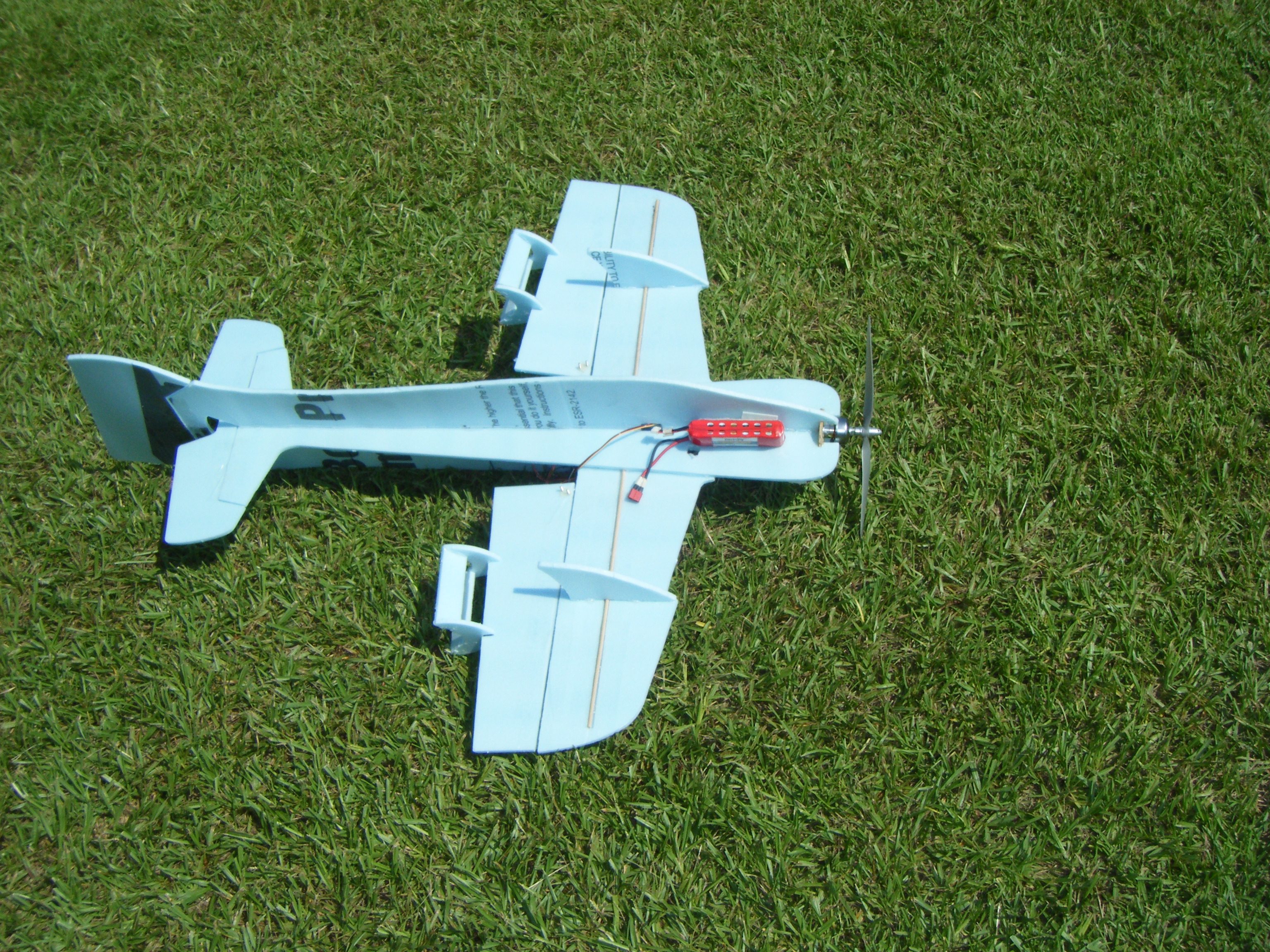

Thank you for sharing this Buk looks like it would be a lot of fun! Turned out great sorry it took so long to get it up on the announcement
I wanted to try to make a little micro-version of this little dude in 3mm!
Thanks again brother hope your feeling better very soon
Mark and Trish



Thanks Mark! If you do a mini/micro version please post it.



Cool Buk, Will do
Thank you
Mark and Trish



Very cool! Looks like you are the test pilot. Let us know how the maiden goes.

Please leave me any feedback on how the parts fit and wfere I need to make adjustments as I have not had a chance to build one myself.

I know I need to add the fold line for the spar to the wing. I forgot it when I posted the SU file.

Great build job!

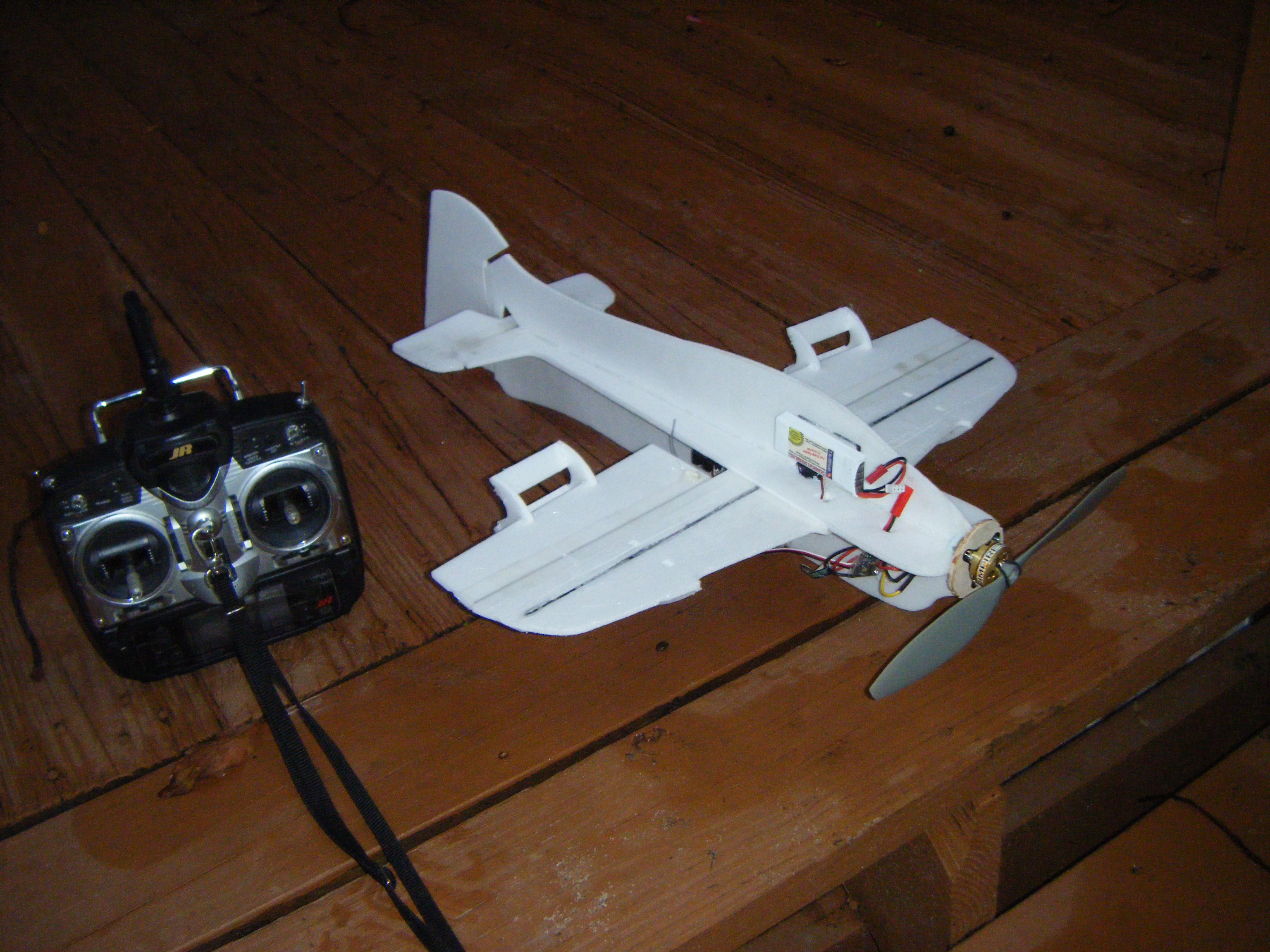

Great job Dan! Glad to kmow it flies.

Thanks for your build, pics, videos and all your input, it helps alot.

:fantastic:



Great to hear nstaller, thanks for posting your success!
Any input, good or bad, is helpful.

I think Mark was going to scale it down for micro gear but he stays pretty busy. If you have an idea of what size you'd like to try, I can scale it down and set it up for 3mm foam. Indoor season is coming fast, but I have no indoor facility so I've never really got into the micros but the scaling part I can do.

-Buk

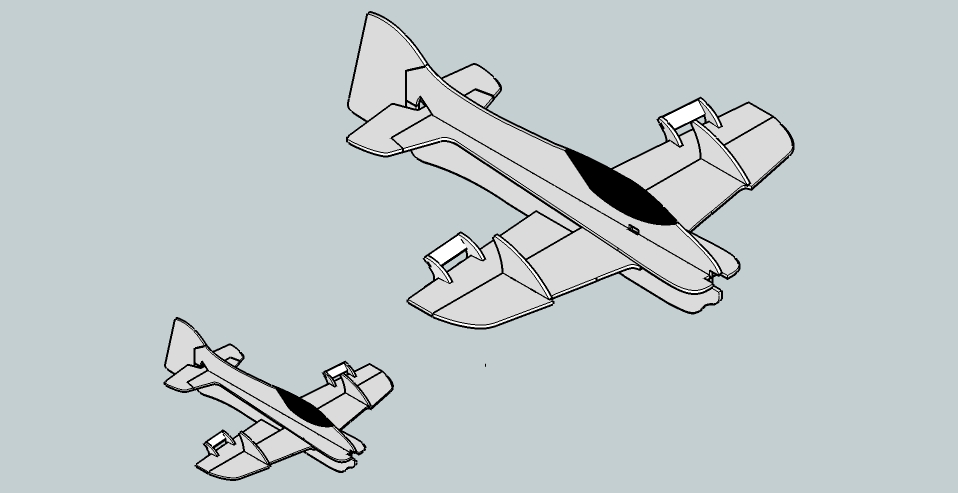

I added the 16.5" WS version to post #1. I left the servo cut-outs out of this one because I am not familiar with the micro gear.



Yea, it looks great, can't wait for a flight report, same goes for the micro.

Thanks for sharing!



Thanks for the plans Buk.

But looking at them , i think i want to ewoize them.
Would you mind if i made this plane Brick ready ?



Hey Bruce, that would be great. Thanks and please post your modified (ewoized ) version.



Thank you Buk !

Here is where im at right now. Still have to add the tabbing and do a couple other little things
But i should be able to cut tomorrow.

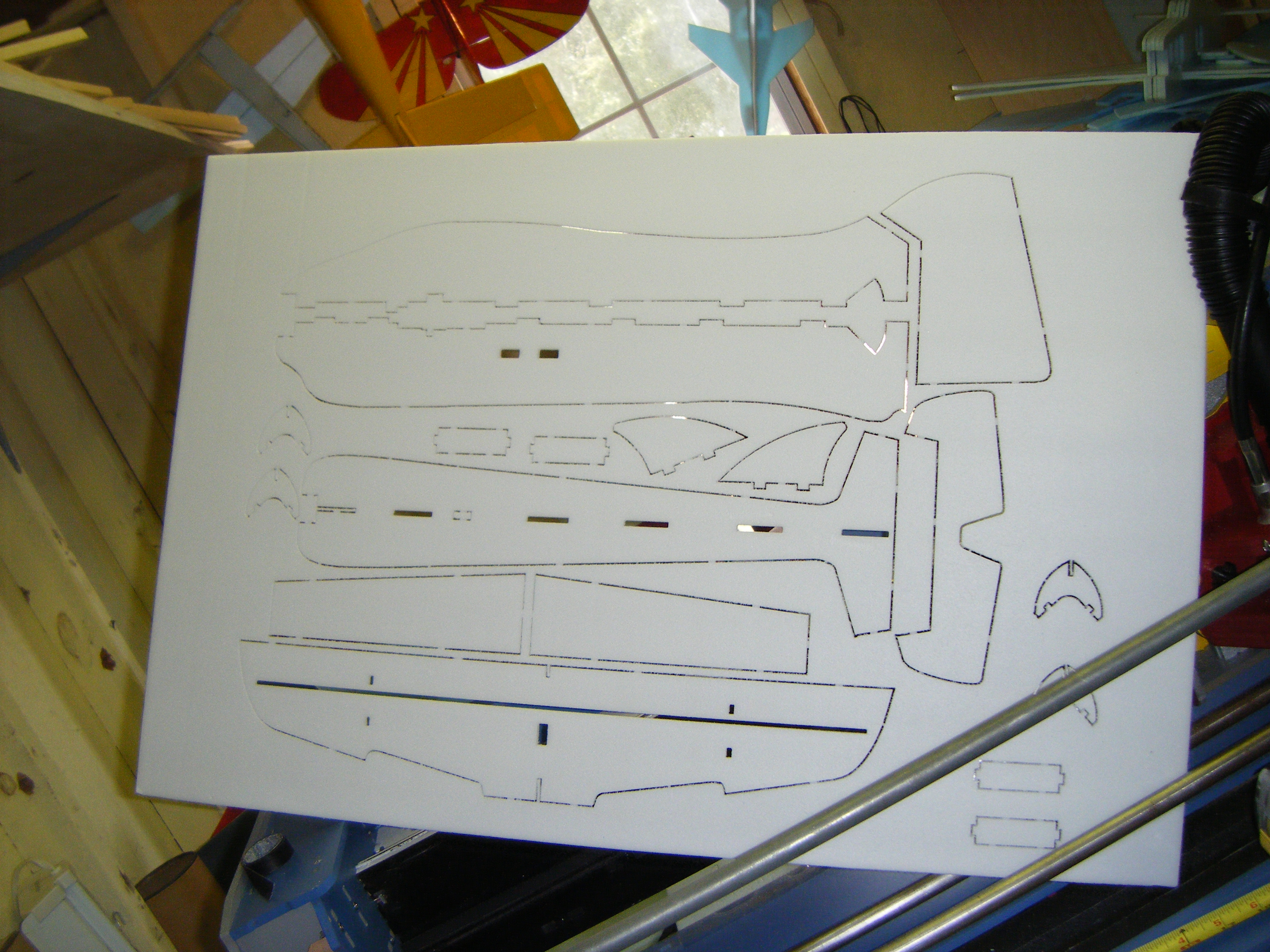

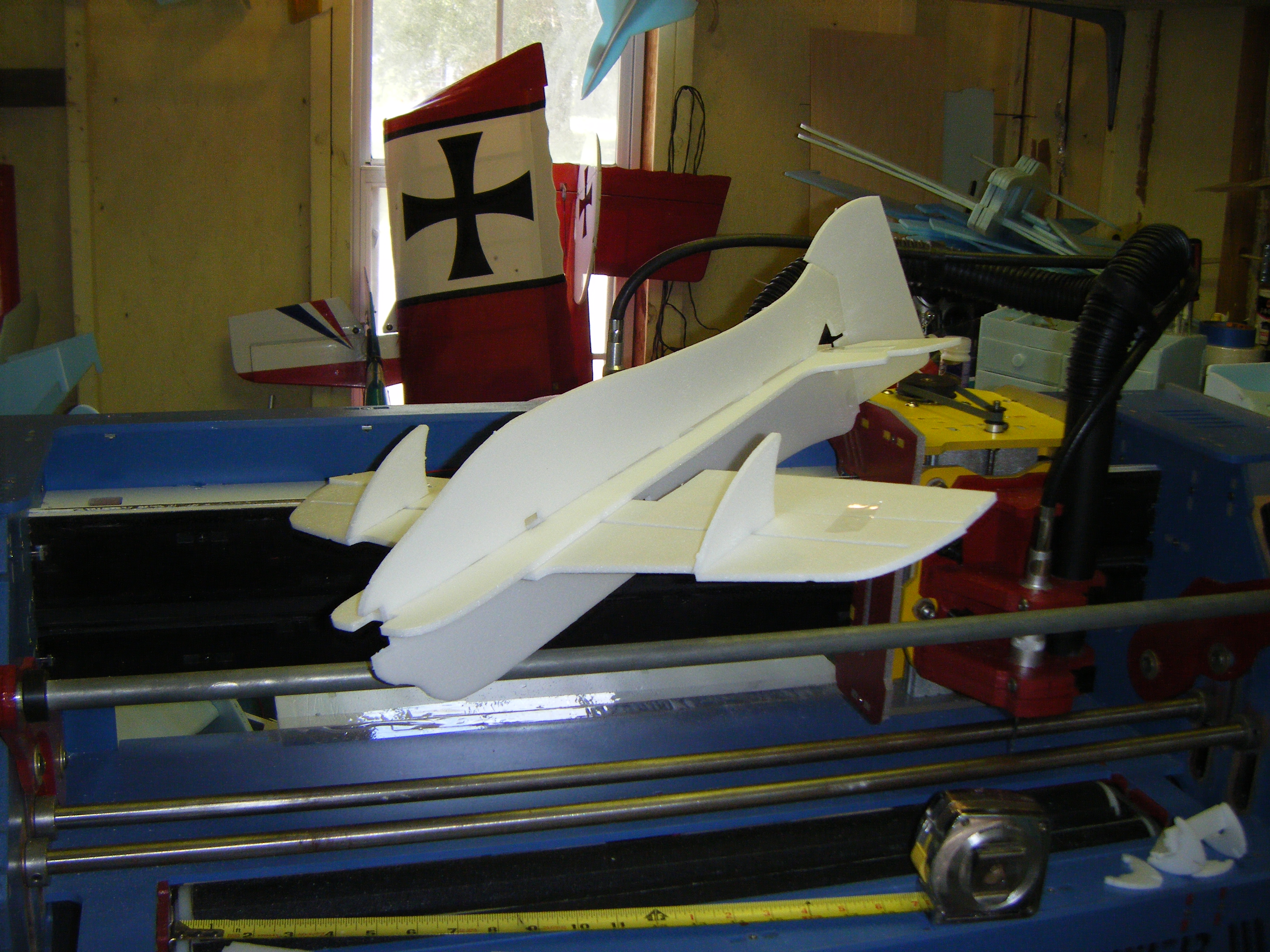

EDIT: Cut today



Very nice job Bruce! I like the parts modifications very much.

Thanks

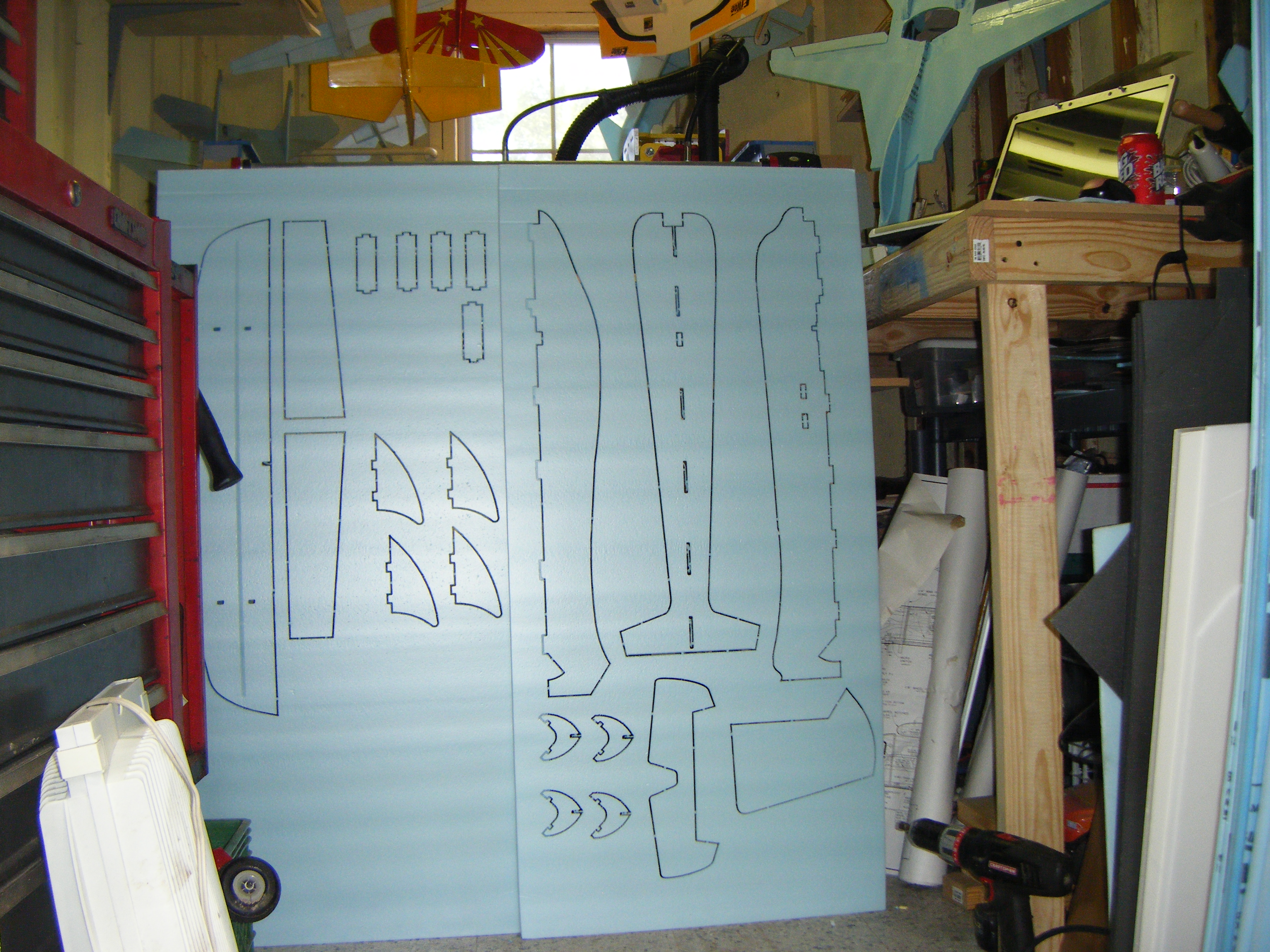

I cut this out this morning and found a couple little problems .
The problems have been fixed and im about to cut another.

I will put up the SKP and cnc files after i make shure the parts fit
