Hey guys here is the first in a series or frames developed for platforms for your quad adventures on the Phlatprinter!
This is the first attempt. I made this QikQUAD in an attempt to try and develop a light-weight easy to build quad for the Phlatprinter.

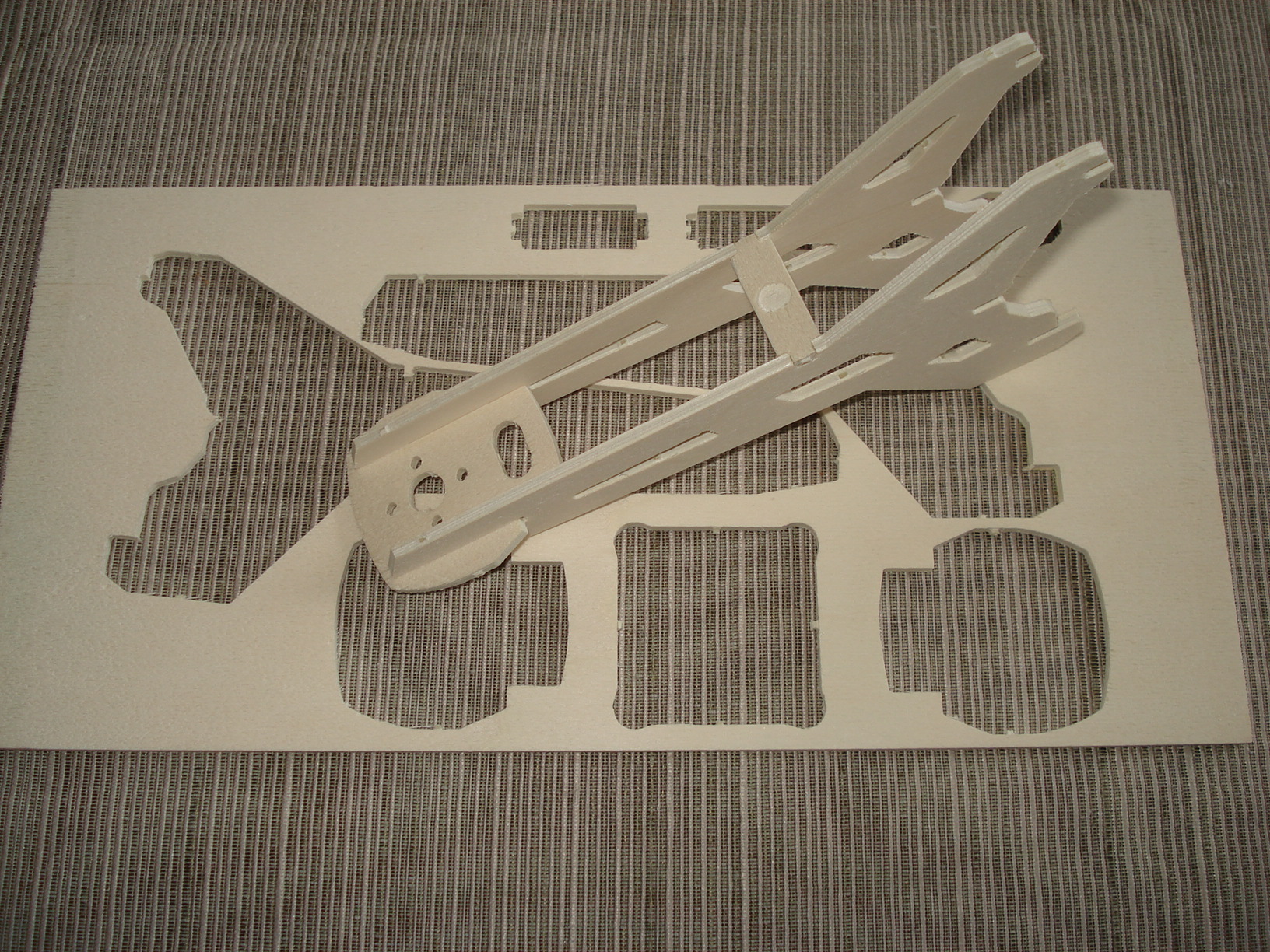

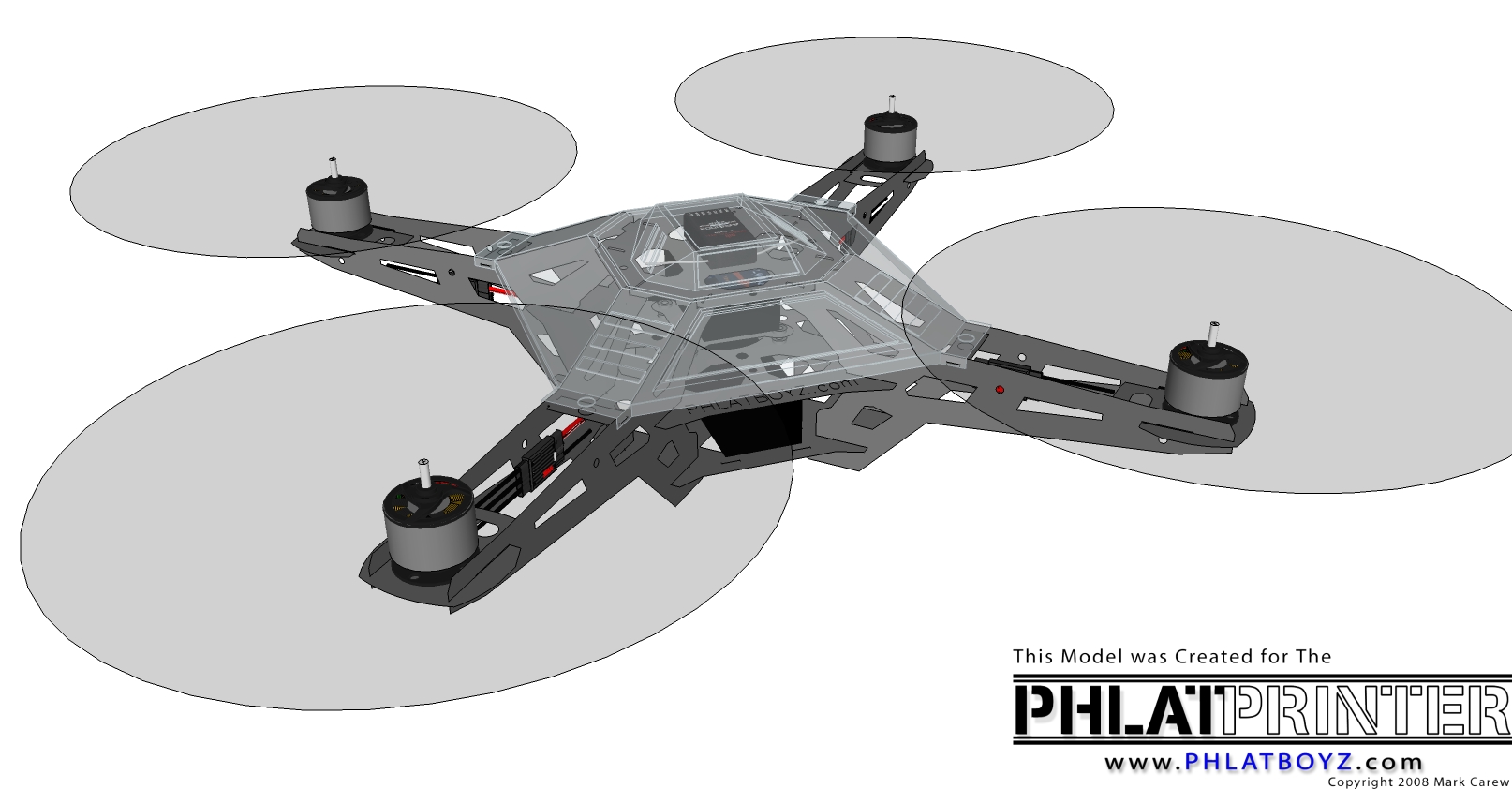

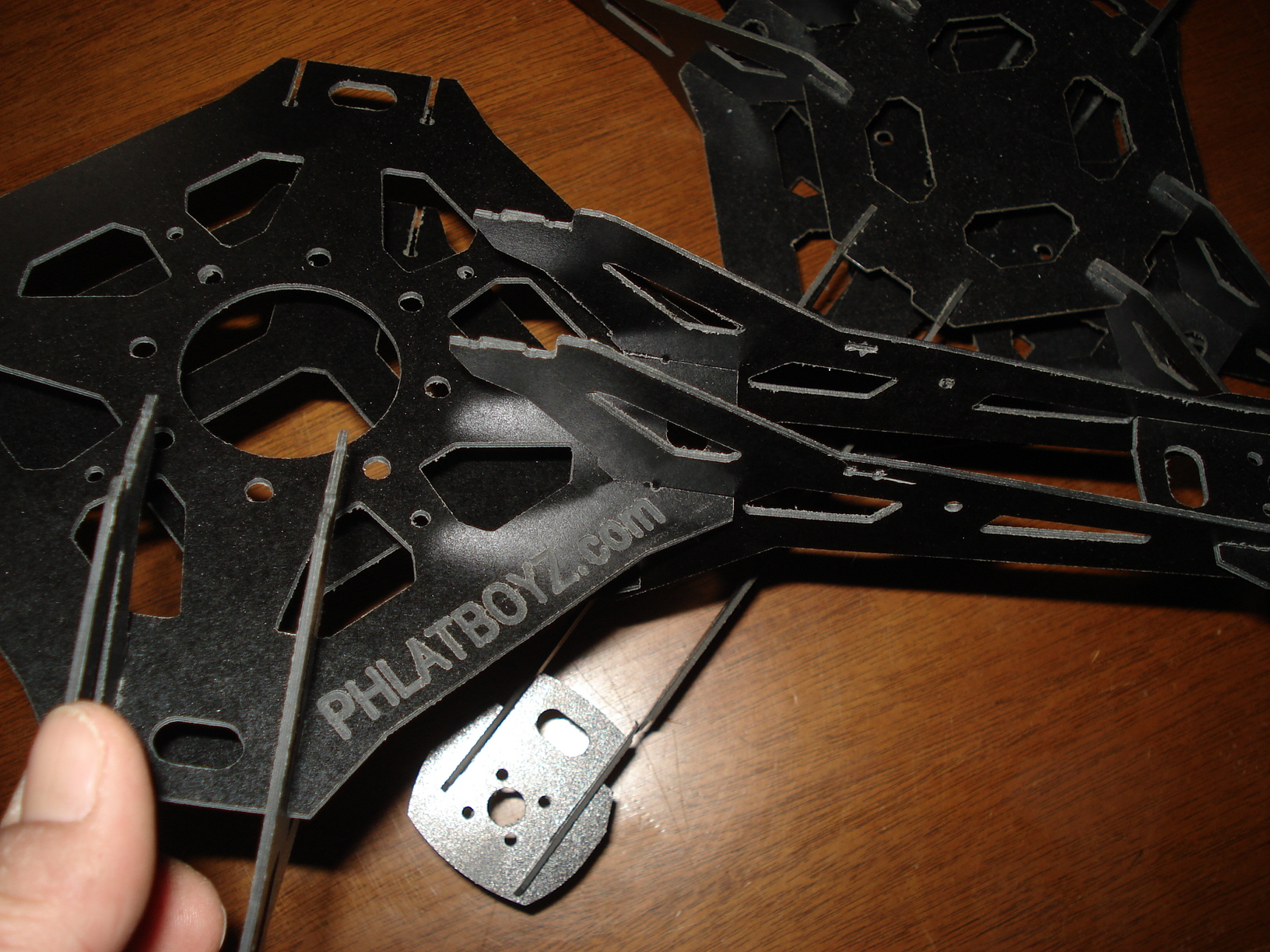

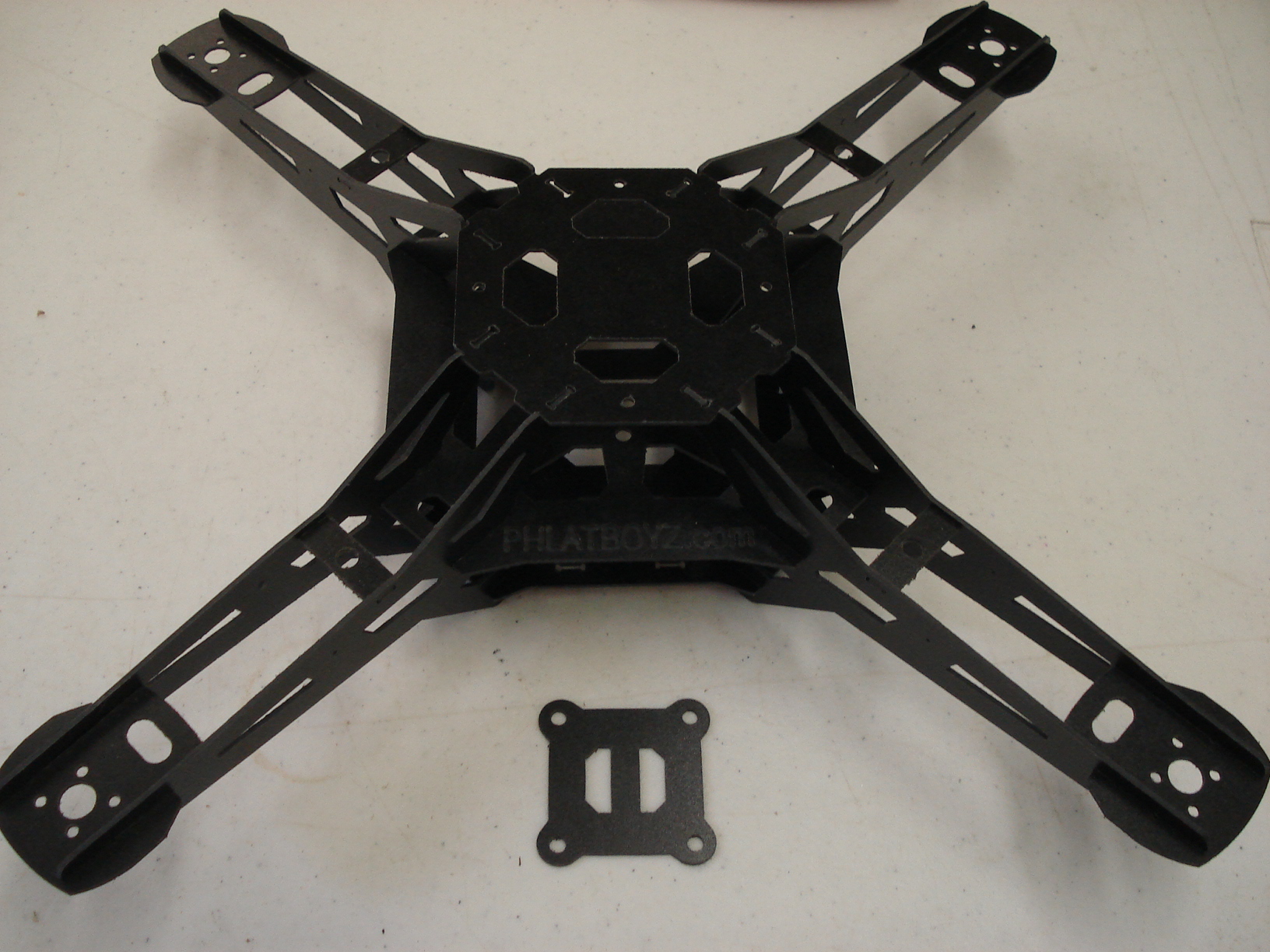

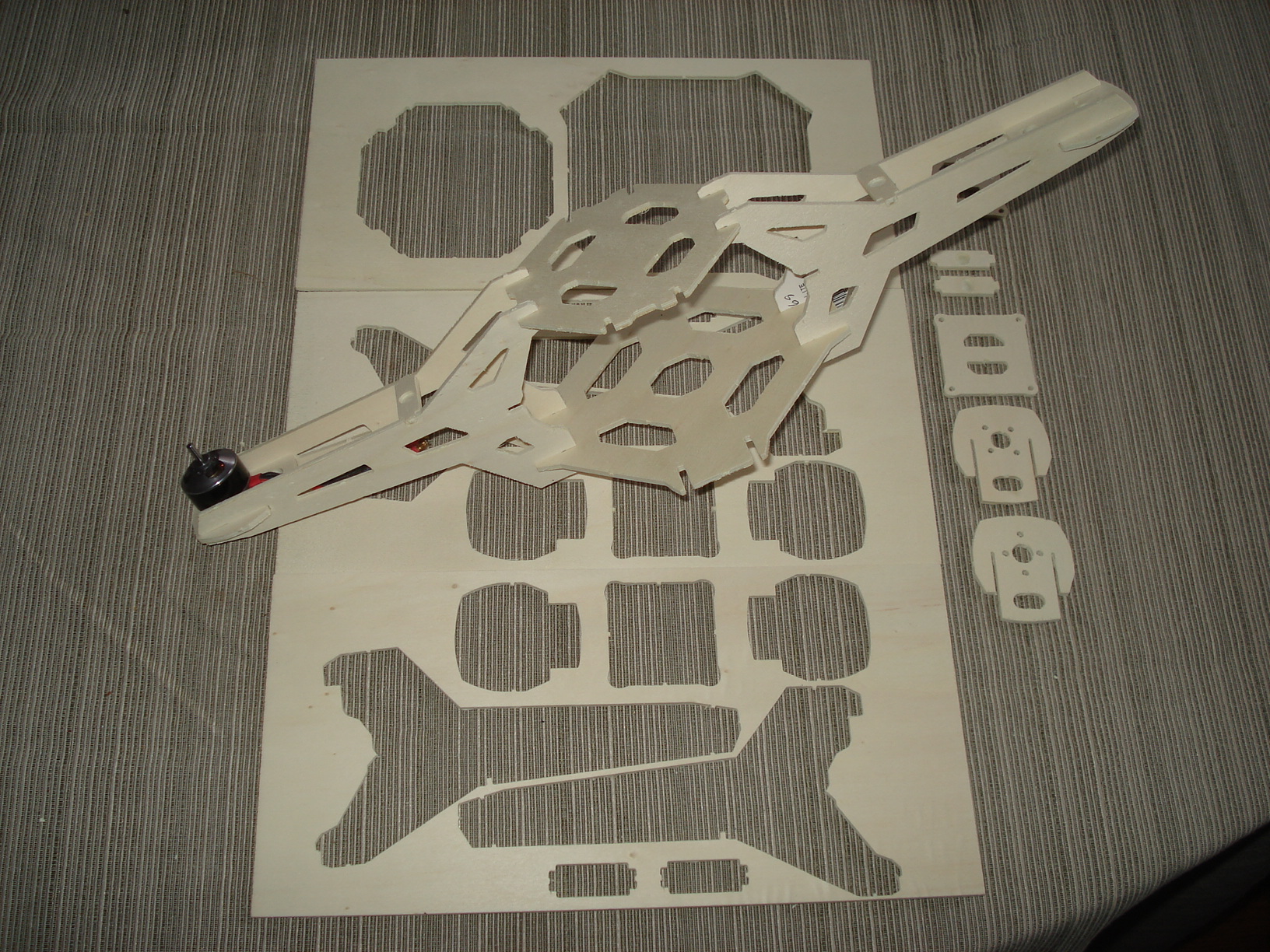

There are two versions of this quad one is 1/8th ply the other is 1/16 garolite XX The canopy file fits both. The canopy is Phlatprinted from 2" thick foam. Then plaster of Paris used to make the forum used on the Phlatformer (vacuum former) with the clear PETG plastic .020
Check the SketchUP files or the Gcode files for bit and material sizes
Let me just state that these are totally experimental and the design is largely based on pictures of quads I have seen other people build and fly. The designs need work and were left as prototypes somewhere along the process during the design process.


Here is my http://www.HobbyKing.com Test bed order for electronics

SK-2826-1000 TGY AerodriveXp SK Series 28-26 1000Kv / 240
TAE-25A Turnigy AE-25A Brushless ESC
Z22003S-25 ZIPPY Flightmax 2200mAh 3S1P 25C
XT60 XT60 Connectors Male/Female (5 pairs)
H9011A 9x5 Propellers (5Pcs/Bag)
H9012A 9x5R (Counter Rotating) Propellers (5Pcs/Bag
GWPRO002S3D GWS HD8040 3 Blade Prop (2pc pack)
GWPRR002S3D GWS HD8040 3 Blade Prop Counter Rotate (2pc)

Here is the Gyro I am using right now from http://www.rcdude.com
The FY-90Q
http://www.rcdude.com/servlet/the-1905/ ... zer/Detail

These designs should serve as a starting point or a helper in getting your quad built
Have fun and be sure to post pictures!
Mark and Trish Attached files 1_QIKQUAD 1-16th Garolite.cnc (560.6 KB)Â 1_QIKQUAD 1-8th small wood 6x12.cnc (219 KB)Â 2_QIKQUAD 1-8th small wood 6x12.cnc (55.2 KB)Â rc="http://www.phlatforum.com/xenforo/converted_files/37859=14452-DSC06564.JPG" class="gc-images" title="DSC06564.JPG" style="max-width:300px" /> QIKQuad4 1-16 Garolite.skp (3.6 MB)Â QIKQuad4 1-16 Garolite.skp (3.6 MB)Â QIKQuad4 1-16 Garolite_CANOPY.cnc (295.8 KB)Â QIKQuad4 1-16 Garolite_CANOPY.skp (335.5 KB)Â QIKQuad4 1-8th.skp (3.6 MB)Â



ANOTHER ONE!!!! 2 for 2



lol



QikQUAD plans are up!
need to find a stronger material to make these out of, maybe G10?
Enjoy



Yeah plywood is heavy with all the glue sandwiched between the layers.
I wonder what it would weigh from G10 or better yet carbon fiber!
Mark and Trish



This is true Jeff and thank you for the word of caution.
There is something that I have been wanting to test out. Crash and I were talking on day and he had mentioned about wanting to cut carbon fiber. So we were thinking of ways to keep the dust down or eliminate it completely. He came up with the idea of gluing a piece of foam to the bottom of a tray/pan as a sacrificial board and laying the carbon sheet on top. Filling the pan with enough water to cover the carbon sheet and making the cut underwater. i think it would work great this way, but has yet to be tested and the pan carrier would have to be designed as low profile as possible to ride under the pressure rollers. There would be a lot of testing to do but it may just work
Mark and Trish



Thats a good idea TP and its a much simpler solution. If it keeps the dust down it would be easy enough to try
Mark and Trish
