Steps I take...

Discussion in ''Aircraft KITS' you are working on' started by Watt_the?, May 22, 2011.

  1. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    I have under development 3 biplanes and now I have done the videos for most of the process. The planes are Roland CII, Fokker E III with deformable wings and pretty soon Airco D H II.
    I have couple videos but I want you to let me know if actually you are able to understand and learn something from them. I had some small problems with PP but now everything is solved.
    So this being said... enjoy.




    And first of the 14 videos, each around 10 min...

    PS.
    I will leave some time between them, let say two a day.

  2. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    Nice Videos :doubleup: Keep them coming.

    Cheers

    E-T

  3. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Very good. I like the wing warp in the first video.

    :good:

  4. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    That Fokker is a handful. The WS is 42" and the weight is around 17oz RTF. Because the nose is so short I had to ad 2.5 oz of led but if the wind is over 20mph you have no control over it.

  5. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
  6. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    Looks very interesting... I'll have to (remember to) take a look at home tonight.

  7. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Very good videos. :good:

  8. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    If is anything unclear please let me know because I'll make more videos for some more planes and I want to make sure that everybody understand... my english and what I'm doing. :D

  9. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    These are great videos!
    Its awesome to get a seek peek into your building styles
    Thank you for sharing Igor :doubleup:
    Mark and Trish

  10. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    Had a chance to watch last night. GREAT stuff.
    Do you plan on covering how you make the unfolded shapes in Sketchup fit the folder shapes in the real world? This is the part I still have a hard time with .

  11. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    rcav8r I hope you will understand right what I'm trying to say. First every and each model is different, also the way you decide to build it. The unfold in sketchup and then shrink the spars or ribs with the amount equal with the material thickness is a myth. Is no such thing as magic formula to get the spar/ribs to fit perfect the skin. Every strait edge and curve act different and has to be treated separately despite the fact that are from the same skin.
    I will make a video on a model from start to finish as soon as I finish this one, in the same time if you or anybody know of a video screen capture program for Mac, please let me know.

  12. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
  13. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
  14. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Keep'em coming Igor, these are great! :D
    Mark and Trish

  15. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    I just what to let everybody know that my site is under maintenance, some major changes take place so it will take some time. I am one man band and is difficult to do all the web stuff, project build and test all the planes in a short period of time. But enough with the talk, time to bring you up to speed with the Fokker E III status... I did not went all the way with the details but is just a prototype...
    Again, thank you Mark and Trish for this great tool. I still learn my way around but the sky is the limit when it comes to creativity.

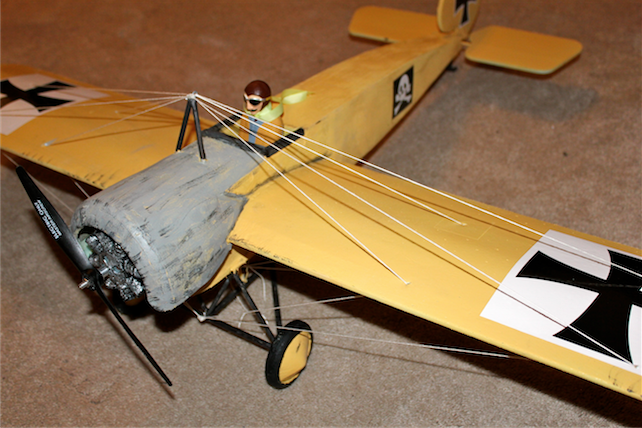

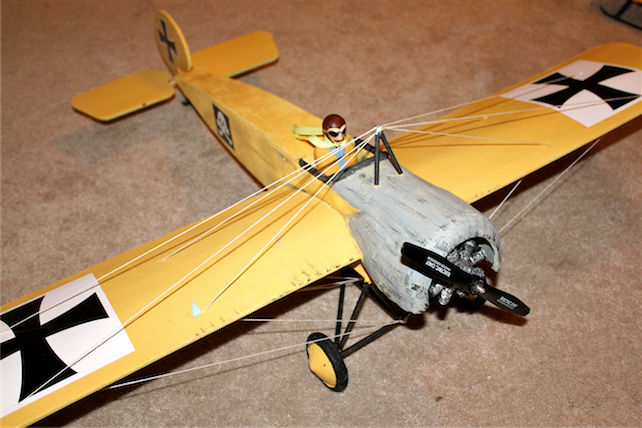

    Enjoy... Attached files [​IMG] [​IMG] [​IMG]

  16. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    The wind is still crazy so is no go for a test flight. I'm sorry but this is the situation for now.

  17. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    That is a fine lookin' plane. :flying:

  18. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Nice job! :doubleup:

  19. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    Entire plane is FFF. Just the firewall is LitePly of 1/4 and landing gear is made from hardwood rounded sticks. I replaced the CF rod on LE with 2 bamboo rods embedded in the wings. They are strong and allow the torsion of the wing without any problem.

  20. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
  21. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Taking shape now, looking good! :good:
    Mark and Trish

  22. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    This wind is driving me crazy... but the plane behave good. This shape changing wings works and once the wind die down I'll have a blast.

    I'm not flying the yellow Fokker E III in this weather... or the Rolland C II.

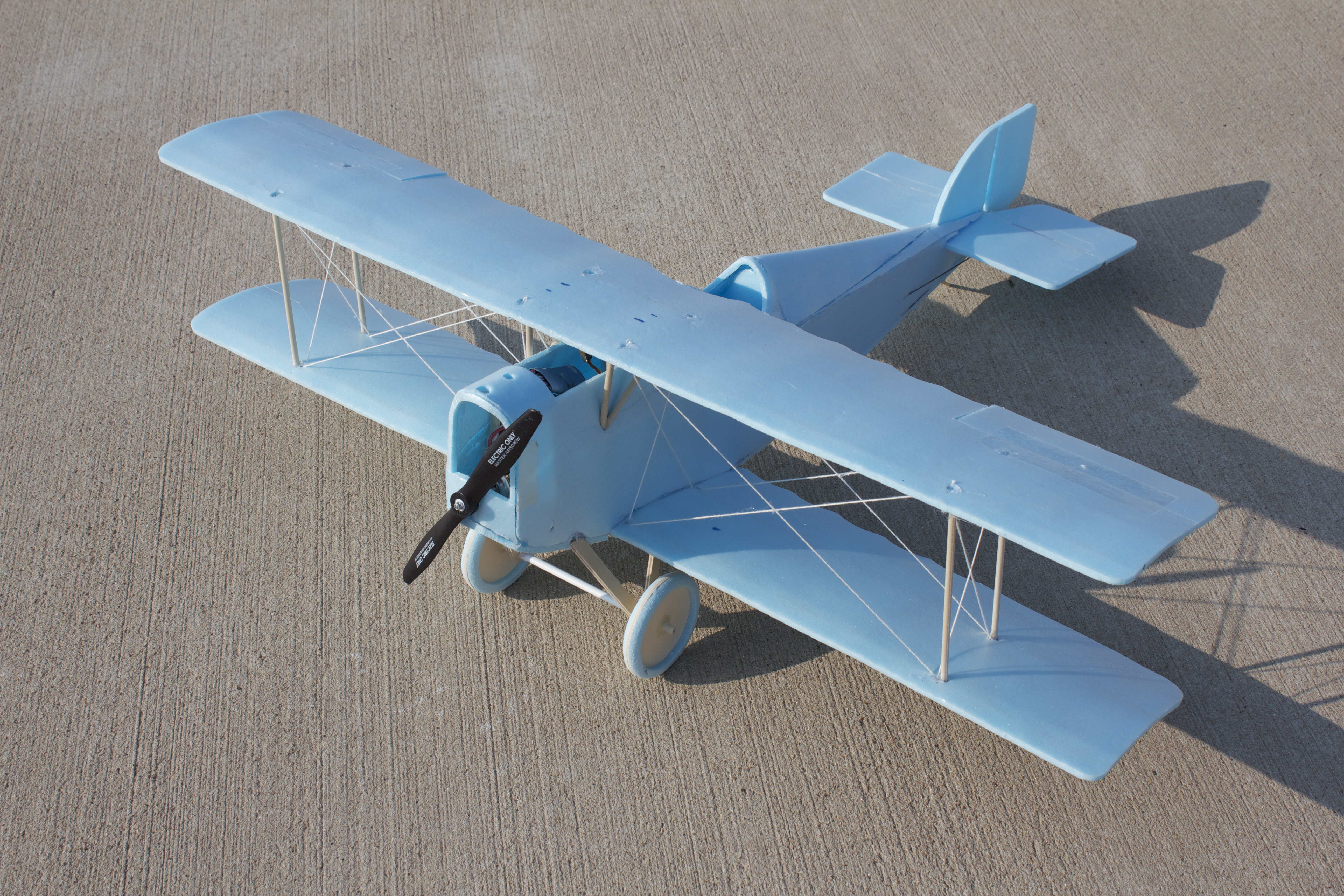

    I build a Aviatic DI (MKI) and is waiting for "paint job"... :D Actually the MKII will have ailerons on both wings not only on the top one... Attached files [​IMG] [​IMG]

  23. Watt_the?

    Watt_the? Member

    Offline
    Messages:
    143
    Trophy Points:
    16
    Location:
    McKinney,Texas
    I'm still looking for some mesh or screen for the Aviatic DI... Anybody any idea?

  24. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    I'm not sure exactly what you need but how about nylon panty/support hose?

  25. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    Windows screen material?
