Welcome to The Phlatforum PhlatPrinter III

The Phlatwing

Discussion in 'Single Wing Aircraft Plans' started by crash5050, Feb 24, 2010.

  1. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas

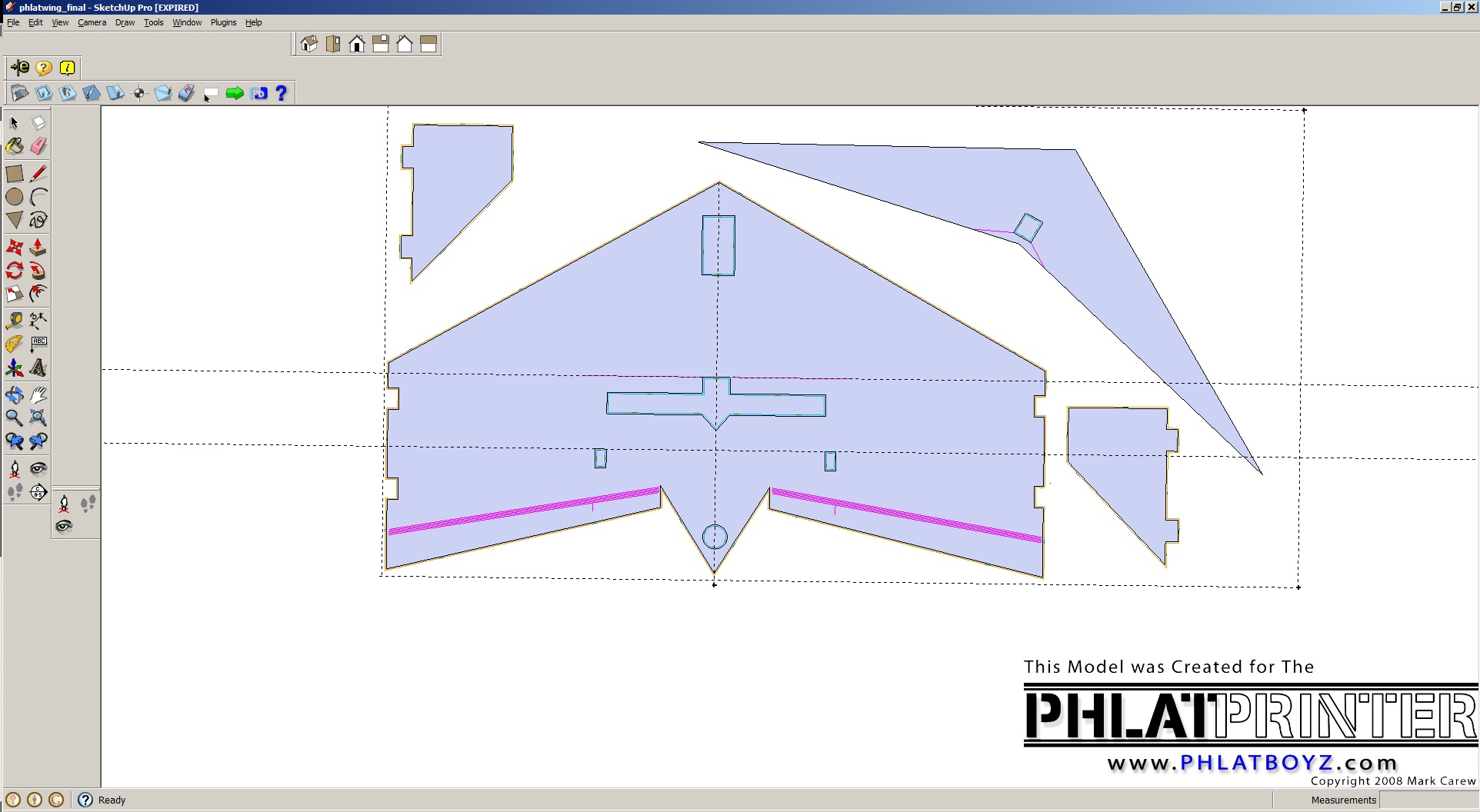

    It only took 6 weeks, but I think the "Phlatwing" is ready for public review. It isn't perfect, so improvements are encouraged.

    Crash5050 Attached files [​IMG] phlatwing1_final.cnc (8.8 KB)Â phlatwing_final.skp (235.9 KB)Â

    crash5050, Feb 24, 2010
    #1
  2. mavacpjm71

    mavacpjm71 New Member

    Offline
    Messages:
    167
    Trophy Points:
    0
    Way to go Crash5050. Nice design, straight to the point and well done. Only suggestion is to shorten the side notch depth for the winglets. Looks a little to deep to receive, assuming 6mm or FFF for the foam unless you are sandwiching 2 winglets together for each side.

    Well done!!!! :mrgreen:

    -Peter

    mavacpjm71, Feb 24, 2010
    #2
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Nice Job Crash5050!
    Thank you for sharing this, looks like it will be a fun design for this summer!
    Mark

    kram242, Feb 24, 2010
    #3
  4. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Hey Crash5050,
    Good job, things will get easier as you go along.
    You may also want to note the upper right triangular piece doesn't have a cut line applied to it.

    3DMON, Feb 24, 2010
    #4
  5. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas
    I'll be darned, I better fix that.

    crash5050, Feb 24, 2010
    #5
  6. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    Cool design. Never considered tabs on the wing tips like that. Looks fast!

    frankrcfc, Feb 24, 2010
    #6
  7. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    I really like it but I would move the servos and horns more out towards the middle of the Elevons, Being on the small part and inside will give you huge deflection unless they are made of balsa (don't ask me how I found out :roll: )
    If it is made to just fly slow then I wouldn't worry too much about it, but there is nothing like high speed flutter to ruin your day.

    Jnida63, Feb 24, 2010
